31330104 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

Data Sheet

PT115xxHBBN

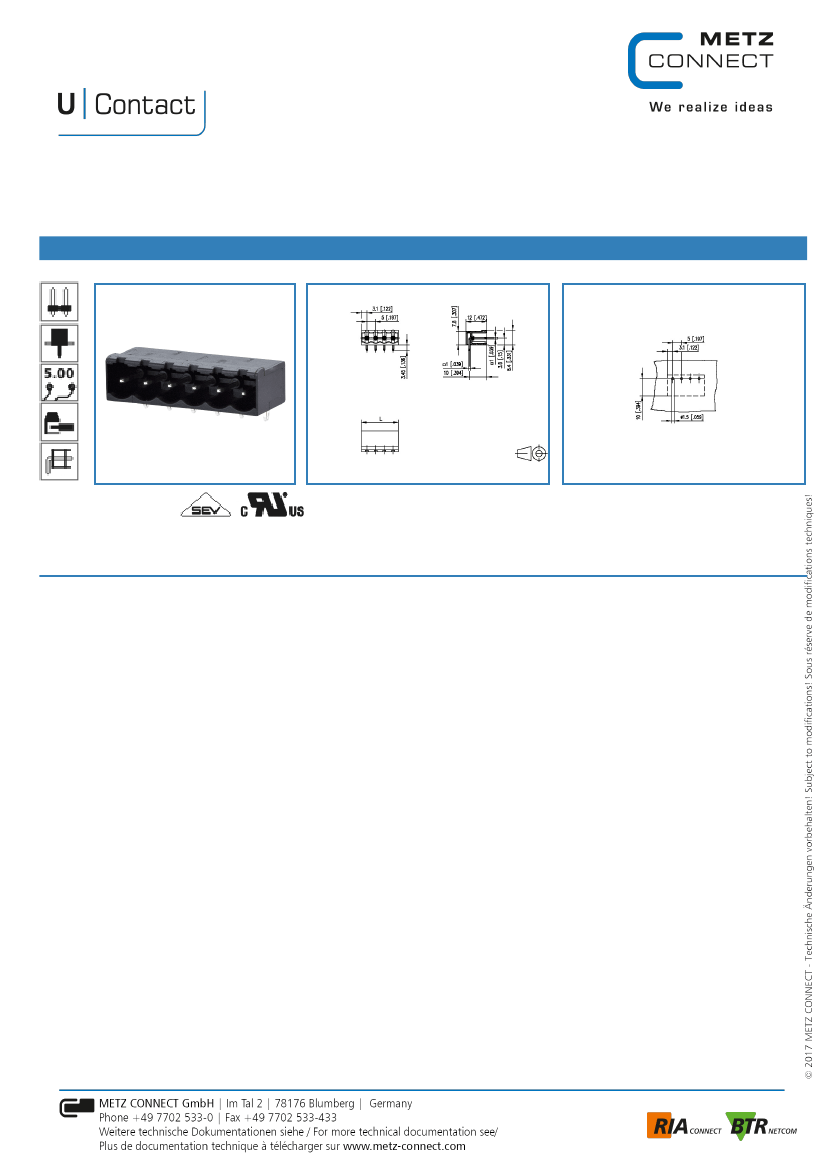

Illustration

Page 1/5

P/N

313301xx

xx=number of poles

2017/05/05

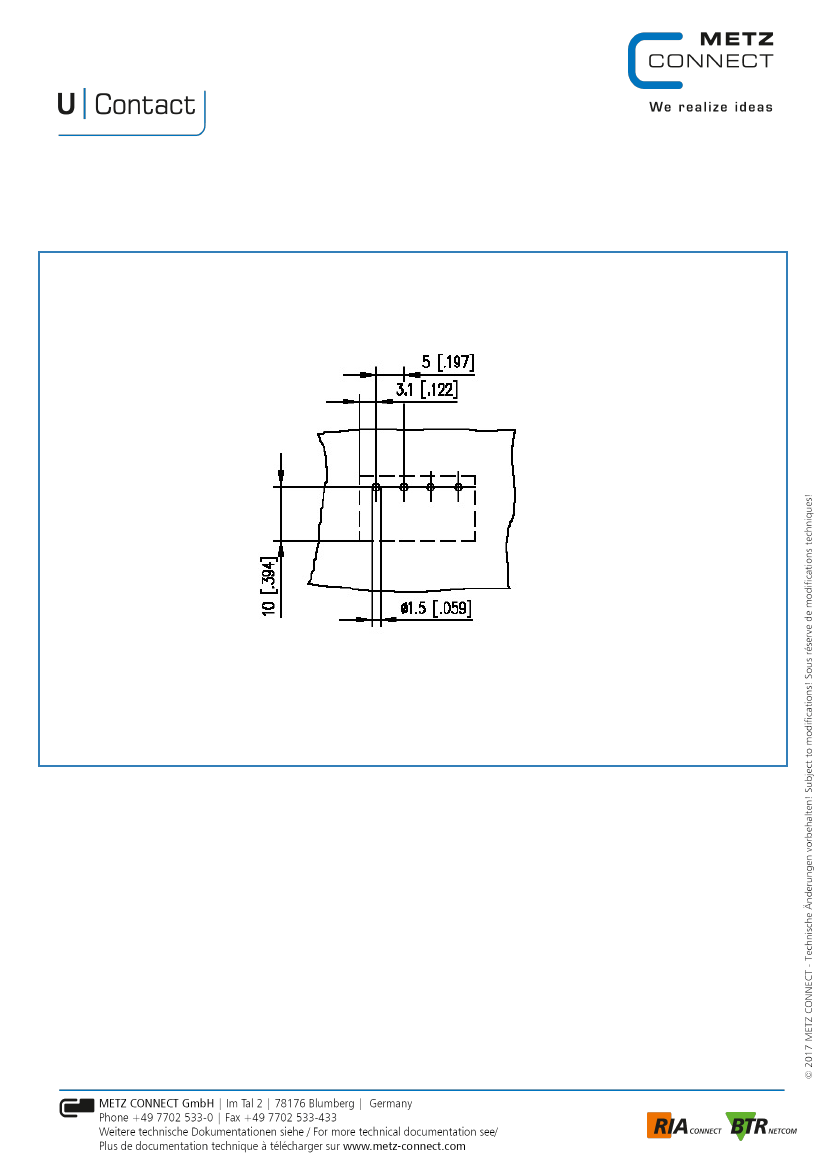

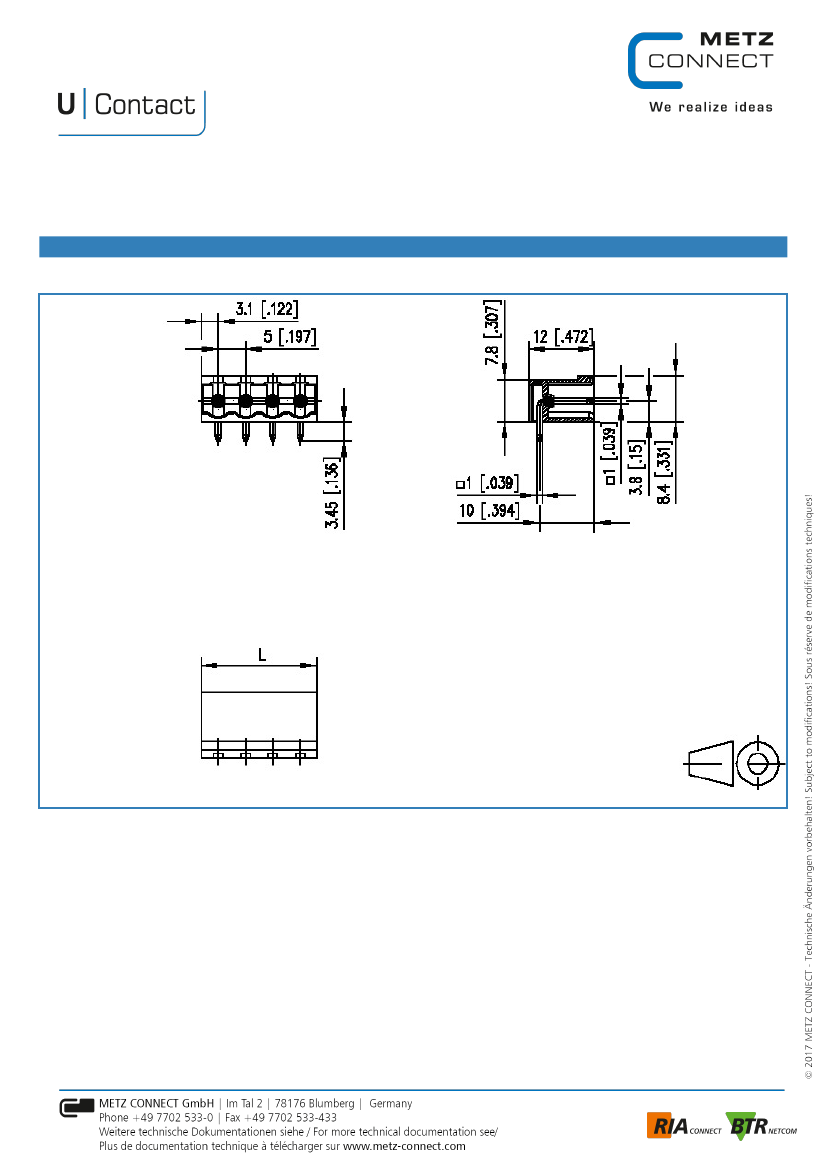

see enlarged drawing at the end of the document

Product specification

• pin header, solderable

• centerline 5.00 mm, direction of connection 90°

• closed ends

• color black

• codeable

	31330104	31330103	31330102	31330106
Description	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,	Board Connector,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	1	1	1	1
Contact point gender	MALE	MALE	MALE	-
DIN compliance	NO	NO	NO	-
Filter function	NO	NO	NO	-
IEC compliance	NO	NO	NO	-
MIL compliance	NO	NO	NO	-
Mixed contacts	NO	NO	NO	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	-
Number of rows loaded	1	1	1	-
Terminal pitch	5 mm	5 mm	5 mm	-
Termination type	SOLDER	SOLDER	SOLDER	-
Total number of contacts	4	3	2	-
UL Flammability Code	94V-0	94V-0	94V-0	-
