5817SM datasheet, PDF - EEWORLD Datasheet

5817SM: Description1 Amp Schottky Rectifier; CategoryDiscrete semiconductor diode; File Size115KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

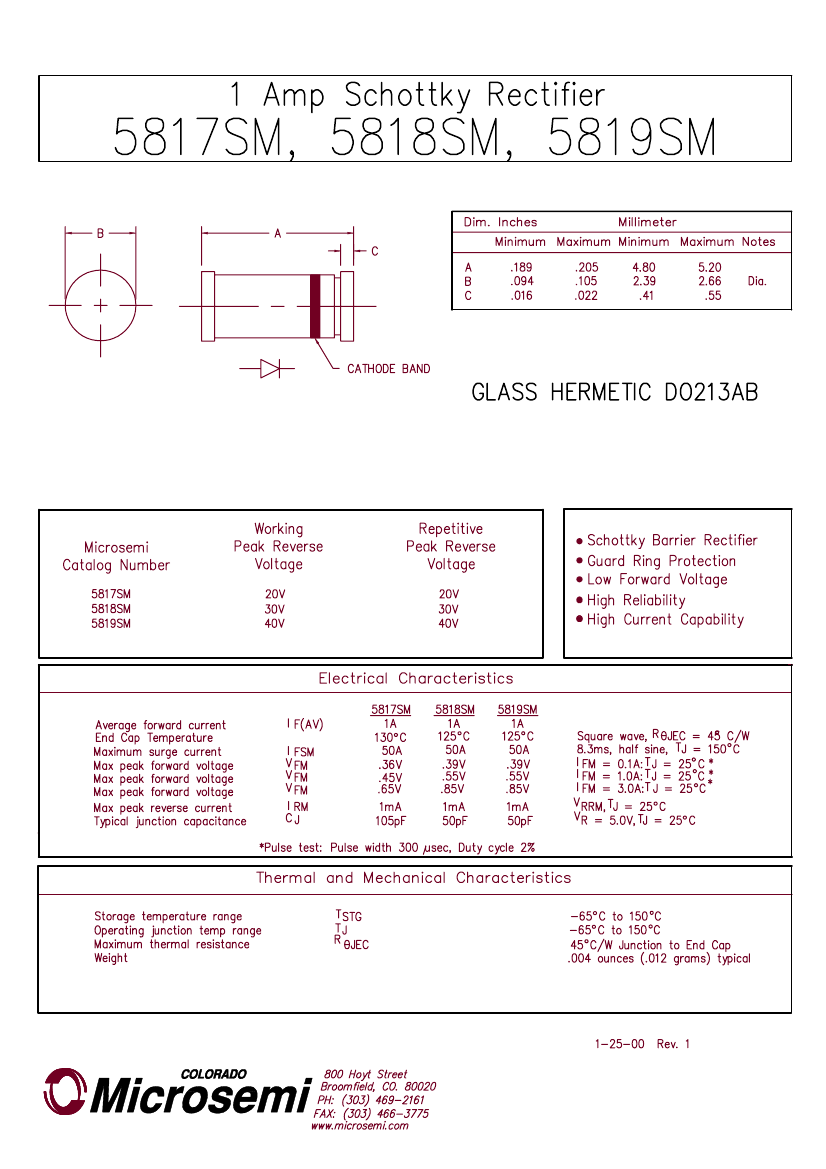

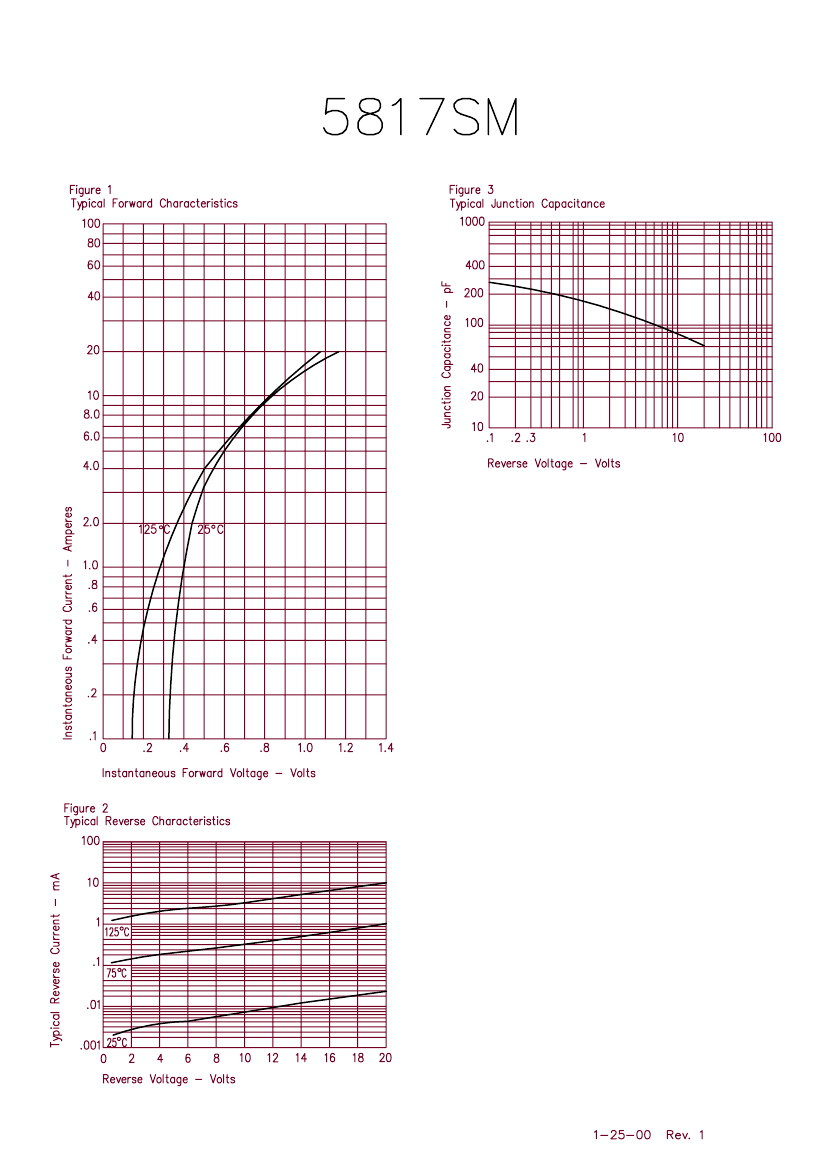

5817SM Overview

1 Amp Schottky Rectifier

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	O-LELF-R2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V
JEDEC-95 code	DO-213AB
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

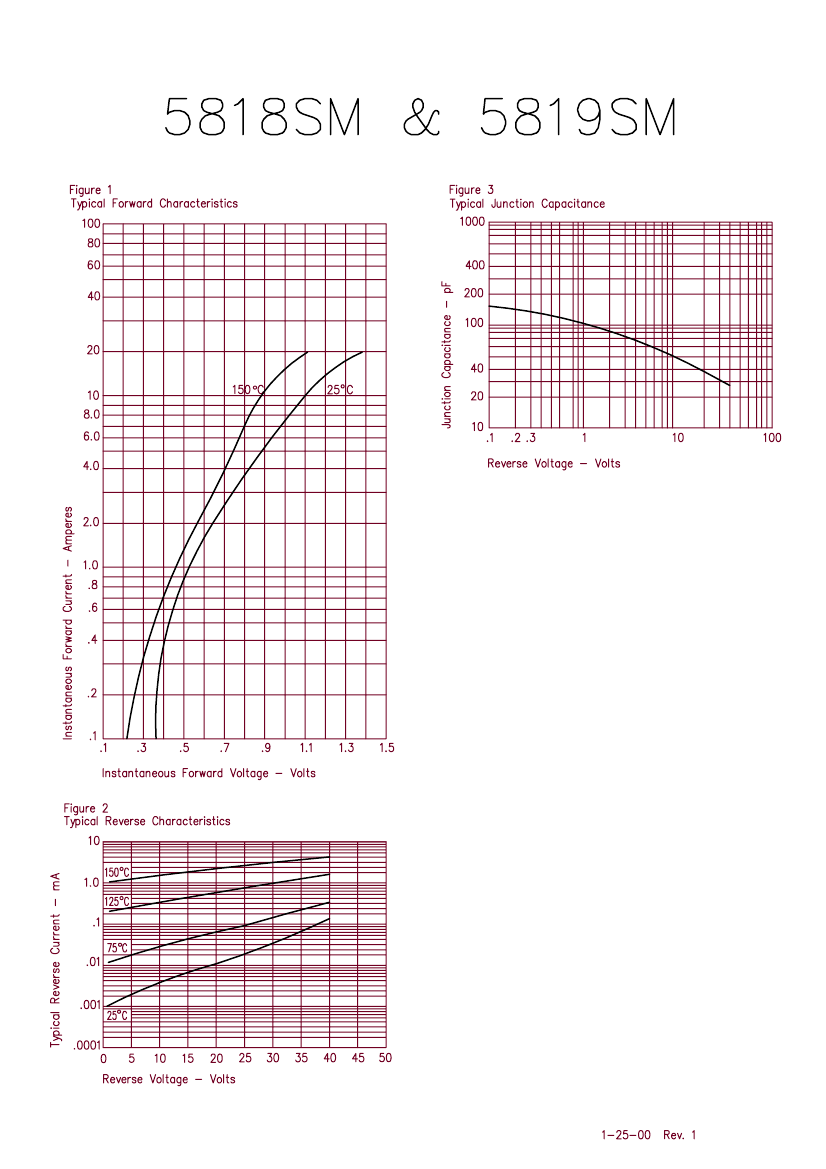

	5817SM	5818SM	5819SM
Description	1 Amp Schottky Rectifier	1 Amp Schottky Rectifier	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-213AB, HERMETIC SEALED, GLASS PACKAGE-2
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2
Reach Compliance Code	unknow	compli	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.45 V	0.55 V	0.55 V
JEDEC-95 code	DO-213AB	DO-213AB	DO-213AB
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2
JESD-609 code	e0	e0	e0
Maximum non-repetitive peak forward current	50 A	50 A	50 A
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A
Package body material	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	20 V	30 V	40 V
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END
Base Number Matches	1	1	-
