31044103: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric View All

31044103 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

31044103 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

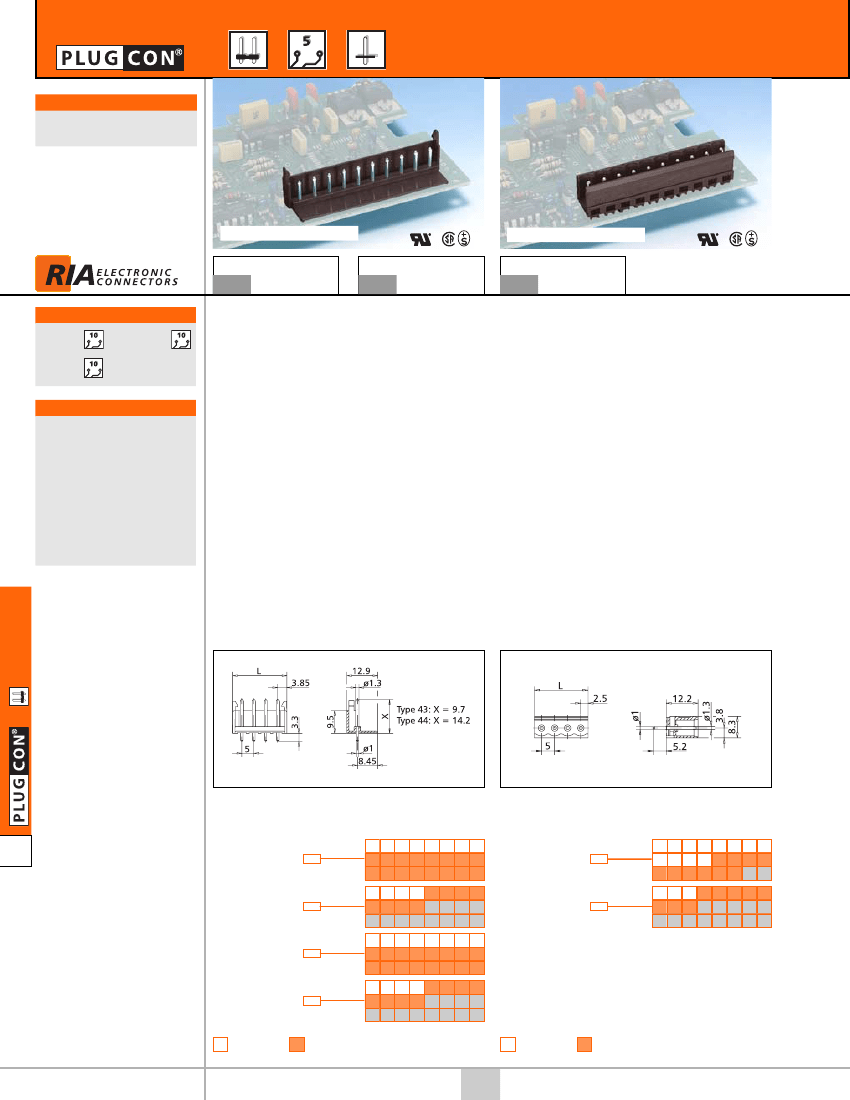

mm to inch

1 inch = 25.4 mm

1 mm = .040 inches

Designed to IEC 60664-1

Type

43

Additional Centerline

Type 43

Type 44

Type 19

Voltage

pin length 13 mm

shrouded header

with latches

Type

44

pin length 17.5 mm

shrouded header

with latches

Type

19

Voltage

open end

Electrical Data

300 V - centerline 5 mm

600 V - centerline 10 mm

15 A

1.3 mm - mating

1 mm - solder

1.3 mm

3.3 mm

Electrical Data

300 V - centerline 5 mm

600 V - centerline 10 mm

15 A

1.3 mm - mating

1 mm - solder

1.3 mm

5.2 mm

Current

Pin diameter

PCB hole diameter

Solder pin length

Current

Pin diameter

PCB hole diameter

Solder pin length

Terminal block that mates with

Type 43

and

Type 44

Type 07/107

Type 19

Type 09

Type 13

Type 49

Page DB-9

Page DB-10

Page DB-11

Page DB-5

Mechanical Data

Housing

UL 94V-0

-40 °F to 189 °F

(-40 °C to 105 °C)

brown

brass,

silver over nickel plating

optional: gold plating

- consult factory

2 to 24 - centerline 5 mm

2 to 12 - centerline 10 mm

Additional data - page H-3

Mechanical Data

Housing

UL 94V-0

-40 °F to 189 °F

(-40 °C to 105 °C)

brown

brass,

silver over nickel plating

optional: gold plating

- consult factory

2 to 22 - centerline 5 mm

2 to 11 - centerline 10 mm

Additional data - page H-3

Color

Pole sizes

Dimensions (mm)

L = (circuits - 1) x centerline + 7.7

L = (circuits - 1) x centerline + 5

Part Numbers

Complete the part number

by adding the pole size.

H

Type 43

centerline 5 mm

Part No.

310431

Type 43

centerline 10 mm

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

02 03 04 05 06 07 08

09 10 11 12

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

02 03 04 05 06 07 08

09 10 11 12

Type 19

Complete the part number

by adding the pole size.

centerline 5 mm

Part No.

310191

Type 19

centerline 10 mm

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22

02 03 04 05 06 07 08

09 10 11

Part No.

310432

Type 44

centerline 5 mm

Part No.

310192

Part No.

310441

Type 44

centerline 10 mm

Part No.

310442

01 standard

08 Available on demand. Minimum order

quantity 3000 poles per item.

01 standard

08 Available on demand. Minimum order

quantity 3000 poles per item.

Subject to technical changes and printing errors.

RIA electronic, Inc.

430 Industrial Way West, Eatontown, NJ 07724

phone 1-888-722-5625

•

fax 732-389-9066

•

www.riaelectronic.com

H-14
