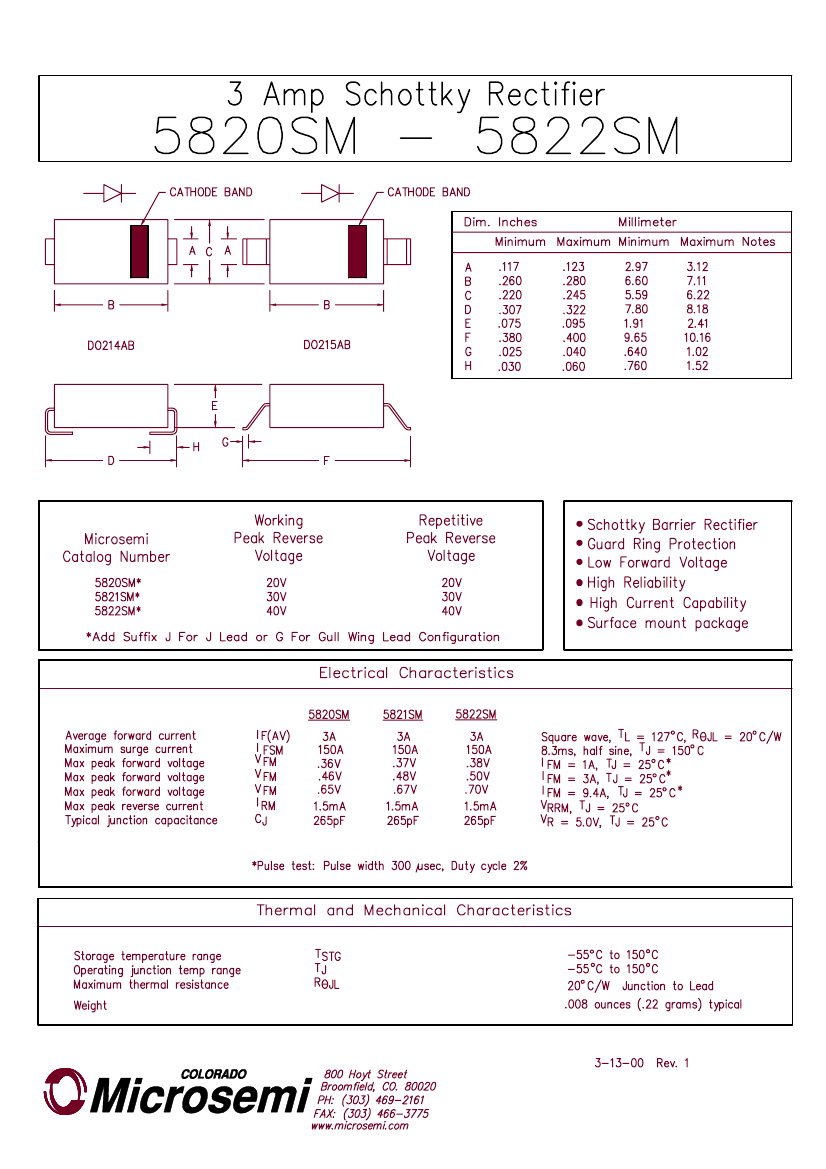

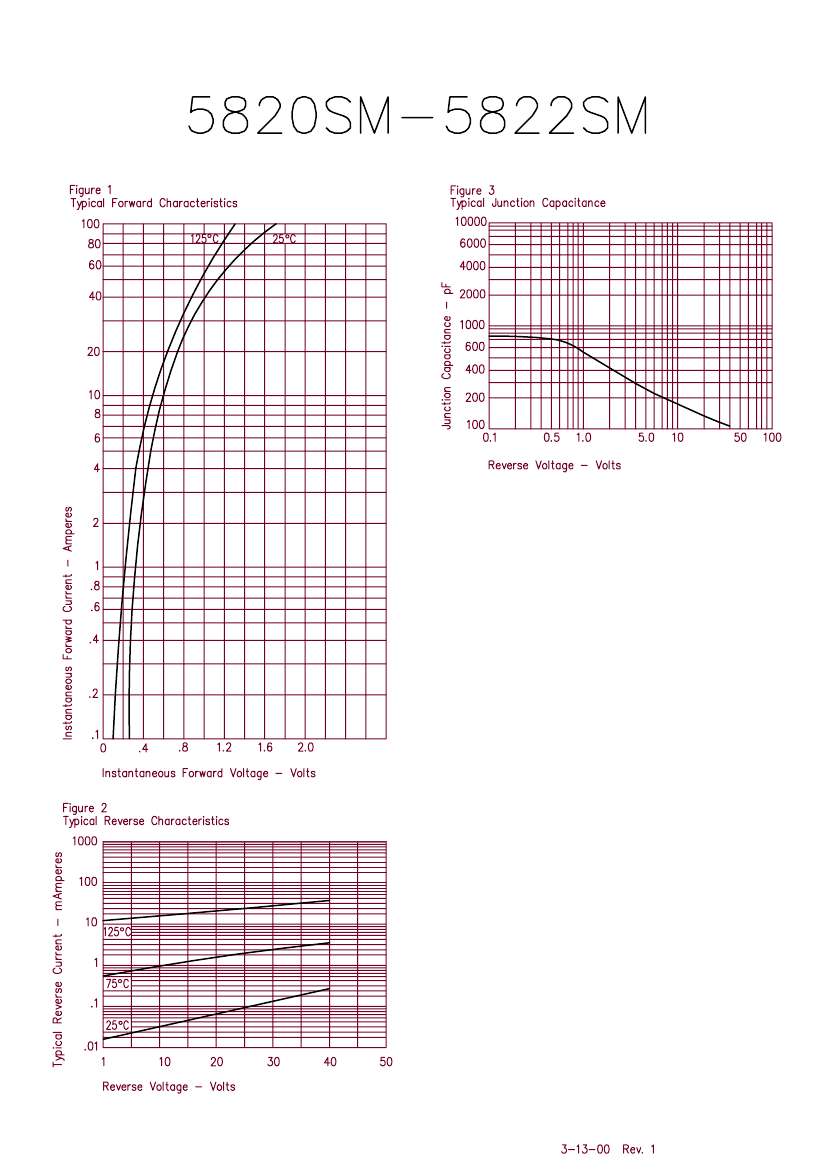

3 Amp Schottky Rectifier
| 5820SM | 5820SMG | 5821SMG | 5820SMJ | 5821SMJ | 5822SMG | 5822SMJ | 5821SM | 5822SM | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier | 3 Amp Schottky Rectifier |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | - | - |
| Parts packaging code | - | DO-215AB | DO-215AB | DO-214AB | DO-214AB | DO-215AB | DO-214AB | - | - |
| package instruction | - | R-PDSO-G2 | R-PDSO-G2 | R-PDSO-J2 | R-PDSO-J2 | R-PDSO-G2 | R-PDSO-J2 | - | - |
| Contacts | - | 2 | 2 | 2 | 2 | 2 | 2 | - | - |
| Reach Compliance Code | - | compli | unknow | unknow | compli | compli | compli | - | - |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - | - |
| Other features | - | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY | - | - |
| application | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | - |
| Configuration | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | - | - |
| Diode component materials | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | - | - |
| Diode type | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | - | - |
| Maximum forward voltage (VF) | - | 0.65 V | 0.67 V | 0.65 V | 0.67 V | 0.7 V | 0.7 V | - | - |
| JEDEC-95 code | - | DO-215AB | DO-215AB | DO-214AB | DO-214AB | DO-215AB | DO-214AB | - | - |
| JESD-30 code | - | R-PDSO-G2 | R-PDSO-G2 | R-PDSO-J2 | R-PDSO-J2 | R-PDSO-G2 | R-PDSO-J2 | - | - |
| Maximum non-repetitive peak forward current | - | 150 A | 150 A | 150 A | 150 A | 150 A | 150 A | - | - |
| Number of components | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| Phase | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
| Number of terminals | - | 2 | 2 | 2 | 2 | 2 | 2 | - | - |
| Maximum operating temperature | - | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | - | - |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - | - |
| Maximum output current | - | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | - | - |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - | - |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - |
| Package form | - | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | - | - |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | - |
| Maximum repetitive peak reverse voltage | - | 20 V | 30 V | 20 V | 30 V | 40 V | 40 V | - | - |
| Maximum reverse current | - | 1500 µA | 1500 µA | 1500 µA | 1500 µA | 1500 µA | 1500 µA | - | - |
| Reverse test voltage | - | 20 V | 30 V | 20 V | 30 V | 40 V | 40 V | - | - |
| surface mount | - | YES | YES | YES | YES | YES | YES | - | - |
| technology | - | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | - | - |
| Terminal form | - | GULL WING | GULL WING | J BEND | J BEND | GULL WING | J BEND | - | - |
| Terminal location | - | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | - | - |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | - |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
