37AT100-1

Description
RF Connector Adapter, SMC-SMC-SMC, Male-Male-Female, Jack-jack-plug
CategoryThe connector    The connector
File Size63KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

37AT100-1 Overview

RF Connector Adapter, SMC-SMC-SMC, Male-Male-Female, Jack-jack-plug

37AT100-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Reach Compliance Codeunknown
Adapter typeSMC-SMC-SMC
Other featuresMILITARY STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ
Body/casing typeJACK-JACK-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-MALE-FEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.25 dB
insulator materialTFE
MIL complianceYES
Manufacturer's serial numberSMC
Maximum operating frequency10 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1

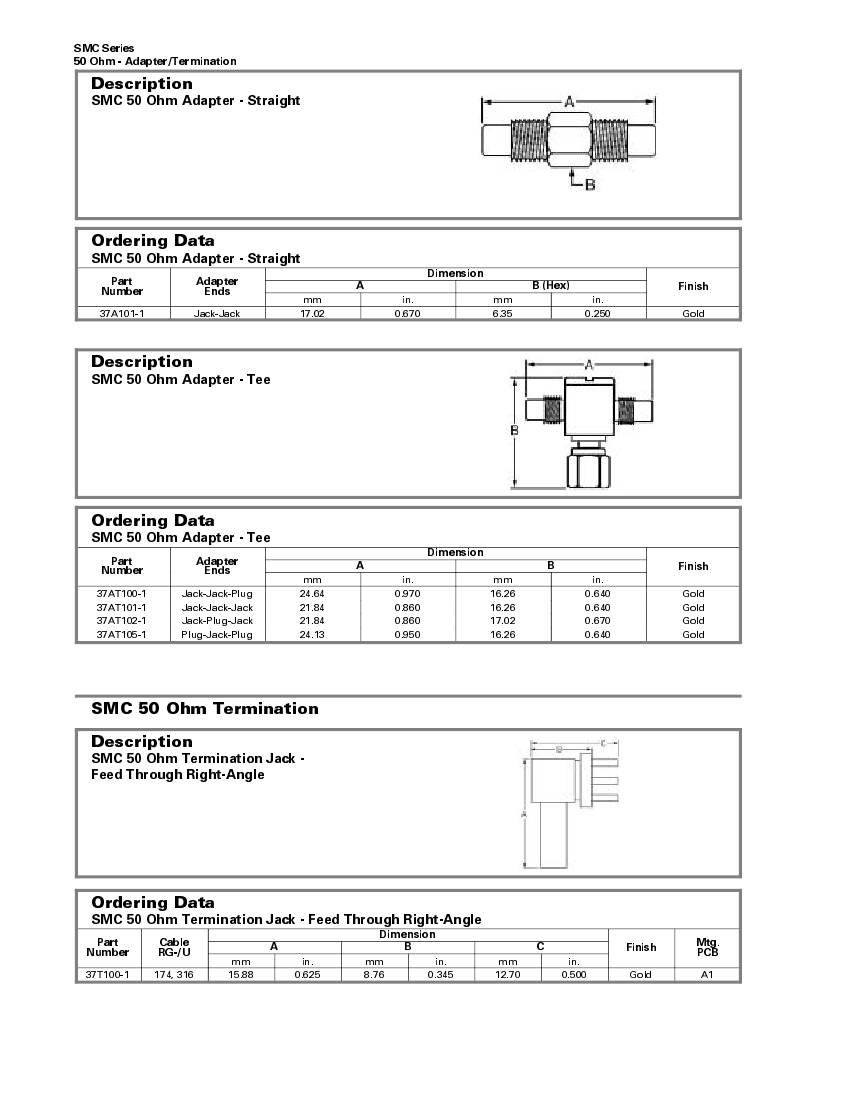

Preview

Download Datasheet
SMC Series
50 Ohm - Adapter/Termination
Description
SMC 50 Ohm Adapter - Straight
SMC Series
50 Ohm - Adapter/Termination
RF/Coaxial
Ordering Data
37A101-1
Part
Number
SMC 50 Ohm Adapter - Straight
Jack-Jack
Adapter
Ends
mm
17.02
A
Dimension
in.
0.670
mm
6.35
B (Hex)
in.
0.250
Finish
Gold
Description
SMC 50 Ohm Adapter - Tee
Ordering Data
37AT100-1
37AT101-1
37AT102-1
37AT105-1
Part
Number
SMC 50 Ohm Adapter - Tee
Jack-Jack-Plug
Jack-Jack-Jack
Jack-Plug-Jack
Plug-Jack-Plug
Adapter
Ends
mm
24.64
21.84
21.84
24.13
A
Dimension
in.
0.970
0.860
0.860
0.950
mm
16.26
16.26
17.02
16.26
B
in.
0.640
0.640
0.670
0.640
Finish
Gold
Gold
Gold
Gold
SMC 50 Ohm Termination
Description
SMC 50 Ohm Termination Jack -
Feed Through Right-Angle
Ordering Data
37T100-1
Part
Number
SMC 50 Ohm Termination Jack - Feed Through Right-Angle
174, 316
Cable
RG-/U
mm
15.88
A
in.
0.625
mm
8.76
Dimension
B
in.
0.345
mm
12.70
C
in.
0.500
Finish
Gold
Mtg.
PCB
A1
30-126
RF/Coaxial

37AT100-1 Related Products

37AT100-1 37AT102-1 37AT101-1 37A101-1 37AT105-1 37T100-1
Description RF Connector Adapter, SMC-SMC-SMC, Male-Male-Female, Jack-jack-plug RF Connector Adapter, SMC-SMC-SMC, Cable Mount, Female-Male-Female, Jack-plug-jack RF Connector Adapter, SMC-SMC-SMC, Cable Mount, Female-Female-Female, Jack RF Connector Adapter, SMC-SMC, Cable Mount, Female-Female, Jack RF Connector Adapter, SMC-SMC-SMC, Cable Mount, Male-Female-Male, Plug-jack-plug RF SMC Connector, Male, Board Mount, Solder Terminal, Jack
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Reach Compliance Code unknown unknown unknown unknown unknown compliant
Other features MILITARY STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ MILITARY STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ MILITARY STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ MILITARY STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 4GHZ INSERTION LOSS MAX AT 4GHZ STANDARD: MIL-C-39012, APPLICABLE CABLES: RG-174/U; RG-316/U
Body/casing type JACK-JACK-PLUG JACK-PLUG-JACK JACK JACK PLUG-JACK-PLUG JACK
Characteristic impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector type RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF CONNECTOR ADAPTER RF SMC CONNECTOR
Contact point gender MALE-MALE-FEMALE MALE-FEMALE-MALE MALE-MALE-MALE MALE-MALE MALE-FEMALE-MALE MALE
Coupling type THREADED THREADED THREADED THREADED THREADED THREADED
DIN compliance NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
Insertion loss 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB 0.25 dB
insulator material TFE TFE TFE TFE PTFE POLYTETRAFLUORO ETHYLENE
MIL compliance YES YES YES YES NO YES
Manufacturer's serial number SMC SMC SMC SMC SMC SMC
Maximum operating frequency 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz 10 GHz
Panel mounting NO NO NO NO NO NO
Base Number Matches 1 1 1 1 1 1
Adapter type SMC-SMC-SMC SMC-SMC-SMC SMC-SMC-SMC SMC-SMC SMC-SMC-SMC -
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE
