65
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 01
and
Type 55
#(1) Wire range extended
to No. 30 AWG for
factory-wiring
++
Two same size wires
No. 22 - 18 AWG Cu
Sol/Str for field-wiring;
30 - 18 AWG Cu
Sol/Str factory-wiring
Type 001

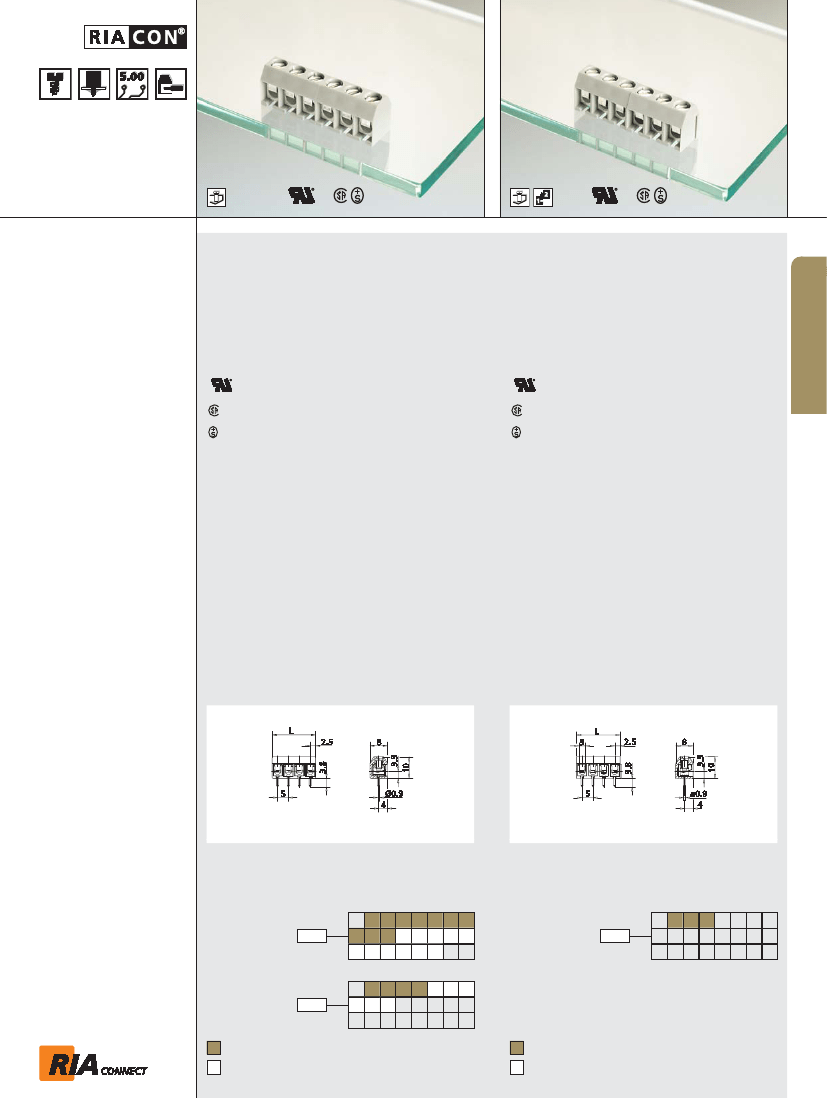

Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, wire protector
Type 055
Screw type terminal block, solderable, centerline 5 mm /
0.197 inches, horizontal wire entry, wire protector,
modular
A
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 22 - 14
300 / 15 / 22 - 14
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 22 - 14
300 / 15 / 22 - 14
0.33 - 1.5 mm² 125 V / 2.5 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.9 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.8 mm
Pole size
2 - 22
Color
grey
Dimensions in mm
1 mm = 0.0394 in.
0.33 - 1.5 mm² 125 V / 2.5 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.9 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.8 mm
Pole size
2-4
Color
grey
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
L = (pole size - 1) x centerline + 5 mm / 0.197 inches
Part numbers (P/N)
Type 001
centerline 5 mm / 0.197 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 055
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
centerline 5 mm / 0.197 inches
02 03 04
P/N
310011
Type 001
centerline 10 mm / 0.394 inches
P/N
310551
02 03 04 05 06 07 08
09 10 11
P/N
310012
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
