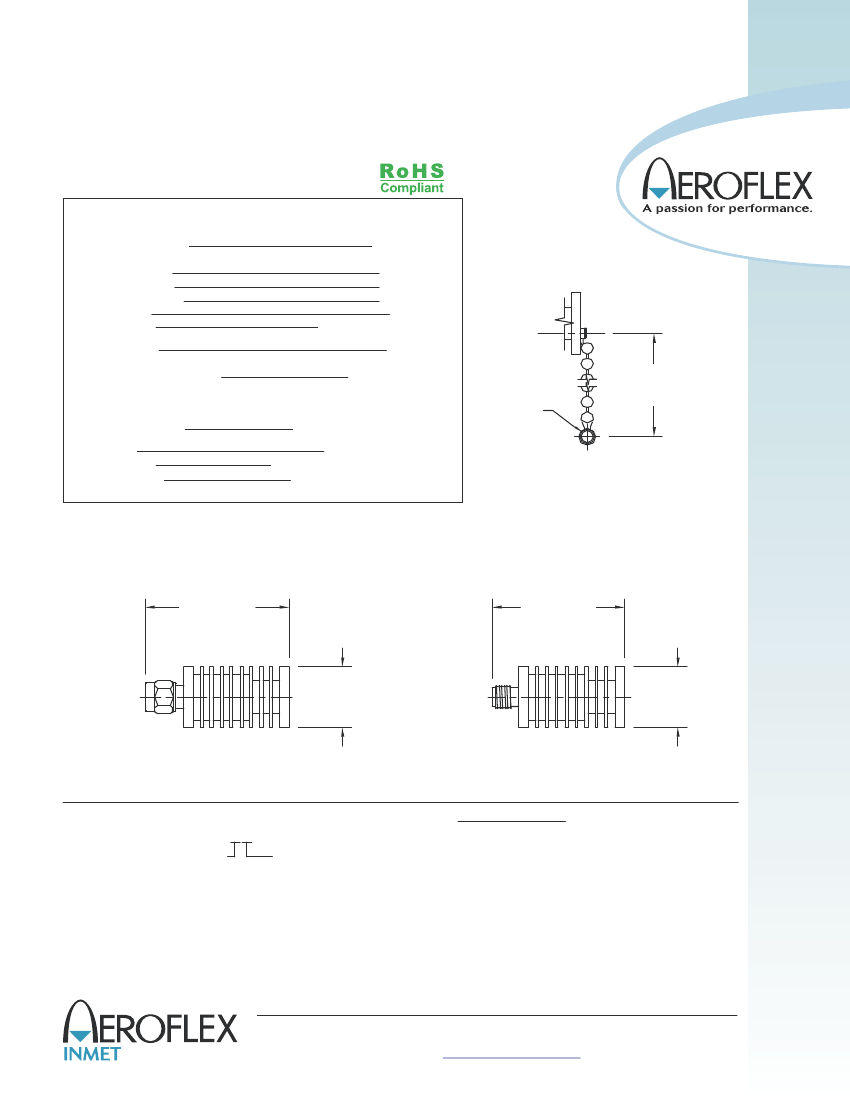

TERMINATIONS
SMA, DC - 18 GHz, 10 Watts
SPECIFICATIONS:
Models: 3050M, 3050F, 3050MC, 3050FC
Electrical:
Frequency Range
VSWR
DC - 8 GHz
8 - 1 GHz
2.4
1
2.4 - 18 GHz
Impedance
Input Power
Peak Power
Operating Temp Range
DC - 18 GHz
1.20:1 Max.
1.30:1 Max.
1.35:1 Max.
50 Ohms
10 Watts Avg. @ +25°C
Derated Linearly to 2.0 Watts @ +1
o
C
25
(5uSec Pulse, .05% Duty Cycle)
1 kW Max.
-54°C to +125°C
Mechanical:
SMA Connectors
Mates with MIL
-STD-348
Passivated Stainless Steel
Anodized Aluminum
Gold Plated Beryllium Copper
Passivated Stainless Steel
Ø.13[3.3]
Thru
3.5 [89] Long
Bead Chain
Housing
Conductors
Bead Chains
CHAIN DETAIL
Model Number:
3050M
SMA Male Connector
Model Number:
3050F
SMA Female Connector
1.55 ±.05
[39.4 ±1.3]
1.42 ±.05
[36.1 ±1.3]
Ø.65
[16.5]
Ø.65
[16.5]
HOW TO ORDER:
Model Number:
Ordering Examples:
3050XY
Style
= No Chain
C = Chain Included
Connector Configuration
M = Male
F = Female
Model Number:
3050MC
DC - 18 GHz; SMA Male; Chain Included
Model Number:
3050F
DC - 18 GHz; SMA Female; No Chain
Model Number:
3050M
DC - 18 GHz; SMA Male; No Chain
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing or use.
3050: REV D
Aeroflex / Inmet, Inc.
300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com
