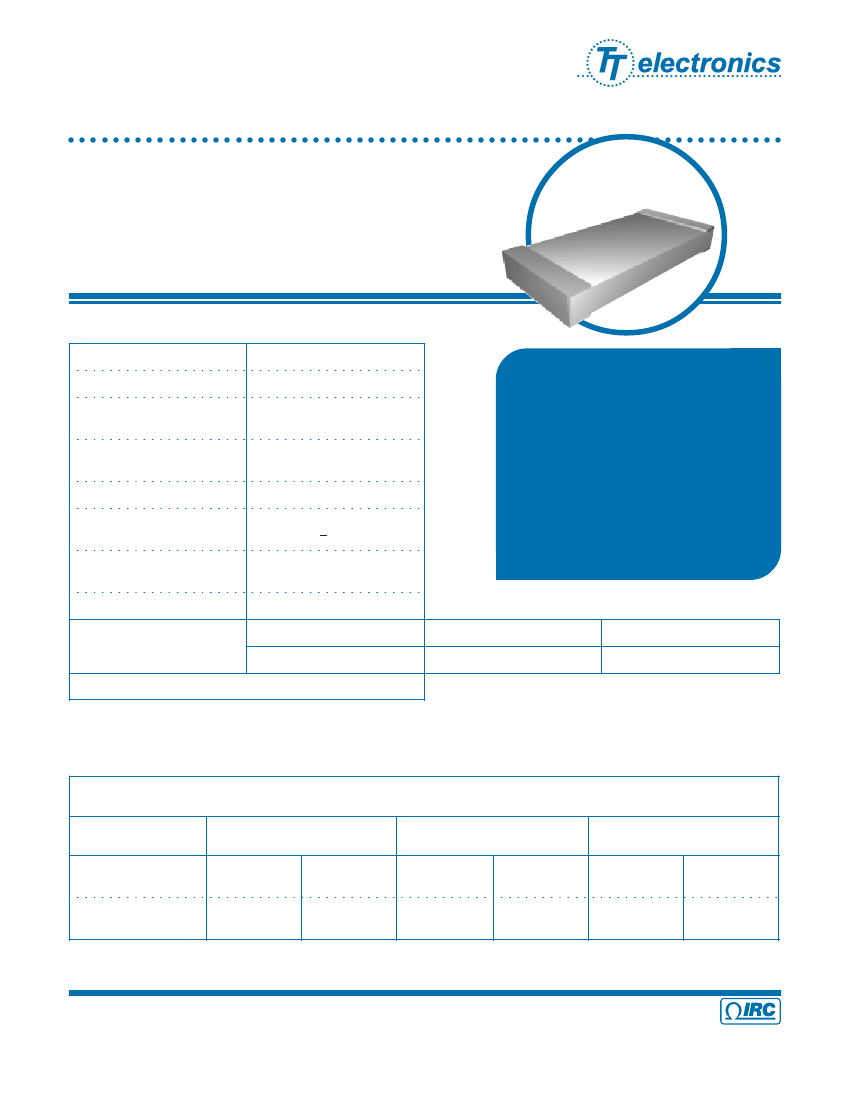

Platinum Temperature
Sensor
RTD Series
•
Small surface mount package
•
High stability Platinum based sensor
•
High resolution, accuracy and interchangeability
•
Compatible with automatic placement equipment
•
Wide temperature range - Very fast response time
IRC Adv
Division
IRC Advanced Film Division
Electrical Data
Resistance Range
Resistance Tolerances
Operating Temperature
Range
Temperature Coefficient
Insulation Resistance
Recommended Measuring
Current
Long Term Stability
(1000 hours at 125°C)
Termination
Self Heating
0.130 °C/mW
* Specification according to IEC 751
0.133 °C/mW
0.120 °C/mW
100
W
, 1.0K
W
±0.5%, ±1%, ±2%, ±5%
-55° to +150°C
+3750ppm/°C
+3850ppm/°C *
10M
W
min at 25°C
<1mA
<0.05%
SnPb
P1206
P0805
P0603
Performance Data
Settling Response Time
P1206
Rapidly Stirred Oil
Air @ 1m/s
0.2s
(t
0.5
)
1.8s
(t
0.5
)
0.6s
(t
0.9
)
6s
(t
0.9
)
0.1s
(t
0.5
)
1.2s
(t
0.5
)
P0805
0.4s
(t
0.9
)
4.2s
(t
0.9
)
0.1s
(t
0.5
)
1.1s
(t
0.5
)
P0603
0.4s
(t
0.9
)
3.7s
(t
0.9
)
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
The temperature sensor is a
conventional thin film Platinum
RTD in a surface mount package
designed for temperature sensing,
over-temperature protection and
temperature compensation in any
application where printed circuit
board temperature sensing is
desired.
A subsidiary of
T T electronics plc
RTD Series Issue August 2002
Platinum Temperature
Sensor
Physical Data
L
IRC Adv
Division
IRC Advanced Film Division
a
TOP
W
BOTTOM
SIDE
b
H
L
P 0603
P 0805
P 1206
0.063"±.004"
0.081"±.005"
0.126"±.006"
W
0.031"±.004"
0.050"±.005"
0.063"±.005"
H
0.020"±.004"
0.020"±.006"
0.024"±.004"
a
0.008"±.004"
0.016"±.008"
0.016"±.008"
b
0.008"±.004"
0.016"±.008"
0.016"±.008"
Ordering Data
RTD - P1206 - 40 -
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
1001 -
○
○
○
D
○
○
○
○
P1206 = 1206 chip sensor
P0805 = 0805 chip sensor
P0603 = 0603 chip sensor
○
○
○
○
○
○
○
○
○
○
40 = +3750ppm/°C ±100ppm/°C
42 = +3850ppm/°C ±100ppm/°C
43 = +3850ppm/°C ± 50ppm/°C
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
RTD Series Issue August 2002
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
Temperature Coefficient
○
○
○
○
○
○
○
○
○
○
○
○
Model
Tolerance Code
D
F
G
J
= ±0.5%
= ±1.0%
= ±2.0%
= ±5.0%
○
○
○
○
Resistance Code
Standard 4 Digit Resistance Code
Ex: 1000 = 100W; 1001 = 1000W
