TX24-100R-LT-H1E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TX24-100R-LT-H1E

Preview

TX24-100R-LT-H1E: DescriptionBoard Stacking Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

TX24-100R-LT-H1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TX24-100R-LT-H1E	-	-	View	Buy Now

TX24-100R-LT-H1E Overview

Board Stacking Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE

TX24-100R-LT-H1E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TX24
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

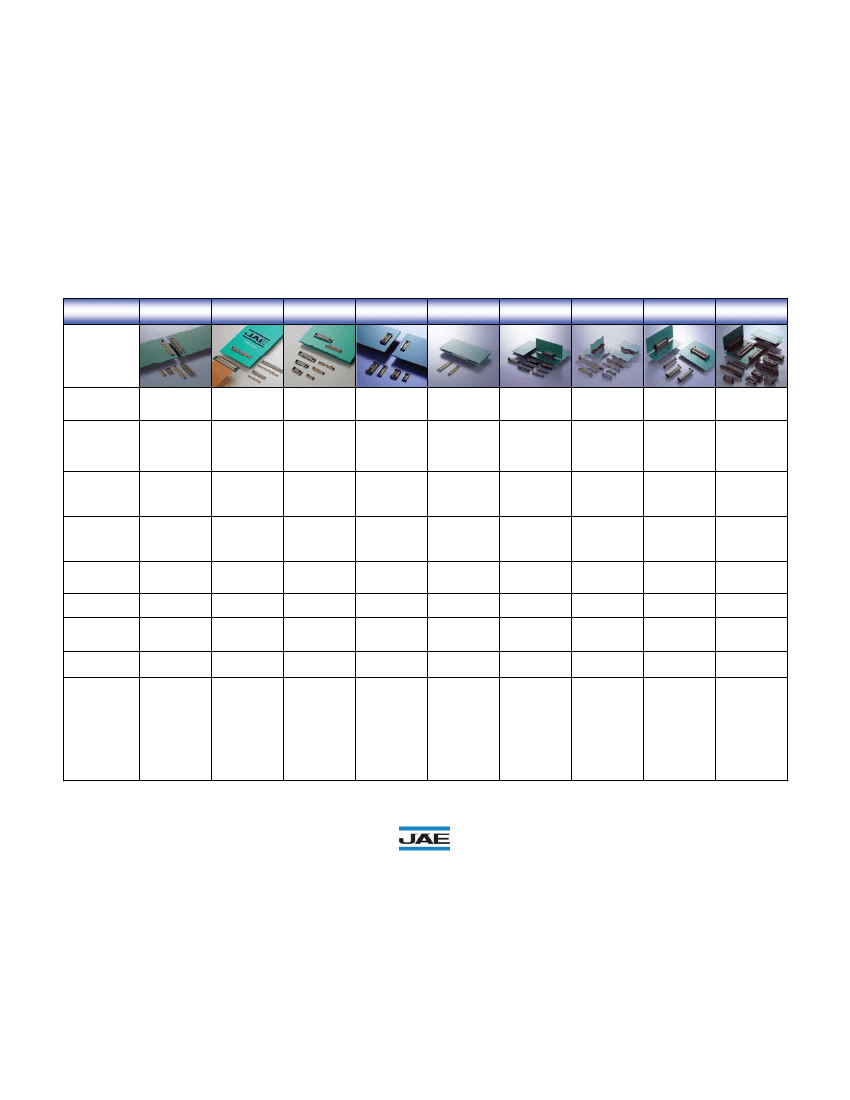

v2.2

Board-to-Board Connectors

Receptacle:

Socket side:

WP3 - S###VA1 - R6000

Pin side:

WP3 - P###VA1 - R6000

Socket side:

Pin side:

WH1S###WA1-E6000

WH1P###WA1-E6000

Straight Plug:

Orderable in Reels of 6000

KX14 - ##K 2 DE

Stack Height:

2, 5, 8mm

KX15 - ##K 3 D E

Stack Height:

2, 4mm

R/A Plug:

For pin counts below 30

Socket side:

Pin side:

WP7A - S###VA1 - R6000

WP7 - P###VA1 - R6000

Socket side:

Pin side:

AA01A - S###VA1 - R3000

AA01A - P###VA1 - R3000

KX15 - ##K L DLE

Right angle

Receptacle:

Plug:

KX24 - ###R - LT - H1

KX25 - ###P - LT - H1

LT: Right-angle

6ST: Straight

H: Hook pin

For pin counts above 30

Socket side:

Pin side:

WP7B - S###VA1 - R6000

WP7B - P###VA1 - R6000

Orderable in Reels of 3000

Socket side:

WR - ###S_ - VF_ - N1

Orderable in Reels of 6000

B: Positioning Boss

H05: +0.5mm

H30: +3.0mm

Receptacle:

TX24 - ###R -_ LT - H1E

Plug:

TX25 - ###P -_ LT - H1E

Stacking Height:

Receptacle:

6, 10, 12mm

Plug:

6, 8, 12mm

*Right-angle leave blank

H: Hook pin

N: No hook pin

LT: Right angle

ST: Straight

Vert Pin side:

WR - ###P_ - VF_ - N1

Socket side:

WP9 - S###VA1 - R6000

Pin side:

WP9 - P###VA1 - R6000

B: Positioning Boss

50: +1.0mm

60: +2.0mm

Orderable in Reels of 6000

R/A Pin side:

WR - ###P - HF - HD - A1E

TX24-100R-LT-H1E Related Products

	TX24-100R-LT-H1E	WR-120PB-VF50-N1	TX24-50R-LT-H1E	TX24-60R-LT-H1E
Description	Board Stacking Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL
Contact completed and terminated	TIN	Gold (Au) - with Nickel (Ni) barrier	TIN	TIN
Contact point gender	FEMALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	PHOSPHOR BRONZE	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e4	e3	e3
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	0.5 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SURFACE MOUNT	SOLDER	SOLDER
Total number of contacts	100	120	50	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Other features	POLARIZED	-	POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Manufacturer's serial number	TX24	-	TX24	TX24
Maker	-	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
