COMMUNICATIONS COMPONENTS

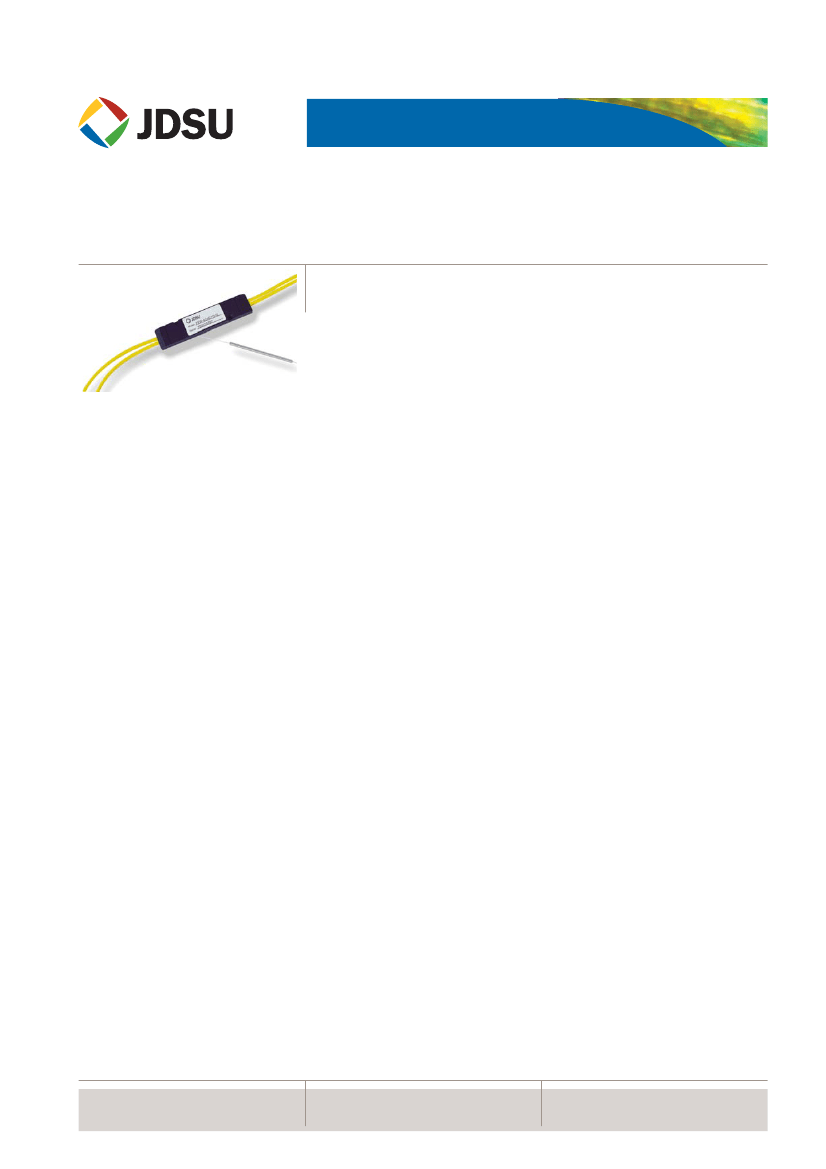

Fused Coupler, Single Window, 980 nm
FFCR Series
Key Features
• Ultra low-pump loss
• Minimum wastage of pump power
• High EDFA output power
• Wide range of regular parts readily available
• Proven reliability
Applications
• EDFA pump redundancy and sharing
• EDFA pump monitoring
• Fiber lasers
The 980 nm fused coupler enables the accurate splitting and monitoring of pump
power in erbium-doped fiber amplifiers. In addition, JDSU manufacturing
technology provides uniquely low excess loss, along with low polarization and
temperature dependence for all ports.
These high-performance standard parts are available with a variety of tap ratios
and housing and connector options, and can therefore be specified for a wide
range of applications, enabling rapid design cycles and new project builds.
Standard variants for 960 nm and 1060 nm may also be selected.
Compliance
• Telcordia GR-1221
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
FUSED COUPLER, SINGLE WINDOW, 980 NM FFCR SERIES
2
Dimensions Diagrams
Specifications in mm unless otherwise noted
1x2 Models, L-Package
1x2 Models, S-Package
Ф0.9
Ф3.56
2.0
54
3.0
70
Insertion Loss
Coupling Ratio
Grade
Signal Path
Insertion Loss
1,2
(Min./Max.)
(dB)
NA/0.15
NA/0.20
NA/0.40
NA/0.50
NA/0.65
NA/0.75
NA/1.40
NA/1.50
NA/2.00
NA/2.20
NA/2.60
NA/2.80
2.60/3.40
2.50/3.60
TDL Max.
(dB)
0.02
0.02
0.08
0.08
0.08
0.08
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
Tap Path
Insertion Loss
1,2
(Min./Max.)
(dB)
18.4/21.5
15.0/22.0
11.3/14.8
11.0/15.2
9.00/11.5
8.50/11.8
5.60/8.40
5.40/8.60
4.10/6.40
4.00/6.50
3.20/4.70
3.10/4.80
2.60/3.40
2.50/3.60
TDL Max.
(dB)
0.20
0.20
0.15
0.15
0.13
0.13
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
1%
1%
5%
5%
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
P
A
P
A
P
A
P
A
P
A
P
A
P
A
1. Insertion loss over operating wavelength range (not including PDL or connector losses).
2. In 2x2 couplers with a coupling ratio of 20 percent or lower, insertion loss is not specified for launch through second input port (P4).
FUSED COUPLER, SINGLE WINDOW, 980 NM FFCR SERIES
Specifications
Parameter
Operating wavelength range
1
Return loss/directivity
Pigtail tensile load
Optical Power handling
Operating temperature range
Storage temperature range
Environmental qualification
Package dimensions
S package (D x L)
L package (D x L)
H package (L x W x H)
960 nm
955 to 965 nm
Minimum
Maximum
Maximum
980 nm
975 to 985 nm
55 dB
5N
4W
-5 to 75°C
-40 to 85°C
Telcordia GR-1221
3.0 x 54 mm
3.6 x 70 mm
85 x 17.8 x 7.5 mm
1060 nm
1055 to 1065 nm
1. For wavelength within ±5 nm of the operating wavelength range, the worst-case changes in insertion loss and WDL are shown as follows:
Tap ratio = 1%, maximum insertion loss and WDL increase = 0.65 dB.
Tap ratio = 5%, maximum insertion loss and WDL increase = 0.50 dB.
Tap ratio = 10%, maximum insertion loss and WDL increase = 0.40 dB.
Tap ratio = 50%, maximum insertion loss and WDL increase = 0.20 dB.
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide, or via e-mail at
customer.service@jdsu.com.
Sample: FFCR51H1PN510
FFCR
Code
5
8
F
Passband
Wavelength
980
nm
1060
nm
960
nm
Code
1
5
A
C
E
H
K
Coupling Ratio
1%
5%
10%
20%
30%
40%
50%
Code
0
1
2
Configuration
1x1 (attenuator)
1x2
2x2
N
Code
2
5
Fiber Type
Lucent BFO5635-02
Corning
Hi 1060 Flex
Code
0
1
2
3
4
5
6
7
8
9
A
B
C
Connectors
None
FC/PC
FC/SPC
FC/APC
SC/SPC
SC/APC
BICONIC
D4
ST
FC/UPC
SC/UPC
LC
MU
Code
A
P
Grade
Grade A
Grade P
Code
0
1
2
Pigtail Length
0.5 m
1m
2m
Code
H
L
S
Housing
Ø 3.0 mm
cable
Ø 900 µm fiber
Ø 250 µm fiber
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
Product specifications and descriptions in this document subject to change without notice. © 2008 JDS Uniphase Corporation 30162509 000 0908 FFCR.DS.CC.AE
September 2008
Hi 1060 Flex is a registered trademark of Corning Incorporated. LC and ST are registered trademarks of Lucent Technologies. Telcordia is a registered trademark of Telcordia Technologies Incorporated.
