350002GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 350002GS

350002GS: DescriptionRotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 28VDC, Solder Terminal, Flush Shaft Type Actuator, Through Hole-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size2MB，4 Pages; ManufacturerEngineered Components Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

350002GS Overview

Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 28VDC, Solder Terminal, Flush Shaft Type Actuator, Through Hole-straight, ROHS COMPLIANT

350002GS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	FLUSH SHAFT TYPE
Other features	LOW PROFILE
body width	9.65 mm
body height	5.08 mm
Body length or diameter	9.65 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@28VDC
Maximum contact voltage (DC)	28 V
JESD-609 code	e3
Manufacturer's serial number	3500
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	10
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-65 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

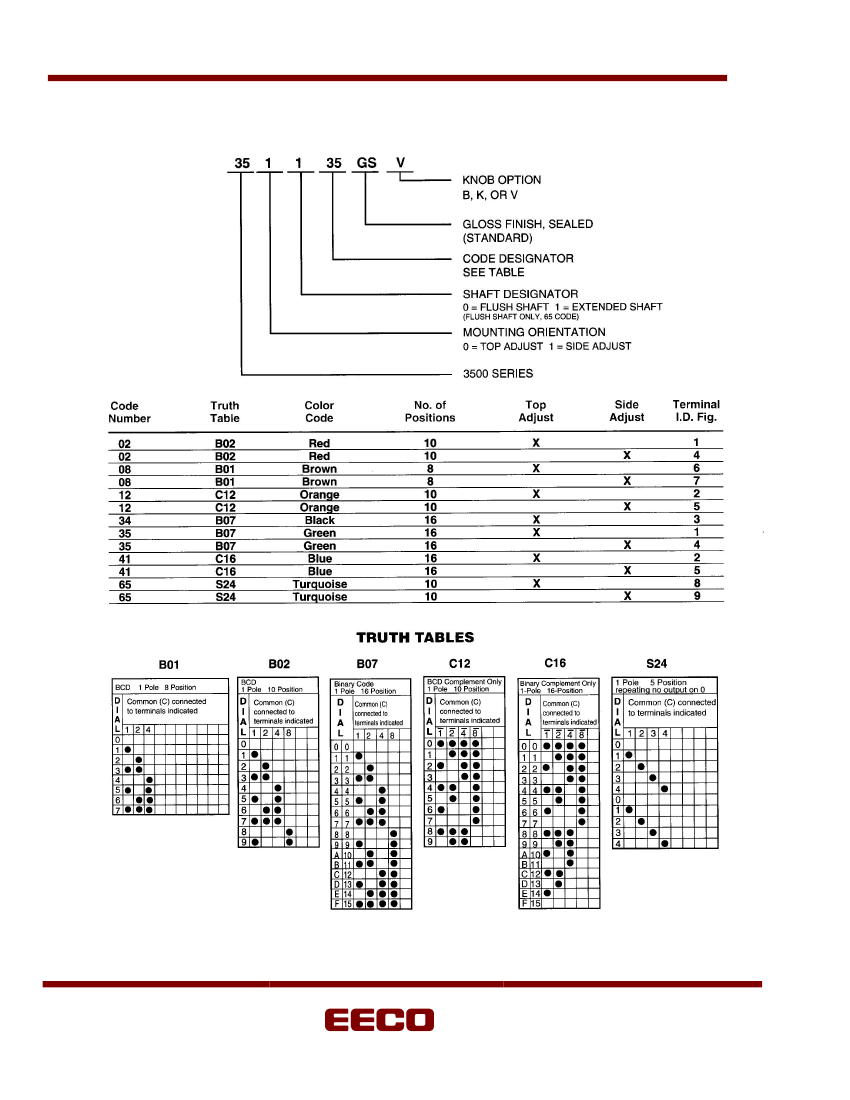

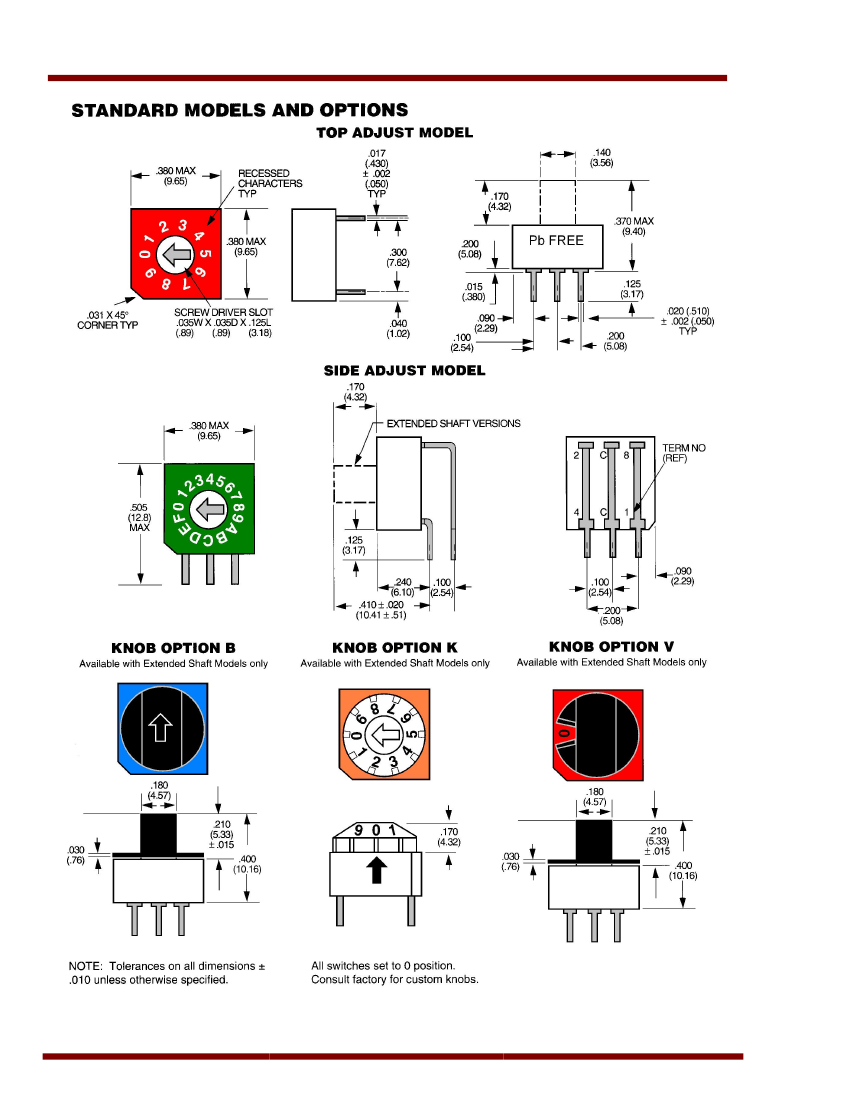

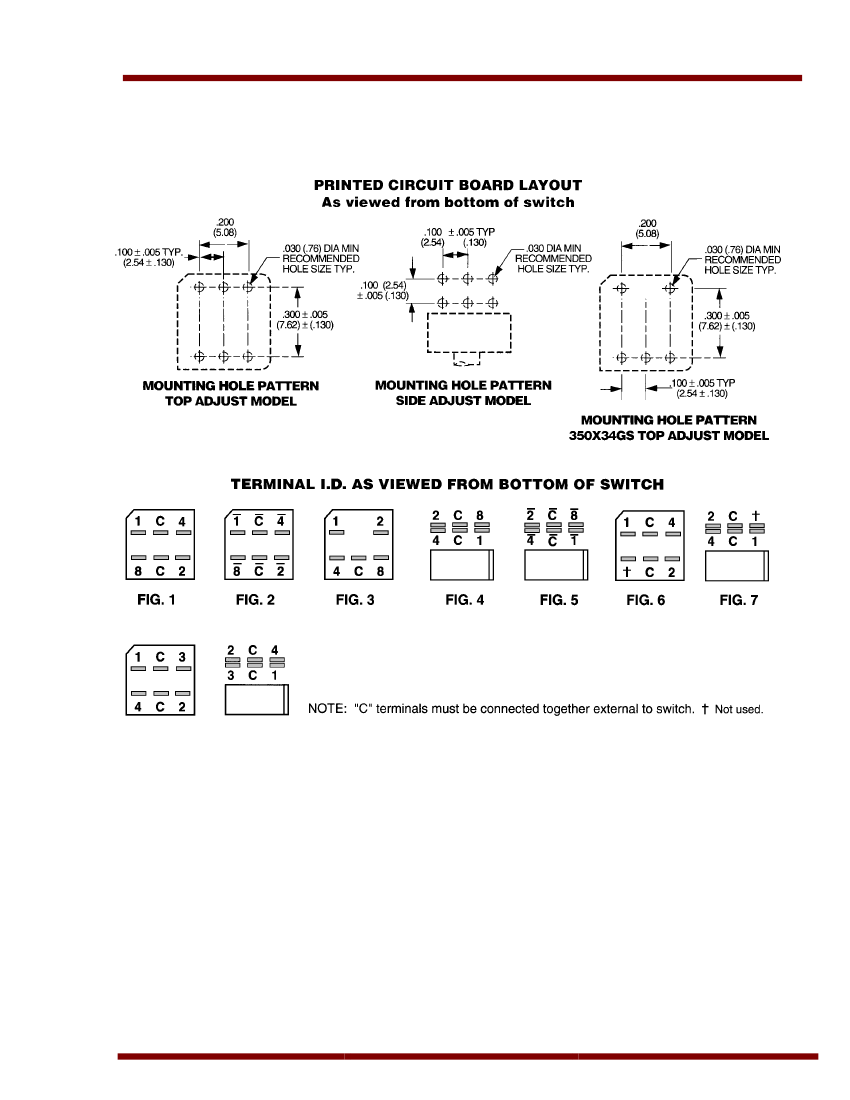

3500 SERIES

MICRO-DIP

PRINTED

CIRCUIT BOARD SWITCHES

LEAD-FREE!

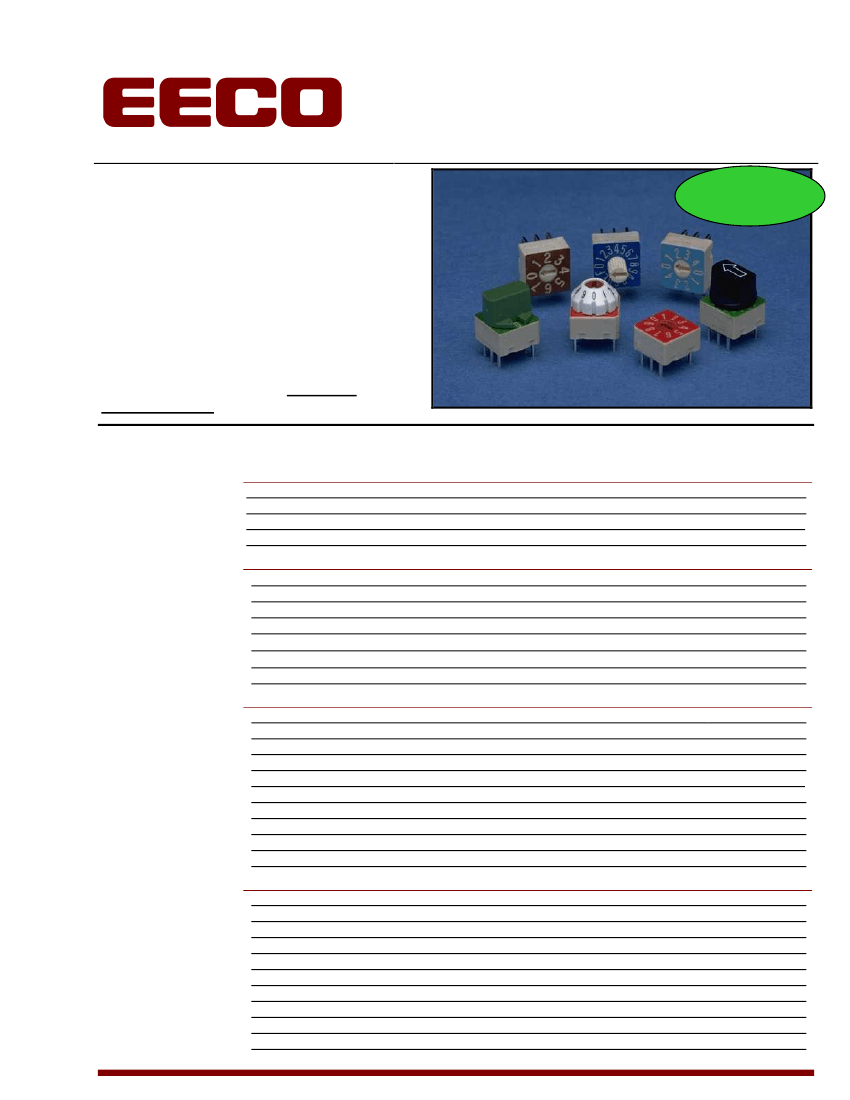

The 3500 Series MICRO-DIP® is a low profile,

fully sealed rotary DIP switch designed for

today’s automated soldering and cleaning

processes!

Featuring direct decimal to binary conversion,

the

3500 Series Micro-DIP

is a user friendly

means of addressing PROM’s or setting micro-

processor controlled devices. The

3500 Series

offered in six binary and decimal codes, with

extended shafts and right angle orientations for

maximum design flexibility. The

3500 Series

covered by EECO’s exclusive

Lifetime Warranty.

All

3500 Series

products are

Lead-Free

and fully

RoHS compliant.

SPECIFICATIONS

MECHANICAL

No. of Switching Positions

Life

Rotational Torque (Initial)

Terminal Strength

8, 10 16

20,000 Detents at +25

1.0-4.5 Inch/Ounces

Pull 3 Pounds, Push 3 Pounds, for 15 Seconds

1µA

30 mVDC

100 mA at 28 VDC Resistive

100 mΩ Maximum

1,000 MΩ Minimum At 100 VDC

250 VAC (RMS)

ELECTRICAL

Minimum Switching Current

Minimum Switching Voltage

Maximum Electrical Current, Non-Switching

Maximum Rated Load, Switching

Contact Resistance (Initial)

Insulation Resistance

Dielectric Withstanding Voltage

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Vibration

Moisture Resistance

Seal

Solderability

Solvent Resistance

Humidity

-65

C To +85

-65

C To +125

15g, 10 to 2,000 Hz, Method 204, Condition B of

Mil-Std 202

Method 106, Mil-Std 202, 50 VDC Polarizing Voltage

Top: O-Ring Bottom: Epoxy

Method 208 of Mil-Std 202, 95% Coverage

Method 215 of Mil-Std 202

Method 103B of Mil-Std 202, Test Condition A

50 VDC Polarizing Voltage

Glass Reinforced High Temperature 4/6 Nylon, UL 94 V0

Glass Reinforced 6/6 Nylon UL 94 V0

Silicon Rubber

Copper Alloy Base, Gold Over Nickel Plate

Matte Tin With Whisker Inhibitors Over Nickel Plate

0.03 Oz (.86G)

ABS, UL 94 V0 (Black)

Glass Reinforced Polyester, 94 V0 (White)

Glass Reinforced 6/6 Nylon, 94 V0 (Black)

MATERIALS

Housing and Base

Rotor

O-Ring

Contact

Terminal

Weight

Knobs

Type B

Type K

Type V

350002GS Related Products

	350002GS	351008GS
Description	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 28VDC, Solder Terminal, Flush Shaft Type Actuator, Through Hole-straight, ROHS COMPLIANT	Rotary Coded Switch, 8 Positions, Binary Coded Decimal, Latched, 0.1A, 28VDC, Solder Terminal, Flush Shaft Type Actuator, Through Hole-right Angle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator type	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE
Other features	LOW PROFILE	LOW PROFILE
body width	9.65 mm	6.1 mm
body height	5.08 mm	9.65 mm
Body length or diameter	9.65 mm	9.65 mm
Maximum contact current (DC)	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@28VDC	.1A@28VDC
Maximum contact voltage (DC)	28 V	28 V
JESD-609 code	e3	e3
Manufacturer's serial number	3500	3500
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE
Number of positions	10	8
Number of switching segments	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-65 °C	-65 °C
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	BINARY CODED DECIMAL	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Termination type	SOLDER	SOLDER
