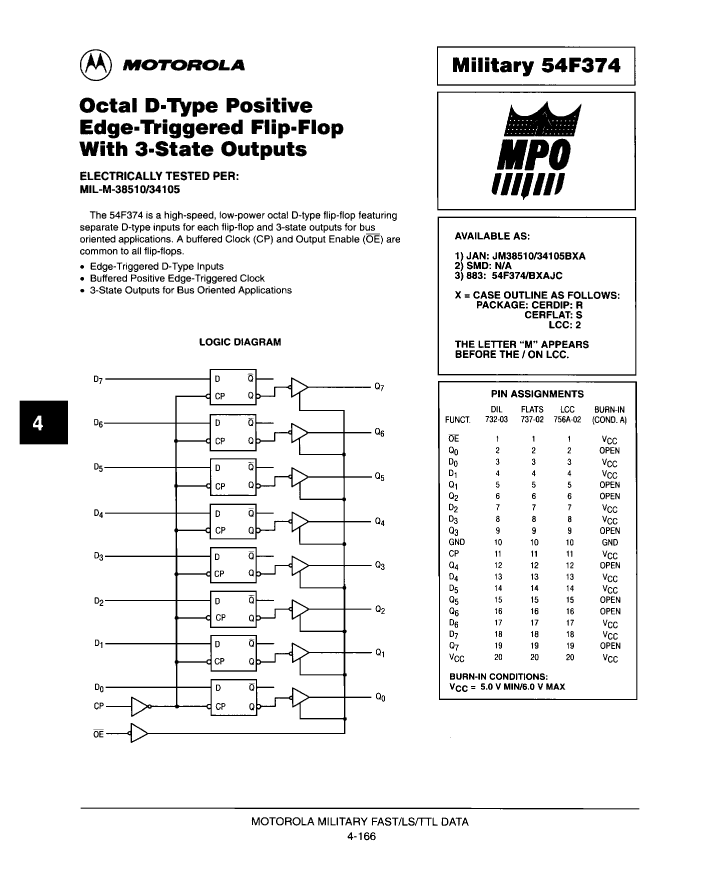

54F374M/B2AJC

Description
F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20
Categorylogic    logic
File Size104KB,5 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

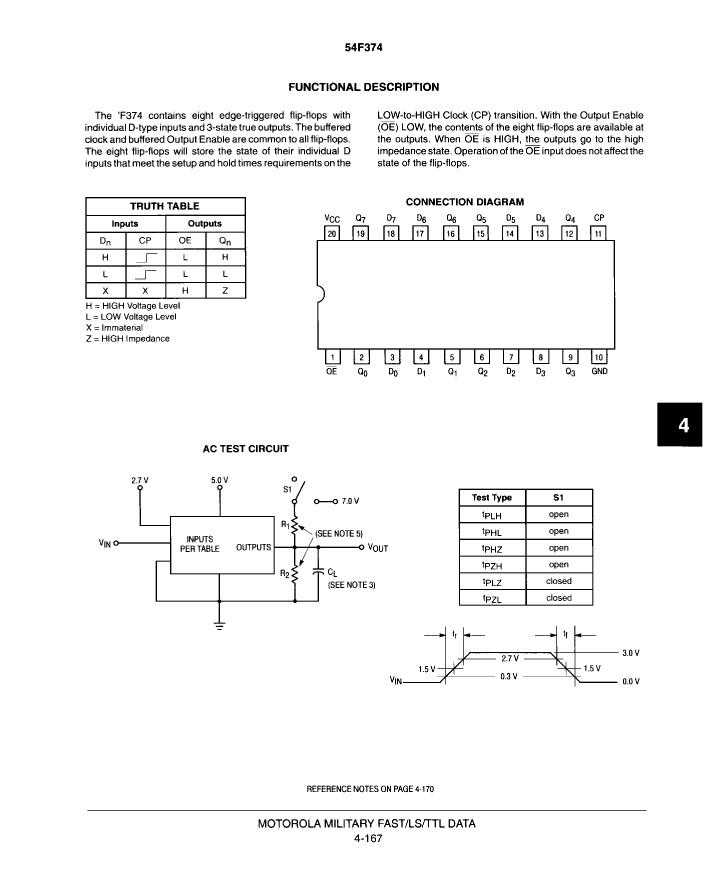

54F374M/B2AJC Overview

F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

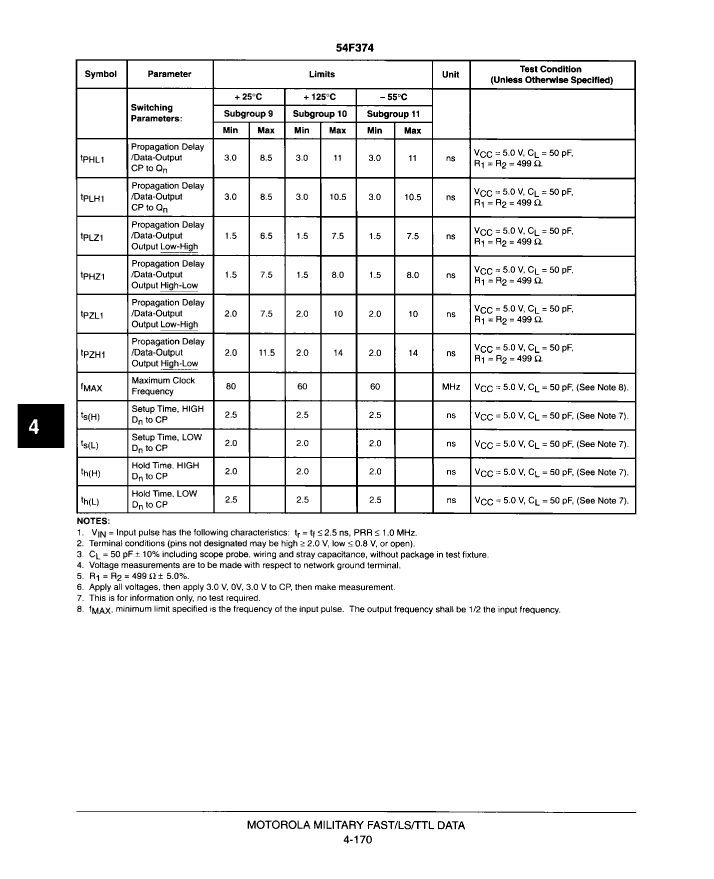

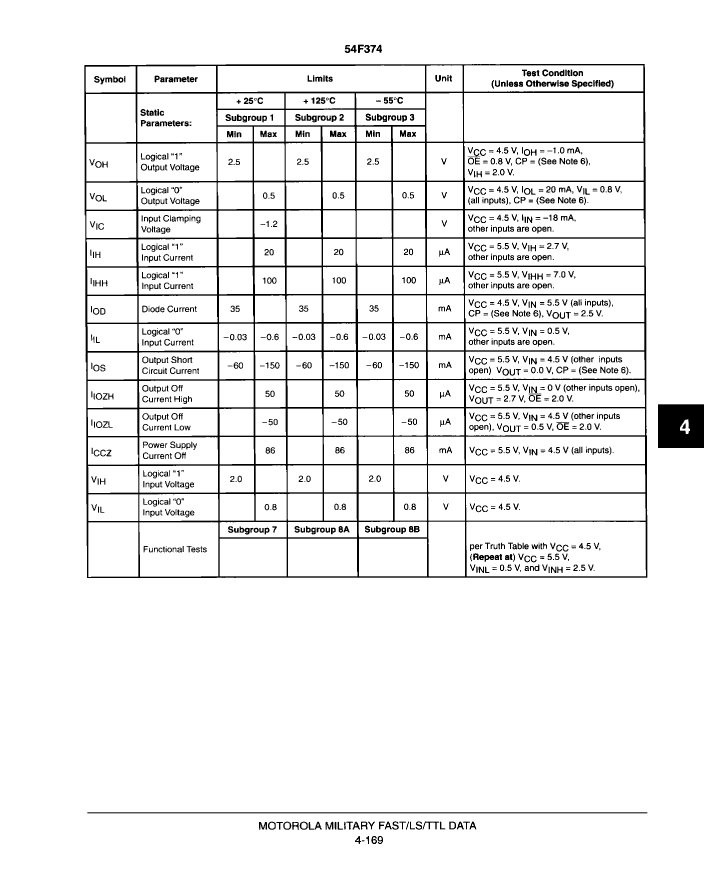

54F374M/B2AJC Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeQLCC
package instructionQCCN, LCC20,.35SQ
Contacts20
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeS-CQCC-N20
JESD-609 codee0
length8.89 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Maximum Frequency@Nom-Sup80000000 Hz
MaximumI(ol)0.02 A
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)86 mA
propagation delay (tpd)11 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height1.9 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width8.89 mm
Base Number Matches1

54F374M/B2AJC Related Products

54F374M/B2AJC 54F374/BSAJC 54F374/BRAJC
Description F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20 Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, CERDIP-20
Is it Rohs certified? incompatible incompatible incompatible
Parts packaging code QLCC DFP DIP
package instruction QCCN, LCC20,.35SQ DFP, FL20,.3 DIP, DIP20,.3
Contacts 20 20 20
Reach Compliance Code unknown unknown unknown
Base Number Matches 1 1 1
series F/FAST F/FAST -
JESD-30 code S-CQCC-N20 R-GDFP-F20 -
JESD-609 code e0 e0 -
length 8.89 mm 12.7 mm -
Load capacitance (CL) 50 pF 50 pF -
Logic integrated circuit type BUS DRIVER BUS DRIVER -
Maximum Frequency@Nom-Sup 80000000 Hz 80000000 Hz -
MaximumI(ol) 0.02 A 0.02 A -
Number of digits 8 8 -
Number of functions 1 1 -
Number of ports 2 2 -
Number of terminals 20 20 -
Maximum operating temperature 125 °C 125 °C -
Minimum operating temperature -55 °C -55 °C -
Output characteristics 3-STATE 3-STATE -
Output polarity TRUE TRUE -
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED -
encapsulated code QCCN DFP -
Encapsulate equivalent code LCC20,.35SQ FL20,.3 -
Package shape SQUARE RECTANGULAR -
Package form CHIP CARRIER FLATPACK -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED -
power supply 5 V 5 V -
Maximum supply current (ICC) 86 mA 86 mA -
propagation delay (tpd) 11 ns 11 ns -
Certification status Not Qualified Not Qualified -
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B -
Maximum seat height 1.9 mm 2.16 mm -
Maximum supply voltage (Vsup) 5.5 V 5.5 V -
Minimum supply voltage (Vsup) 4.5 V 4.5 V -
Nominal supply voltage (Vsup) 5 V 5 V -
surface mount YES YES -
technology TTL TTL -
Temperature level MILITARY MILITARY -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal form NO LEAD FLAT -
Terminal pitch 1.27 mm 1.27 mm -
Terminal location QUAD DUAL -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED -
Trigger type POSITIVE EDGE POSITIVE EDGE -
width 8.89 mm 6.475 mm -
Maker - Motorola ( NXP ) Motorola ( NXP )
