533102B02551G: DescriptionHeat Sink, 11ohm, Extruded, Radial, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size194KB，3 Pages; ManufacturerBoyd Corporation; Environmental Compliance

Download Datasheet Parametric View All

533102B02551G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533102B02551G	-	-	View	Buy Now

533102B02551G Overview

Heat Sink, 11ohm, Extruded, Radial, Aluminum, Anodized, ROHS COMPLIANT

533102B02551G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	EXTRUDED
fin direction	RADIAL
Surface layer	ANODIZED
high	38.1 mm
length	34.92 mm
Thermal resistance	11 Ω
Heat Resistant Support Device Type	HEAT SINK
width	12.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

16/05/2012

533102B02551G - Board level heatsinks

Tel (toll-free): +1-855-32-AAVID

Register

Log in

Search

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

»

Board Level Products

533102B02551G

TO-220, TO-220-single gauge (0.020")

Qty in stock:

Enter QTY:

Email

estore@aavid.com

for

availability

0

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

»

Help Page

Check Stock

Enter a part number for

pricing and availability.

go!

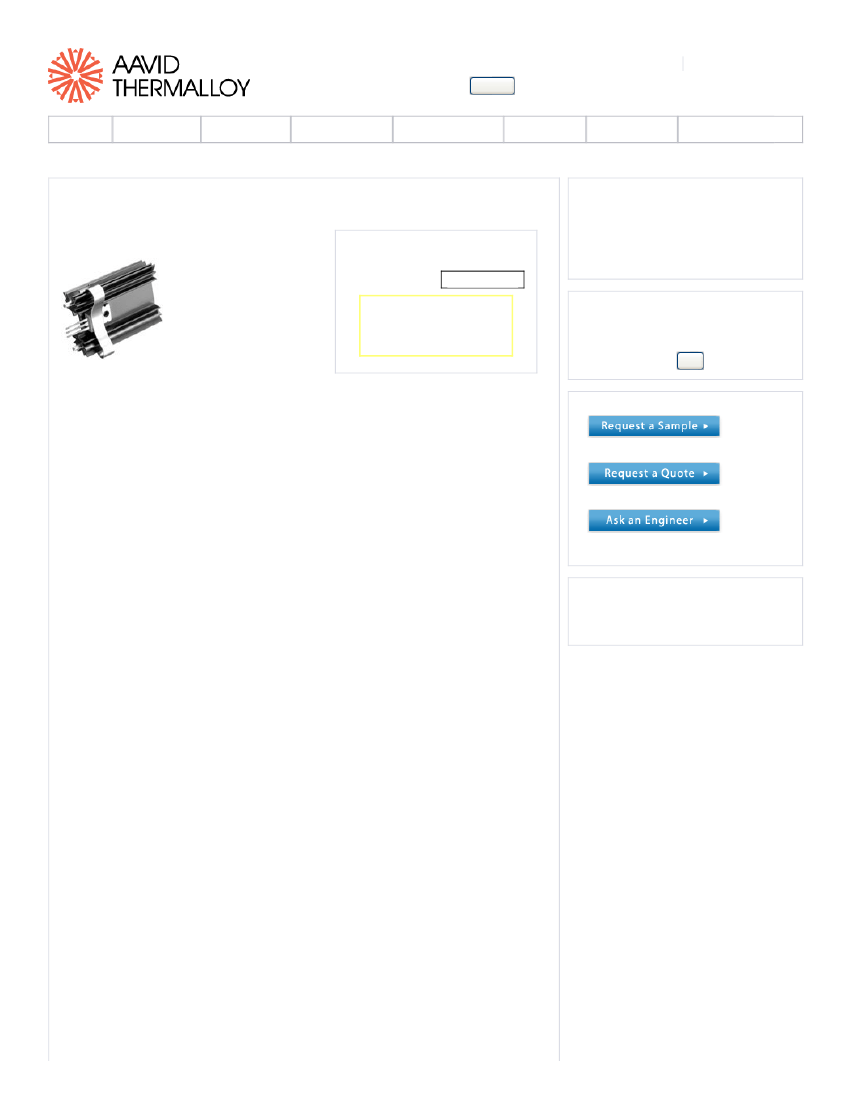

Extruded heat sink with radial fins and solderable pins and device clip

This non-electronic component is functionally unaffected by the normal soldering or reflow

processes used for semiconductor circuits. The heat resistance time or heat resistance

temperature is not applicable for the component.

Height: 38.10

Mount Orientation: Vertical

Finish: Black Anodize

RoHS: compliant

Download PCN

Thermal Resistance: 11.00

»

Product Return Policy

»

Terms & Conditions

»

Privacy Policy

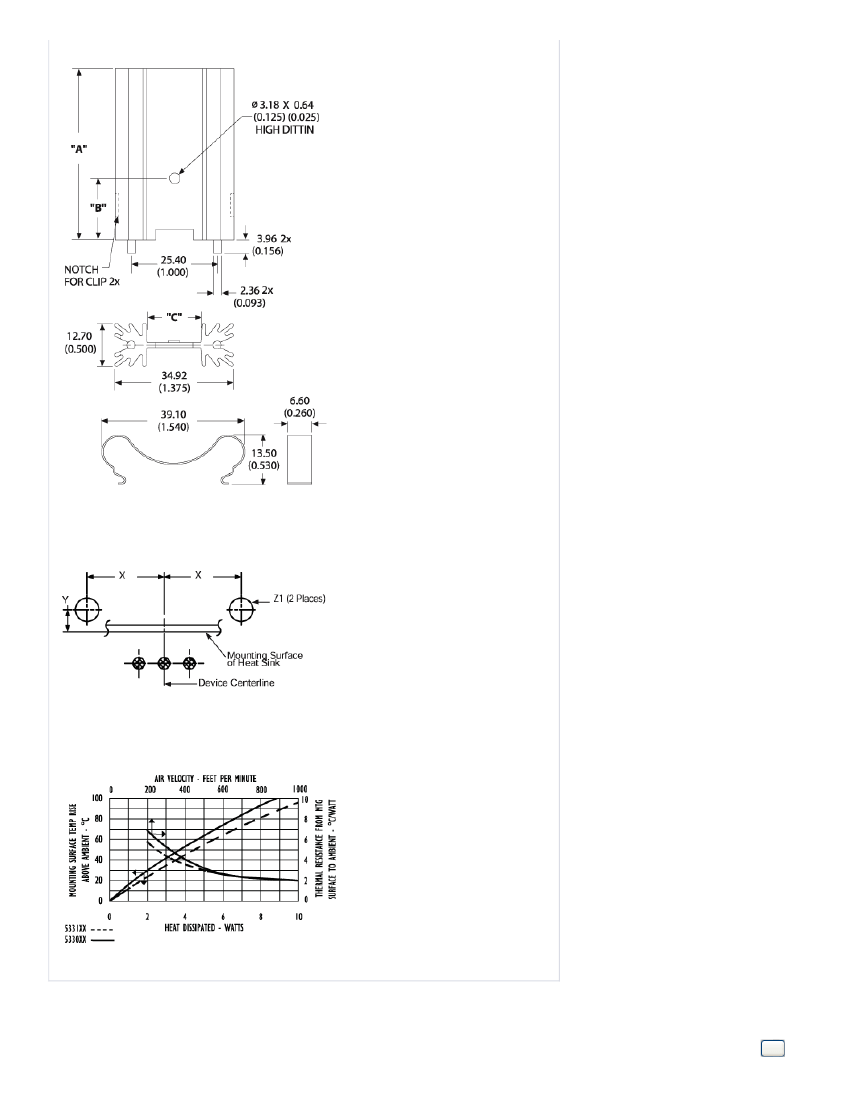

Additional Drawing Dimensions:

A Dim: 38.1 | B Dim: 18.29 | C Dim: 15.88

https://www.aavid.com/products/standard/533102b02551g

1/3
