54LS21M/B2AJC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54LS21M/B2AJC

Preview

54LS21M/B2AJC: DescriptionLS SERIES, DUAL 4-INPUT AND GATE, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size52KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS21M/B2AJC Overview

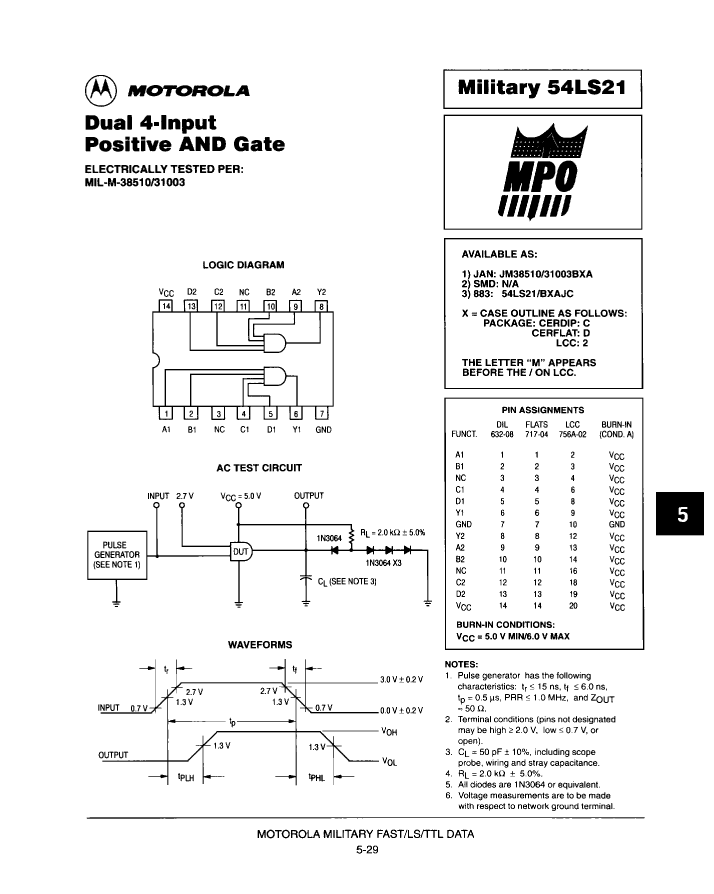

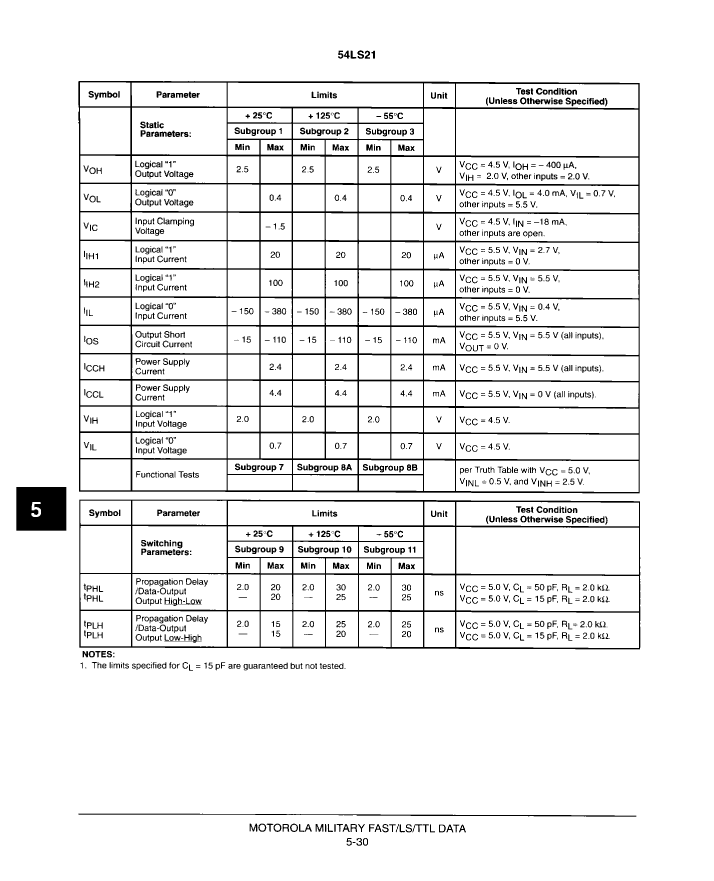

LS SERIES, DUAL 4-INPUT AND GATE, CQCC20, CERAMIC, LCC-20

54LS21M/B2AJC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS21M/B2AJC Related Products

	54LS21M/B2AJC	54LS21/BDAJC	SCK-6R83
Description	LS SERIES, DUAL 4-INPUT AND GATE, CQCC20, CERAMIC, LCC-20	LS SERIES, DUAL 4-INPUT AND GATE, CDFP14, CERAMIC, FP-14	Power Thermistor for Limiting Inrush Current
Is it Rohs certified?	incompatible	incompatible	-
Parts packaging code	QLCC	DFP	-
package instruction	QCCN, LCC20,.35SQ	DFP, FL14,.3	-
Contacts	20	14	-
Reach Compliance Code	unknown	unknown	-
series	LS	LS	-
JESD-30 code	S-CQCC-N20	R-GDFP-F14	-
JESD-609 code	e0	e0	-
length	8.885 mm	9.65 mm	-
Load capacitance (CL)	15 pF	15 pF	-
Logic integrated circuit type	AND GATE	AND GATE	-
MaximumI(ol)	0.004 A	0.004 A	-
Number of functions	2	2	-
Number of entries	4	4	-
Number of terminals	20	14	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	-
encapsulated code	QCCN	DFP	-
Encapsulate equivalent code	LCC20,.35SQ	FL14,.3	-
Package shape	SQUARE	RECTANGULAR	-
Package form	CHIP CARRIER	FLATPACK	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	-
Maximum supply current (ICC)	4.4 mA	4.4 mA	-
Prop。Delay @ Nom-Sup	30 ns	30 ns	-
propagation delay (tpd)	25 ns	25 ns	-
Certification status	Not Qualified	Not Qualified	-
Schmitt trigger	NO	NO	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Maximum seat height	1.9 mm	2.15 mm	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-
surface mount	YES	YES	-
technology	TTL	TTL	-
Temperature level	MILITARY	MILITARY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	NO LEAD	FLAT	-
Terminal pitch	1.27 mm	1.27 mm	-
Terminal location	QUAD	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-
width	8.885 mm	6.415 mm	-
Base Number Matches	1	1	-
