54F521/BSAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F521/BSAJC

54F521/BSAJC: DescriptionIdentity Comparator, F/FAST Series, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20; Categorylogic logic; File Size89KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F521/BSAJC Overview

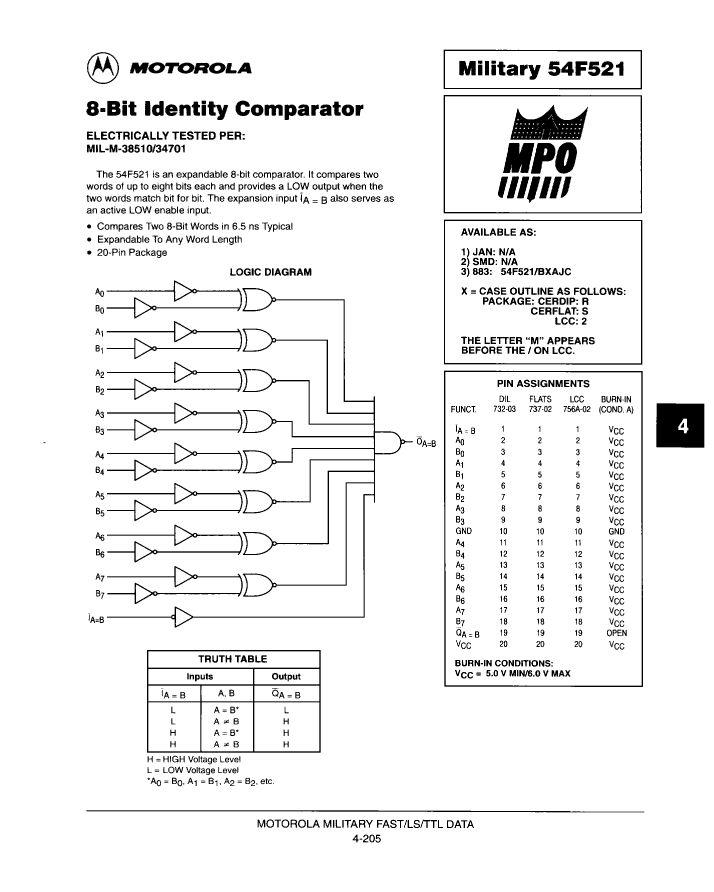

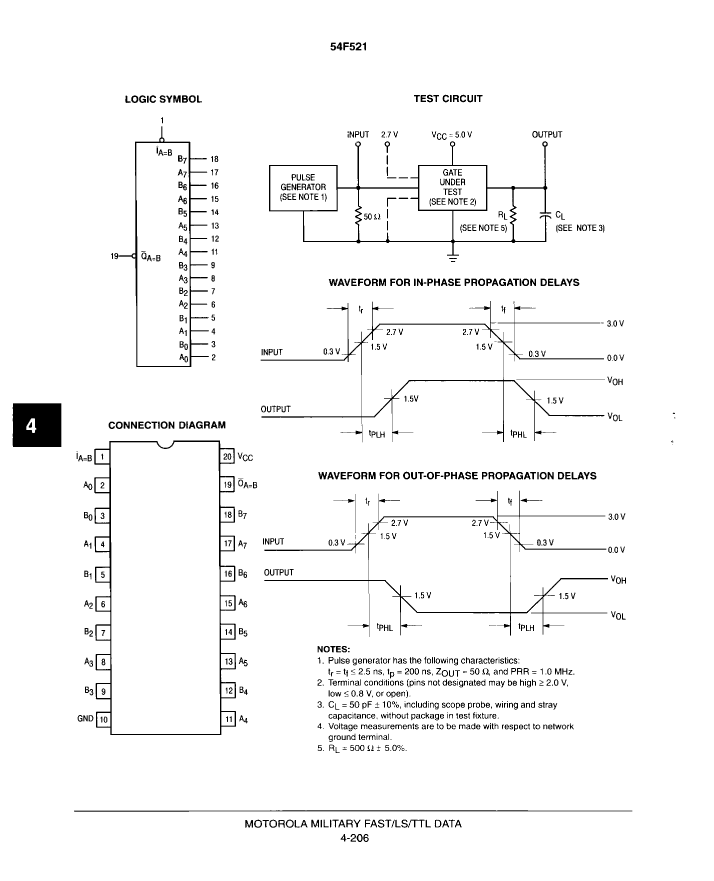

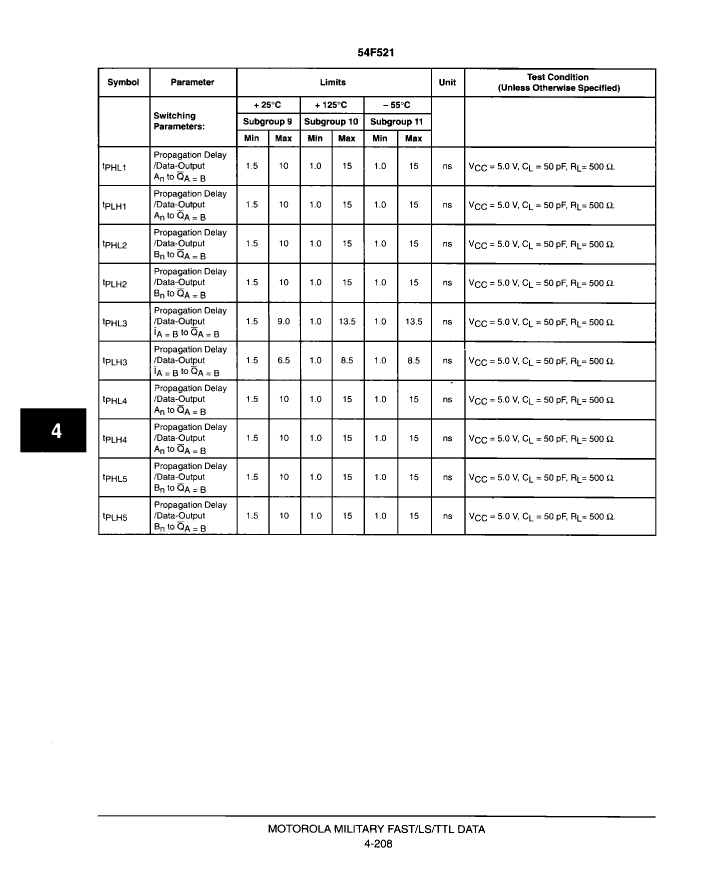

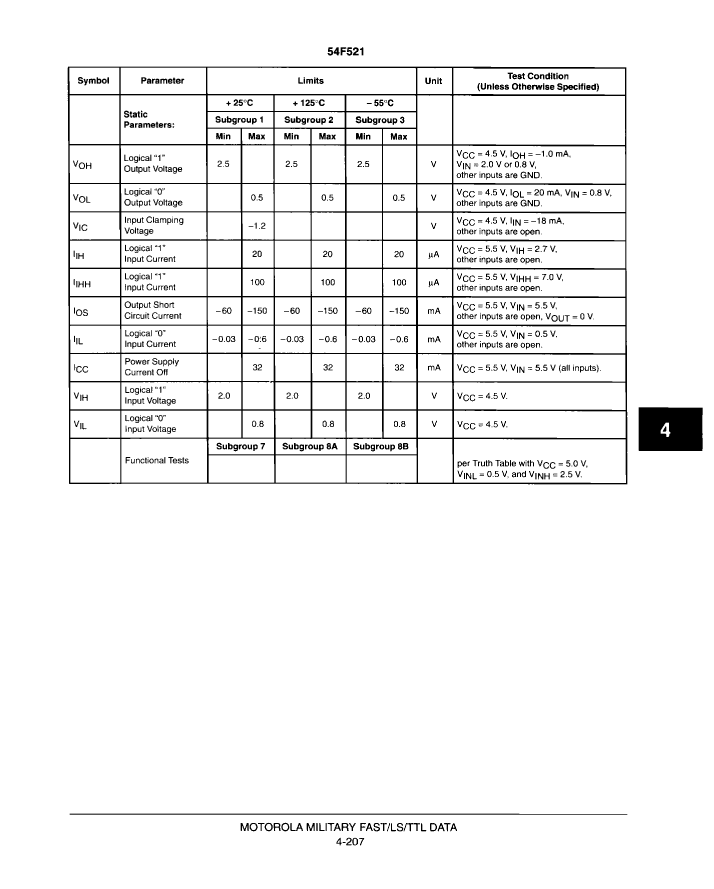

Identity Comparator, F/FAST Series, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20

54F521/BSAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
Other features	CASCADABLE
series	F/FAST
JESD-30 code	R-GDFP-F20
JESD-609 code	e0
length	12.7 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	IDENTITY COMPARATOR
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	32 mA
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.16 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.475 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54F521/BSAJC Related Products

	54F521/BSAJC	54F521M/B2AJC	54F521/BRAJC
Description	Identity Comparator, F/FAST Series, 8-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20	F/FAST SERIES, 8-BIT IDENTITY COMPARATOR, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20	Identity Comparator, F/FAST Series, 8-Bit, Inverted Output, TTL, CDIP20, CERDIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
Other features	CASCADABLE	CASCADABLE	CASCADABLE
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDFP-F20	S-CQCC-N20	R-CDIP-T20
JESD-609 code	e0	e0	e0
length	12.7 mm	8.885 mm	24.515 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	IDENTITY COMPARATOR	IDENTITY COMPARATOR	IDENTITY COMPARATOR
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP
Encapsulate equivalent code	FL20,.3	LCC20,.35SQ	DIP20,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	32 mA	32 mA	32 mA
propagation delay (tpd)	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.16 mm	1.9 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.475 mm	8.885 mm	7.62 mm
Base Number Matches	1	1	1
