54LS390/BFAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS390/BFAJC

54LS390/BFAJC: DescriptionDecade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size123KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS390/BFAJC Overview

Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16

54LS390/BFAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Counting direction	UP
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Load capacitance (CL)	15 pF
Load/preset input	NO
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	12500000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of digits	3
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	26 mA
propagation delay (tpd)	84 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	6.415 mm
minfmax	25 MHz
Base Number Matches	1

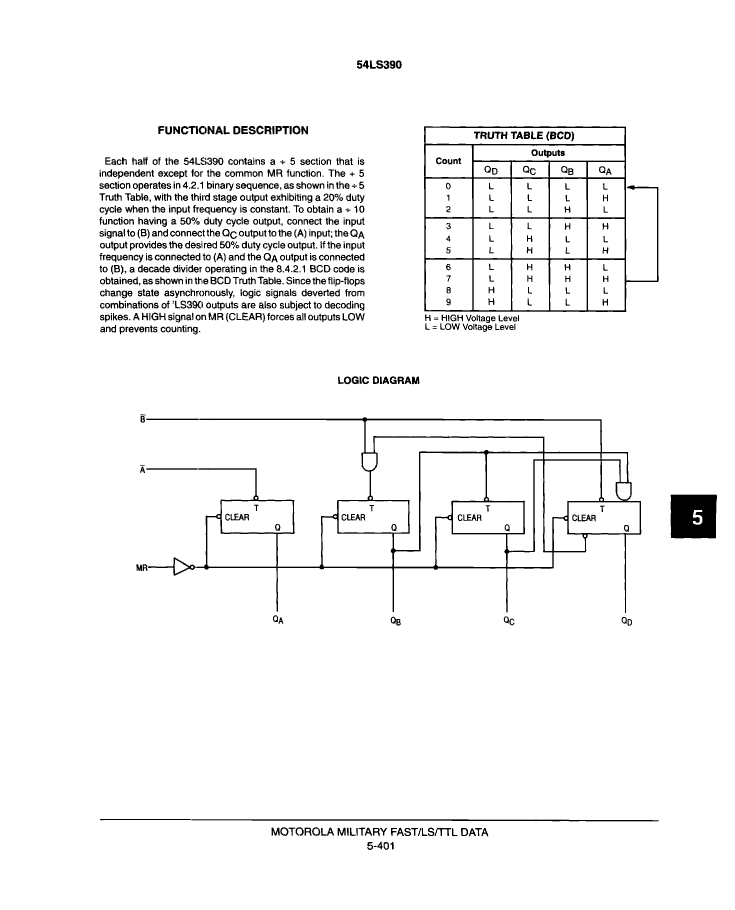

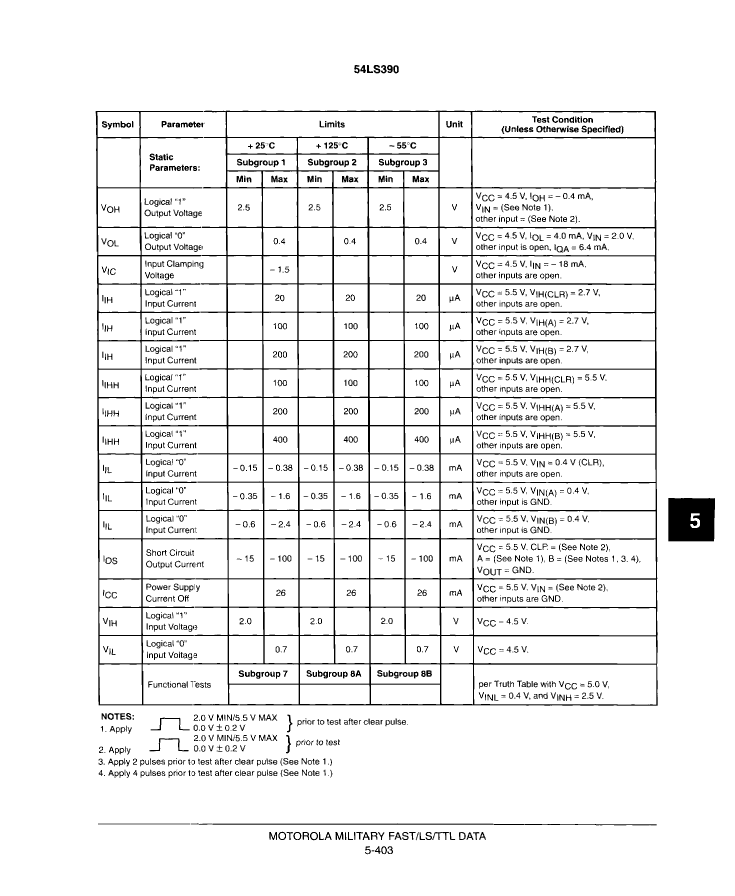

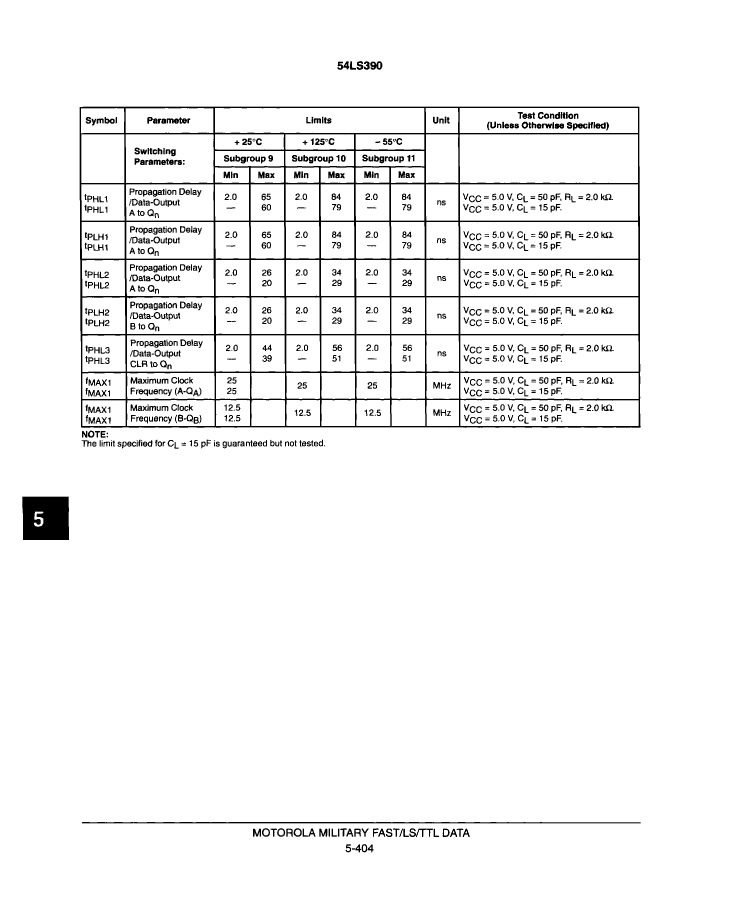

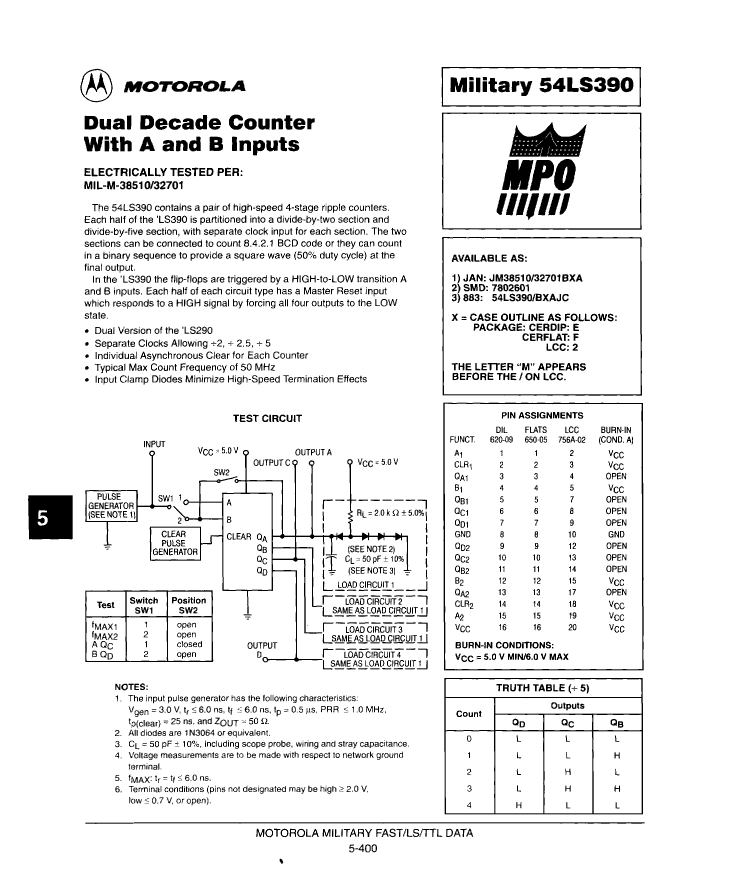

Preview

Download Datasheet

View All

54LS390/BFAJC Related Products

	54LS390/BFAJC	54LS390/BEAJC	54LS390M/B2AJC	7802601EX	7802601FX	7802601FA	78026012X	7802601EA	78026012A
Description	Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDFP16, CERAMIC, FP-16	Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDIP16, CERDIP-16	Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CQCC20, CERAMIC, LCC-20	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP DECADE COUNTER, CDIP16, CERAMIC, DIP-16	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP DECADE COUNTER, CDFP16	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP DECADE COUNTER, CDFP16, CERAMIC, FP-16	Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CQCC20,	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP DECADE COUNTER, CDIP16, CERDIP-16	Decade Counter, LS Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CQCC20, CERAMIC, LCC-20
package instruction	DFP, FL16,.3	DIP,	QCCN, LCC20,.35SQ	DIP,	DFP,	DFP,	QCCN,	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP	UP
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDIP-T16	S-CQCC-N20	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20
length	9.65 mm	19.3 mm	8.89 mm	19.3 mm	10.2 mm	9.65 mm	8.885 mm	19.3 mm	8.885 mm
Load/preset input	NO	NO	NO	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	3	3	3	3	3	3	3	3	3
Number of functions	4	4	4	4	4	4	4	4	4
Number of terminals	16	16	20	16	16	16	20	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN	DIP	DFP	DFP	QCCN	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER
propagation delay (tpd)	84 ns	84 ns	84 ns	79 ns	60 ns	84 ns	79 ns	84 ns	84 ns
Maximum seat height	2.15 mm	4.19 mm	1.9 mm	4.19 mm	2.03 mm	2.15 mm	1.9 mm	4.19 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	6.415 mm	7.62 mm	8.89 mm	7.62 mm	6.73 mm	6.415 mm	8.885 mm	7.62 mm	8.885 mm
minfmax	25 MHz	25 MHz	25 MHz	12.5 MHz	25 MHz	25 MHz	12.5 MHz	25 MHz	25 MHz
Load capacitance (CL)	15 pF	15 pF	15 pF	-	-	15 pF	-	15 pF	15 pF
Maximum supply current (ICC)	26 mA	26 mA	26 mA	-	-	26 mA	-	26 mA	26 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Base Number Matches	1	1	1	1	1	1	1	-	-
Maker	-	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
