5962-8755901FA: Description10H SERIES, DUAL 6-INPUT OR-AND GATE, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size97KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-8755901FA Overview

10H SERIES, DUAL 6-INPUT OR-AND GATE, CDFP16, CERAMIC, FP-16

5962-8755901FA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	COMMON INPUT
series	10H
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Logic integrated circuit type	OR-AND GATE
Number of functions	2
Number of entries	6
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-5.2 V
Maximum supply current (ICC)	29 mA
propagation delay (tpd)	1.85 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.415 mm
Base Number Matches	1

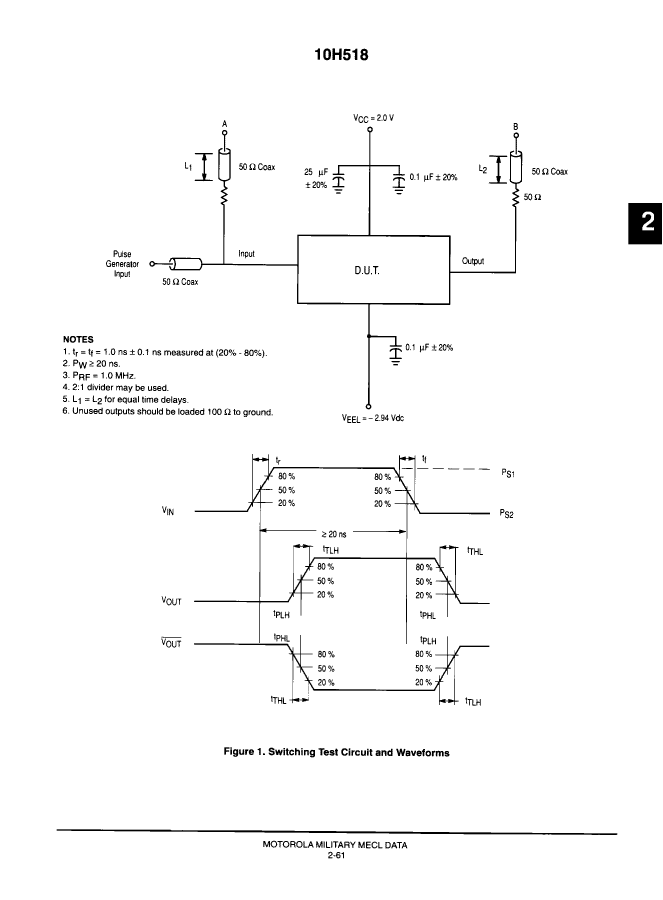

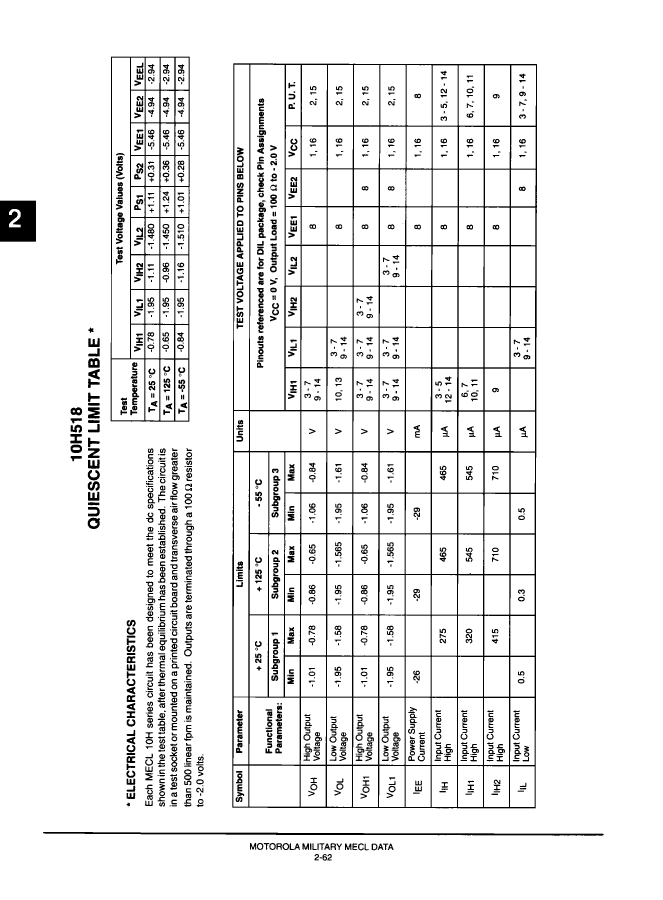

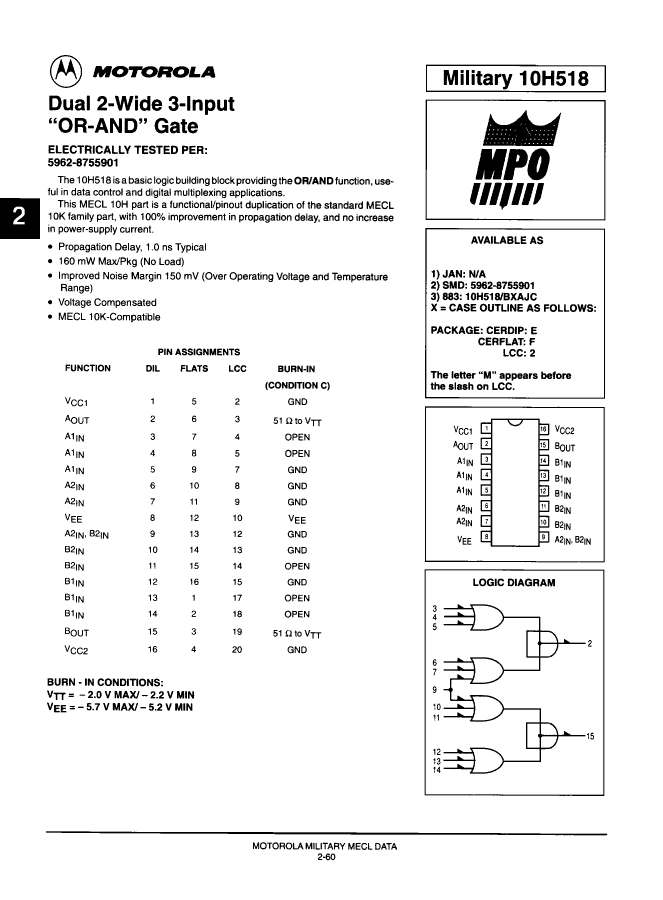

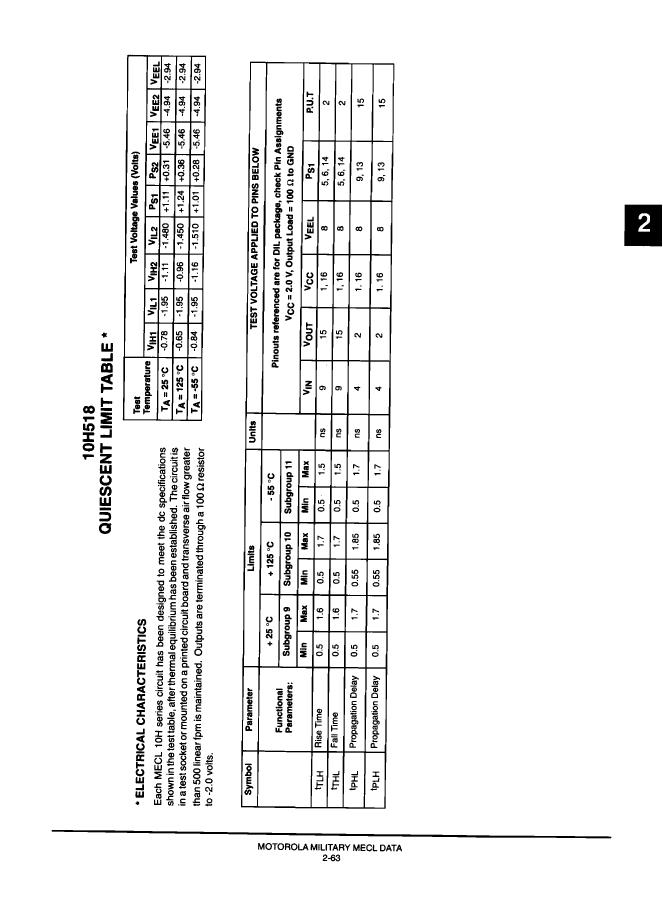

Preview
