54F64/BDA datasheet, PDF - EEWORLD Datasheet

54F64/BDA: DescriptionAND-OR-Invert Gate, TTL, CDFP14,; Categorylogic logic; File Size88KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F64/BDA Overview

AND-OR-Invert Gate, TTL, CDFP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	AND-OR-INVERT GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

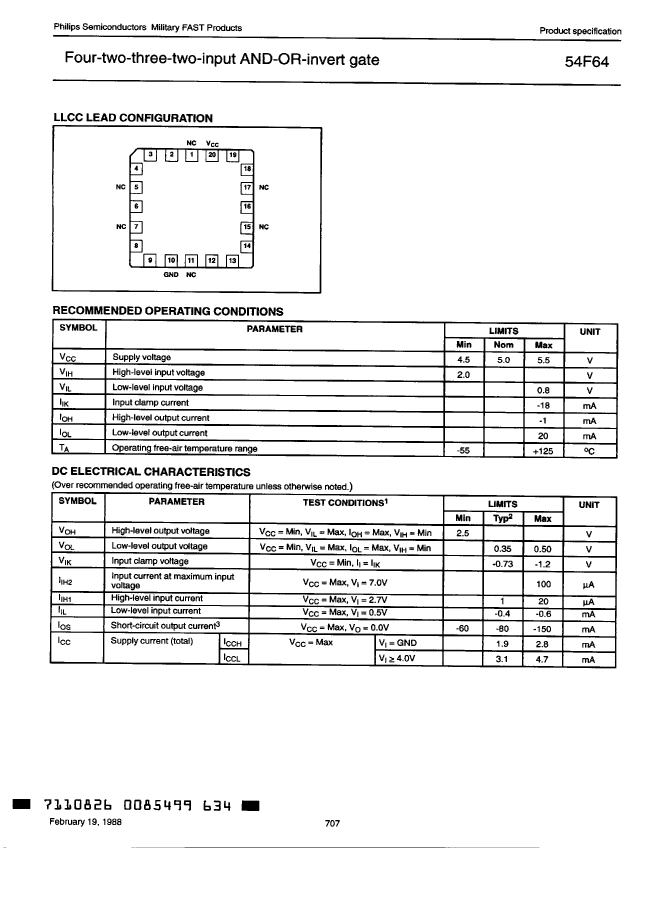

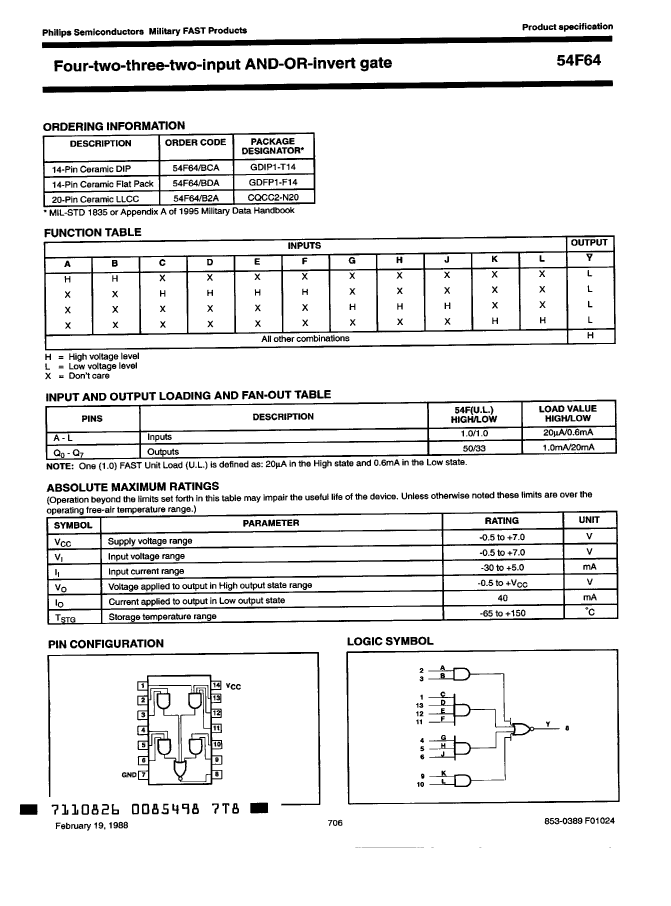

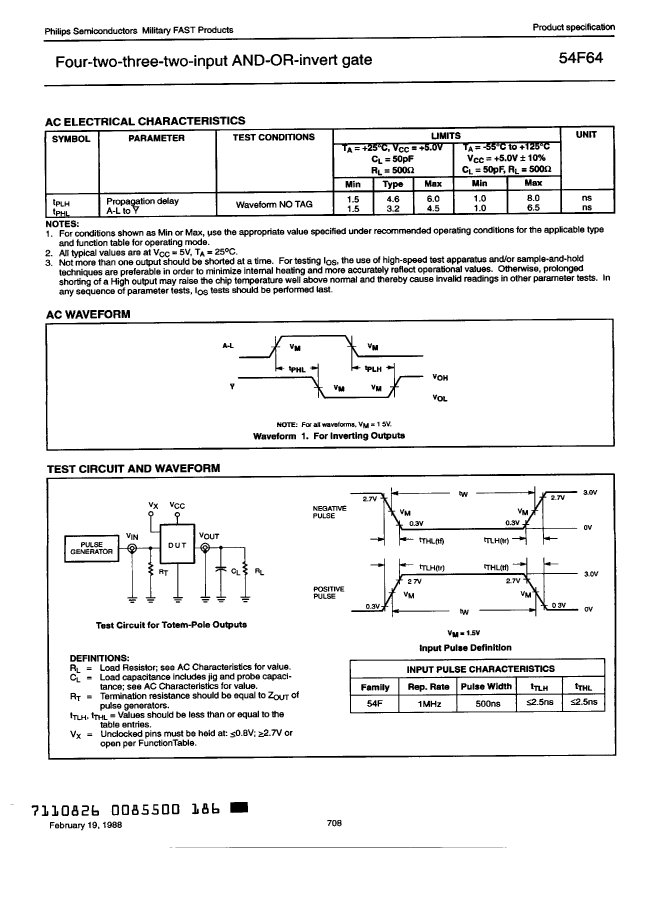

This Material Copyrighted By Its Respective Manufacturer

	54F64/BDA	54F64/B2A	SC-10-S30JH
Description	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CQCC20,	KEMET, SC Three Phase, AC Line Filters, Common Mode, 3000 uH
Is it Rohs certified?	incompatible	incompatible	-
package instruction	DFP, FL14,.3	QCCN, LCC20,.35SQ	-
Reach Compliance Code	unknown	unknown	-
JESD-30 code	R-XDFP-F14	S-XQCC-N20	-
JESD-609 code	e0	e0	-
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	-
Number of terminals	14	20	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	-
encapsulated code	DFP	QCCN	-
Encapsulate equivalent code	FL14,.3	LCC20,.35SQ	-
Package shape	RECTANGULAR	SQUARE	-
Package form	FLATPACK	CHIP CARRIER	-
power supply	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	-
Schmitt trigger	NO	NO	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Nominal supply voltage (Vsup)	5 V	5 V	-
surface mount	YES	YES	-
technology	TTL	TTL	-
Temperature level	MILITARY	MILITARY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	FLAT	NO LEAD	-
Terminal pitch	1.27 mm	1.27 mm	-
Terminal location	DUAL	QUAD	-
Base Number Matches	1	1	-
