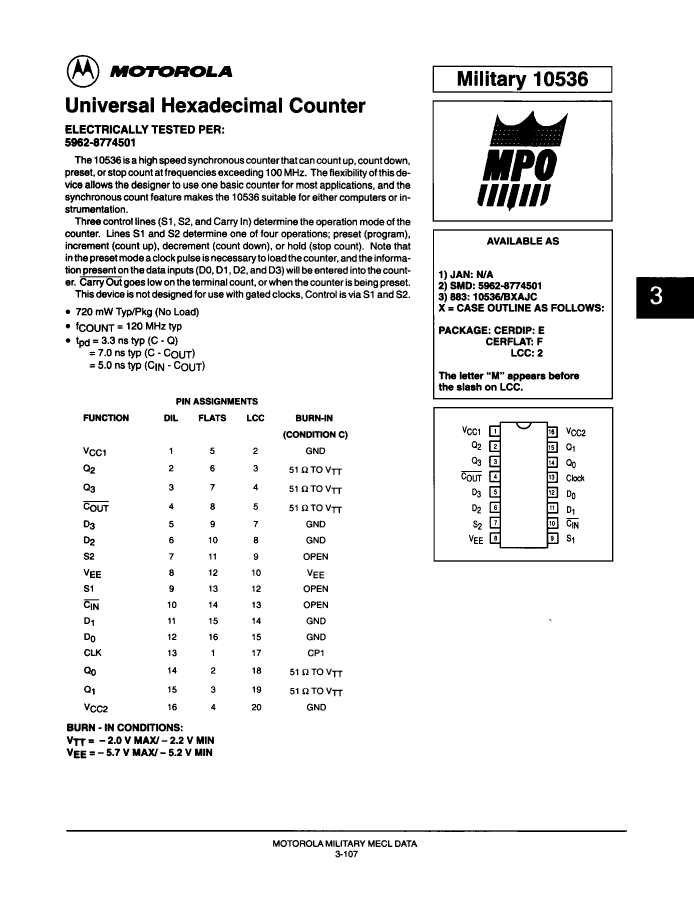

10K SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDFP16, CERAMIC, FP-16

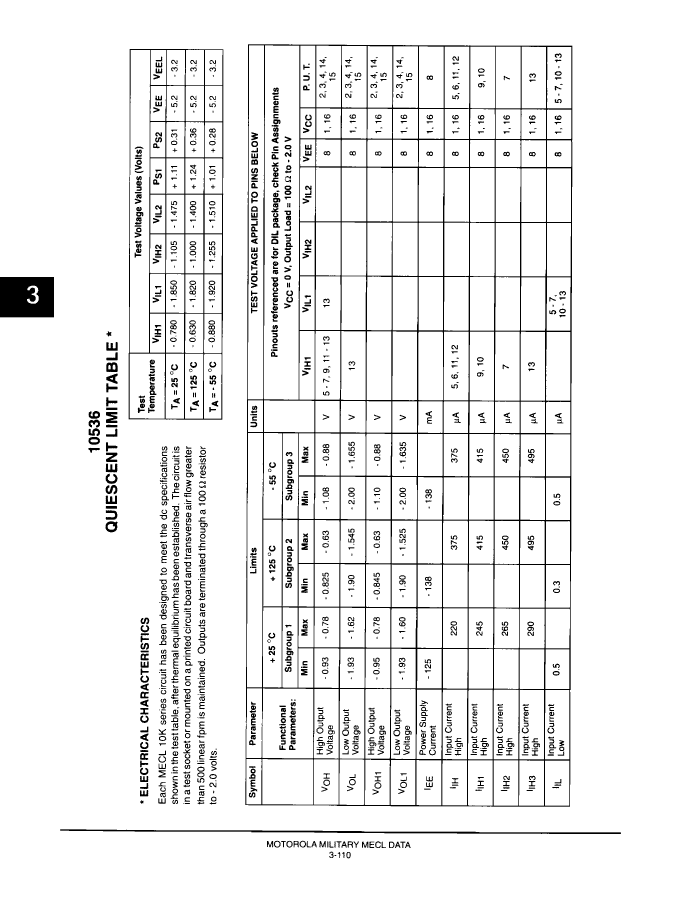

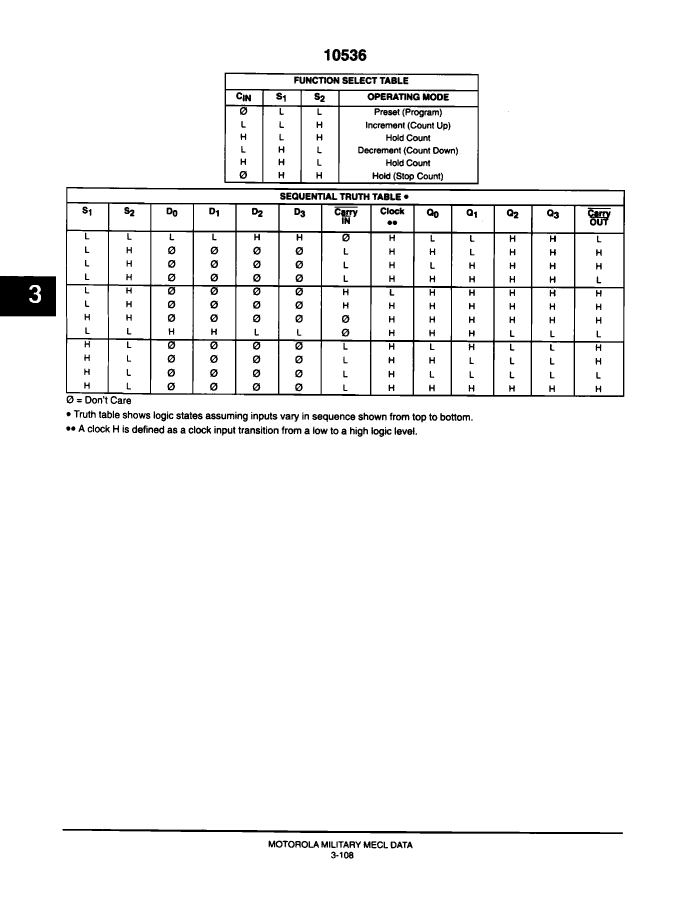

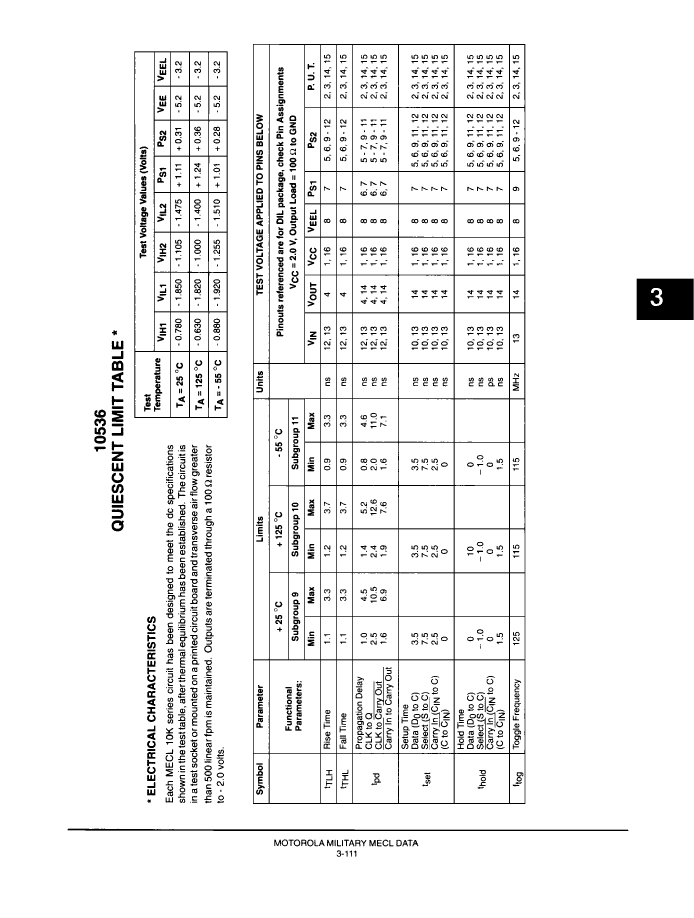

| Parameter Name | Attribute value |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | TCO OUTPUT; COUNT ENABLE INPUT |
| Counting direction | BIDIRECTIONAL |
| series | 10K |
| JESD-30 code | R-GDFP-F16 |
| JESD-609 code | e0 |
| length | 9.65 mm |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Maximum supply current (ICC) | 138 mA |
| propagation delay (tpd) | 5.2 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.15 mm |
| surface mount | YES |
| technology | ECL |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| width | 6.415 mm |
| minfmax | 115 MHz |
| Base Number Matches | 1 |
| 5962-8774501FA | GBU1006 | 10536/BFAJC | 5962-87745012A | 5962-8774501EA | |
|---|---|---|---|---|---|
| Description | 10K SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDFP16, CERAMIC, FP-16 | SILICON BRIDGE RECTIFIERS 10.0A GLASS PASSIVATED BRIDGE RECTIFIER | 10K SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDFP16, CERAMIC, FP-16 | 10K SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CQCC20, CERAMIC, LCC-20 | 10K SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERDIP-16 |
| Parts packaging code | DFP | - | DFP | QLCC | DIP |
| package instruction | DFP, | - | DFP, FL16,.3 | QCCN, | DIP, |
| Contacts | 16 | - | 16 | 20 | 16 |
| Reach Compliance Code | unknown | - | unknown | unknown | unknown |
| Other features | TCO OUTPUT; COUNT ENABLE INPUT | - | TCO OUTPUT; COUNT ENABLE INPUT | TCO OUTPUT; COUNT ENABLE INPUT | TCO OUTPUT; COUNT ENABLE INPUT |
| Counting direction | BIDIRECTIONAL | - | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| series | 10K | - | 10K | 10K | 10K |
| JESD-30 code | R-GDFP-F16 | - | R-GDFP-F16 | S-CQCC-N20 | R-GDIP-T16 |
| JESD-609 code | e0 | - | e0 | e0 | e0 |
| length | 9.65 mm | - | 9.65 mm | 8.885 mm | 19.49 mm |
| Load/preset input | YES | - | YES | YES | YES |
| Logic integrated circuit type | BINARY COUNTER | - | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER |
| Operating mode | SYNCHRONOUS | - | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of digits | 4 | - | 4 | 4 | 4 |
| Number of functions | 1 | - | 1 | 1 | 1 |
| Number of terminals | 16 | - | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C |
| Output characteristics | OPEN-EMITTER | - | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED | - | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | - | DFP | QCCN | DIP |
| Package shape | RECTANGULAR | - | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | FLATPACK | - | FLATPACK | CHIP CARRIER | IN-LINE |
| Maximum supply current (ICC) | 138 mA | - | 138 mA | 138 mA | 138 mA |
| propagation delay (tpd) | 5.2 ns | - | 5.2 ns | 5.2 ns | 5.2 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.15 mm | - | 2.15 mm | 1.9 mm | 5.08 mm |
| surface mount | YES | - | YES | YES | NO |
| technology | ECL | - | ECL | ECL | ECL |
| Temperature level | MILITARY | - | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | - | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD |
| Terminal form | FLAT | - | FLAT | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | - | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | - | DUAL | QUAD | DUAL |
| Trigger type | POSITIVE EDGE | - | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 6.415 mm | - | 6.415 mm | 8.885 mm | 7.62 mm |
| minfmax | 115 MHz | - | 115 MHz | 115 MHz | 115 MHz |
| Base Number Matches | 1 | - | 1 | 1 | 1 |
