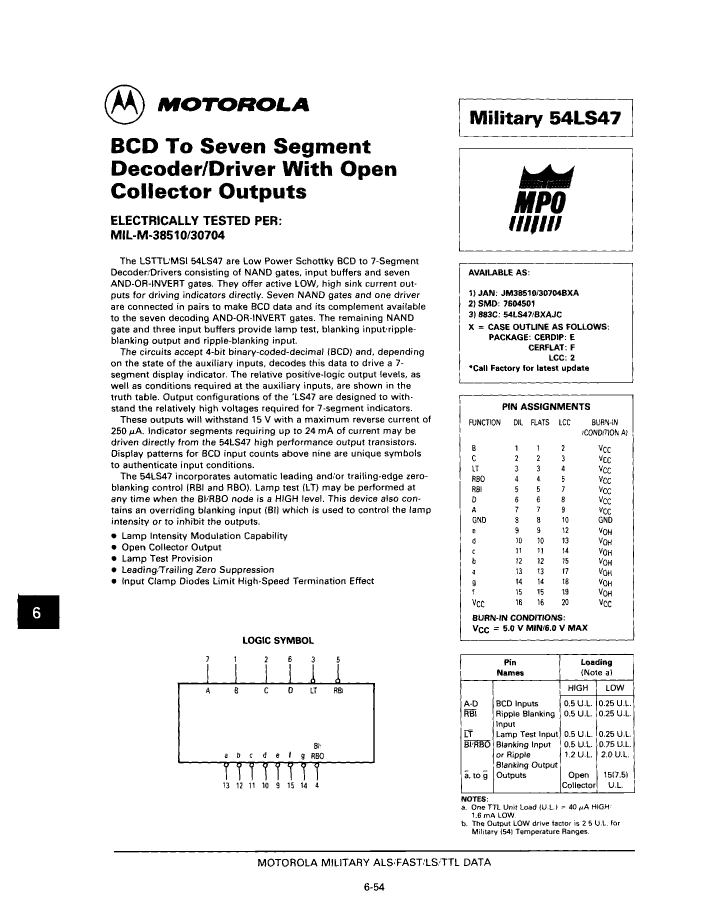

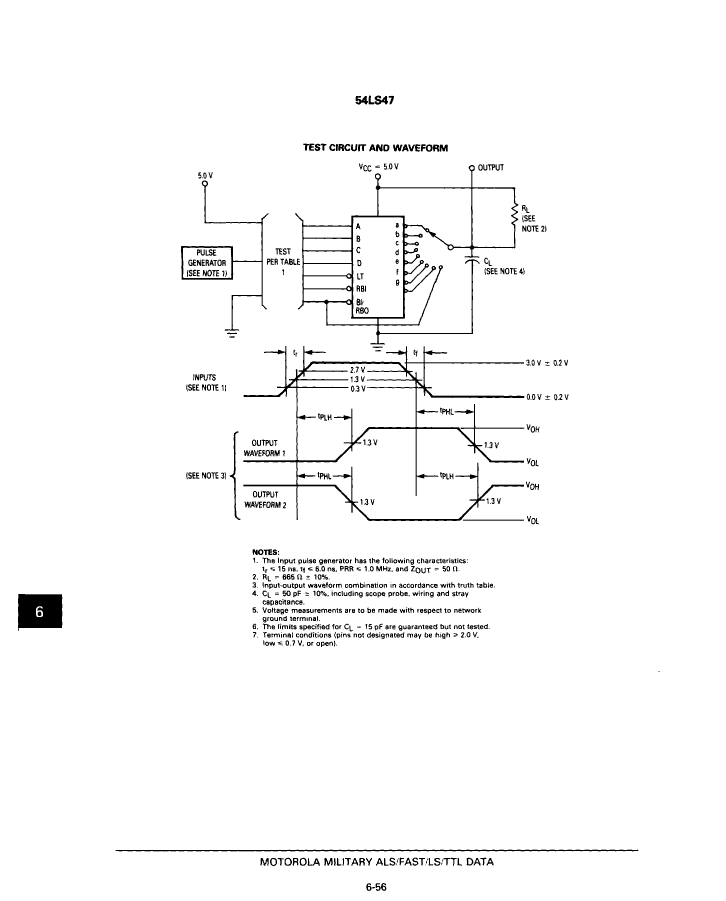

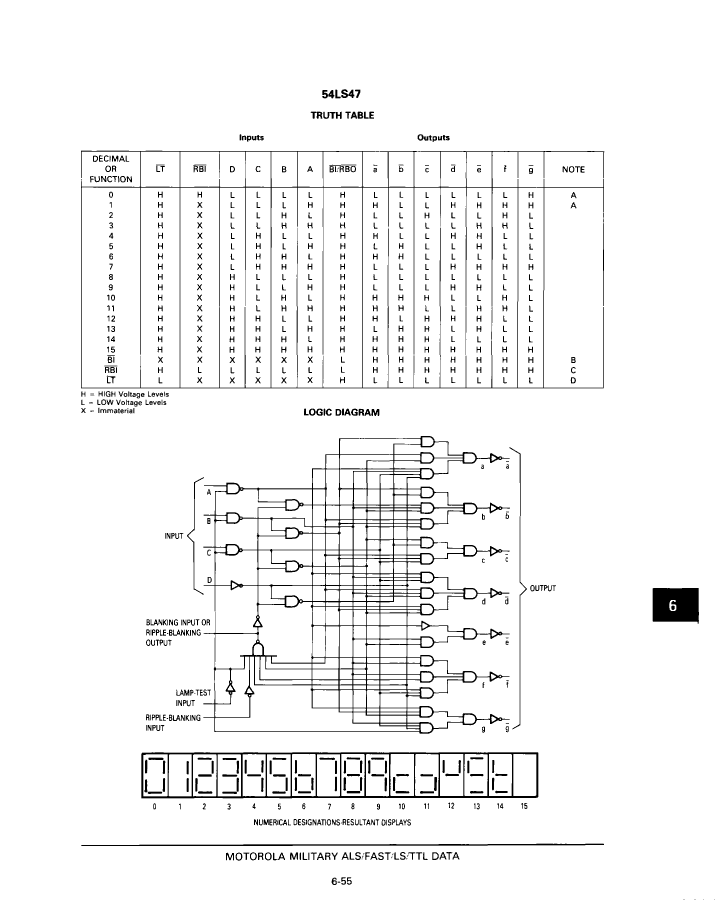

LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20

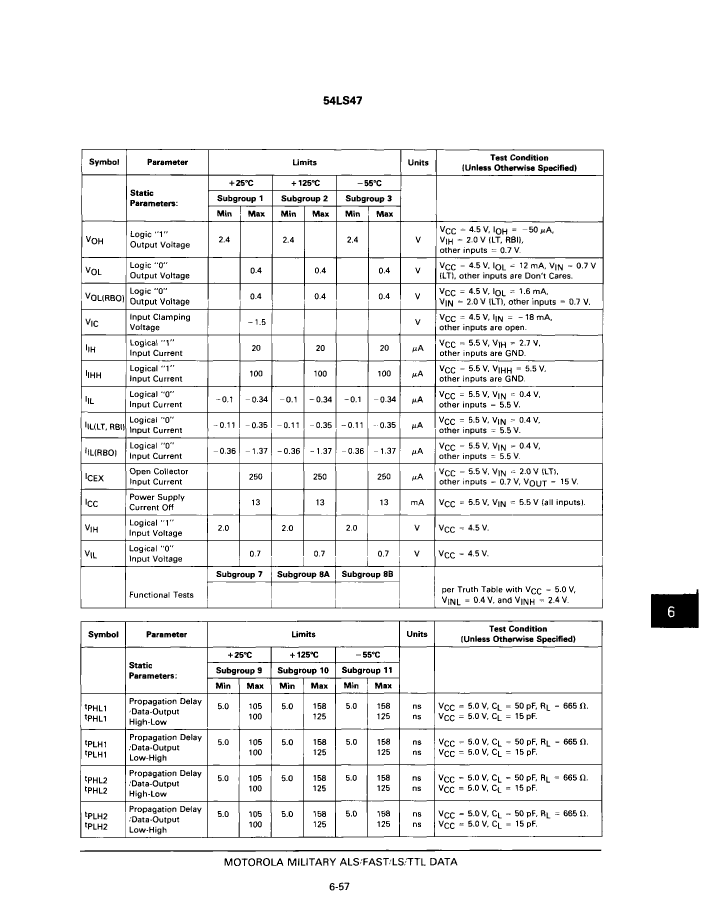

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| series | LS |
| Input adjustment | STANDARD |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Logic integrated circuit type | SEVEN SEGMENT DECODER/DRIVER |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-COLLECTOR |
| Output polarity | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| propagation delay (tpd) | 158 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 54LS47/B2AJC | F16365 | 7604501 | JM38510/30704B2A | JM38510/30704BFA | |
|---|---|---|---|---|---|
| Description | LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20 | ~40° wide beam compatible with LEDiL HEKLA | LS SERIES, SEVEN SEGMENT DECODER/DRIVER, INVERTED OUTPUT | Decoder/Driver, LS Series, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20 | Seven Segment Decoder/Driver, LS Series, Inverted Output, TTL, CDFP16, CERAMIC, FP-16 |
| package instruction | QCCN, LCC20,.35SQ | - | , | QCCN, | DFP, |
| Reach Compliance Code | unknown | - | unknown | unknown | unknown |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 |
| series | LS | - | LS | LS | LS |
| Input adjustment | STANDARD | - | STANDARD | STANDARD | STANDARD |
| JESD-30 code | S-CQCC-N20 | - | - | S-CQCC-N20 | R-GDFP-F16 |
| length | 8.89 mm | - | - | 8.89 mm | 9.65 mm |
| Logic integrated circuit type | SEVEN SEGMENT DECODER/DRIVER | - | SEVEN SEGMENT DECODER/DRIVER | - | SEVEN SEGMENT DECODER/DRIVER |
| Number of functions | 1 | - | 1 | 1 | 1 |
| Number of terminals | 20 | - | - | 20 | 16 |
| Maximum operating temperature | 125 °C | - | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C | -55 °C |
| Output characteristics | OPEN-COLLECTOR | - | OPEN-COLLECTOR | OPEN-COLLECTOR | OPEN-COLLECTOR |
| Output polarity | INVERTED | - | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | - | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | - | - | QCCN | DFP |
| Package shape | SQUARE | - | - | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | - | - | CHIP CARRIER | FLATPACK |
| propagation delay (tpd) | 158 ns | - | 158 ns | 158 ns | 158 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | - | - | 1.9 mm | 2.15 mm |
| Nominal supply voltage (Vsup) | 5 V | - | 5 V | 5 V | 5 V |
| surface mount | YES | - | - | YES | YES |
| technology | TTL | - | TTL | TTL | TTL |
| Temperature level | MILITARY | - | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | - | - | NO LEAD | FLAT |
| Terminal pitch | 1.27 mm | - | - | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | - | - | QUAD | DUAL |
| width | 8.89 mm | - | - | 8.89 mm | 6.415 mm |
| Maker | - | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
