Molding RF Coils < Pin Type: FEM Series>
Type: FEM-10, FEM-10C
◆
Product Description
・10.0×6.5mm
Max.(L×W), 12.5mm Max. Height.
・Inductance:0.05½0.23μH
.
・Operating
frequency:200MHz
・In
addition to the standard versions of parameters shown here, custom designs
are available to meet your exact requirements.
◆
Feature
◆
Connection (Bottom View)
・Variable
unshielded type.
・Ideally
used in FM Radio ,TV. Transceiver
・RoHS
Compliance
◆

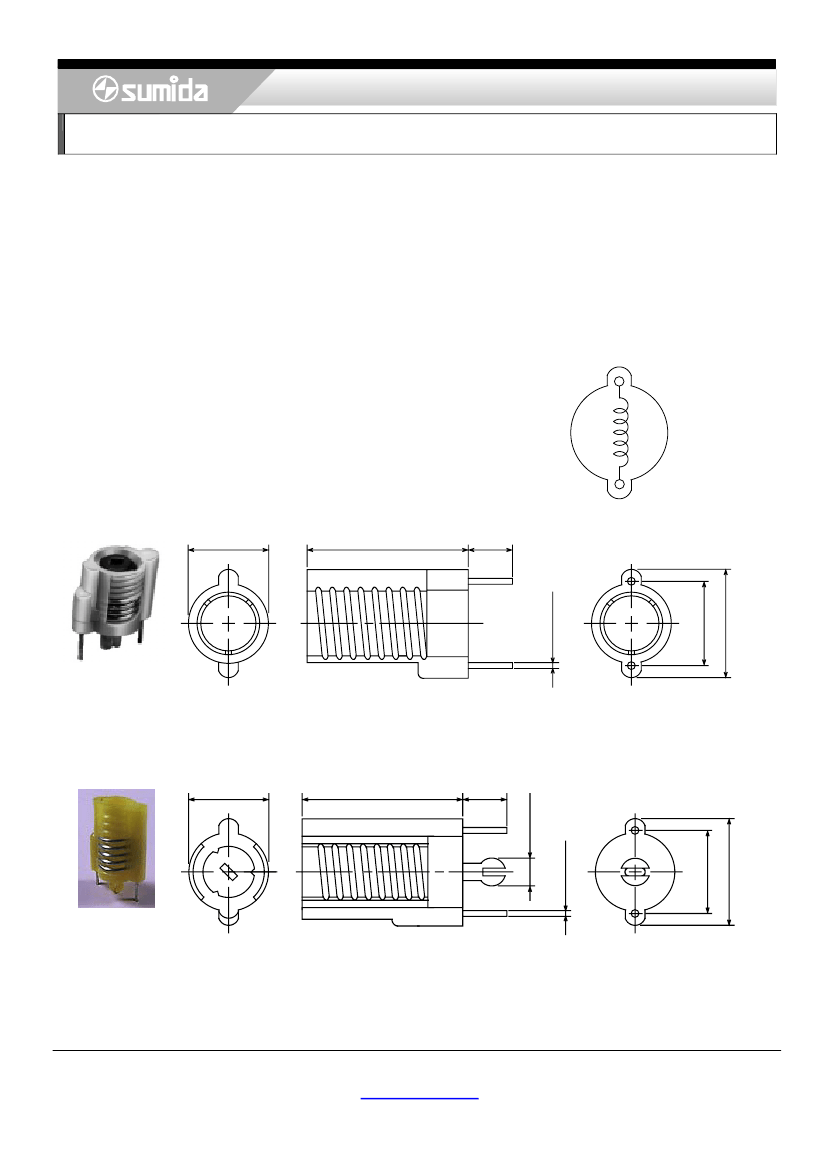

Dimensions (mm)
φ6.0±0.5
12.0±0.5
4.0±1.0
7.5±0.5
7.5±0.5
FEM-10
φ2.6±0.3
6.0±0.5
12.0±0.5
4.0±1.0
φ0.6±0.1
FEM-10C
*
Dimension does not include solder used on coil.
*
Pin pitch should be measured at the root of terminal.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
φ0.6±0.1
9.5±0.5
9.5±0.5
1/1
Molding RF Coils < Pin Type: FEM Series>
Type: FEM-10, FEM-10C
◆
Specification
(FEM-10)
Color
Natural
Red
Orange
Yellow
Green
Blue
Natural
Part No.
FEM1ØNP-1N6
FEM1ØNP-1F6
FEM1ØNP-2N6
FEM1ØNP-2F6
FEM1ØNP-3N6
FEM1ØNP-3F6
FEM1ØNP-4N6
FEM1ØNP-4F6
FEM1ØNP-5N6
FEM1ØNP-5F6
FEM1ØNP-6N6
FEM1ØNP-6F6
※
FEM1ØNP-7N6
FEM1ØNP-7F6
※
◆
Specification
Turns
Tuning capacitance
75pF±10% Within
63pF±5%
61pF±5%
43pF±5%
30pF±5%
23pF±5%
21pF±5%
Variable
Variable
Variable
Variable
Variable
Variable
77pF±10% Within
58pF±10% Within
45pF±10% Within
37pF±10% Within
31pF±10% Within
27pF±10% Within
Unloaded Q
(Min.)
80
90
105
115
100
115
90
110
80
105
80
110
80
Measuring
frequency
100MHz
80MHz
80MHz
80MHz
80MHz
80MHz
80MHz
1½T
2½T
3½T
4½T
5½T
6½T
7½T
17pF±5%
Variable
110
(FEM-10C)
Color
Natural
Red
Orange
Yellow
Green
Blue
Natural
Turns
Tuning Capacitance
63pF±5%
75pF±10%
61pF±5%
77pF±10%
43pF±5%
58pF±10%
30pF±5%
45pF±10%
23pF±5%
37pF±10%
21pF±5%
31pF±10%
17pF±5%
variable
within
variable
within
variable
within
variable
within
variable
within
variable
within
variable
Part No.
FEM1ØCNP-1F6
FEM1ØCNP-1N6
FEM1ØCNP-2F6
FEM1ØCNP-2N6
FEM1ØCNP-3F6
FEM1ØCNP-3N6
FEM1ØCNP-4F6
FEM1ØCNP-4N6
FEM1ØCNP-5F6
FEM1ØCNP-5N6
FEM1ØCNP-6F6
※
FEM1ØCNP-6N6
FEM1ØCNP-7F6
※
Unloaded Q
(Min.)
90
80
115
105
115
100
110
90
105
80
110
80
110
Measuring
Frequency
100MHz
80MHz
80MHz
80MHz
80MHz
80MHz
1½T
2½T
3½T
4½T
5½T
6½T
7½T
80MHz
FEM1ØCNP-7N6
80
27pF±10% within
Adjustable core, F: Ferrite core
N: without core.
※
Variable range of tuning capacitance allows screw core to have 2mm Max. fly out from the top of coil.
*
VHF Q-METER to be used when measuring.
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
