Part Number

Search

55515-310LF

Description
Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size144KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

55515-310LF Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

55515-310LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
body width0.157 inch
subject depth0.177 inch
body length0.78 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Manufacturer's serial number55515
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.0038 mm
Plating thickness15u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts10
Base Number Matches1

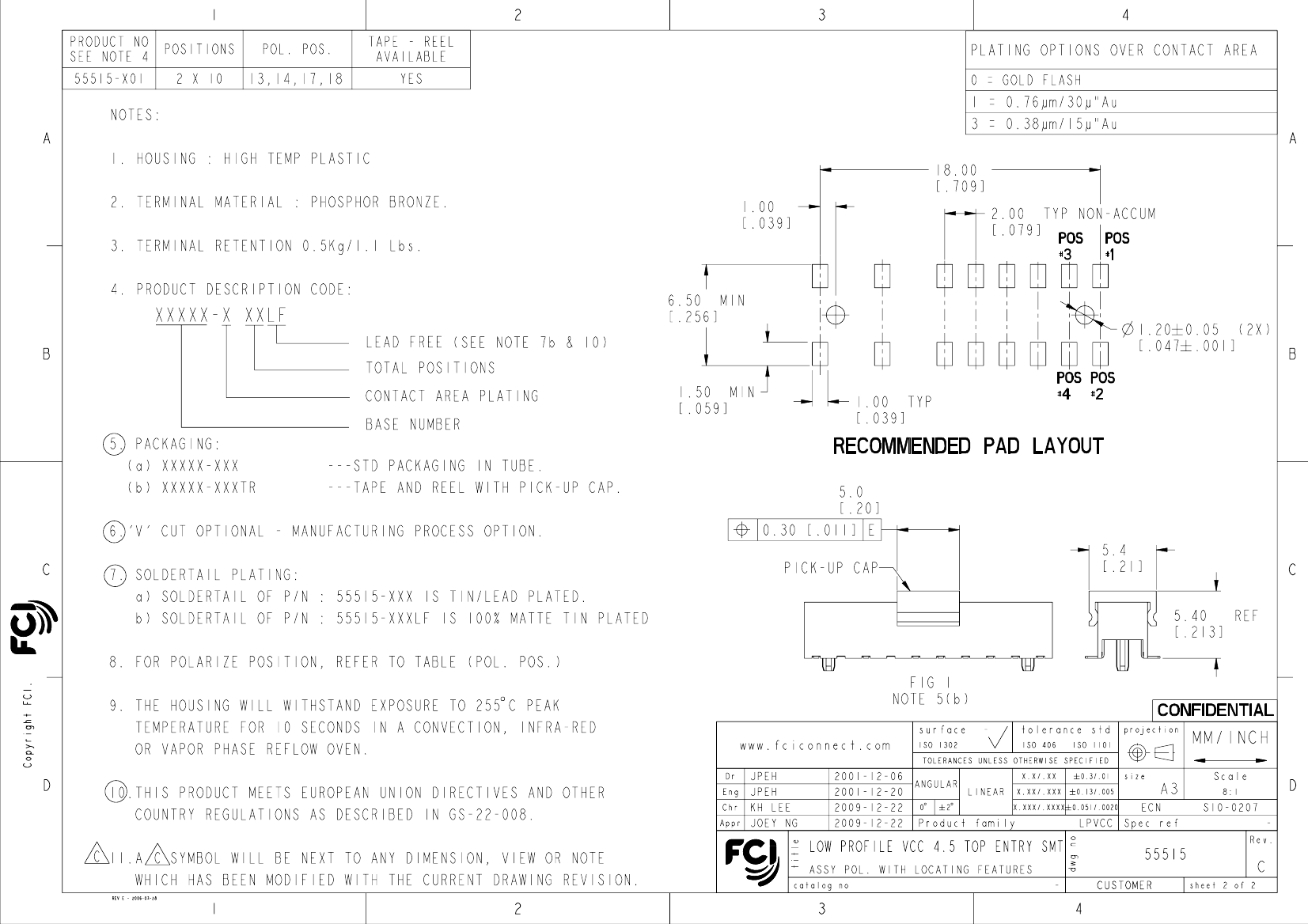

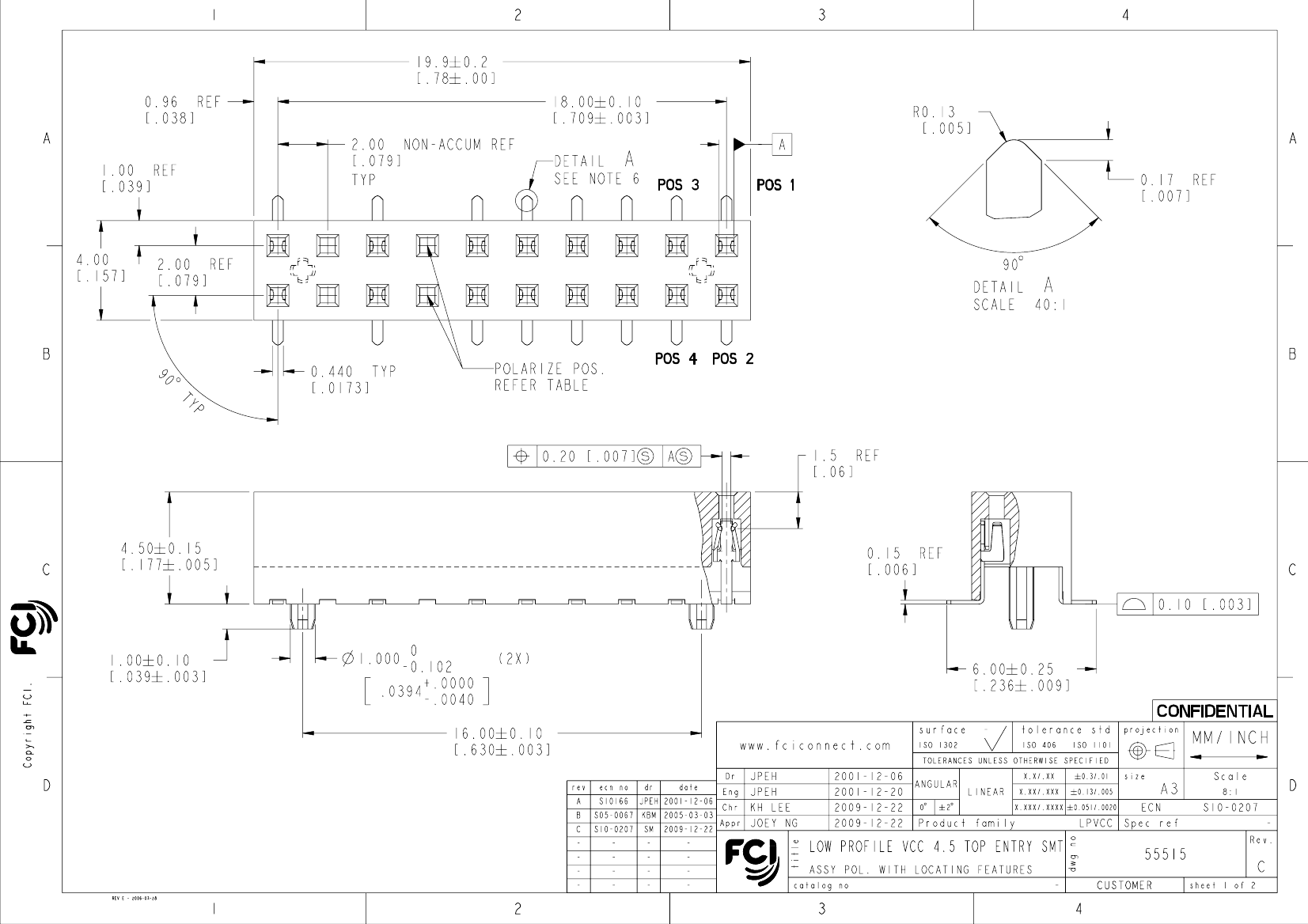

PDM: Rev:C
STATUS:
Released
Printed: Oct 14, 2010
.
