45WR100KLFTB: DescriptionRESISTOR, TRIMMER, CERMET, 15 TURN(S), 0.25W, 100000ohm, 4 MM, SQUARE, 3 PINS, ROHS COMPLIANT; CategoryPassive components The resistor; File Size821KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

45WR100KLFTB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	45WR100KLFTB	-	-	View	Buy Now

45WR100KLFTB Overview

RESISTOR, TRIMMER, CERMET, 15 TURN(S), 0.25W, 100000ohm, 4 MM, SQUARE, 3 PINS, ROHS COMPLIANT

45WR100KLFTB Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Actuator direction	VERTICAL
Actuator type	SCREW
Manufacturer's serial number	45
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	15
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TUBE
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	100000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
surface mount	YES
technology	CERMET
Terminal shape	WRAPAROUND
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

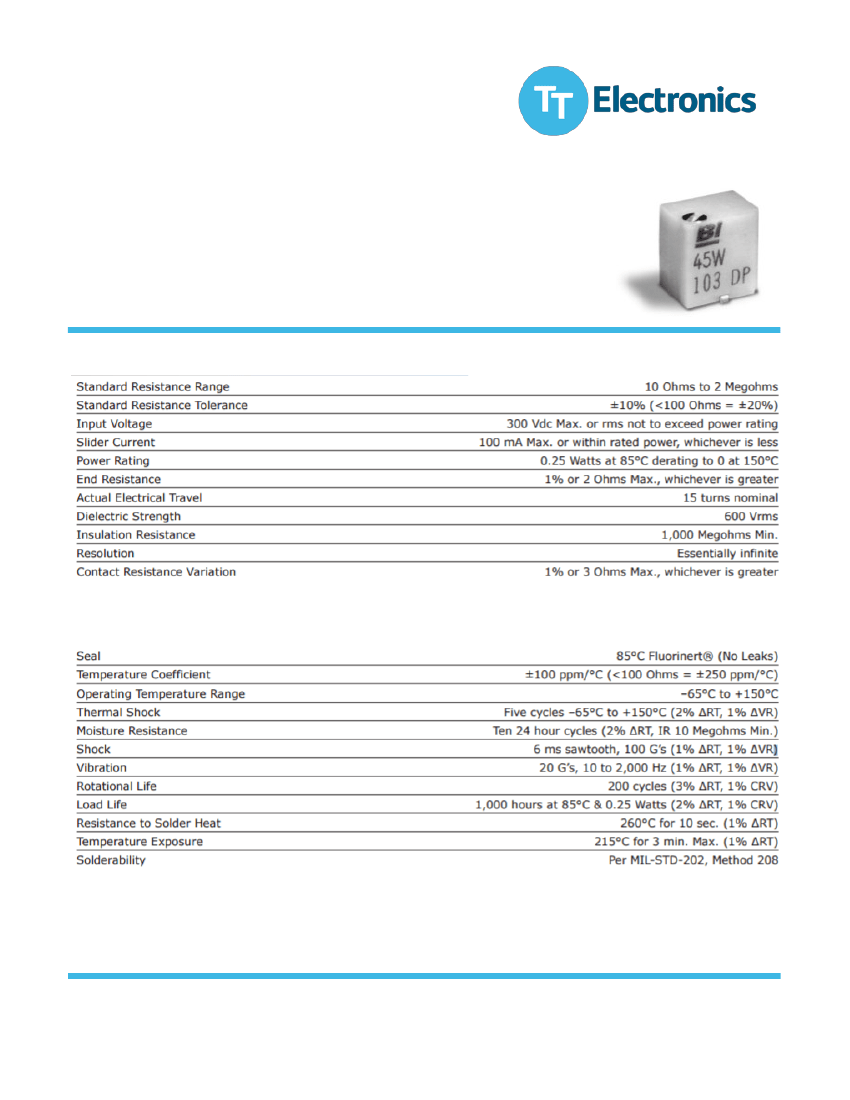

Multi-Turn Trimmer

Model 45

Features:



Space saving SMD package for the most compact board designs



4 mm square, cermet surface mount



High resolution, 15 turns



Sealed to withstand aggressive water wash



Long life—set and forget construction



Available in top and side adjustment versions, J-Hook or gull wing termination and

optional extended shaft

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
