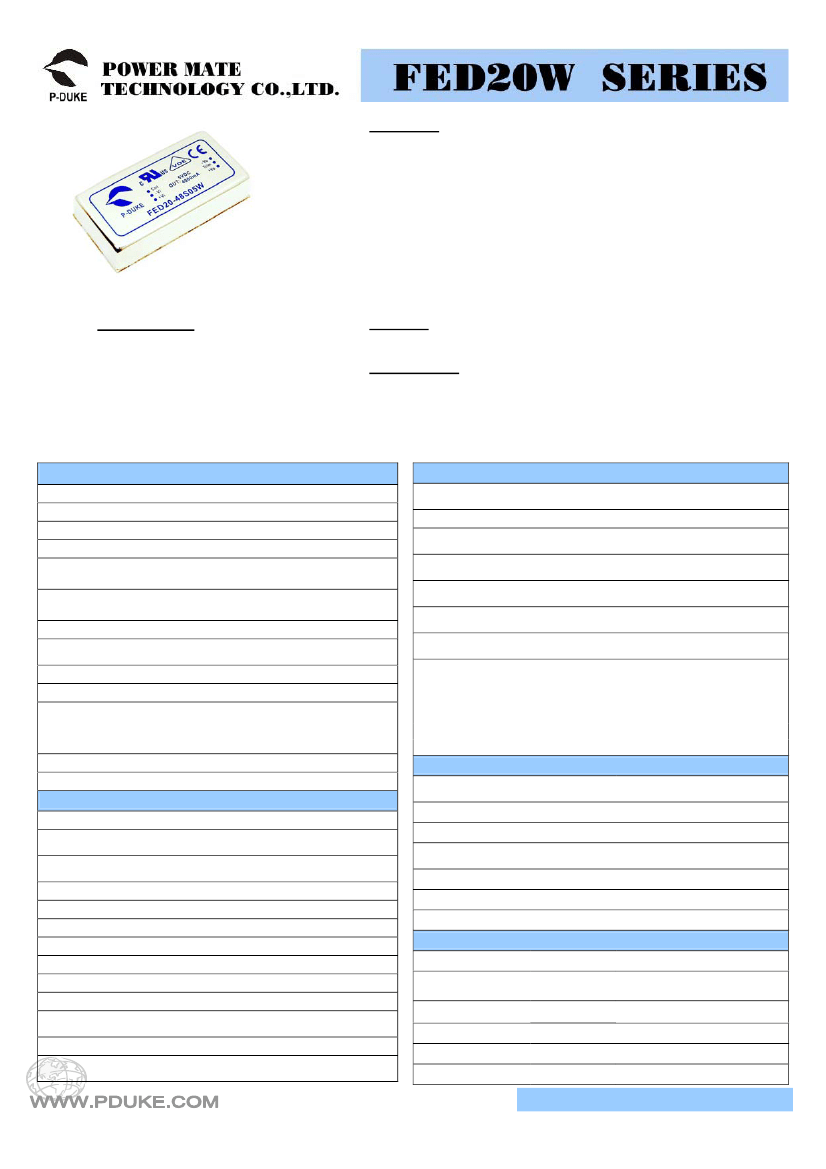

FEATURES
•
20 WATTS MAXIMUM OUTPUT POWER
•
OUTPUT CURRENT UP TO 5.5A
•
STANDARD 2.0 X 1.0 X 0.4 INCH PACKAGE
•
HIGH EFFICIENCY UP TO 89%
•
4:1 ULTRA WIDE INPUT VOLTAGE RANGE
•
SIX-SIDED CONTINUOUS SHIELD
•
FIXED SWITCHING FREQUENCY
•
CE MARK MEETS 2006/95/EC, 93/68/EEC AND 2004/108/EC
•
UL60950-1, EN60950-1 AND IEC60950-1 LICENSED
•
ISO9001 CERTIFIED MANUFACTURING FACILITIES
•
COMPLIANT TO RoHS EU DIRECTIVE 2002/95/EC
Negative logic Remote On/Off
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment
OPTIONS
DESCRIPTION
The FED20W series offer 20 watts of output power from a 2 x 1 x 0.4 inch
package. The FED20W series with 4:1 ultra wide input voltage of 9-36
and 18-75VDC and features 1600VDC of isolation, short-circuit and
over-voltage protection.
All specifications are typical at nominal input, full load and 25ºC otherwise noted
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load
Voltage adjustability
Line regulation
Single output
LL to HL at Full Load
Full load and nominal Vin
INPUT SPECIFICATIONS
20 Watts, max.
± 1%
0%
± 10%
Input voltage range
24V nominal input
48V nominal input
Input filter
Input surge voltage
24V input
100mS max
48V input
Input reflected ripple
Nominal Vin and full load
20mAp-p
current
Nominal Vin and
Power up
20mS, typ.
Start up time
constant resistive load Remote ON/OFF
20mS, typ.
24V input
9VDC
Start-up voltage
48V input
18VDC
24V input
7.5VDC
Shutdown voltage
48V input
15VDC
Remote ON/OFF (Note 6)
(Positive logic)(Standard)
DC-DC ON
Open or 3V < Vr < 12V
DC-DC OFF
Short or 0V < Vr < 1.2V
(Negative logic)(Option)
DC-DC ON
Short or 0V < Vr < 1.2V
DC-DC OFF
Open or 3V < Vr < 12V
Input current of remote control pin Nominal Vin
-0.5mA ~ +0.5mA
Remote off state input current
Nominal Vin
2.5mA
9 – 36VDC
18 – 75VDC
Pi type
50VDC
100VDC
Single
± 0.2%
± 0.5%
Dual
Single
± 0.5%
Load regulation
No Load to Full Load
± 1%
Dual
Cross regulation (Dual) Asymmetrical load 25% / 100% FL
± 5%
20MHz bandwidth
Ripple and noise
See table
(Measured with a 0.1μF/50V MLCC)
±0.02%
/ ºC, max.
Temperature coefficient
Transient response recovery time
25% load step change
250μS
3.3V output
3.9VDC
Over voltage protection 5V output
6.2VDC
Zener diode clamp
12V output
15VDC
15V output
18VDC
Over load protection
% of FL at nominal input
150%, typ.
Short circuit protection
Hiccup, automatics recovery
See table
1600VDC, min.
1600VDC, min.
Connect case to -Vin
with decoupling Y Cap
9
10 ohms, min.
1500pF, max.
400KHz, typ.
IEC60950-1, UL60950-1, EN60950-1
Nickel-coated copper
FR4 PCB
Epoxy (UL94-V0)
2.00 X 1.00 X 0.40 Inch
(50.8X 25.4 X 10.2 mm)
27g (0.95oz)
6
BELLCORE TR-NWT-000332
1.620 x 10 hrs
5
6.590 x 10 hrs
MIL-HDBK-217F
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature
Maximum case temperature
Storage temperature range
Thermal impedance (Note 7)
Thermal shock
Vibration
Relative humidity
-40ºC ~ +66ºC (without derating)
+66ºC ~ +105ºC (with derating)
105ºC
-55ºC ~ +125ºC
Nature convection 12ºC/Watt
Nature convection with heat-sink 10ºC/Watt
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Case grounding
Isolation resistance
Isolation capacitance
Switching frequency
Approvals and standard
Case material
Base material
Potting material
Dimensions
Weight
MTBF (Note 1)
Input to Output
Input(Output) to case
EMC CHARACTERISTICS
EMI (Note 8)
ESD
Radiated immunity
EN55022
EN61000-4-2
EN61000-4-3
Air
Contact
±
8KV
±
6KV
10 V/m
±
2KV
±
1KV
10 Vr.m.s
Class A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria A
Fast transient (Note 9) EN61000-4-4
Surge (Note 9)
Conducted immunity
EN61000-4-5
EN61000-4-6
Page 1 of 3
Issued Date：2008/05/21
Model
Number
FED20-24S3P3W
FED20-24S05W
FED20-24S12W
FED20-24S15W
FED20-24D05W
FED20-24D12W
FED20-24D15W
FED20-48S3P3W
FED20-48S05W
FED20-48S12W
FED20-48S15W
FED20-48D05W
FED20-48D12W
FED20-48D15W
Input
Range
9 – 36 VDC
9 – 36 VDC
9 – 36 VDC
9 – 36 VDC
9 – 36 VDC
9 – 36 VDC
9 – 36 VDC
18 – 75 VDC
18 – 75 VDC
18 – 75 VDC
18 – 75 VDC
18 – 75 VDC
18 – 75 VDC
18 – 75 VDC
Output
Output Current
Voltage Min. load Full load
3.3 VDC
5 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
±5 VDC
±12 VDC
±15 VDC
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
5500mA
4000mA
1670mA
1330mA
±2000mA
±833mA
±667mA
5500mA
4000mA
1670mA
1330mA
±2000mA
±833mA
±667mA
Output
(4)
Ripple & Noise
60mVp-p
75mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
60mVp-p
75mVp-p
75mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
Input Current
No Load
50mA
65mA
22mA
22mA
55mA
30mA
30mA
35mA
35mA
15mA
15mA
35mA
17mA
17mA
(3)
Full Load
934mA
992mA
1018mA
1014mA
992mA
1004mA
1005mA
467mA
496mA
503mA
501mA
490mA
496mA
496mA
(2)
Eff
(4)
Capacitor
(5)
(%) Load max
85
88
86
86
88
87
87
85
88
87
87
89
88
88
18000μF
9600μF
1650μF
1050μF
±4800μF
±825μF
±525μF
18000μF
9600μF
1650μF
1050μF
±4800μF
±825μF
±525μF
Note:
1.
2.
3.
4.
5.
6.
7.
8.
9.
BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40ºC.
MIL-HDBK-217F Notice2 @Ta=25 ºC, Full load(Ground, Benign, controlled environment)
Maximum value at nominal input voltage and full load.
Typical value at nominal input voltage and no load.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistive load.
The ON/OFF control pin voltage is referenced to -Vin.
To order negative logic ON/OFF control add the suffix-N (Ex: FED20-48S05W-N)
Heat sink is optional and P/N: 7G-0020C-F.
The FED20W series can meet EN55022 Class A with parallel an external capacitor to the input pins.
Recommend : 24Vin : NA.
48Vin : 1μF/100V 1210 MLCC.
An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The filter capacitor Power Mate suggest: Nippon chemi-con KY series, 220μF/100V, ESR 48mΩ.

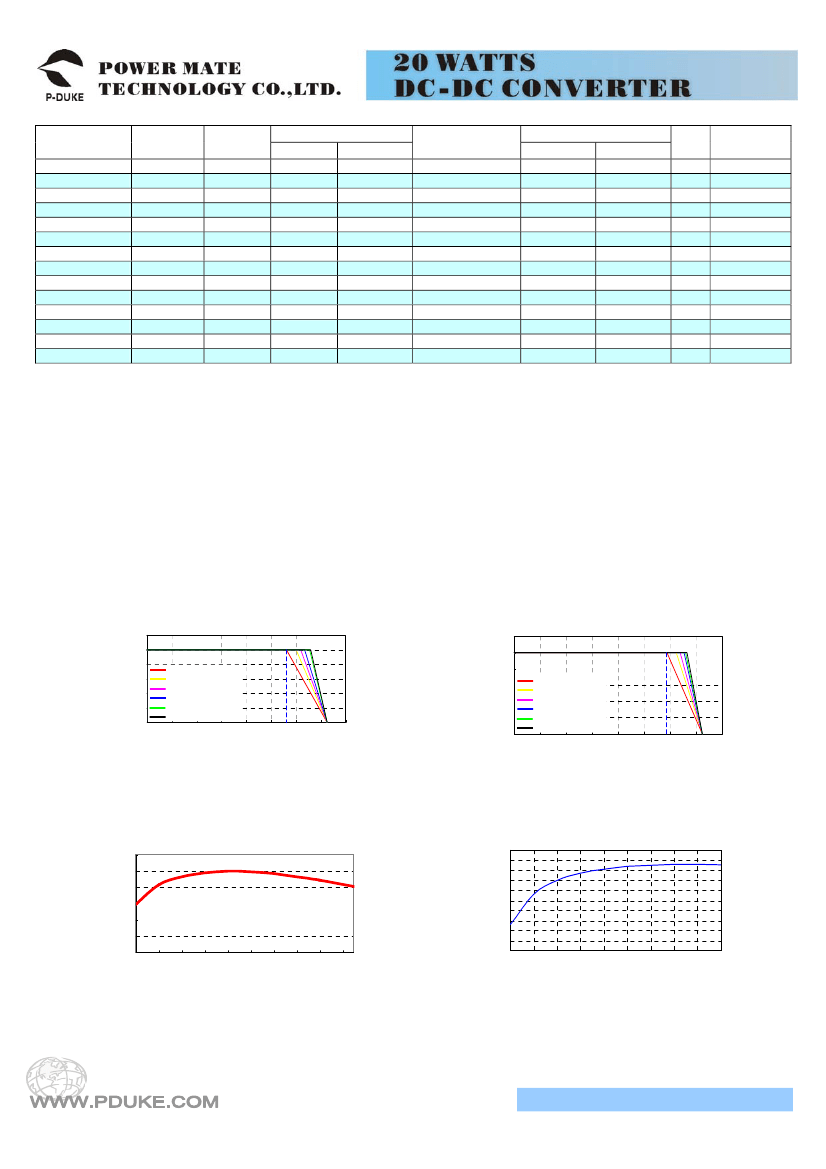

OUTPUT POWER (%)
FED20-48S05W Derating Curve
100
80
60
40
20
0
-40
OUTPUT POWER(%)
120
120
100
80
60
40
20
0
FED20-48S05W Derating Curve
With Heatsink (Note 7 )
Natural convection
100LFM
200LFM
300LFM
400LFM
500LFM
-20
0
20
40
60
72
80
100
105
120
Natural convection
100LFM
200LFM
300LFM
400LFM
500LFM
-20
0
20
40
60
80
78
100
105
120
AMBIENT TEMPERATURE(℃)
-40
AMBIENT TEMPERATURE(℃)
FED20-48S05W
Efficiency VS Input Voltage
90
88
86
84
82
80
78
18
24
30
36
42
48
54
60
66
72
95
90
85
80
75
70
65
60
55
50
45
FED20-48S05W
Efficiency VS Output Load
EFFICIENCY(%)
EFFICIENCY(%)
10
20
30
40
50
60
70
80
90
100
INPUT VOLTAGE (V)
OUTPUT LOAD (% of Full Load)
Page 2 of 3
Issued Date：2008/05/21

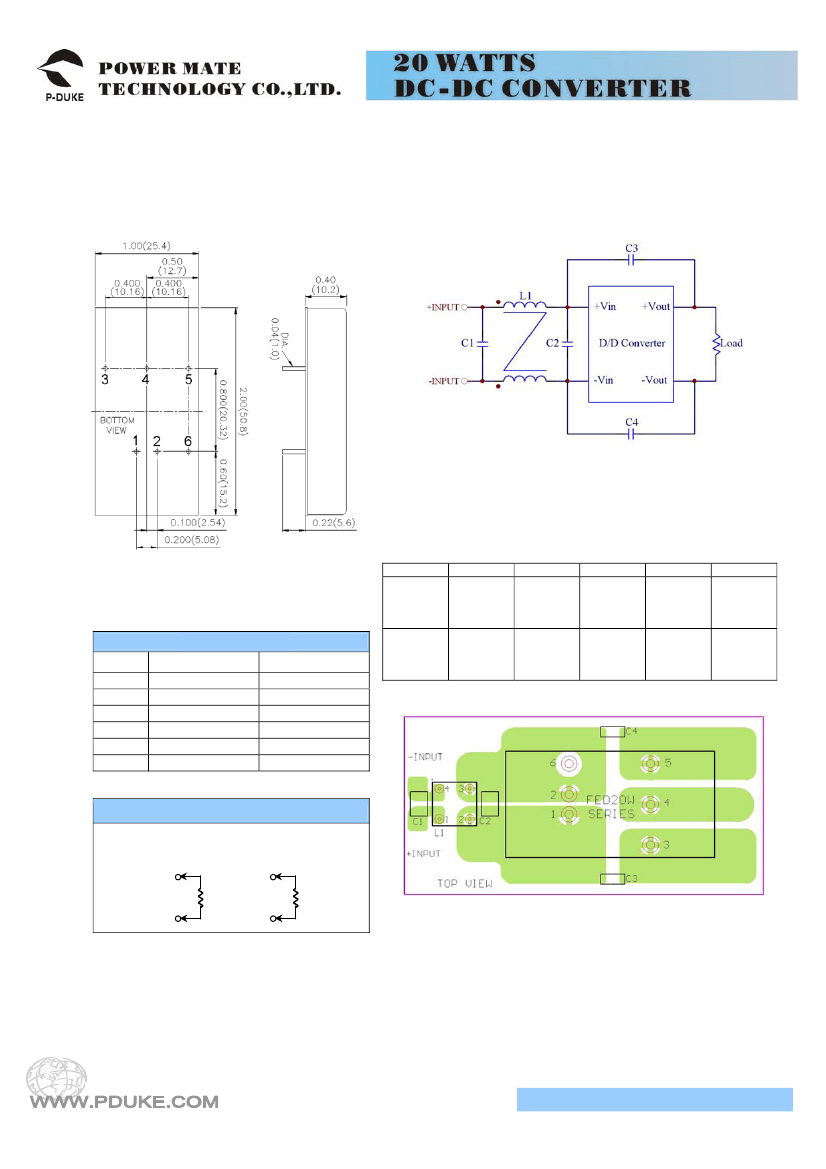

Recommended Filter for EN55022 Class B Compliance
The components used in the above figure, together with the
manufacturers’ part numbers for these components, are as
follows:
1. All dimensions in Inches (mm)
Tolerance: X.XX±0.02 (X.X±0.5)
X.XXX±0.01 (X.XX±0.25)
2. Pin pitch tolerance
±0.01(0.25)
3. Pin dimension tolerance
±0.004
(0.1)
C1
FED20-
24xxxW
FED20-
48xxxW
4.7μF/50V
1812 MLCC
C2
N/A
C3
C4
1000pF/2KV 1000pF/2KV
MLCC
MLCC
PIN CONNECTION
PIN
1
2
3
4
5
6
SINGLE
+ INPUT
- INPUT
+ OUTPUT
TRIM
- OUTPUT
CTRL
DUAL
+ INPUT
- INPUT
+ OUTPUT
COMMON
- OUTPUT
CTRL
2.2μF/100V 2.2μF/100V 1000pF/2KV 1000pF/2KV
1812 MLCC 1812 MLCC
MLCC
MLCC
L1
450μH
Common
Choke
PMT-048
325μH
Common
Choke
PMT-050
EXTERNAL OUTPUT TRIMMING
Output can be externally trimmed by using the method
shown below.
TRIM UP
TRIM DOWN
5
4
R
U
4
3
R
D
Recommended EN55022 Class B Filter Circuit Layout
Page 3 of 3
Issued Date：2008/05/21
