5962-8750401EA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8750401EA

5962-8750401EA: DescriptionAND Gate, 10H Series, 4-Func, 2-Input, ECL, CDIP16, CERDIP-16; Categorylogic logic; File Size105KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-8750401EA Overview

AND Gate, 10H Series, 4-Func, 2-Input, ECL, CDIP16, CERDIP-16

5962-8750401EA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	CERDIP-16
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT FOR 1 FUNCTION
series	10H
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.49 mm
Load capacitance (CL)	5 pF
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	39 mA
Prop。Delay @ Nom-Sup	1.9 ns
propagation delay (tpd)	1.9 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

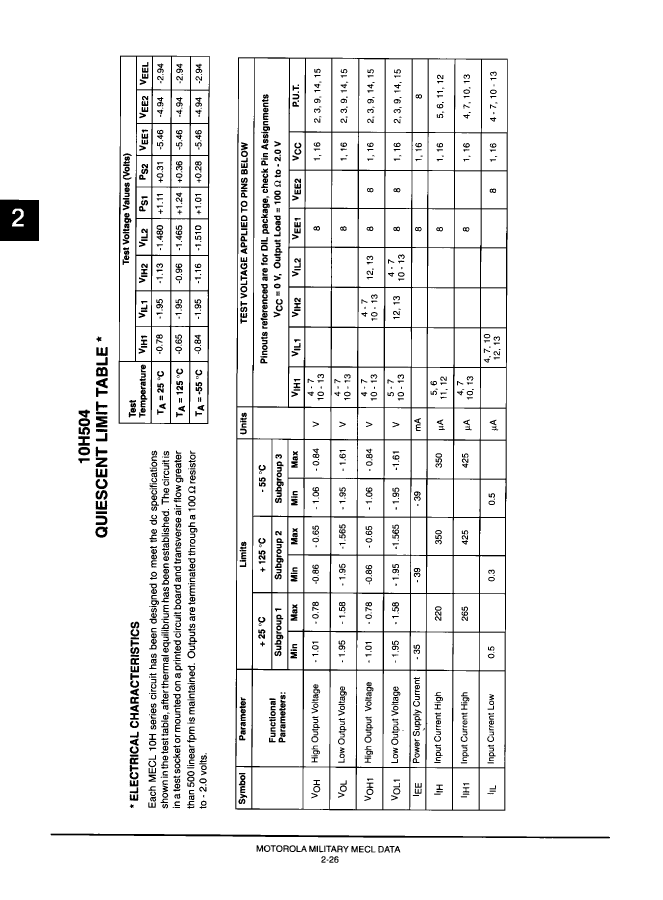

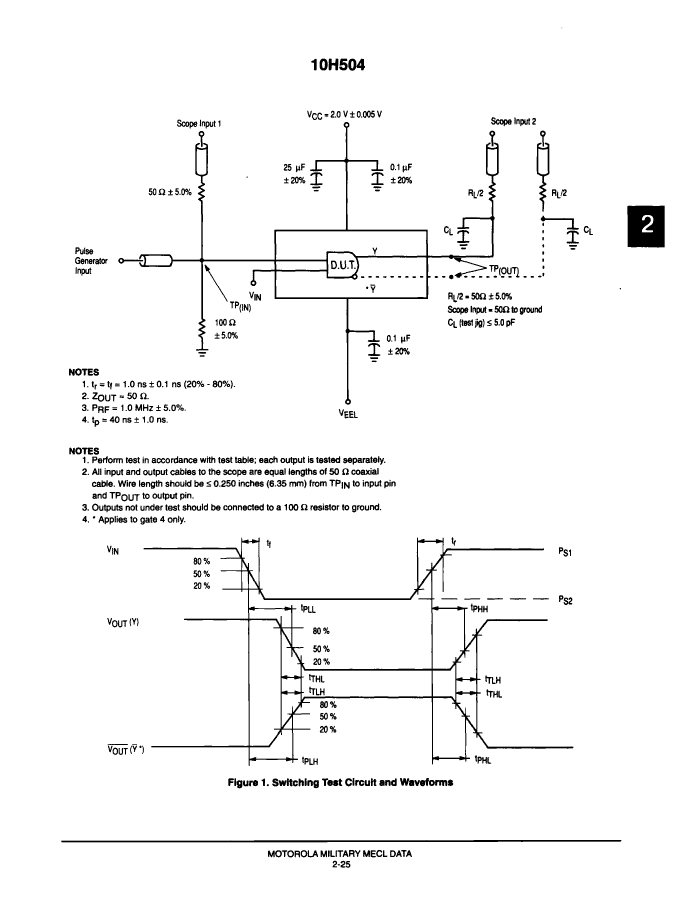

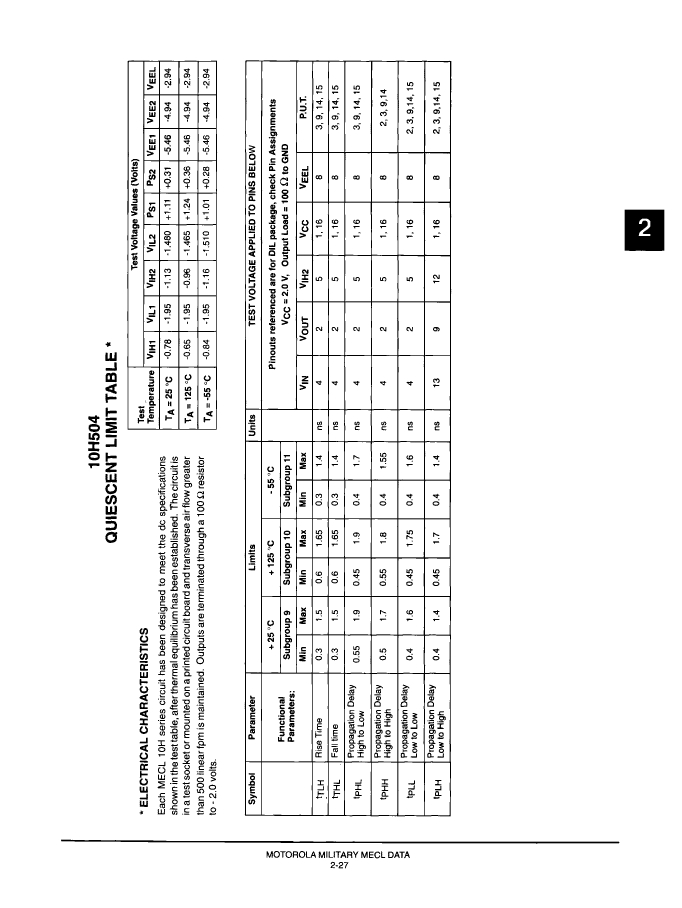

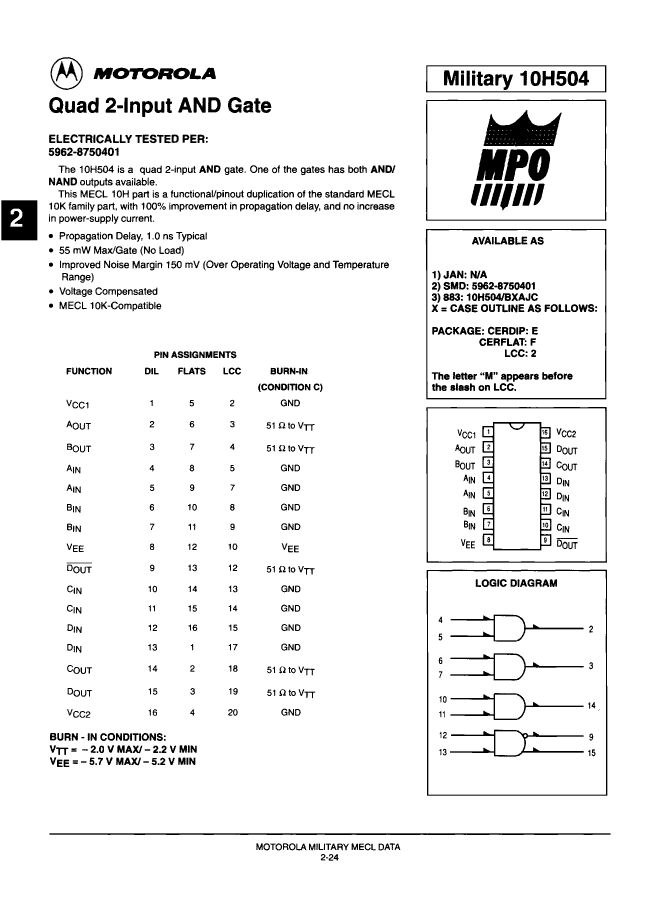

Preview

Download Datasheet

View All

5962-8750401EA Related Products

	5962-8750401EA	10H504/BEAJC	10H504/BFAJC	5962-8750401FA	5962-87504012A
Description	AND Gate, 10H Series, 4-Func, 2-Input, ECL, CDIP16, CERDIP-16	10H SERIES, QUAD 2-INPUT AND GATE, CDIP16, CERDIP-16	10H SERIES, QUAD 2-INPUT AND GATE, CDFP16, CERAMIC, FP-16	10H SERIES, QUAD 2-INPUT AND GATE, CDFP16, CERAMIC, FP-16	10H SERIES, QUAD 2-INPUT AND GATE, CQCC20, CERAMIC, LCC-20
package instruction	CERDIP-16	DIP, DIP16,.3	DFP, FL16,.3	DFP, FL16,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	COMPLEMENTARY OUTPUT FOR 1 FUNCTION	COMPLEMENTARY OUTPUT FOR 1 FUNCTION	COMPLEMENTARY OUTPUT FOR 1 FUNCTION	COMPLEMENTARY OUTPUT FOR 1 FUNCTION	COMPLEMENTARY OUTPUT FOR 1 FUNCTION
series	10H	10H	10H	10H	10H
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0
length	19.49 mm	19.495 mm	9.65 mm	9.65 mm	8.885 mm
Load capacitance (CL)	5 pF	5 pF	5 pF	5 pF	5 pF
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Number of terminals	16	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DFP	DFP	QCCN
Encapsulate equivalent code	DIP16,.3	DIP16,.3	FL16,.3	FL16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	39 mA	39 mA	39 mA	39 mA	39 mA
Prop。Delay @ Nom-Sup	1.9 ns	1.9 ns	1.9 ns	1.9 ns	1.9 ns
propagation delay (tpd)	1.9 ns	1.9 ns	1.9 ns	1.9 ns	1.9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	5.08 mm	2.15 mm	2.15 mm	1.9 mm
surface mount	NO	NO	YES	YES	YES
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD
width	7.62 mm	7.62 mm	6.415 mm	6.415 mm	8.885 mm
Base Number Matches	1	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible
Is it lead-free?	-	Contains lead	Contains lead	-	Contains lead
Parts packaging code	-	DIP	DFP	DFP	QLCC
Contacts	-	16	16	16	20
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
