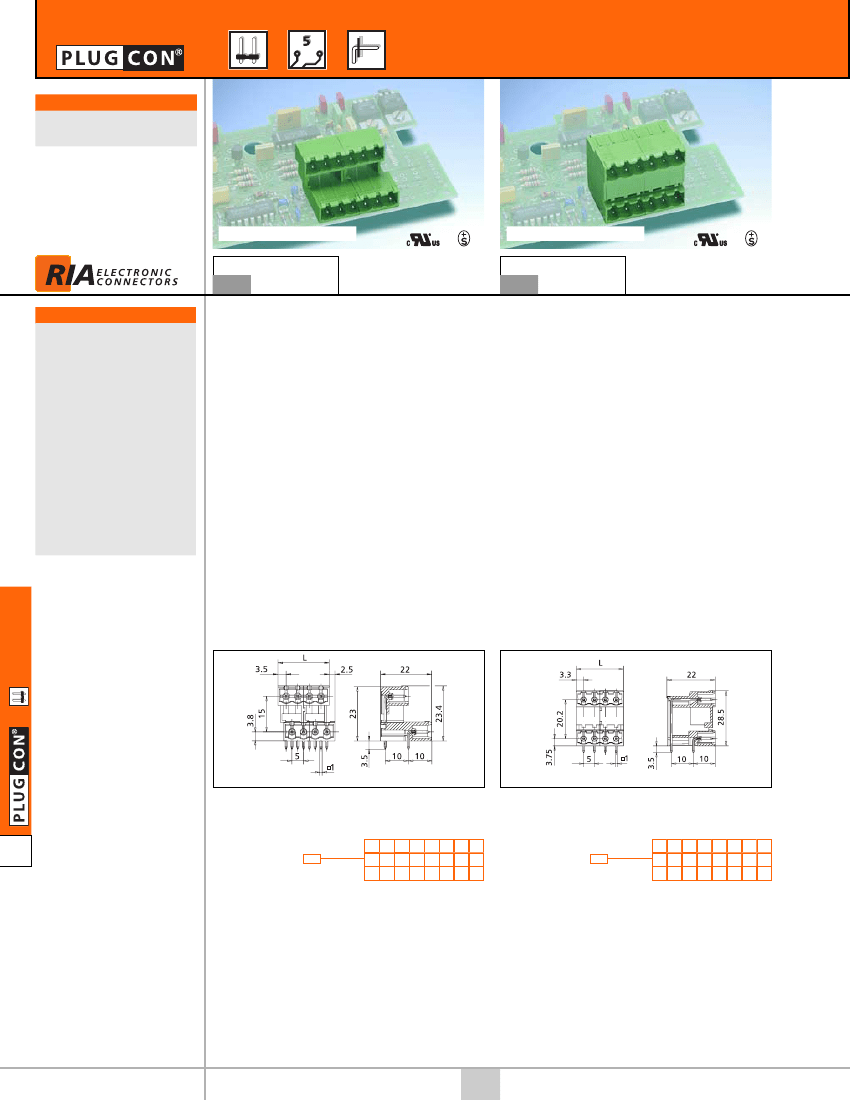

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Designed to IEC 60664-1
Type
276
Terminal block that mates with
Type 276
Type 349
Type 313
Type 314
Page DB-12
Page DB-10
Page DB-11
square pins
1 mm square
staggered pins
Type
280
300 V
12 A
1 mm square - mating
1 mm square - solder
1.5 mm
square pins
1 mm square
Electrical Data
Voltage
Current
Square pins
PCB hole diameter
Electrical Data
Voltage
Current
Square pins
PCB hole diameter
300 V
12 A
1 mm square - mating
1 mm square - solder
1.5 mm
Mechanical Data
ASP03/ASP04
Page EB-4
Type 280
Type 349
Type 313
Type 314
Page DB-12
Page DB-10
Page DB-11
Color
Pin
Pole sizes
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
green
tin plating over nickel plating
4 to 48
Additional data - page H-3
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
green
tin plating over nickel plating
4 to 48
Additional data - page H-3
Color
Pin
Pole sizes
Dimensions (mm)
Dimensions (mm)
L = (circuit - 1) x centerline + 7
L = (circuits - 1) x centerline + 6.6
Part Numbers
Part Numbers
Complete the part number
by adding the pole size.
H
Type 276
centerline 5 mm
Part No.
392761
04 06 08 10 12 14 16
18 20 22 24 26 28 30 32
34 36 38 40 42 44 46 48
Type 280
Complete the part number
by adding the pole size.
centerline 5 mm
Part No.
392801
04 06 08 10 12 14 16
18 20 22 24 26 28 30 32
34 36 38 40 42 44 46 48
Other pole sizes on demand.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
Other pole sizes on demand.
Subject to technical changes and printing errors.
H-24
