30201907

Description
Combination Line Connector, 1 Contact(s), Female, Plug,
CategoryThe connector    The connector
File Size188KB，4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

30201907 Overview

Combination Line Connector, 1 Contact(s), Female, Plug,

30201907 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.906 inch
Body/casing typePLUG
Connector typeCOMBINATION LINE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance
Contact styleSQ PIN-SKT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force15.1232 N
Insulator colorGREEN
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING MECH
Installation methodSTRAIGHT
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature120 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)
reliabilityCOMMERCIAL
Shell materialPOLYBUTYLENE TEREPHTHALATE
Total number of contacts1
Base Number Matches1

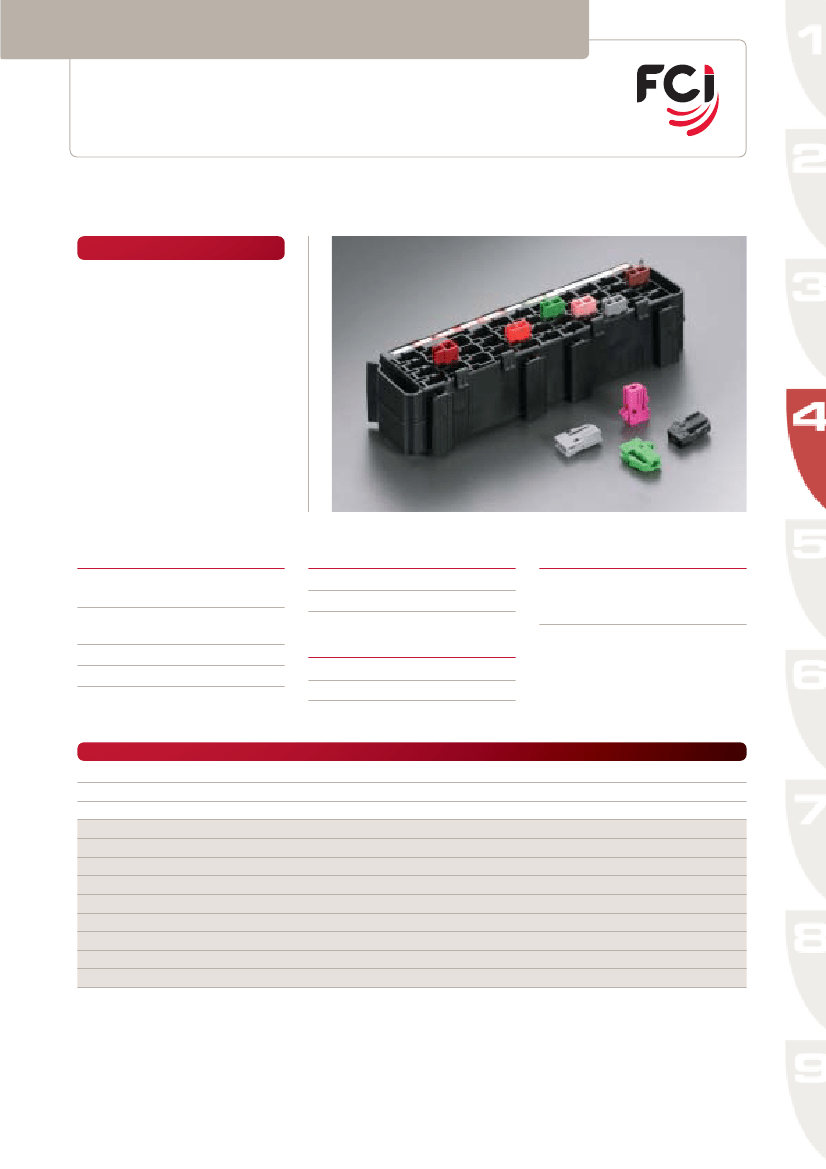

Preview

Download Datasheet
Product Detail Page

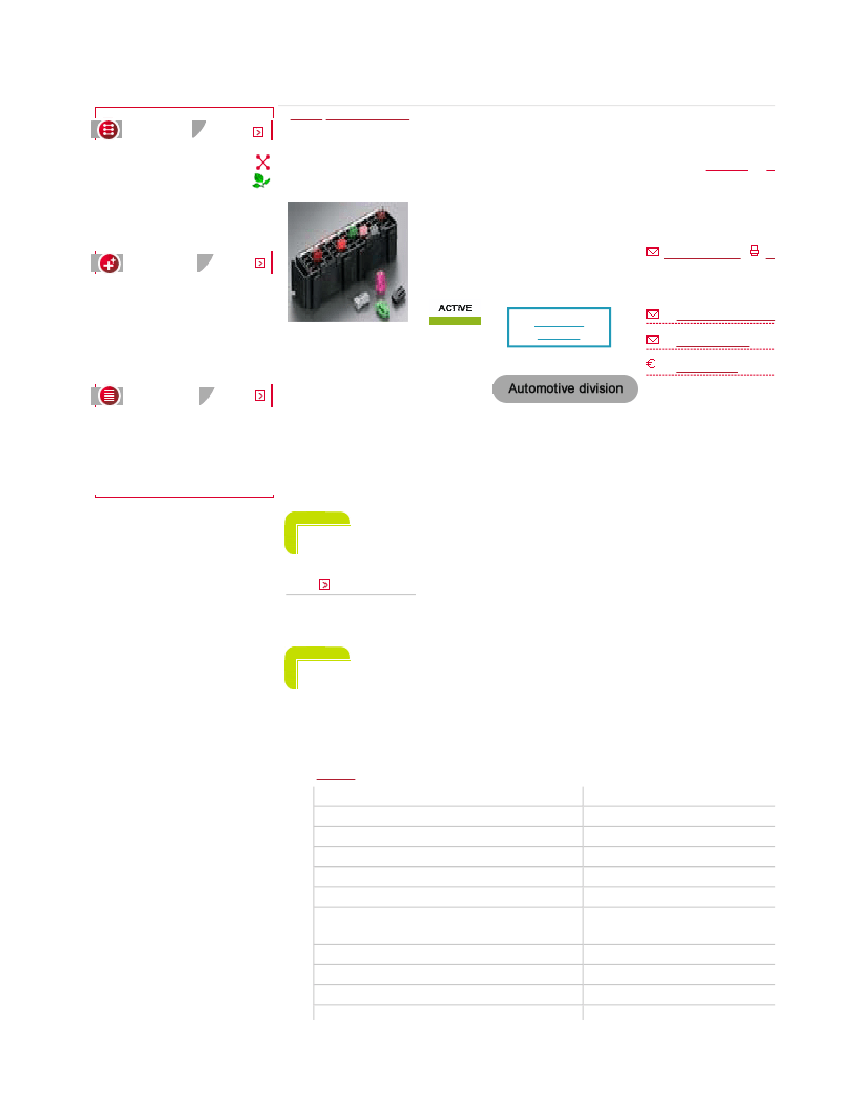

Page 1 of 2
Direct Links
Cross Reference
RoHS/LF P/N search
...
Start > Search=30201903*
>
30201903
30201903
Assistant
Ad
Document & Drawing search
Application tooling
30201903
1 way shunt Female housing
Email Datasheet
Pr
Services
Contact us
Distributor list
Pricing request
Order samples
...
FCI Brings You More
Customer

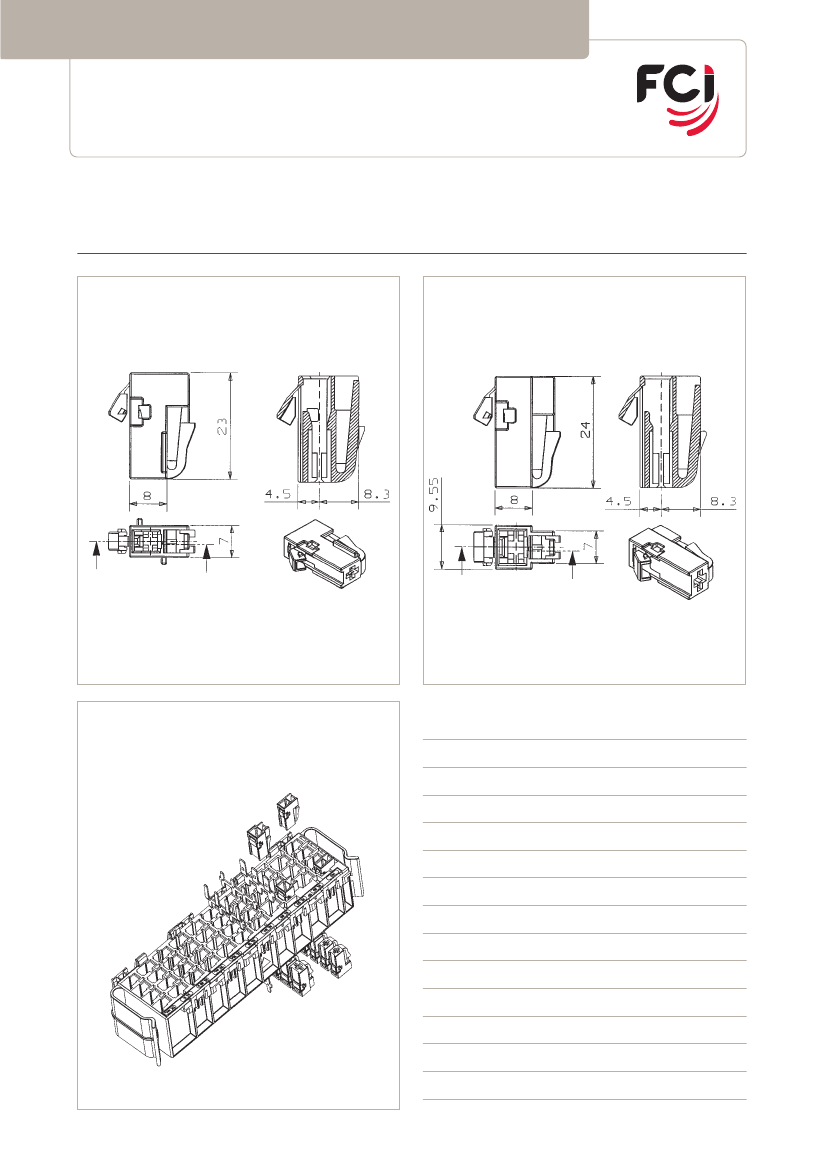

Drawing
Contact our sales/tec
Sample request
Price request
Literature
Brochures & catalogs
Product documentation
Technical library
...
Mating Half
30330601
Specifications
General Mechanical Physical Terminal 1 Type Environmental Other Features
General
Application
Ways
Coding version
Product Type
Coding
Family
Features
Hybrid
Main Terminal family
Main Terminal size
Shunt
1
4
Housing
Yes
Instrument Panel and Cockpit Conne
Direct Connection to Potential Distrib
Plastic Locking Feature
No
DCS-2
2.8 mm
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showA... 11/22/2007

30201907 Related Products

30201907 30201900 30201903 30201905 30201906 30201908 30201909 30201912 30201902 30201901
Description Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug, Combination Line Connector, 1 Contact(s), Female, Plug,
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
subject depth 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch 0.906 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO NO NO
empty shell NO NO NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO NO
maximum insertion force 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N 15.1232 N
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO NO NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO NO NO NO
Installation option 1 LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH LOCKING MECH
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
Number of rows loaded 1 1 1 1 1 1 1 1 1 1
Maximum operating temperature 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Shell material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
Total number of contacts 1 1 1 1 1 1 1 1 1 1
Base Number Matches 1 1 1 1 1 1 1 1 1 1
Insulator color GREEN ORANGE - BLUE WHITE GRAY VIOLET BROWN BROWN BLACK
