76
Note for wire range
A

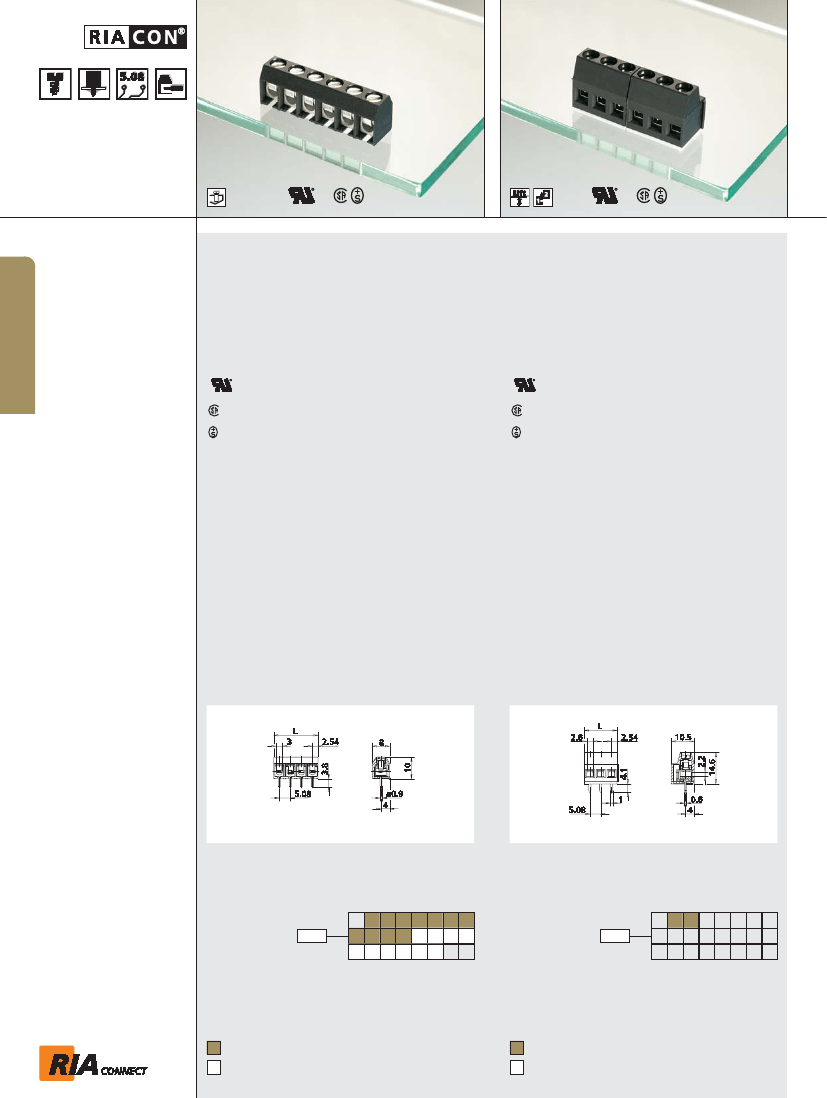

Type 101
Screw type terminal block, solderable, centerline
5.08 mm / 0.200 inches, horizontal wire entry, wire
protector
Type 015
Screw type terminal block, solderable, centerline
5.08 mm / 0.200 inches, horizontal wire entry, lift
system, modular
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 15
#
2 No. 22 - 18 AWG
(field-wiring);
2 No. 30 - 18 AWG or
1 No. 30 - 14 AWG
(factory-wiring)
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 28 - 14
300 / 15 / 28 - 14
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 22 - 14
300 / 15 / 22 - 14
0.08 - 1.5 mm² 125 V / 2.5 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 2.7 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
200
500
500
Rated test voltage
2.5
4
2.5
Protection category according
to IEC 529
IP00
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
6 mm
Solder pin dimension
0.9 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3.8 mm
Pole size
2 - 22
Color
black
Dimensions in mm
1 mm = 0.0394 in.
0.33 - 1.5 mm² 250 V / 4 kV / 13 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 3.9 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
250
630
630
Rated test voltage
2.5
6
4
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
7 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
4.1 mm
Pole size
2-3
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.08 mm / 0.200 inches
L = (pole size - 1) x centerline + 5.08 mm / 0.200 inches
Part numbers (P/N)
Type 101
centerline 5.08 mm / 0.200 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 015
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
centerline 5.08 mm / 0.200 inches
02 03
P/N
311011
P/N
310151
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
