Instrument panel and cockpit connectors
Coupling connectors
DuoTwin / DCS-2

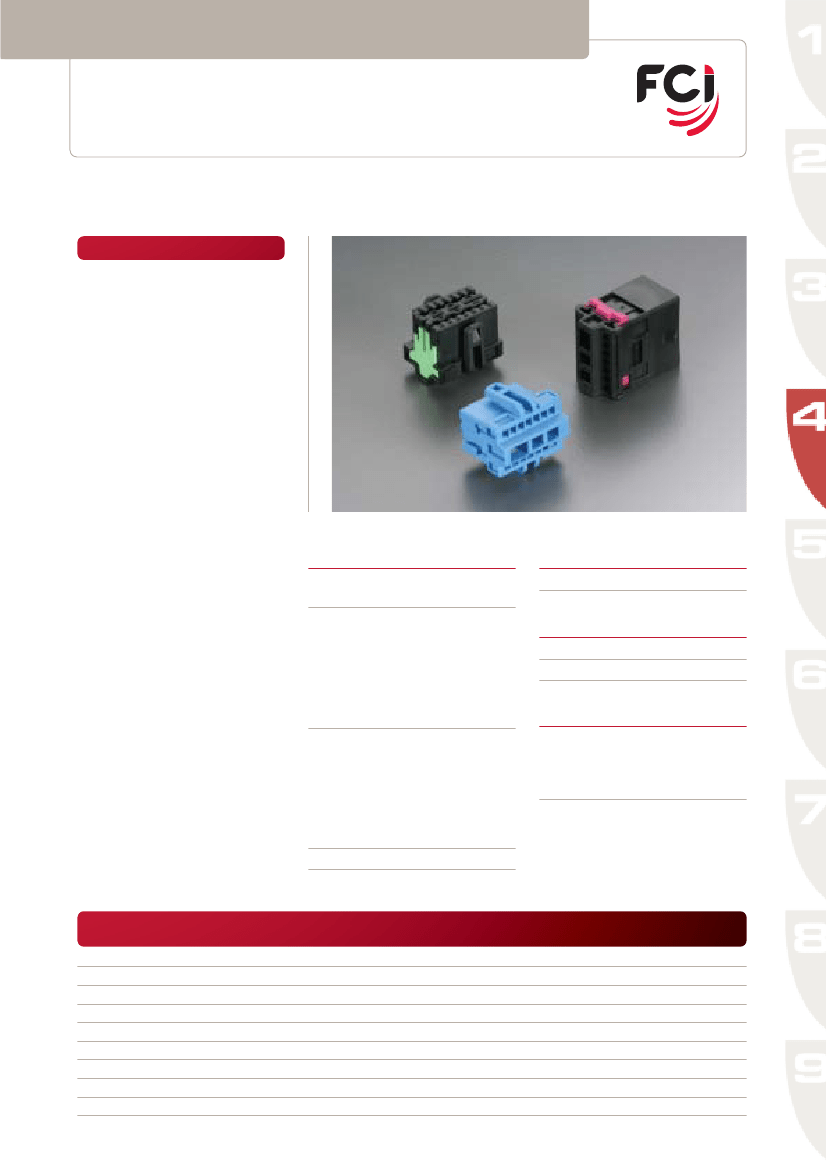

17 way coupling housing for 0.64 + 1.5 + 2.8 mm terminals
Features
•
17 position housing
•
Triple row connector
•
Lateral secondary lock for terminal
position assurance (T.P.A.)
•
Go-No Go housing locking principle
•
Mechanical polarization
•
Several colours available
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
•
Contact retention force:
> 50 N for DuoTwin 0.64 mm
terminals
> 55 N for DCS-2 1.5 mm
terminals
> 80 N for DCS-2 2.8 mm
terminals
Tooling
•
Terminal removal tool: Consult us
•
Mini applicator:
Consult us
Connector compatibility
•
Usable terminals:
-
DuoTwin 0.64 mm female terminals
-
DCS-2 1.5 mm terminals
- DCS-2 2.8 mm terminals
•
Contact insertion force:
< 2 N for DuoTwin 0.64 mm
terminals
< 10 N for DCS-2 1.5 mm
terminals
< 15 N for DCS-2 2.8 mm
terminals
•
Connector mating force:
< 100 N
Part Numbers
3 023 28 01
3 023 28 02
3 023 28 06
3 023 28 12
3 023 28 17
3 023 28 23
3 023 28 28
3 023 28 30
3 023 28 35
No. of
position
17
17
17
17
17
17
17
17
17
Terminal size
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
Code
1
1
1
2
2
3
3
4
4
Type
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Colour
Black
Dark-Brown
White
Brown
Green
Red
Grey
Orange
Blue
4.46
Instrument panel and cockpit connectors
Coupling connectors
DuoTwin / DCS-2
17 way coupling housing for 0.64 + 1.5 + 2.8 mm terminals
Part Numbers
3 033 08 01
3 033 08 02
3 033 08 06
3 033 08 12
3 033 08 17
3 033 08 23
3 033 08 28
3 033 08 30
3 033 08 35
No. of
position
17
17
17
17
17
17
17
17
17
Terminal size
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
14 x [0.64 mm] + 2 x [1.5 mm] + 1 x [2.8 mm]
Code
1
1
1
2
2
3
3
4
4
Type
Male housing
Male housing
Male housing
Male housing
Male housing
Male housing
Male housing
Male housing
Male housing
Colour
Black
Dark-Brown
White
Brown
Green
Red
Grey
Orange
Blue

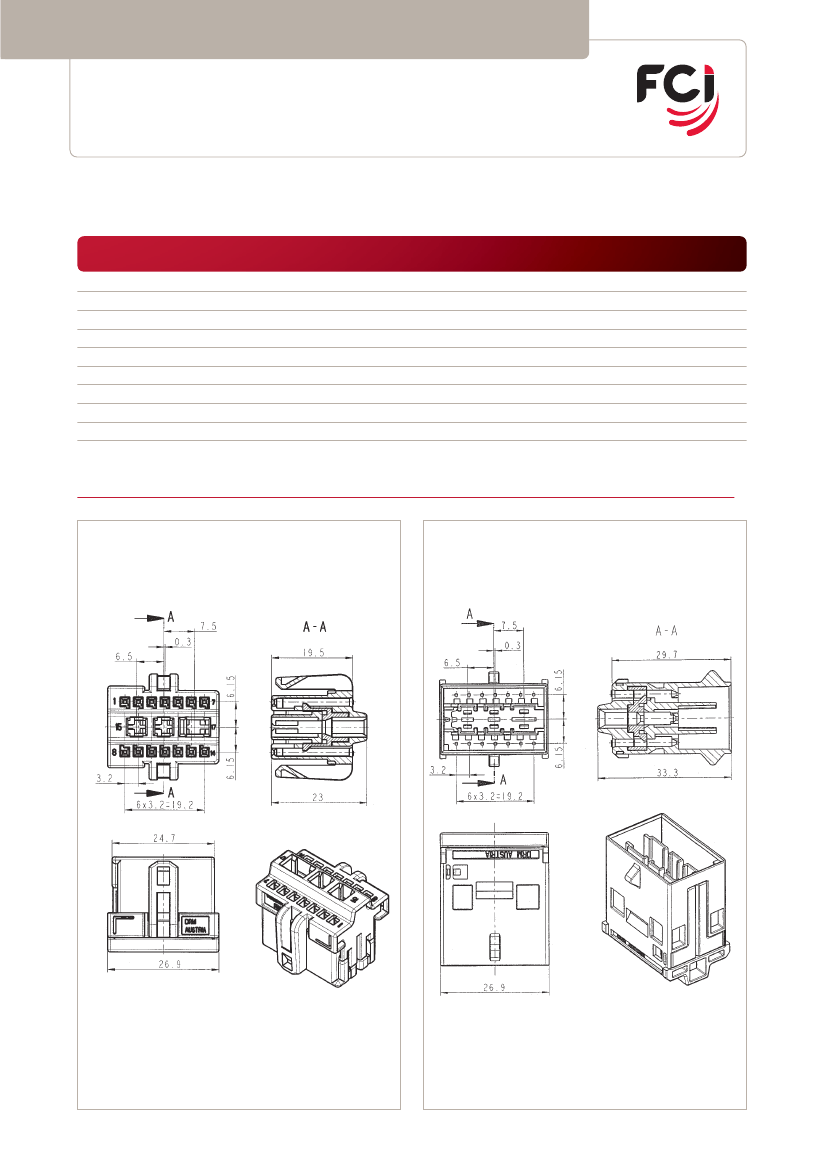

Dimensional characteristics
17 way female housing
17 way male housing
4.47
