3201-TNCM: DescriptionRF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size42KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric Compare View All

3201-TNCM Overview

RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3201-TNCM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	TNC-M, I/P POWER-MAX(PEAK)=500W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	1000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.05
Base Number Matches	1

Preview

Download Datasheet

View All

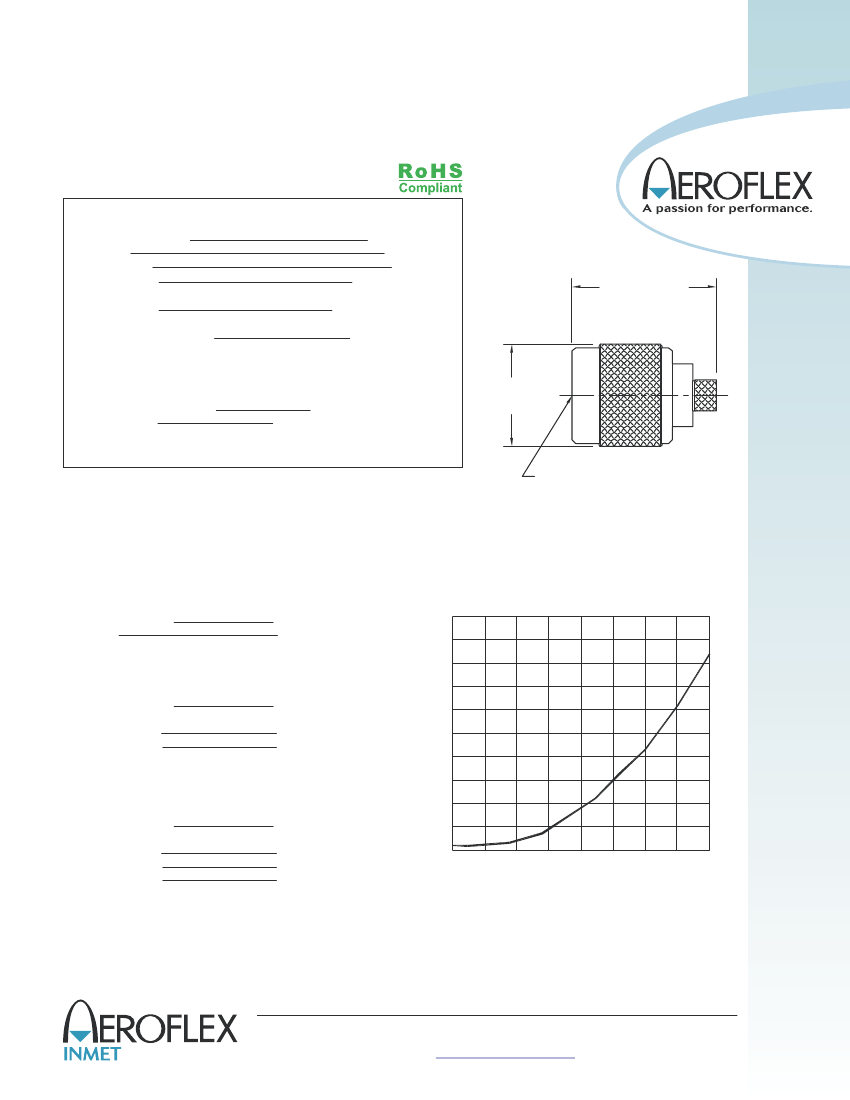

TERMINATIONS

TNC MALE, DC - 4 GHz, 2 Watts

SPECIFICATIONS:

Models: 3201-TNCM, 3202-TNCM, 3204-TNCM

Electrical:

Frequency Range

VSWR

Impedance

Input Power

Peak Power

Operating Temp Range

DC - 4.0 GHz

See Below

50 Ohms

2 Watts @+25°C

Derated Linearly to 0.2 Watts @ +1 C

25

o

.95[24.2] MAX.

500 Watts Maximum

(1uSec Pulse, .01% Duty Cycle)

-55°C to +1

25°C

Mechanical:

Connectors & Housing

Conductors

ALL SOLDERED CONSTRUCTION FOR

MAXIMUM RELIABILITY.

Brass and/or Zinc Alloy

Gold Plated Beryllium Copper

Ø.65[16.5]

MAX.

TNC Male Connector

(Mates with MIL-STD-348)

Model Number:

3201-TNCM

DC - 1.0 GHz

1.05:1 MAX.

1.30:1

3204-TNCM

TYPICAL PERFORMANCE

Frequency Range

VSWR

1.20:1

Model Number:

3202-TNCM

DC - 2.5 GHz

1.05:1 MAX.

1. 5:1 MAX.

1

1.15:1

VSWR

Frequency Range

VSWR

DC - 1.0 GHz

1.0 - 2.5 GHz

1.10:1

Model Number:

3204-TNCM

DC - 4.0 GHz

1.05:1 MAX.

1. 0:1 MAX.

1

1. 5. MAX.

1 1

1.05:1

Frequency Range

VSWR

DC - 1.0 GHz

1.0 - 2.5 GHz

2.5 - 4.0 GHz

1.00:1

.01

1.0

2.0

3.0

4.0

Freq (GHz)

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

320X-TNCM: REV B

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com

3201-TNCM Related Products

	3201-TNCM	3204-TNCM	3202-TNCM
Description	RF/Microwave Termination, 0MHz Min, 1000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 4000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE	RF/Microwave Termination, 0MHz Min, 2500MHz Max, 50ohm, ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown	unknown	unknown
Other features	TNC-M, I/P POWER-MAX(PEAK)=500W	TNC-M, I/P POWER-MAX(PEAK)=500W	TNC-M, I/P POWER-MAX(PEAK)=500W
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4
Maximum operating frequency	1000 MHz	4000 MHz	2500 MHz
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
