31-70228-1001 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 31-70228-1001

Preview

31-70228-1001: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size312KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-70228-1001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-70228-1001	-	-	View	Buy Now

31-70228-1001 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug,

31-70228-1001 Parametric

Parameter Name	Attribute value
Objectid	1920262866
Reach Compliance Code	unknown
YTEOL	6.75
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	HERMETIC
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.9

Preview

Download Datasheet

View All

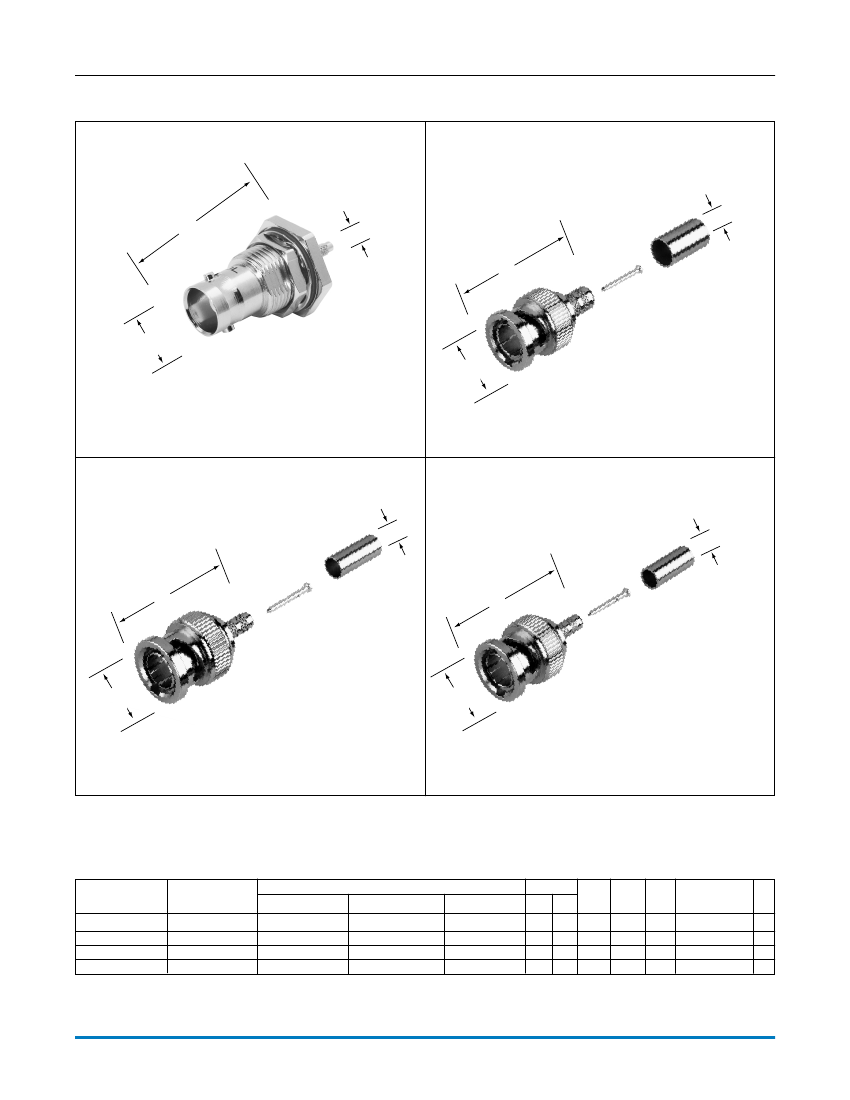

BNC 75 ohm

Amphenol

®

High Performance Beryllium Copper Outer Contacts

Fig. 1

Fig. 2

c•

a

c•

a

b

Bulkhead Jack

31-70102-T

Fig.3

Fig. 4

Plug

31-70228-1001

c•

a

b

Plug

31-70227-1001

Plug

31-70229-1001

HIGH PERFORMANCE

Description

Bulkhead Jack

Plug

Cable

Rockwell 425-1129-000

734A

L910

735A

a

1.417

1.20

Dimensions, inches (millimeters)

b

.687

.563

c

.128

.226

.106

.141

Notes

Plt. Ins.

P7

CA

Mtg.

Hole

—

UG

No.

—

75Ω

Amphenol

Number

31-70102-T

31-70228-1001

31-70227-1001

31-70229-1001

Fig.

1

2

3

4

T1

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com
