FDV0530S-R24M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> FDV0530S-R24M

FDV0530S-R24M: Description1 ELEMENT, 0.24 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size31KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FDV0530S-R24M Overview

1 ELEMENT, 0.24 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD

FDV0530S-R24M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	5050-30M
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	5050-30M
core material	IRON
DC Resistance	0.0056 Ω
Nominal inductance(L)	0.24 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	FDV0530S
Number of functions	1
Number of terminals	2
Maximum rated current	11 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

づ

け

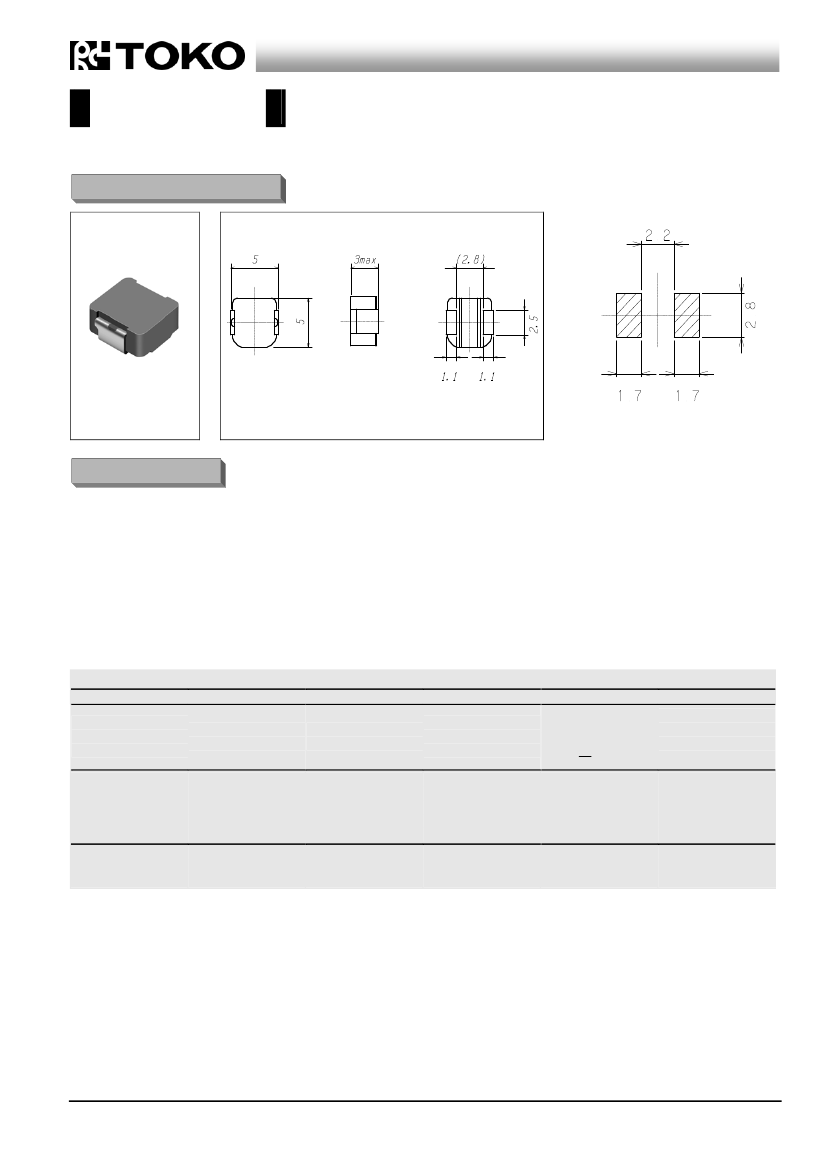

Fixed Inductors for Surface Mounting

面

実装

用固定インダクタ

FDV0530S

Inductance Range:

0.12∼2.2μH

DIMENSIONS／外½寸法図

Recommended patterns

推奨パターン図

Tolerance：±0.3

(Unit: mm)

FEATURES／特長

•

5.0

5.0mm square and 3.0mm Max. height.

Magnetically shielded, low DC resistance.

Suitable for large current

The use of magnetic iron powder ensure capability for

large current.

•

Low audible core noise.

•

Ideal for DC-DC converter applications in hand held

personal computer and etc.

•

RoHS compliant.

•

5.0

5.0mm

角、高さ3.0mm

Max.

閉磁路、½直流抵抗

大電流対応

磁性材に鉄系磁性粉を用いた大電流対応

½コア鳴きノイズ

ノートパ½コンなどのDC-DC コンバータ用インダクタ

などに最適

•

RoHS指令対応

SELECTION GUIDE FOR STANDARD COILS

TYPE FDV0530S (Quantity/reel; 2000 PCS)

東光品番

TOKO

Part

Number

FDV0530S-R12M

FDV0530S-R24M

FDV0530S-R42M

FDV0530S-R60M

FDV0530S-R78M

FDV0530S-1R0M

FDV0530S-1R5M

FDV0530S-2R2M

インダクタンス

Inductance

(μH)

0.12

0.24

0.42

0.60

0.78

1.0

1.5

2.2

(1)

許容差

Tolerance

(%)

直流抵抗

(2)

Resistance

(mΩ) Max. (Typ.)

3.9 (3.4)

5.6 (4.9)

9.8 (8.5)

12 (10)

14 (12)

17 (15)

24 (21)

34 (30)

直流重畳許容電流

Inductance

(3)

Decrease Current

(A) Max. (Typ.)

ΔL

=20%

18 (24)

13 (17)

9.0 (12)

7.9 (11)

7.1 (9.5)

6.2 (8.3)

5.4 (7.2)

4.5 (6.0)

(3)

温度上昇許容電流

Temperature

(4)

Rise Current

ΔT=40°C

(A) Max. (Typ.)

13 (16)

11 (13)

8.2 (9.7)

7.2 (8.5)

6.9 (8.1)

5.7 (6.7)

4.9 (5.8)

4.3 (5.1)

(4)

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100KHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Inductance Decrease Current based upon 20% inductance

reduction from the initial value

(4) Temperature Rise Current based upon 40°C temperature rise.

(Reference ambient temperature 25°C)

(5) Absolute maximum voltage 30VDC.

NOTICE: Please be sure that you carefully discuss your planned

purchase with our sales division if you intend to use the

product for business use etc. is severe.

(1)

インダクタンスはLCR メータ4284A（Agilent

Technologies）

または同等品により測定する。

測定周波数は100KHzです。

(2)

直流抵抗は測定器34420A（Agilent

Technologies）または

3541(HIOKI)と同等品により測定する。（周囲温度25℃）

(3)

直流重畳許容電流：直流重畳電流を流した時インダクタンスの値

が初期値より20%減少する直流電流値

(4)

温度上昇許容電流：コイルの温度が40℃上昇する値

（周囲温度25℃を基準とする。）

(5)

絶対最大電圧

30VDC

ご注意：業務用など、厳しい½用条件でのご½用をご検討の場合は

必ず事前に弊社営業窓口までご相談ください。

FDV0530S-R24M Related Products

	FDV0530S-R24M	FDV0530S-R60M	FDV0530S-2R2M	FDV0530S-R78M	FDV0530S-R42M	FDV0530S-R12M	FDV0530S-1R5M	FDV0530S-1R0M	FDV0530S
Description	1 ELEMENT, 0.24 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.6 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.2 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.78 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.42 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.12 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1.5 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.6 uH, POWDERED IRON-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-	-	-
package instruction	5050-30M	5050-30M	5050-30M	5050-30M	5050-30M	5050-30M	-	-	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	-	-	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	-
uppercase and lowercase codes	5050-30M	5050-30M	5050-30M	5050-30M	5050-30M	5050-30M	-	-	-
core material	IRON	IRON	IRON	IRON	IRON	IRON	-	-	-
DC Resistance	0.0056 Ω	0.012 Ω	0.034 Ω	0.014 Ω	0.0098 Ω	0.0039 Ω	-	-	-
Nominal inductance(L)	0.24 µH	0.6 µH	2.2 µH	0.78 µH	0.42 µH	0.12 µH	-	-	-
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	DC-DC CONVERTER	-	-	-
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	-
Manufacturer's serial number	FDV0530S	FDV0530S	FDV0530S	FDV0530S	FDV0530S	FDV0530S	-	-	-
Number of functions	1	1	1	1	1	1	-	-	-
Number of terminals	2	2	2	2	2	2	-	-	-
Maximum rated current	11 A	7.2 A	4.3 A	6.9 A	8.2 A	13 A	-	-	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	-
shield	YES	YES	YES	YES	YES	YES	-	-	-
surface mount	YES	YES	YES	YES	YES	YES	-	-	-
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	-	-
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	-	-	-
Tolerance	20%	20%	20%	20%	20%	20%	-	-	-
Base Number Matches	1	1	1	1	1	1	-	-	-
