F
orce
Optical Broadcast Systems
Gigabit Ethernet
Model 3754
DWDM & SNMP Media Converter
Gigabit Ethernet Media Converter
Converts Twisted-Pair to Singlemode at
Gigabit Speed
LEDs for Functions, Links & Activity
Rack Mount or Standalone Operation
IEEE 802.3z & 802.3ab Compliant
SNMP Status monitoring and control available
DWDM, CWDM, and 1310nm wavelengths
available
Redundant power supplies with AC & -48VDC
options
Long haul transport (+100 km)

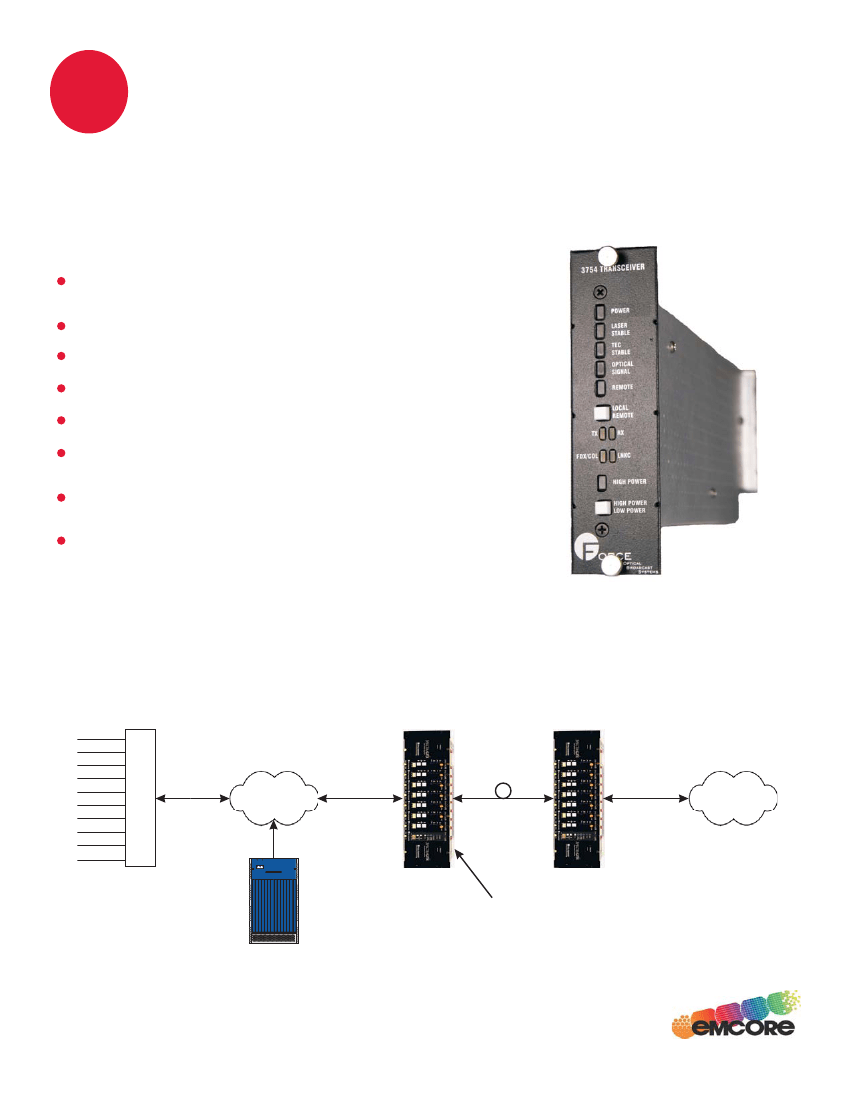

The Gigabit Ethernet Media Converter makes it simple to extend
ethernet distances over singlemode fiber. They are designed to
expand the scope of your Gigabit Ethernet network and are
compliant with Ethernet IEEE 802.3ab and 802.3z
specifications. The units may be ordered as a stand-alone
transmitter/receiver pair, or in 3RU configurations for use in the
Model 3000 chassis. In the 3RU configuration, the chassis will
accommodate two redundant power supplies for fail-safe
operation.
100 Mb/s
“
“
“
“
“
“
“
“
100 Mb/s
1
2
3
4
5
6
7
8
9
10
Model 3754 Gigabit Ethernet Transceiver
1000 Mb/s
LAN
1000 Mb/s
100Km
1000 Mb/s
LAN
1000 Mb/s
SD
Power
CISCO SYSTEMS
Cisco AS5800
SERIES
3754
VOD
8 Modules per Rack
@ 1000 Mb/s Each
3754
Information contained herein is deemed to be reliable and accurate as of issue date. EMCORE reserves the right to change the design or specifications of
the product at any time without notice. Ortel, the Ortel logo, EMCORE, and the EMCORE logo are trademarks of EMCORE Corporation.
825 Park Street, Christiansburg, VA 24073
USA (800) 732-5252 • TEL (540) 382-0462 • FAX (540) 381-0392
csr-sales@forceinc.com • www.forceinc.com
© Copyright 2006. EMCORE Corporation
Specifications and Ordering Information
Optical Characteristics
Min
Operating Wavelength
Operating Wavelength
CWDM/DWDM Wavelength
Optical Output Power
Optical Output Power
Optical Input Power
Optical Loss Range
Optical Loss Range
Optical Rise Time
Optical Fall Time
Ethernet Data Rate
Typ
Max
1310
1550
See Ordering Info
-3
+3
0
+7
-21
-3.0
0
22
0
26
100
220
1000
Typ
Max
+50
+40
+60
95
Units
nm
nm
dBm
dBm
dBm
dB
dB
ps
ps
Mb/s
Units
°C
°C
°C
%
Notes
Power Supply Voltage
Current Draw
1
2
3
4
Electrical Characteristics
Min
+20
Typ
300
Max
Units
VDC
mA
Electrical and Physical Characteristics
Typ
Max
Weight (Stand-alone Tx/Rx)
50
Weight (3RU Tx/Rx)
20
Dimensions (Stand-alone Tx/Rx) 4.36 x 1.26 x 11.50
111 x 32 x 292
Dimensions (3RU Tx/Rx)
5.06 x 1.39 x 12.00
129 x 35 x 305
Min
Units
oz.
oz.
in.
mm.
in.
mm.
Environmental Characteristics
Operating Temp. Range
Operating Temp. Range
Storage Temp. Range
Humidity
Min
0
0
-20
0
Notes
3
4
5
Notes:
1. Range for 1310, 1550, CWDM,
User adjustable.
2. Range for DWDM, User adjustable.
3. Valid for 1310, 1550, CWDM.
4. Valid for DWDM.
5. Non-condensing.
3RU Chassis and all P
.S.P/N
3RU Chassis and All Power Supply Options
3RU Chassis, Holds 8 Modules and 2 P.S.
3RU Power Supply, Universal AC, SNMP,
for Power Redundancy
3RU Power Supply, Universal AC, No SNMP,
for Power Redundancy
3RU Power Supply, -48 Volts DC, SNMP,
for Power Redundancy
3RU Power Supply, -48 Volts DC, No SNMP,
for Power Redundancy
+20 Volts DC 1.5 A Wall-mount Power Supply,
for Stand-alone Modules
Part Number
3000CB-NN
3000UB-NN
3000UC-NN
3000UD-NN
3000UE-NN
PS3000

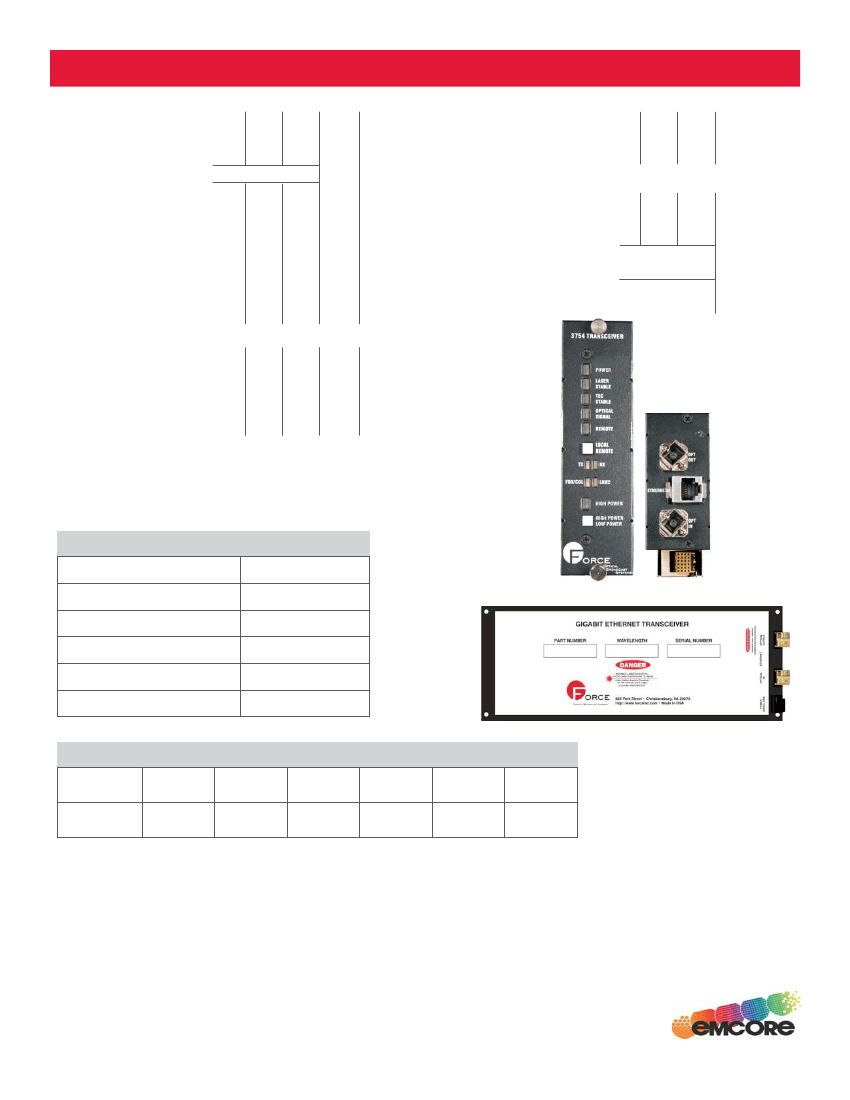

Model 3754 3RU Front and Rear Panels
Transceiver P/N
3754 Options
3RU, SM, SC/PC
Connector
Std.-alone, SM,
SC/PC Connector
1310 nm
3754X-1310-SC
2
Model 3754 Stand-alone Transceiver
DWDM
WDM
1310 nm
WDM
1550 nm
1550 nm
3754X-1550-SC
2
3754S-1550-SC
2
CWDM
3754XC-XXXX-SC
1, 2
3754XD-ITUXX-SC
1, 2
3754X-1310-SC-W
2
3754X-1550-SC-W
2
3754SC-XXXX-SC
1, 2
3754SD-ITUXX-SC
1, 2
3754S-1310-SC-W
2
3754S-1550-SC-W
2
3754S-1310-SC
2
1) The "XXXX" in the part number specifies one of eight CWDM wavelengths. The “ITUXX” in the part number specifies one of 34 DWDM wavelengths.
Contact a Force, Inc. Applications Engineer for complete part numbers. CWDM wavelengths are 1471 nm, 1491 nm, 1510 nm, 1531 nm, 1551 nm,
1571 nm, 1591 nm, and 1611 nm, depending on the channel plan ordered. See AN138: Specifying Force, Inc. CWDM and DWDM Compatible
Transport Modules for more information.
2) FC/PC connector options available. Replace SC in the part number with FC.
SC/APC connector options available. Replace SC in the part number with SA.
FC/APC connector options available. Replace SC in the part number with FA.
Information contained herein is deemed to be reliable and accurate as of issue date. EMCORE reserves the right to change the design or specifications of
the product at any time without notice. Ortel, the Ortel logo, EMCORE, and the EMCORE logo are trademarks of EMCORE Corporation.
825 Park Street, Christiansburg, VA 24073
USA (800) 732-5252 • TEL (540) 382-0462 • FAX (540) 381-0392
csr-sales@forceinc.com • www.forceinc.com
Rev. 2.0, 03/17/06
© Copyright 2006. EMCORE Corporation
