3HUF10K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3HUF10K

3HUF10K: DescriptionRectifier Diode; CategoryDiscrete semiconductor diode; File Size59KB，1 Pages; ManufacturerHVCA & CKE

Download Datasheet Parametric View All

3HUF10K Overview

Rectifier Diode

3HUF10K Parametric

Parameter Name	Attribute value
package instruction	R-XUPM-X2
Reach Compliance Code	unknown
Diode type	RECTIFIER DIODE
JESD-30 code	R-XUPM-X2
Number of terminals	2
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	POST/STUD MOUNT
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

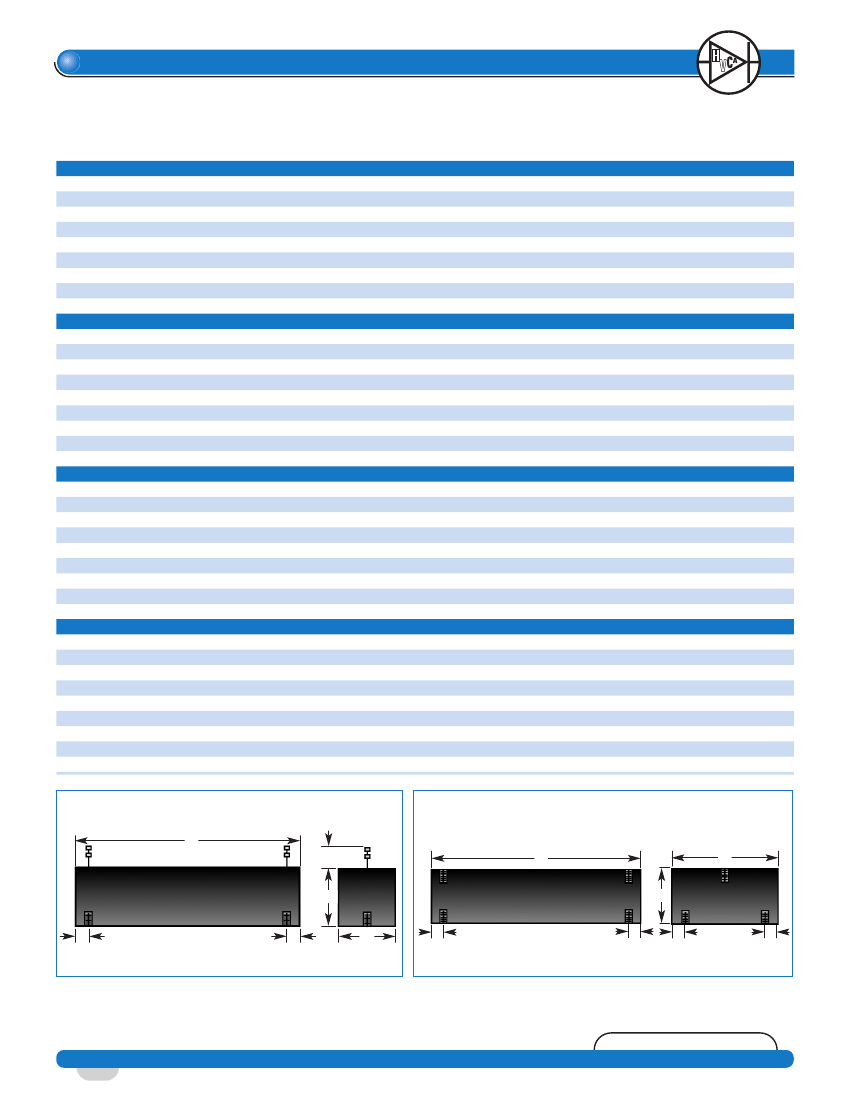

3HV, 6HV-R

ECTIFIER

LOCKS

IGH

URRENT

, H

IGH

OLTAGE

, I

NSERT

OUNTING

Repetitive

Avg. Forward

Max. Forward

Max. Reverse

Peak Reverse

Current Max.

Voltage Drop

Current I

HVCA

Voltage V

RRM

FAVM

@55°C

RRM

@25°C

Number

V(Volts)

A (Amps)

V (Volts)

(microAmps)

3HV•K-Standard Recovery Block 3.0 Amp Glass Passivated Rectifier Assembly

3HV5K

5000

3.0

4.8

0.5

3HV8K

8000

2.75

7.5

0.5

3HV10K

10000

2.5

9.0

0.5

3HV15K

15000

2.5

14.0

0.5

3HV20K

20000

2.25

18.0

0.5

3HV25K

25000

2.25

22.0

0.5

3HV30K

30000

2.25

28.0

0.5

3HV40K

40000

2.25

36.0

0.5

3HV50K

50000

2.25

44.0

0.5

6HV•K-Standard Recovery Block 6.0 Amp Rectifier Assembly

6HV5K

5000

3.5

5.0

6HV8K

8000

3.25

8.0

5.0

6HV10K

10000

3.0

10.0

5.0

6HV15K

15000

3.0

15.0

5.0

6HV20K

20000

2.75

20.0

5.0

6HV25K

25000

2.5

25.0

5.0

6HV30K

30000

2.5

30.0

5.0

6HV40K

40000

2.5

40.0

5.0

6HV50K

50000

2.5

50.0

5.0

3HVF•K-Fast Recovery T

250 nsec Block 3.0 Amp Glass Passivated Rectifier Assembly

3HVF5K

5000

2.5

7.0

0.5

3HVF8K

8000

2.5

11.0

0.5

3HVF10K

10000

2.5

13.0

0.5

3HVF15K

15000

2.25

22.0

0.5

3HVF20K

20000

2.25

26.0

0.5

3HVF25K

25000

2.25

34.0

0.5

3HVF30K

30000

2.25

40.0

0.5

3HVF40K

40000

2.25

52.0

0.5

3HVF50K

50000

2.25

68.0

0.5

3HUF•K -Ultra Fast Recovery T

75 nsec Block 3.0 Amp Rectifier Assembly

3HUF5K

5000

3.0

7.0

5.0

3HUF8K

8000

2.75

11.0

5.0

3HUF10K

10000

2.5

14.0

5.0

3HUF15K

15000

2.5

21.0

5.0

3HUF20K

20000

2.25

28.0

5.0

3HUF25K

25000

2.25

35.0

5.0

3HUF30K

30000

2.25

42.0

5.0

3HUF40K

40000

2.25

56.0

5.0

3HUF50K

50000

2.25

70.0

5.0

Max. Surge

Current

FSM

(8.3ms)

A (Amps)

150

400

100

150

Max. Reverse

Recovery Time

(nsec)

250

Case Length

(Inches)

LxW

Fig.11-4.0x1.0

Fig.11-6.0x1.0

Fig.11-7.0x1.0

Fig.12-4.0x2.0

Fig.12-6.0x2.0

Fig.12-8.0x2.0

Fig.12-4.0x3.0

Fig.12-8.0x3.0

Fig.12-6.0x4.0

Fig.11-4.0x1.0

Fig.11-6.0x1.0

Fig.11-7.0x1.0

Fig.12-4.0x2.0

Fig.12-6.0x2.0

Fig.12-8.0x2.0

Fig.12-4.0x3.0

Fig.12-8.0x3.0

Fig.12-6.0x4.0

Fig.11-4.0x1.0

Fig.11-6.0x1.0

Fig.11-7.0x1.0

Fig.12-4.0x2.0

Fig.12-6.0x2.0

Fig.12-8.0x2.0

Fig.12-4.0x3.0

Fig.12-8.0x3.0

Fig.12-6.0x4.0

Fig.11-4.0x1.0

Fig.11-6.0x1.0

Fig.11-7.0x1.0

Fig.12-4.0x2.0

Fig.12-6.0x2.0

Fig.12-8.0x2.0

Fig.12-4.0x3.0

Fig.12-8.0x3.0

Fig.12-6.0x4.0

Figure 11-Rectifier Block

0.40 Typ.

Figure 12-Rectifier Block

8-32 Thread

2 Elec. Inserts

1.0

8-32 Thread

4 Mtg. Inserts

0.25

8-32 Thread

2 Mtg. Inserts

0.25

Available with resistor and capacitor or capacitor only compensation.

HV Component Associates

Mailing Address: P.O. Box 2245, Farmingdale, NJ 07727

Telephone: (732) 938-4499

Fax: (732) 938-4451

www.hvca.com
