594D337X06W3C2W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 594D337X06W3C2W

594D337X06W3C2W: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size85KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

594D337X06W3C2W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT

594D337X06W3C2W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 2813
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	330 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	80 mΩ
high	2.5 mm
JESD-609 code	e3
leakage current	0.0208 mA
length	7.1 mm
Manufacturer's serial number	594D
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	1170 mA
series	594D
size code	2813
surface mount	YES
Delta tangent	0.08
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	3.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

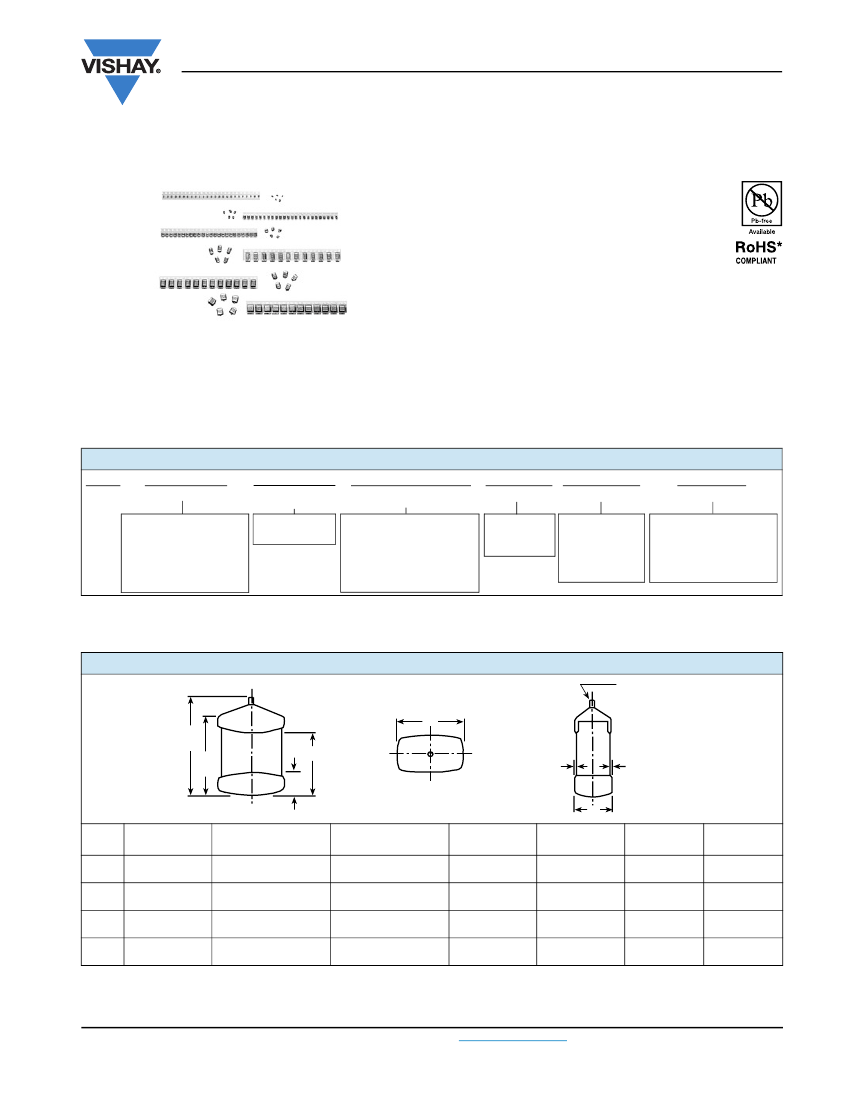

594D

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT®

, Conformal Coated, Maximum CV, Low ESR

FEATURES

•

Large capacitance rating range

•

Lowest ESR for a surface mount tantalum chip

capacitor

•

Terminations: Tin (2) standard

•

8 mm, 12 mm tape and reel packaging

available per EIA 481-1 and reeling per

IEC 286-3. 7" [178 mm] standard. 13" [330 mm]

available.

•

Case code compatibility with EIA 535BAAC

CECC30801 molded chips

•

Compliant to RoHS directive 2002/95/EC

and

PERFORMANCE/ELECTRICAL CHARACTERISTICS

Operating Temperature:

- 55 °C to + 85 °C

(To + 125 °C with voltage derating)

Note

• Refer to Doc. 40088

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 WVDC to 50 WVDC

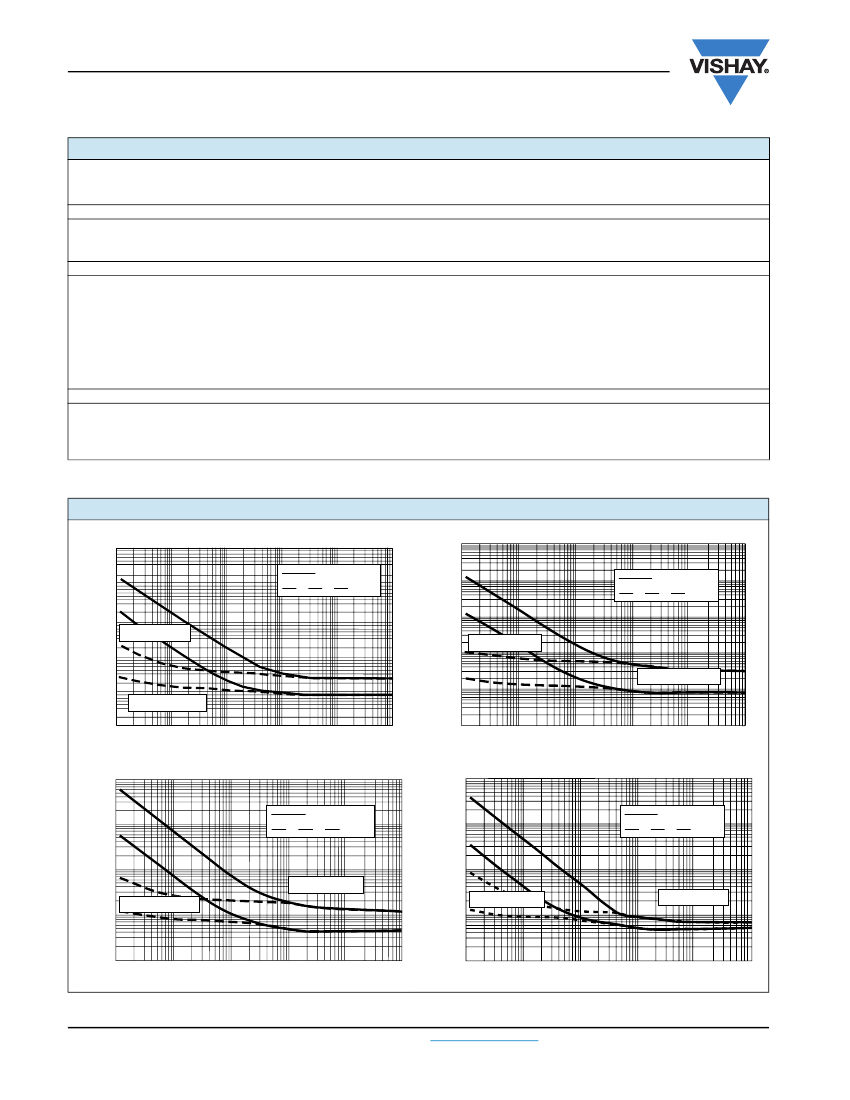

Equivalent Series Resistance:

ESR readings measured at

100 kHz, + 25 °C from 3500 mΩ to 30 mΩ

Capacitance Range:

1.0 µF to 1500 µF

ORDERING INFORMATION

594D

TYPE

477

CAPACITANCE

This is expressed in

picofarads. The first two

digits are the significant

figures. The third is the

number of zeros to

follow.

CAPACITANCE

TOLERANCE

X0 =

20 %

X9 = ± 10 %

004

DC VOLTAGE RATING

AT + 85 °C

This is expressed in volts.

To complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an “R”

(6R3 = 6.3 V).

CASE CODE

See Ratings

and Case

Codes Table

TERMINATION

2 = 100 % Tin

4 = Gold plated

8 = Solder

plated (60/40)

Special order

PACKAGING

T = Tape and reel

7" [178 mm] reel

W = 13" [330 mm] reel

See tape and reel

specifications.

Notes

• Preferred Tolerance and reel sizes are in bold.

• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

• Voltage substitutions will be marked with the higher voltage rating.

DIMENSIONS

in inches [millimeters]

Tantalum Wire

Nib Identifies

Anode (+)

Terminal

(MAX.)

(REF.)

(MAX.)

CASE

CODE

L (MAX.)

0.158

[4.0]

0.281

[7.1]

0.293

[7.5]

0.283

[7.2]

0.110 + 0.012 - 0.016

[2.8 + 0.3 - 0.4]

0.126 ± 0.012

[3.2 ± 0.3]

0.170 + 0.012/- 0.024

[4.3 + 0.3/- 0.6]

0.235 + 0.012/- 0.024

[6.0 + 0.3/- 0.6]

0.075 + 0.012 - 0.024

[1.9 + 0.3 - 0.6]

0.098 ± 0.012

[2.5 ± 0.3]

0.110 ± 0.012

[2.8 ± 0.3]

0.136 ± 0.012

[3.5 ± 0.3]

0.031 ± 0.012

[0.80 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± 0.30]

0.051 ± 0.012

[1.3 ± .30]

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

D (REF.)

0.138

[3.5]

0.236

[6.0]

0.253

[6.4]

0.243

[6.2]

J (MAX.)

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

Notes

• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm].

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 40006

Revision: 11-May-09

For technical questions, contact:

tantalum@vishay.com

www.vishay.com

594D337X06W3C2W Related Products

	594D337X06W3C2W	594D337X96W3C4T	594D337X96W3C4W	SN54HCT14_08	594D337X96W3C8T	594D337X96W3C2W	594D337X06W3C4T	594D337X96W3C8W
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT	HEX SCHMITT-TRIGGER INVERTERS	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT	CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 330 uF, SURFACE MOUNT, 2813, CHIP
Is it lead-free?	Lead free	Lead free	Lead free	-	-	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-	-	conform to	conform to	-
package instruction	, 2813	, 2813	, 2813	-	, 2813	, 2813	, 2813	, 2813
Reach Compliance Code	compli	compli	compli	-	unknow	compli	compli	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
capacitance	330 µF	330 µF	330 µF	-	330 µF	330 µF	330 µF	330 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	-	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	-	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
ESR	80 mΩ	80 mΩ	80 mΩ	-	80 mΩ	80 mΩ	80 mΩ	80 mΩ
high	2.5 mm	2.5 mm	2.5 mm	-	2.5 mm	2.5 mm	2.5 mm	2.5 mm
JESD-609 code	e3	e4	e4	-	e0	e3	e4	e0
leakage current	0.0208 mA	0.0208 mA	0.0208 mA	-	0.0208 mA	0.0208 mA	0.0208 mA	0.0208 mA
length	7.1 mm	7.1 mm	7.1 mm	-	7.1 mm	7.1 mm	7.1 mm	7.1 mm
Manufacturer's serial number	594D	594D	594D	-	594D	594D	594D	594D
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	10%	10%	-	10%	10%	20%	10%
Number of terminals	2	2	2	-	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	-	SMT	SMT	SMT	SMT
method of packing	TR, 13 INCH	TR, 7 INCH	TR, 13 INCH	-	TR, 7 INCH	TR, 13 INCH	TR, 7 INCH	TR, 13 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	10%	10%	-	10%	10%	20%	10%
Rated (DC) voltage (URdc)	6.3 V	6.3 V	6.3 V	-	6.3 V	6.3 V	6.3 V	6.3 V
ripple current	1170 mA	1170 mA	1170 mA	-	1170 mA	1170 mA	1170 mA	1170 mA
series	594D	594D	594D	-	594D	594D	594D	594D
size code	2813	2813	2813	-	2813	2813	2813	2813
surface mount	YES	YES	YES	-	YES	YES	YES	YES
Delta tangent	0.08	0.08	0.08	-	0.08	0.08	0.08	0.08
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Gold (Au)	Gold (Au)	-	Tin/Lead (Sn60Pb40)	Matte Tin (Sn) - with Nickel (Ni) barrie	Gold (Au)	Tin/Lead (Sn60Pb40)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
width	3.2 mm	3.2 mm	3.2 mm	-	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Base Number Matches	1	1	1	-	1	1	1	1
