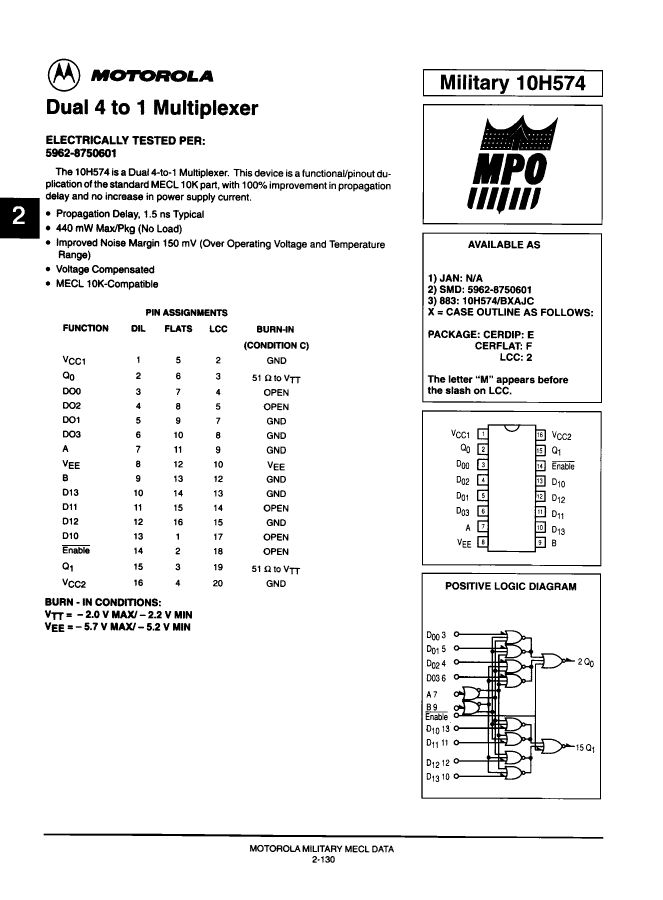

Multiplexer, 10H Series, 2-Func, 4 Line Input, 1 Line Output, True Output, ECL, CQCC20, CERAMIC, LCC-20

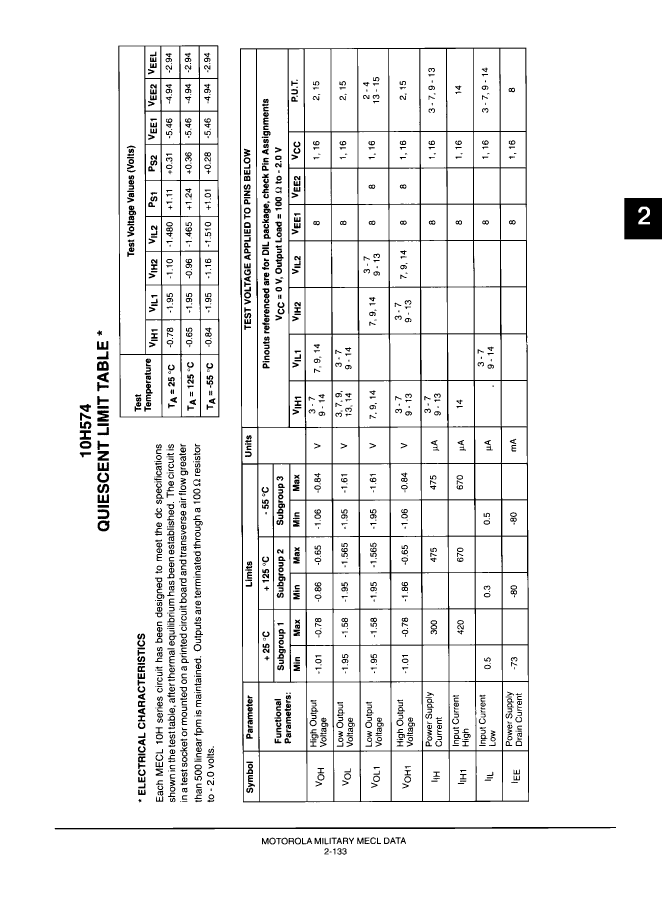

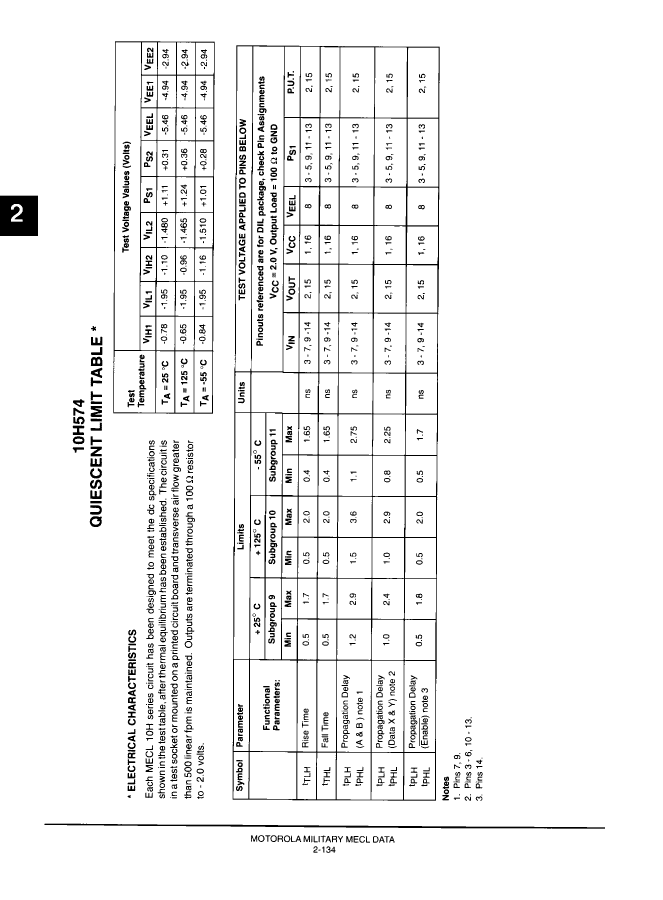

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | QCCN, |
| Reach Compliance Code | unknown |
| series | 10H |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.885 mm |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 2 |
| Number of entries | 4 |
| Output times | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-EMITTER |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Maximum supply current (ICC) | 80 mA |
| propagation delay (tpd) | 3.6 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| surface mount | YES |
| technology | ECL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 8.885 mm |
| Base Number Matches | 1 |
| 5962-87506012A | 10H574/BEAJC | 10H574M/B2AJC | 5962-8750601EA | 5962-8750601FA | |
|---|---|---|---|---|---|
| Description | Multiplexer, 10H Series, 2-Func, 4 Line Input, 1 Line Output, True Output, ECL, CQCC20, CERAMIC, LCC-20 | 10H SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16 | 10H SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | Multiplexer, 10H Series, 2-Func, 4 Line Input, 1 Line Output, True Output, ECL, CDIP16, CERDIP-16 | 10H SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, FP-16 |
| package instruction | QCCN, | CERDIP-16 | QCCN, LCC20,.35SQ | DIP, | DFP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| series | 10H | 10H | 10H | 10H | 10H |
| JESD-30 code | S-CQCC-N20 | R-GDIP-T16 | S-CQCC-N20 | R-GDIP-T16 | R-GDFP-F16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 8.885 mm | 19.495 mm | 8.89 mm | 19.49 mm | 9.65 mm |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of entries | 4 | 4 | 4 | 4 | 4 |
| Output times | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | 16 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | DIP | QCCN | DIP | DFP |
| Package shape | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | CHIP CARRIER | IN-LINE | FLATPACK |
| Maximum supply current (ICC) | 80 mA | 80 mA | 80 mA | 80 mA | 80 mA |
| propagation delay (tpd) | 3.6 ns | 3.6 ns | 3.6 ns | 3.6 ns | 3.6 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 5.08 mm | 1.9 mm | 5.08 mm | 2.15 mm |
| surface mount | YES | NO | YES | NO | YES |
| technology | ECL | ECL | ECL | ECL | ECL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | QUAD | DUAL | DUAL |
| width | 8.885 mm | 7.62 mm | 8.89 mm | 7.62 mm | 6.415 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | incompatible | - | incompatible | - |
| Maker | - | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
