5962-8750501FA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8750501FA

5962-8750501FA: Description10H SERIES, POSITIVE EDGE TRIGGERED JBAR-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16; Categorylogic logic; File Size115KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

5962-8750501FA Overview

10H SERIES, POSITIVE EDGE TRIGGERED JBAR-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16

5962-8750501FA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	16
Reach Compliance Code	unknown
series	10H
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.65 mm
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP
Number of digits	2
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	75 mA
propagation delay (tpd)	2.6 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.15 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.415 mm
minfmax	250 MHz
Base Number Matches	1

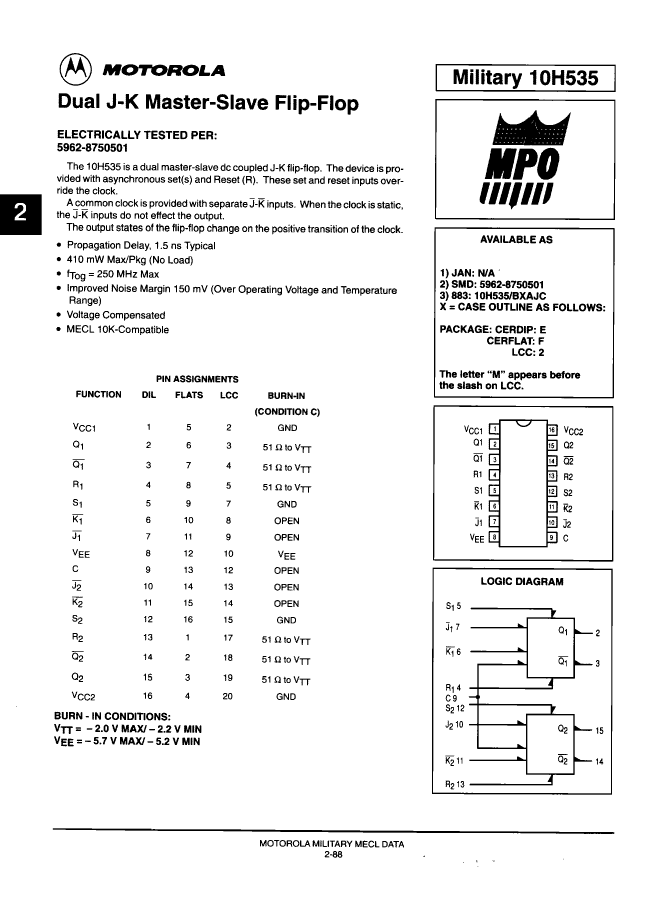

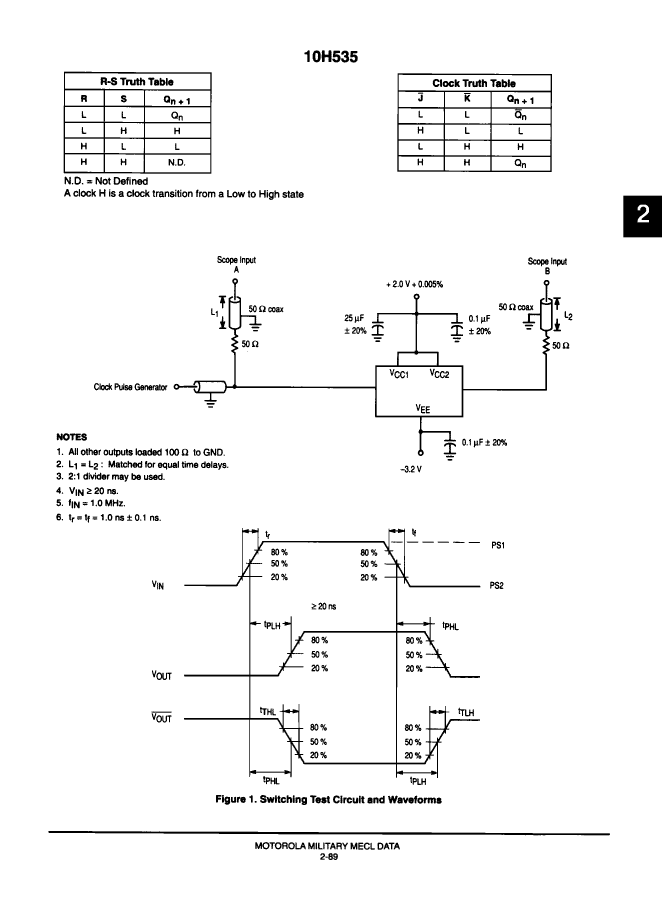

Preview

Download Datasheet

View All

5962-8750501FA Related Products

	5962-8750501FA	GBJ1008	10H535/BFAJC	5962-87505012A	5962-8750501EA
Description	10H SERIES, POSITIVE EDGE TRIGGERED JBAR-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16	SINGLE PHASE 10.0 AMPS GLASS PASSIVATED BRIDGE RECTIFIERS	10H SERIES, POSITIVE EDGE TRIGGERED JBAR-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP16, CERAMIC, FP-16	Jbar-Kbar Flip-Flop, 10H Series, 1-Func, Positive Edge Triggered, 2-Bit, Complementary Output, ECL, CQCC20, CERAMIC, LCC-20	10H SERIES, POSITIVE EDGE TRIGGERED JBAR-KBAR FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP16, CERDIP-16
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Parts packaging code	DFP	-	DFP	-	DIP
package instruction	DFP, FL14,.3	-	DFP, FL14,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3
Contacts	16	-	16	-	16
Reach Compliance Code	unknown	-	unknown	unknown	unknown
series	10H	-	10H	10H	10H
JESD-30 code	R-GDFP-F16	-	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16
JESD-609 code	e0	-	e0	e0	e0
length	9.65 mm	-	9.65 mm	8.885 mm	19.49 mm
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP	-	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP
Number of digits	2	-	2	2	2
Number of functions	1	-	1	1	1
Number of terminals	16	-	16	20	16
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	COMPLEMENTARY	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	-	DFP	QCCN	DIP
Encapsulate equivalent code	FL14,.3	-	FL14,.3	LCC20,.35SQ	DIP16,.3
Package shape	RECTANGULAR	-	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	-	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	75 mA	-	75 mA	75 mA	75 mA
propagation delay (tpd)	2.6 ns	-	2.6 ns	2.6 ns	2.6 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.15 mm	-	2.15 mm	1.9 mm	5.08 mm
surface mount	YES	-	YES	YES	NO
technology	ECL	-	ECL	ECL	ECL
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	-	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	-	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.415 mm	-	6.415 mm	8.885 mm	7.62 mm
minfmax	250 MHz	-	250 MHz	250 MHz	250 MHz
Base Number Matches	1	-	1	1	1
