54F30C datasheet, PDF - EEWORLD Datasheet

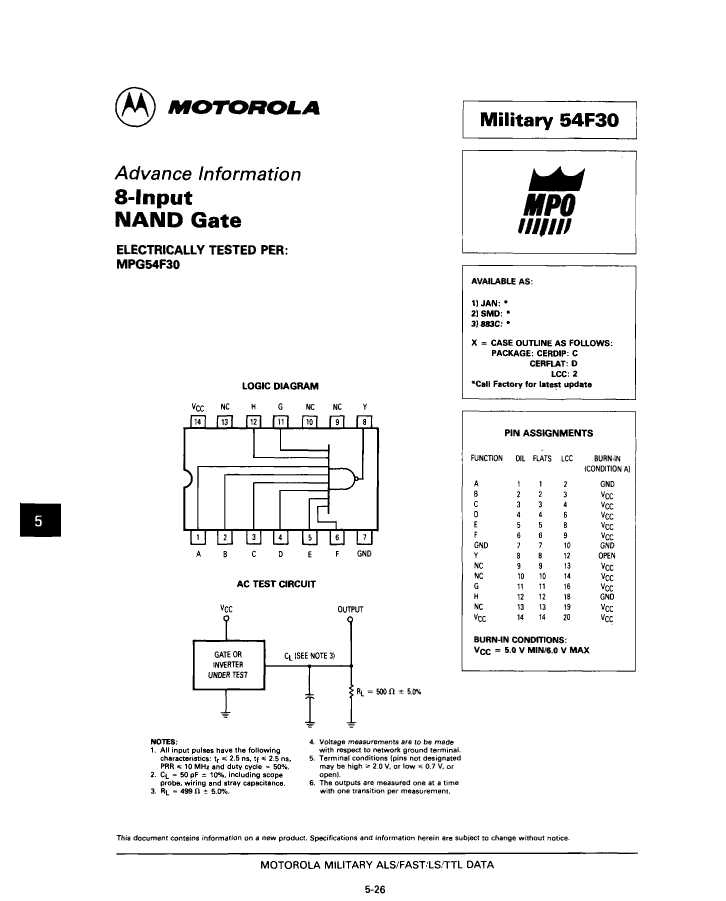

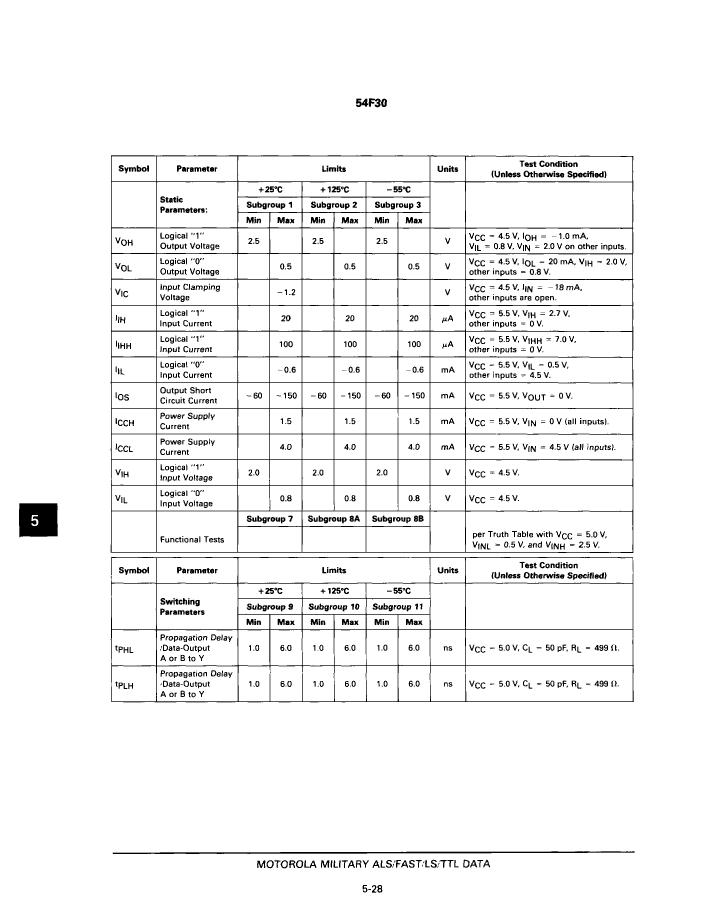

54F30C: DescriptionNAND Gate, F/FAST Series, 1-Func, 8-Input, TTL, CDIP14, CERDIP-14; Categorylogic logic; File Size52KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F30C Overview

NAND Gate, F/FAST Series, 1-Func, 8-Input, TTL, CDIP14, CERDIP-14

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-GDIP-T14
length	19.495 mm
Logic integrated circuit type	NAND GATE
Number of functions	1
Number of entries	8
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	6 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	54F30C	S4FL48A	54F30D
Description	NAND Gate, F/FAST Series, 1-Func, 8-Input, TTL, CDIP14, CERDIP-14	400W Peak Power Surface Mount TVS	F/FAST SERIES, 8-INPUT NAND GATE, CDFP14, CERAMIC, FP-14
package instruction	DIP,	-	DFP,
Reach Compliance Code	unknown	-	unknown
series	F/FAST	-	F/FAST
JESD-30 code	R-GDIP-T14	-	R-GDFP-F14
length	19.495 mm	-	9.65 mm
Logic integrated circuit type	NAND GATE	-	NAND GATE
Number of functions	1	-	1
Number of entries	8	-	8
Number of terminals	14	-	14
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package body material	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED
encapsulated code	DIP	-	DFP
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	FLATPACK
propagation delay (tpd)	6 ns	-	6 ns
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	5.08 mm	-	2.15 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	NO	-	YES
technology	TTL	-	TTL
Temperature level	MILITARY	-	MILITARY
Terminal form	THROUGH-HOLE	-	FLAT
Terminal pitch	2.54 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
width	7.62 mm	-	6.415 mm
