54LS253/BEAJC datasheet, PDF - EEWORLD Datasheet

54LS253/BEAJC: DescriptionLS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16; Categorylogic logic; File Size106KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

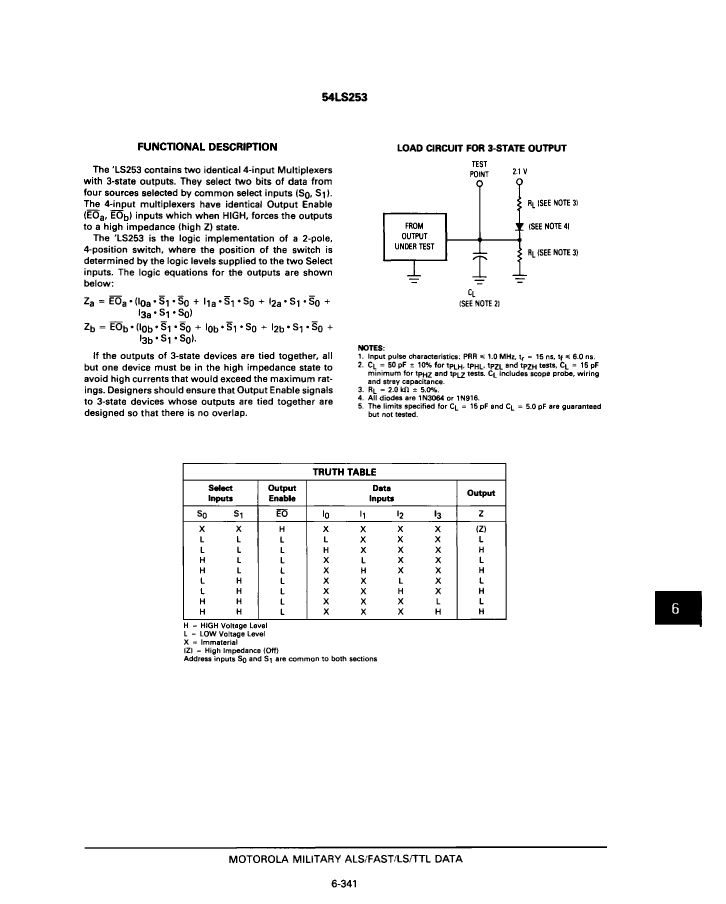

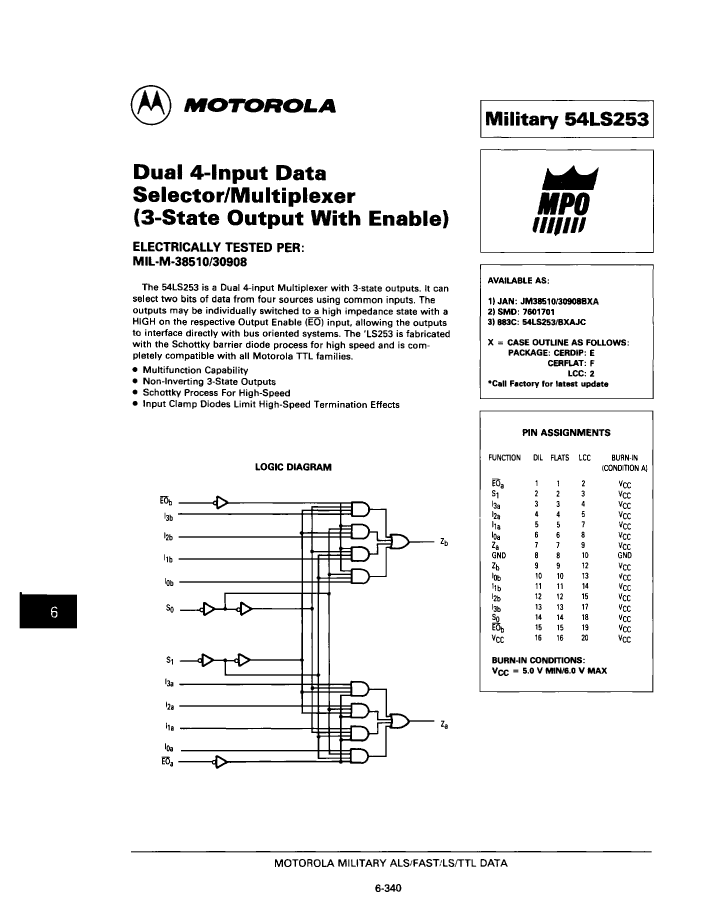

54LS253/BEAJC Overview

LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.012 A
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

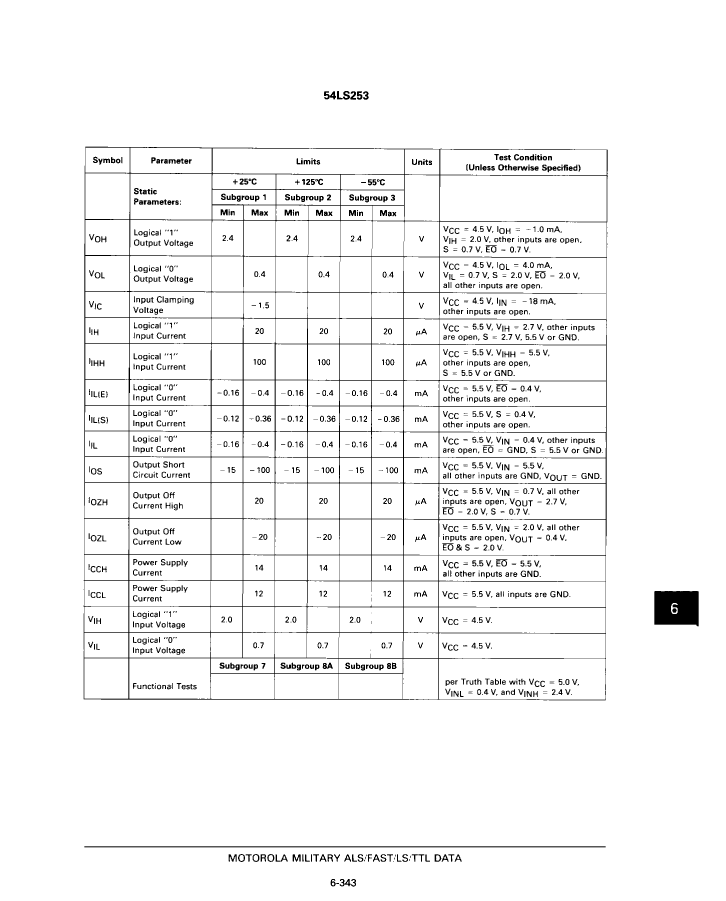

power supply	5 V
Maximum supply current (ICC)	14 mA

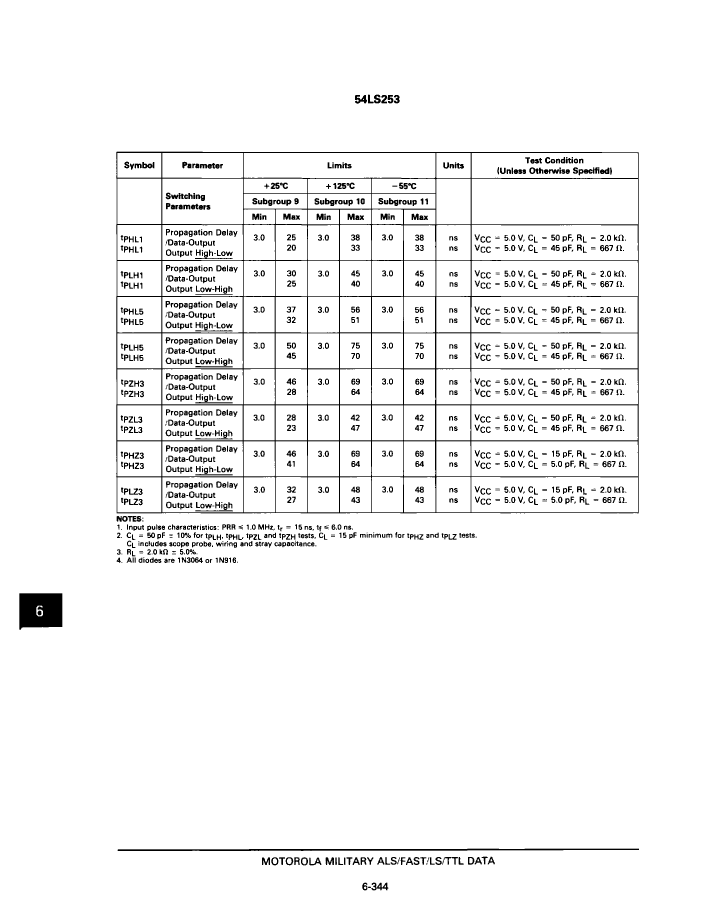

Prop。Delay @ Nom-Sup	45 ns
propagation delay (tpd)	56 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.19 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

	54LS253/BEAJC	54LS253/BFAJC	JM38510/30908BFA	JM38510/30908BEA	JM38510/30908B2A	7601701
Description	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDIP16, CERDIP-16	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERFLAT-16	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERFLAT-16	Multiplexer, LS Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERDIP-16	Multiplexer, LS Series, 2-Func, 4 Line Input, 1 Line Output, True Output, TTL, CQCC20, CERAMIC, LCC-20	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DFP,	DIP,	QCCN,	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
series	LS	LS	LS	-	-	LS
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	-	-	MULTIPLEXER
Number of functions	2	2	2	-	-	2
Number of entries	4	4	4	-	-	4
Output times	1	1	1	-	-	1
Maximum operating temperature	125 °C	125 °C	125 °C	-	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	-	-	3-STATE
Output polarity	TRUE	TRUE	TRUE	-	-	TRUE
propagation delay (tpd)	56 ns	56 ns	56 ns	-	-	56 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	-	5 V
technology	TTL	TTL	TTL	-	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	-	-	MILITARY
Maker	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
