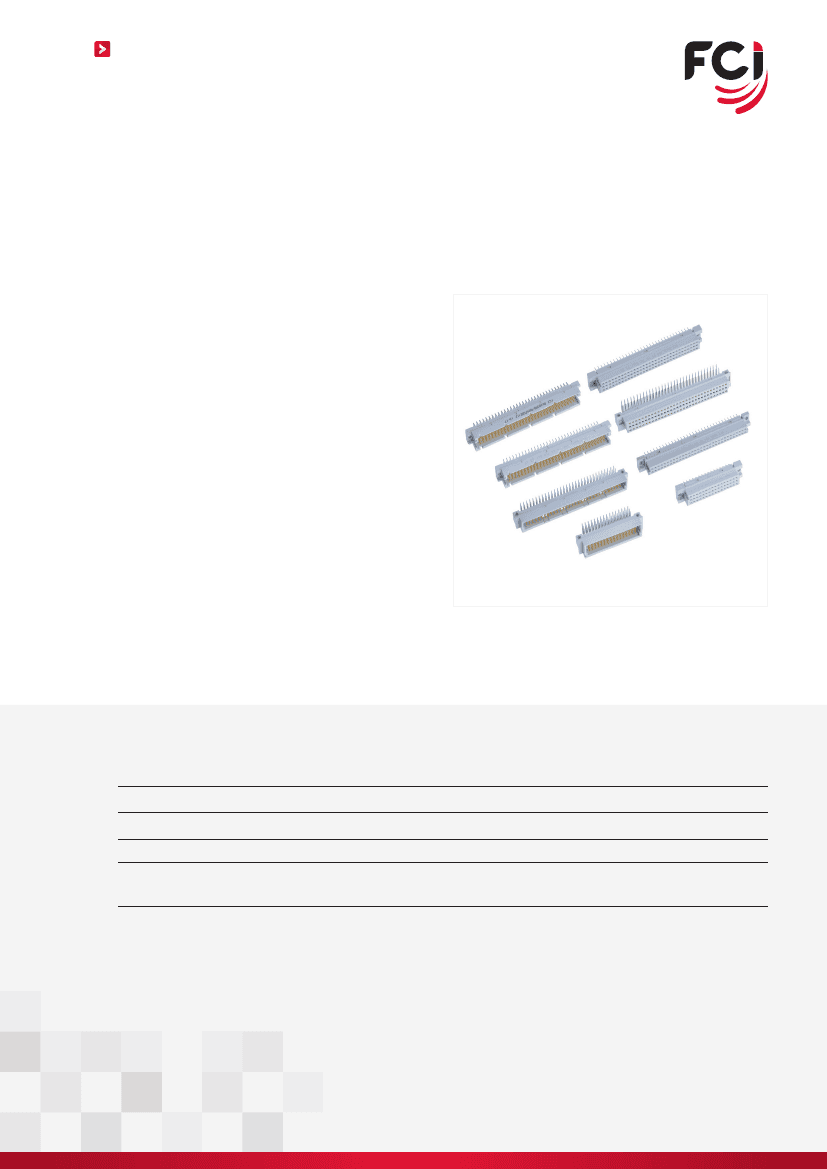

FCI offers a broad and a complete range of interconnection
systems conforming to DIN 41612 and IEC 603-2 specifications.
DIN 41612 connector systems are the most popular backplane
interconnect systems due to the widespread standard adoption,
easy availability, cost-effectiveness and durability.
The product design for Board-to-Board and I/O solutions
involve two popular mating combination; Standard Mount and
Reverse Mount.
These connectors are available in up to three rows and 96
positions with Solder, Press-fit and Pin-in Paste terminations.
FCI offers three standard performance class options as follows:
DIN class I (500 operations); DIN class II (400 operations); DIN
class III (50 operations).
Primary market segments include Industrial, Telecom and
Data.
FEATURES
• 2.54mm pitch
• Modular system
• Selective loading pattern for contacts
• FMLB/LMEB contacts
• Wide range of accessories (board-locks, latches, shrouds,
hoods, keys)
• Rear plug up variants in press-fit applications
BENEFITS
• Adequate spacing for routing PCB traces
• Standardized and cost-effective solutions
• Improve creepage distance, allow custom loading
• Critical grounding option
• Enhances the connector suitability and flexibility
• Extended mating applications via shrouds on the rear side
of the PCB
DIN 41612 SIGNAL
HEADERS & RECEPTACLES
TECHNICAL INFORMATION
MATERIALS
• Insulator: Polyester Thermoplastic
• Housings can withstand exposure to lead free wave
soldering temperature of 260ºC to 265ºC when used along
with high temperature adhesive or protective metallic
device for right angle connectors.
• Contact: Copper Alloy (Male & female contact)
• Plating: Lead-free version
• Male & Female contacts (DIN 41612 compliant)
•
Active
•
ENVIRONMENTAL
• Temperature Range: -55ºC to +125ºC
• Damp Heat
•
•
•
Steady state 56 days: Class 1
Steady state 21 days: Class 2
Not applicable: Class 3
APPROVALS AND CERTIFICATIONS
• UL/CSA in progress
contact areas selectively plated
PACKAGING
• Tray
• Tube
• Carton
Gold over Nickel or GXT
TM
over Nickel on mating surface
over Nickel on solder termination
•
Tin
ELECTRICAL PERFORMANCE
• Current Rating at 20ºC: 1.5A
• Maximum Current: 2A
• Contact Resistance:
≤
20mΩ
• Insulation Resistance:
≥
10
6
MΩ
• Test Voltage (rms): 1000V
• Creepage and Clearance Distance:
≥
1.2mm
• Wiping/Plug-in Direction:
≥
1.8mm
TARGET MARKET/ APPLICATIONS
• Industrial
•
•
•
Medical
Lighting
Process Control
Instrumentation
electronics
Energy transmission/distribution control
Switching/Routing
Enterprise
- wired/wireless
•
Transportation
•
•
Vehicle
•
MECHANICAL PERFORMANCE
• Mating Insertion Force per Contact:
≤
0.94N
• Mating Extraction Force per Contact:
≥
0.15N
• Contact Retention in Insulator:
≥
20N
• Vibration:
≤
1µs
≤
40mΩ
• Shock:
≤
1µs
≤
40mΩ
• Telecom
•
•
•
Transmission
•
Access
• Data
•
•
•
Servers
Personal Computing
Peripheral devices
Home entertainment
White goods
Phones
SPECIFICATIONS
• DIN 41612
• IEC 603-2
• Consumer
•
•
•
For more information,
please contact: Communications@fci.com
or visit us at
www.fci.com
Disclaimer
Please note that the above information is subject to change without notice.
DIN 41612 SIGNAL
HEADERS & RECEPTACLES
PART NUMBERS
Style
Connector
Configuration
2 row / 64 pos.
Right Angle Header
3 row / 96 pos.
C
2 row / 64 pos.
Straight Receptacle
3 row / 96 pos.
2 row / 32 pos.
3 row / 48 pos.
2 row / 32 pos.
Straight Receptacle
3 row / 48 pos.
1 row / 32 pos.
2 row / 64 pos.
1 row / 32 pos.
2 row / 64 pos.
2 row / 32 pos.
a, b, c
a&c
a, b, c
a&c
a, b, c
a only
a&b
a only
a&b
a&b
Solder-to-board
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Solder-to-board
Solder-to-board
Press-fit
Solder-to-board
Solder-to-board
Solder-to-board
Solder-to-board
Press-fit
Solder-to-board
a&c
a, b, c
Rows Loaded
a&c
Termination
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Solder-to-board
Press-fit
Part number
860946471137*5ELF
860946471947*5E1LF
860939671137*5ELF
860939671947*5E1LF
860946481147*5V1LF
860946481947*5E3LF
860939681147*5V1LF
860939681947*5E3LF
860943273137*5ELF
860934873137*5ELF
860943283147*5V1LF
860934883147*5V1LF
860934883947*5E3LF
860913251137*5ELF
860926451137*5ELF
860913261147*5V1LF
860926461147*5V1LF
860923253137*5ELF
860923263147*5E1LF
860946478147*5ELF
860946478947*5E1LF
860939678147*5ELF
860939678947*5E1LF
860946488137*5V1LF
860946488947*5E3LF
860939688137*5V1LF
860939688947*5E3LF
860943276147*5ELF
860934876147*5ELF
BPLDINSIGNAL1215EA4
Right Angle Header
C/2
Right Angle Header
B
Straight Receptacle
Right Angle Header
Straight Receptacle
B/2
2 row / 64 pos.
Straight Header
3 row / 96 pos.
R
2 row / 64 pos.
Right Angle Receptacle
3 row / 96 pos.
2 row / 32 pos.
Straight Header
R/2
Right Angle Receptacle
Q
Straight Header
3 row / 48 pos.
2 row / 32 pos.
3 row / 48 pos.
2 row / 64 pos.
a&c
a, b, c
a&c
a, b, c
a&c
a, b, c
a&c
a, b, c
a&b
860934876947*5E1LF
860943286137*5E1LF
860934886137*5E1LF
860926458147*5ELF
Notes
Asterisk (*) in part number denotes Performance class: PN Code 6,5,4 for Class 1, 2 & 3 respectively. Custom loading and other options available on request.
For more information,
please contact: Communications@fci.com
or visit us at
www.fci.com
Disclaimer
Please note that the above information is subject to change without notice.
