54931-40LLS datasheet, PDF - EEWORLD Datasheet

54931-40LLS: DescriptionPCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size324KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54931-40LLS Overview

PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	SHROUDED, SHIELDED
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54931
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	136
UL Flammability Code	94V-0
Base Number Matches	1

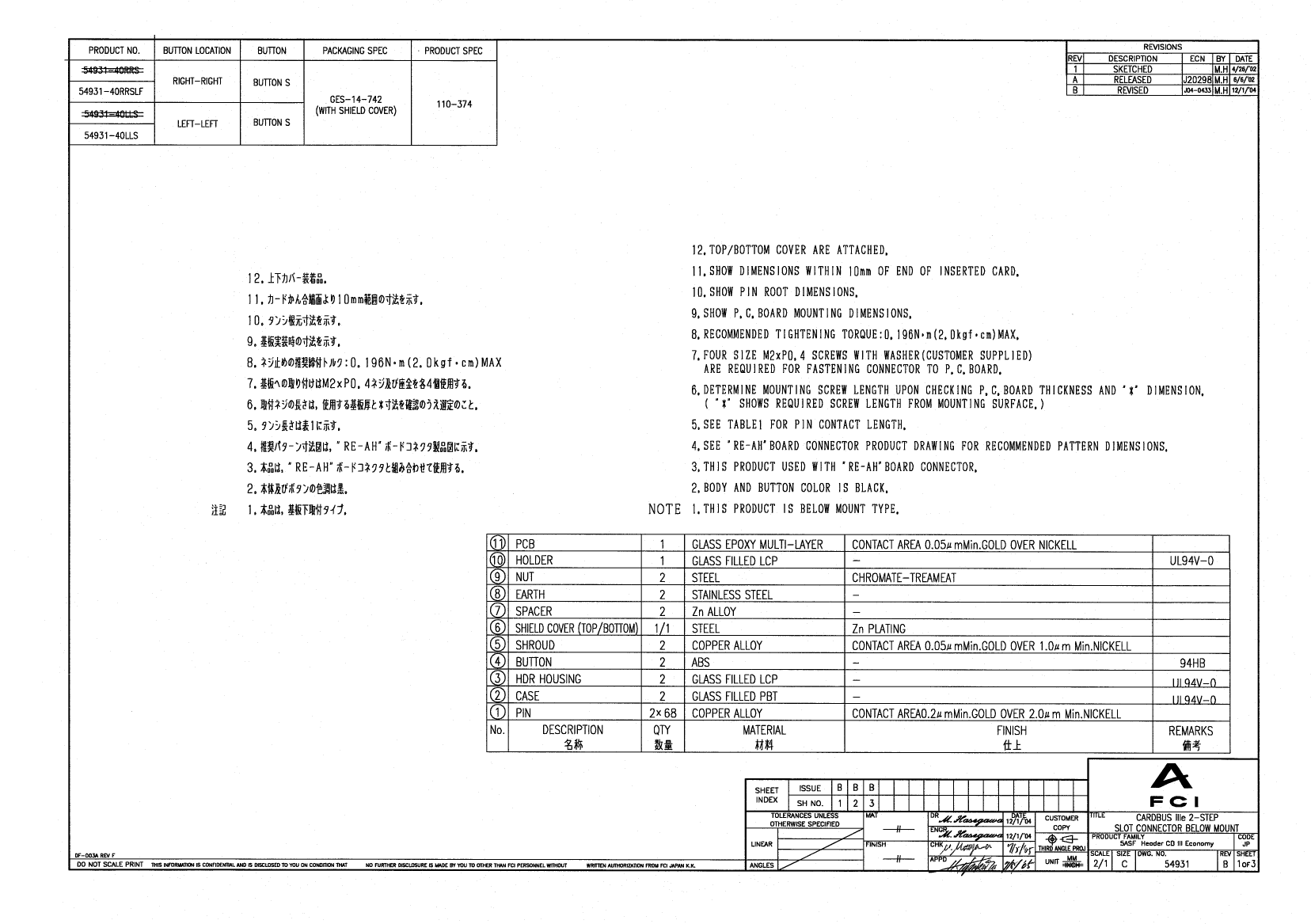

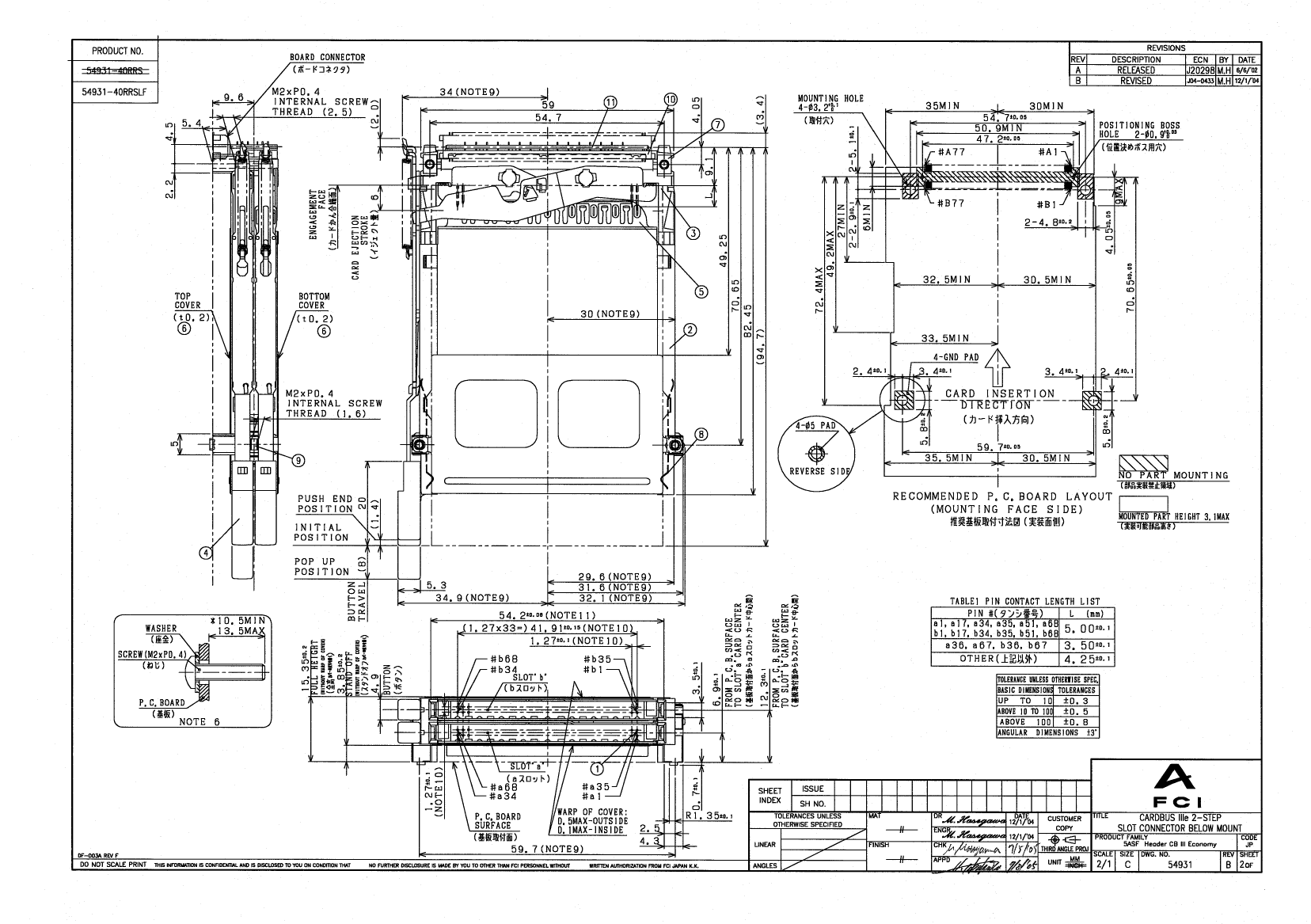

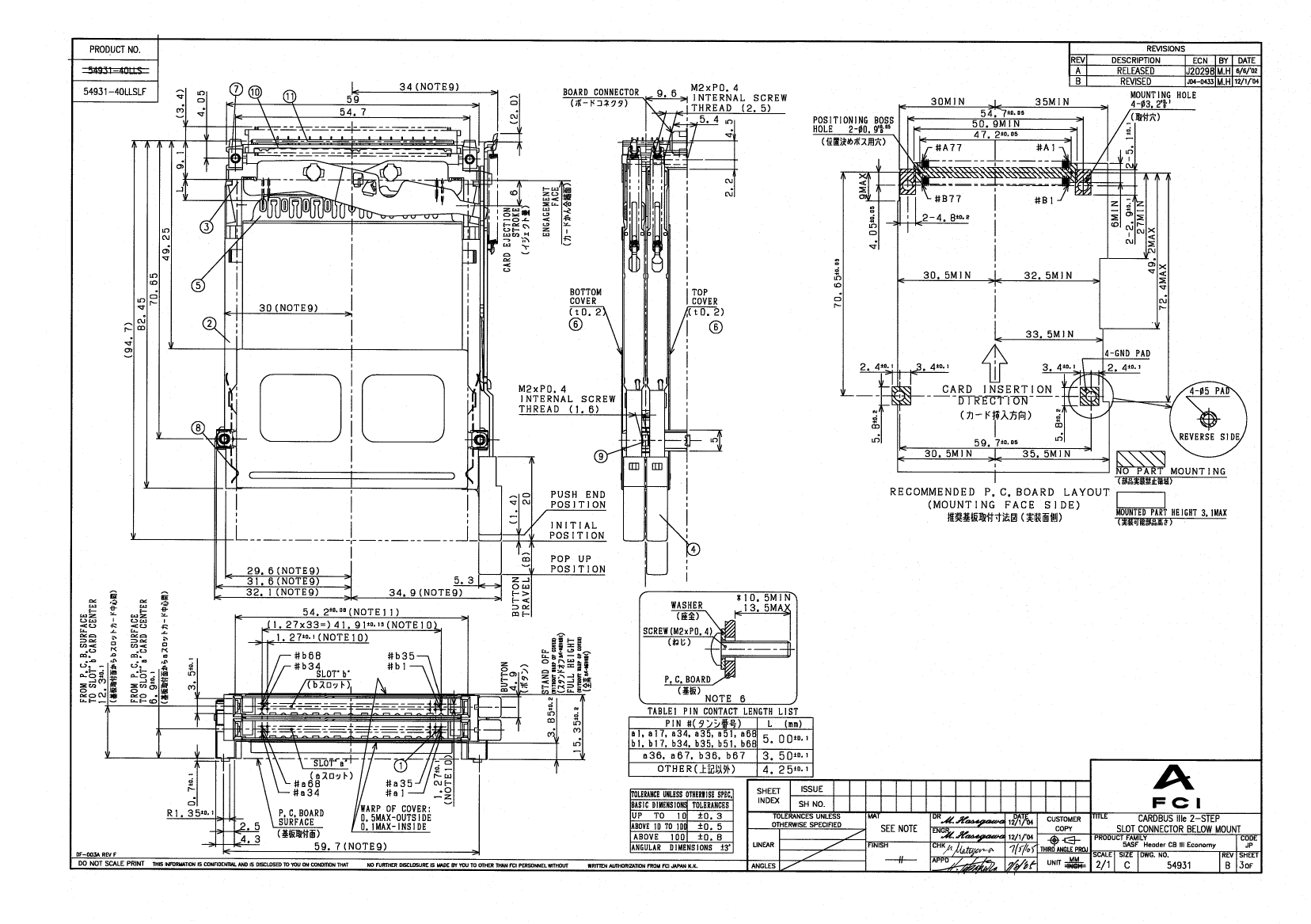

PDM: Rev:B

STATUS:

Released

Printed: Nov 30, 2006

.

	54931-40LLS	54931-40LLSLF	54931-40RRSLF	54931-40RRS
Description	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Straight, Surface Mount Terminal
Reach Compliance Code	compliant	compliant	unknown	compliant
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	54931	54931	54931	54931
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	136	136	136	136
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
