5962-9086905MUC datasheet, PDF

Datasheet> All Categories > storage> storage> 5962-9086905MUC

5962-9086905MUC: DescriptionEEPROM, 64KX8, 150ns, Parallel, CMOS, 0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36; Categorystorage storage; File Size428KB，16 Pages; ManufacturerXicor Inc.

Download Datasheet Parametric Compare View All

5962-9086905MUC Overview

EEPROM, 64KX8, 150ns, Parallel, CMOS, 0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36

5962-9086905MUC Parametric

Parameter Name	Attribute value
package instruction	0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36
Reach Compliance Code	unknown
Maximum access time	150 ns
Other features	100000 ENDURANCE CYCLES
command user interface	NO
Data polling	YES
Durability	10000 Write/Erase Cycles
JESD-30 code	S-XPGA-P36
length	19.304 mm
memory density	524288 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	36
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64KX8
Package body material	UNSPECIFIED
encapsulated code	PGA
Encapsulate equivalent code	PGA36,7X7
Package shape	SQUARE
Package form	GRID ARRAY
page size	128 words
Parallel/Serial	PARALLEL
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.8768 mm
Maximum standby current	0.0005 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
switch bit	YES
width	19.305 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

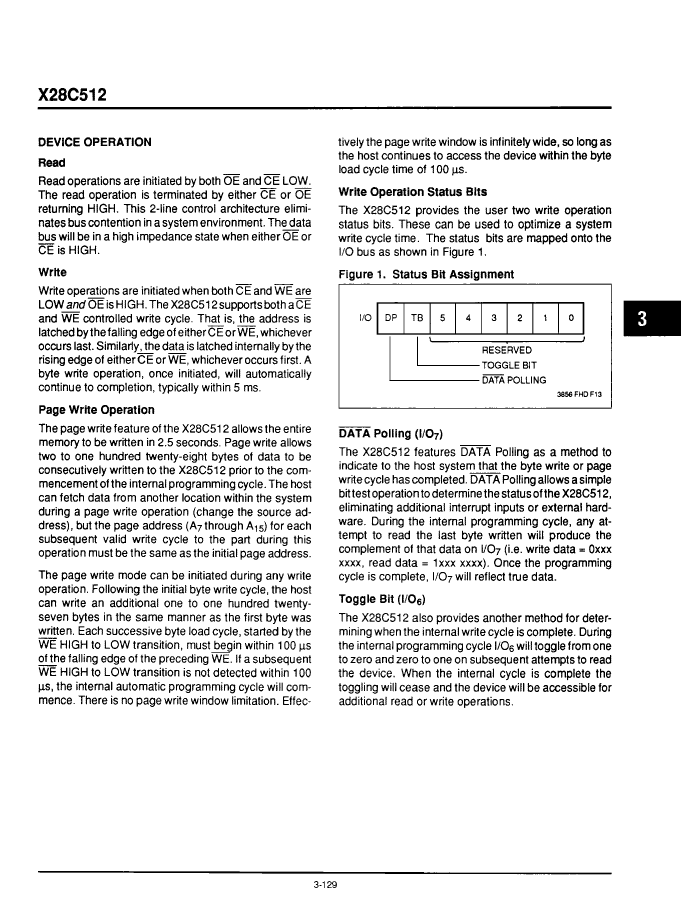

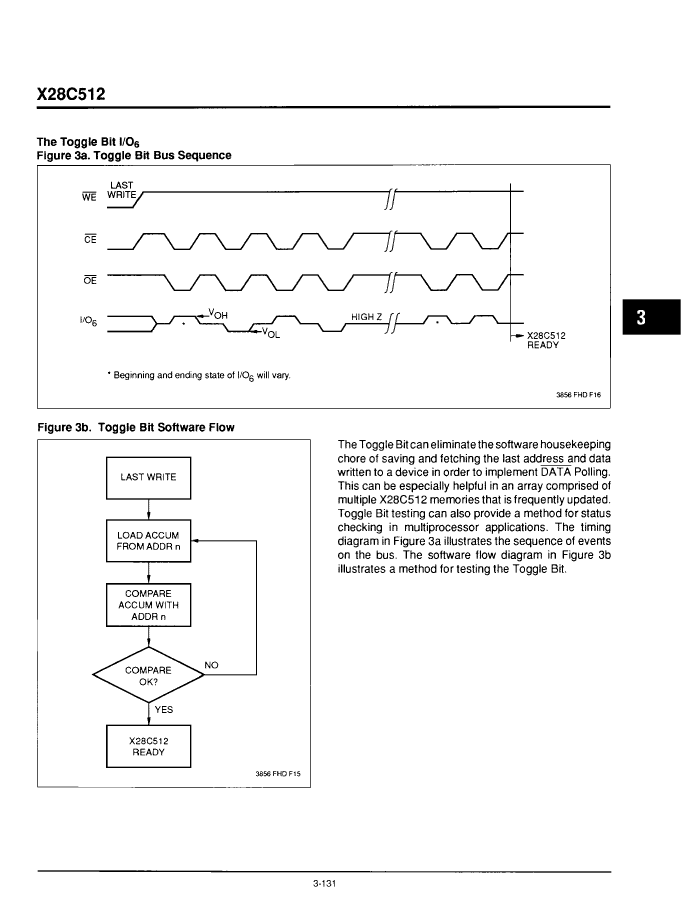

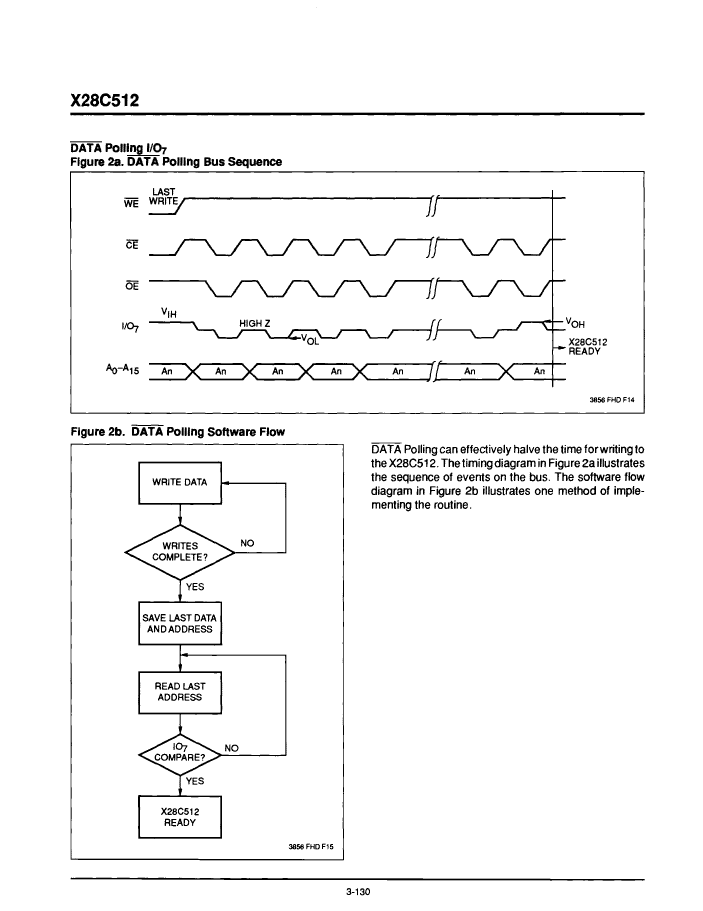

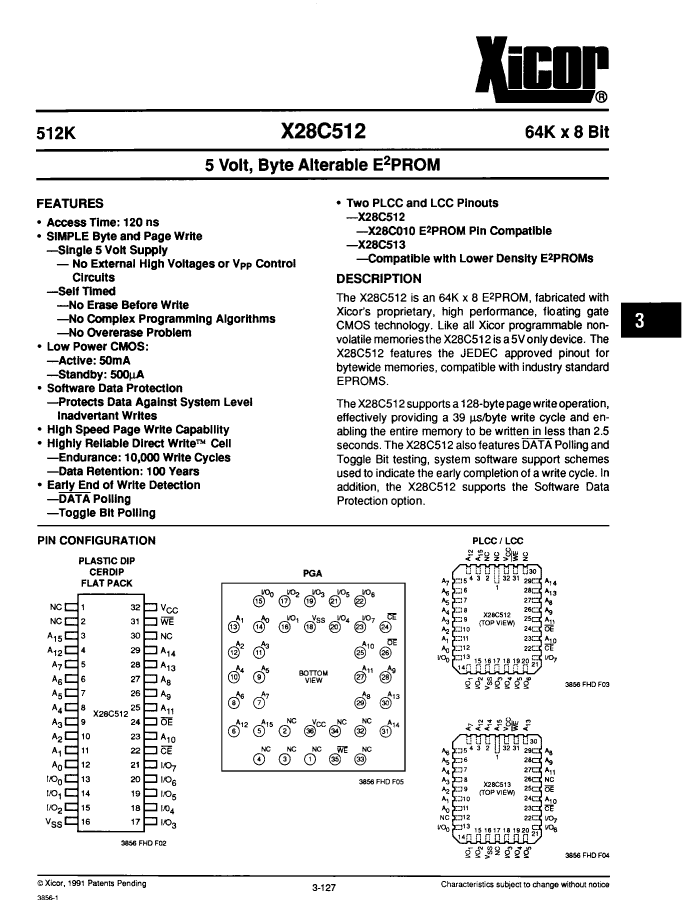

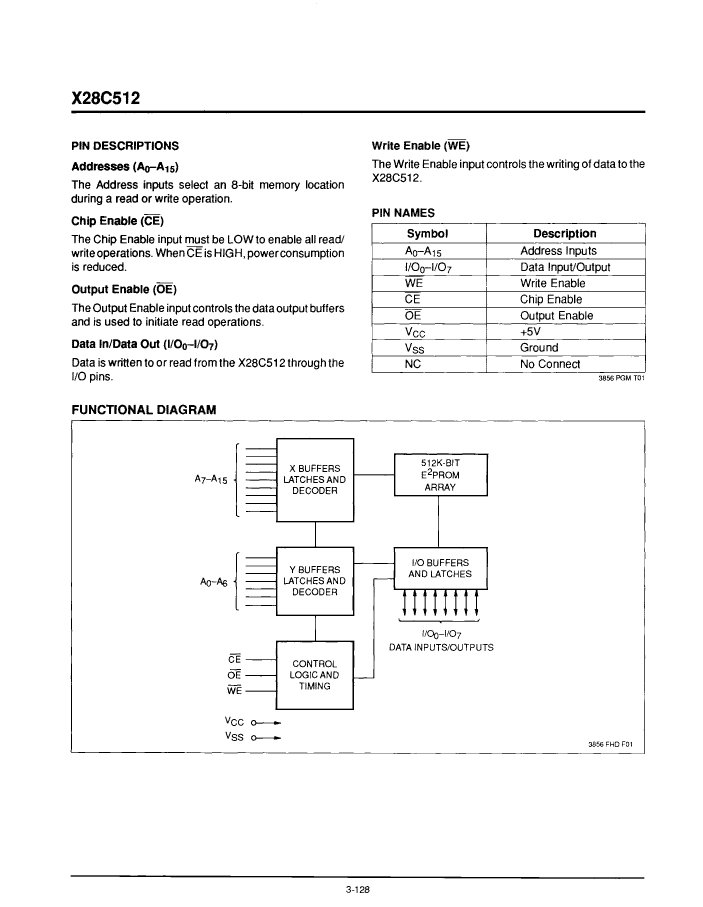

Preview

Download Datasheet

View All

5962-9086905MUC Related Products

	5962-9086905MUC	5962-9086907MXA	5962-9086903MYA	5962-9086905MZC	5962-9086907MUC	5962-9086907MZC	5962-9086901MUC
Description	EEPROM, 64KX8, 150ns, Parallel, CMOS, 0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36	EEPROM, 64KX8, 120ns, Parallel, CMOS, 1.685 X 0.600 INCH, 0.225 INCH HEIGHT, DIP-32	EEPROM, 64KX8, 200ns, Parallel, CMOS, 0.560 X 0.458 INCH, 0.120 INCH HEIGHT, LCC-32	EEPROM, 64KX8, 150ns, Parallel, CMOS, 0.830 X 0.416 INCH, 0.120 INCH HEIGHT, FP-32	EEPROM, 64KX8, 120ns, Parallel, CMOS, CPGA36, 0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36	EEPROM, 64KX8, 120ns, Parallel, CMOS, 0.830 X 0.416 INCH, 0.120 INCH HEIGHT, FP-32	EEPROM, 64KX8, 250ns, Parallel, CMOS, 0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36
package instruction	0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36	1.685 X 0.600 INCH, 0.225 INCH HEIGHT, DIP-32	0.560 X 0.458 INCH, 0.120 INCH HEIGHT, LCC-32	0.830 X 0.416 INCH, 0.120 INCH HEIGHT, FP-32	0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36	0.830 X 0.416 INCH, 0.120 INCH HEIGHT, FP-32	0.760 X 0.760 INCH, 0.120 INCH HEIGHT, PGA-36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	150 ns	120 ns	200 ns	150 ns	120 ns	120 ns	250 ns
Other features	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES	100000 ENDURANCE CYCLES
command user interface	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES
Durability	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles	10000 Write/Erase Cycles
JESD-30 code	S-XPGA-P36	R-XDIP-T32	R-XQCC-N32	R-XDFP-F32	S-XPGA-P36	R-XDFP-F32	S-XPGA-P36
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	36	32	32	32	36	32	36
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED
encapsulated code	PGA	DIP	QCCN	DFP	PGA	DFP	PGA
Encapsulate equivalent code	PGA36,7X7	DIP32,.6	LCC32,.45X.55	FL28,.4	PGA36,7X7	FL28,.4	PGA36,7X7
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	GRID ARRAY	IN-LINE	CHIP CARRIER	FLATPACK	GRID ARRAY	FLATPACK	GRID ARRAY
page size	128 words	128 words	128 words	128 words	128 words	128 words	128 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883	38535Q/M;38534H;883B	MIL-STD-883
Maximum standby current	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	THROUGH-HOLE	NO LEAD	FLAT	PIN/PEG	FLAT	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	PERPENDICULAR	DUAL	QUAD	DUAL	PERPENDICULAR	DUAL	PERPENDICULAR
switch bit	YES	YES	YES	YES	YES	YES	YES
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Base Number Matches	1	1	1	1	1	1	1
length	19.304 mm	42.93 mm	-	-	19.305 mm	-	19.304 mm
Maximum seat height	4.8768 mm	5.89 mm	-	3.05 mm	4.8768 mm	3.05 mm	4.8768 mm
width	19.305 mm	15.24 mm	-	11.6586 mm	19.304 mm	11.6586 mm	19.305 mm
JESD-609 code	-	e0	e0	e4	-	e4	-
Terminal surface	-	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	GOLD	-	GOLD	-
