54LS373/BRAJC: DescriptionLS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERDIP-20; Categorylogic logic; File Size134KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

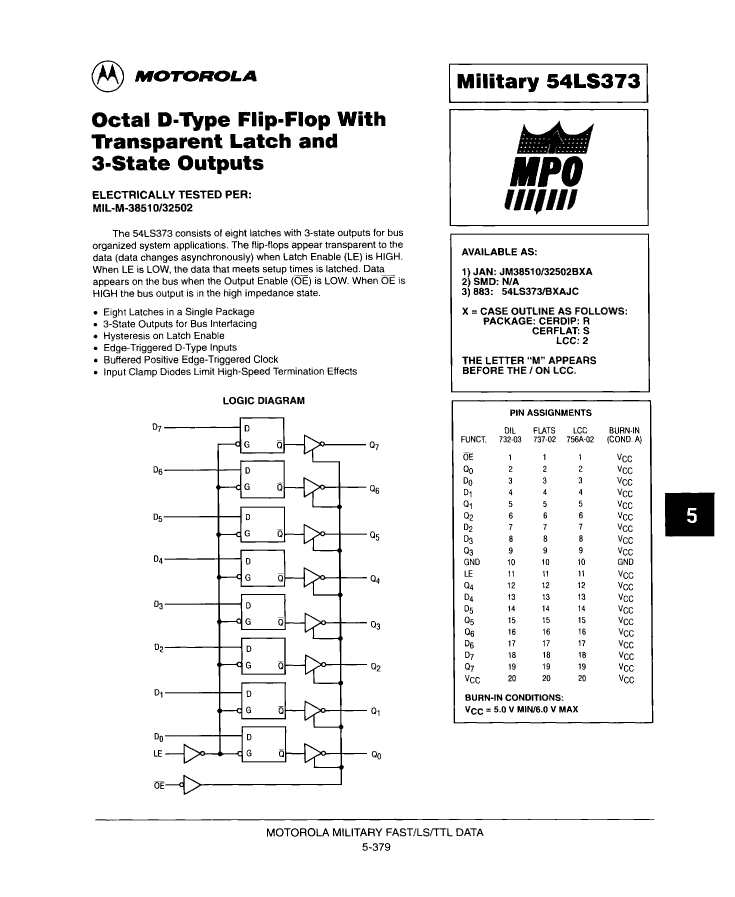

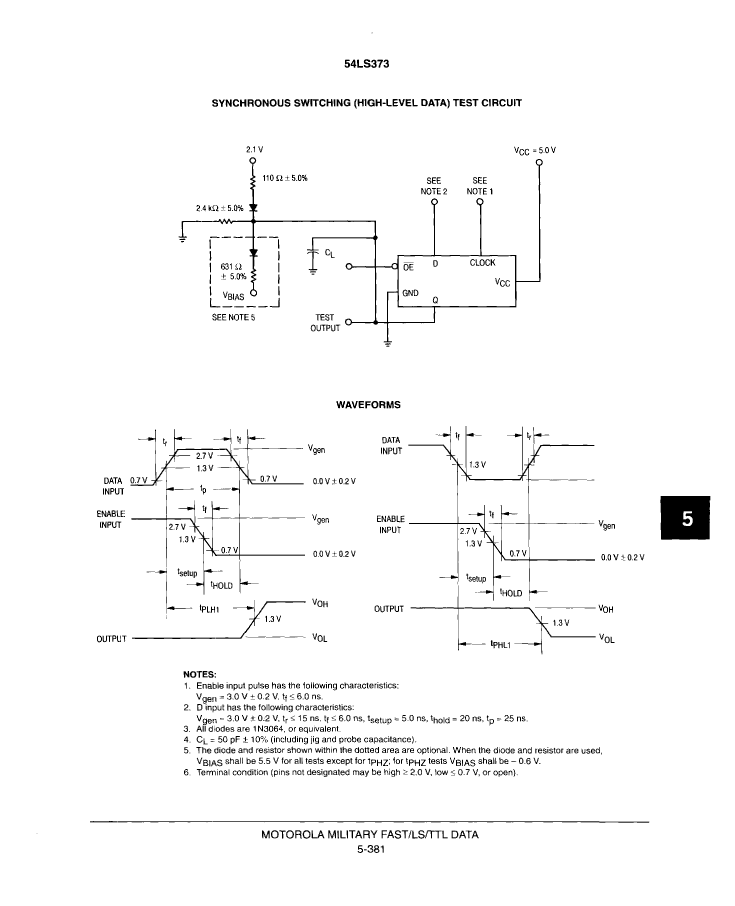

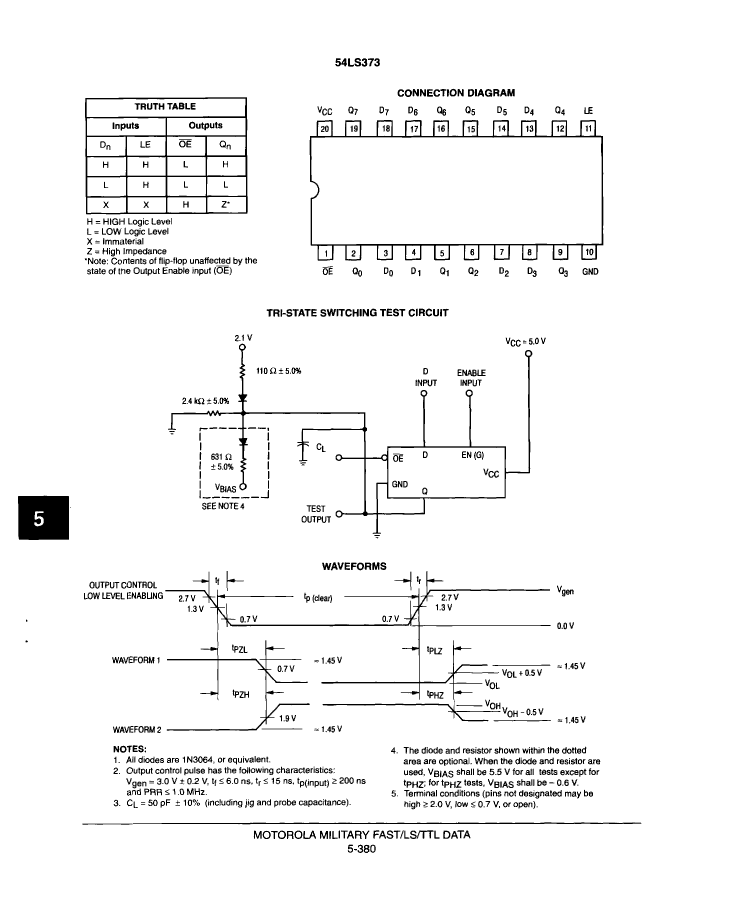

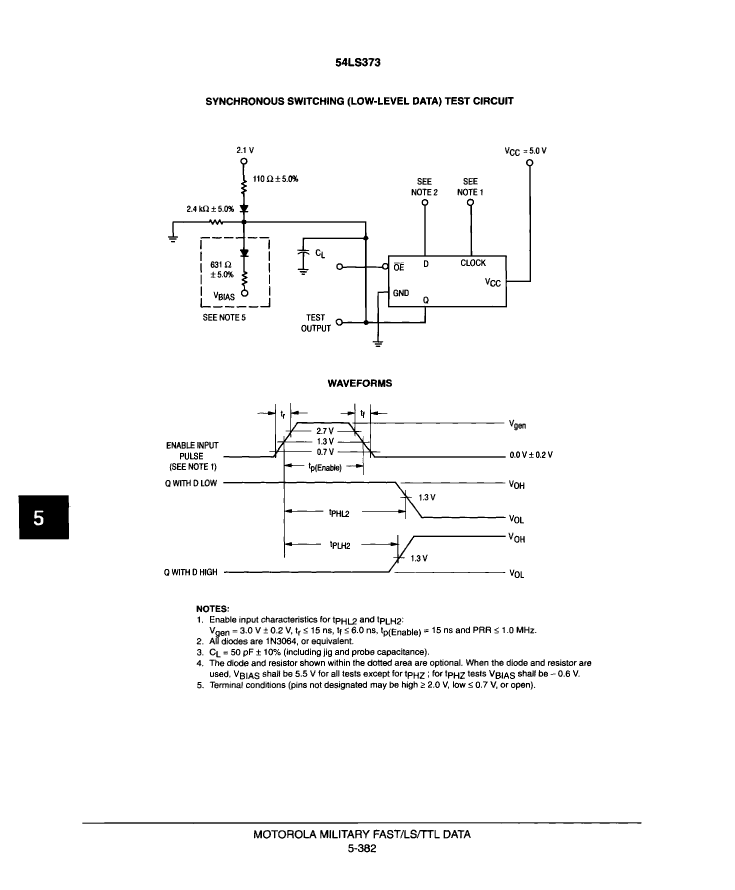

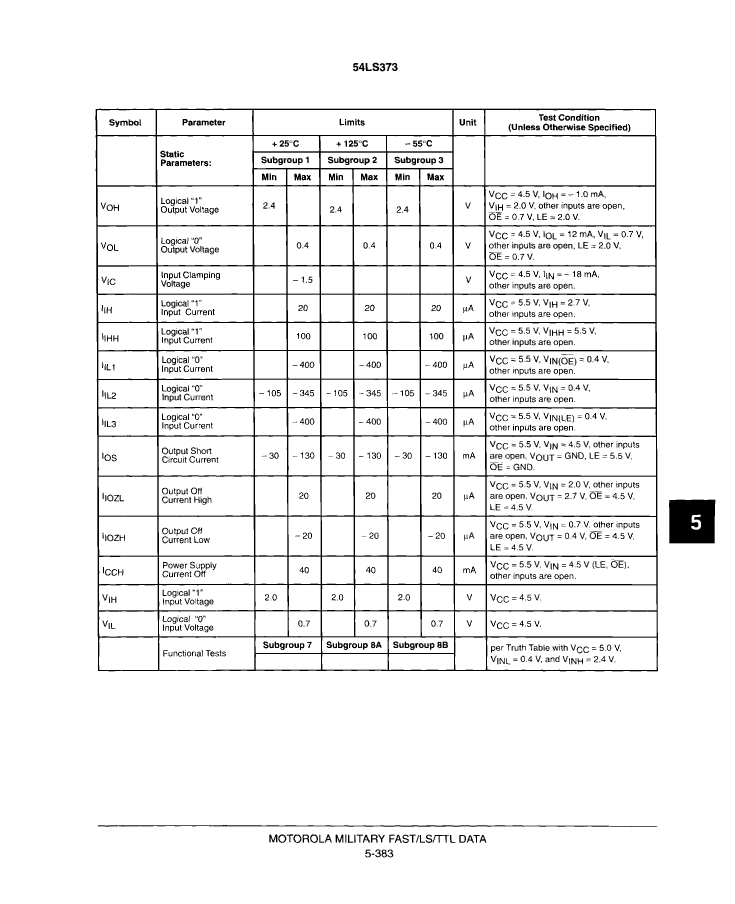

54LS373/BRAJC Overview

LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERDIP-20

54LS373/BRAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
length	24.515 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	38 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS373/BRAJC Related Products

	54LS373/BRAJC	54LS373M/B2AJC	54LS373/BSAJC
Description	LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20, CERDIP-20	LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20	LS SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, FP-20
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	QLCC	DFP
package instruction	DIP,	QCCN, LCC20,.35SQ	DFP, FL20,.3
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	R-CDIP-T20	S-CQCC-N20	R-GDFP-F20
JESD-609 code	e0	e0	e0
length	24.515 mm	8.89 mm	12.7 mm
Load capacitance (CL)	45 pF	45 pF	45 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	38 ns	38 ns	38 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.9 mm	2.16 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.89 mm	6.475 mm
Base Number Matches	1	1	1
Encapsulate equivalent code	-	LCC20,.35SQ	FL20,.3
power supply	-	5 V	5 V
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B
