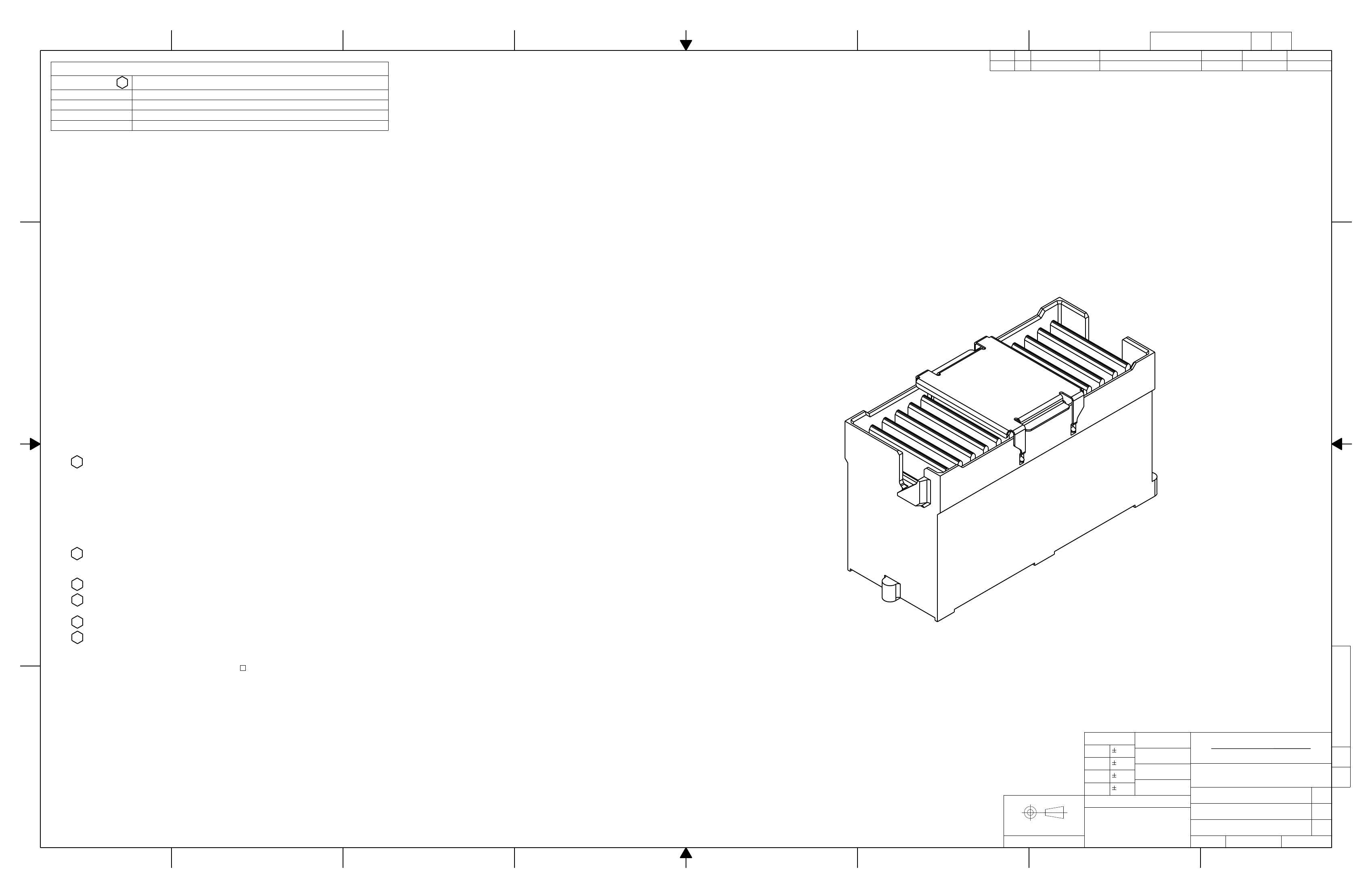

DRW NO.
C-379-3396-500
BY
M.CHARETH
SH
1
REV
A
APPROVED
D.McNAMARA
ZONE REV
SCR NUMBER
DESCRIPTION
NEW RELEASE
DATE
8/20/14
TABLE 1
PART NUMBER
1
379-3396-X00
379-3496-X00
379-3596-X00
379-3696-X00
D
ALL
DESCRIPTION
A MCHH-9N6BP2.VER01
PLUG ASSY, 4 PAIR, 17.5 MM HICH, 15 WAFERS, 100 OHMS W/LOSSY
PLUG ASSY, 4 PAIR, 17.5 MM HICH, 15 WAFERS, 85 OHMS W/LOSSY
PLUG ASSY, 4 PAIR, 17.5 MM HICH, 15 WAFERS, 100 OHMS NO LOSSY
PLUG ASSY, 4 PAIR, 17.5 MM HICH, 15 WAFERS, 85 OHMS NO LOSSY
D
C
C
NOTES:
1. ASSEMBLY PART NUMBER VARIES WITH PLATING OPTION AS FOLLOWS:
FOR NI SULFAMATE UNDERPLATE, 8TH DIGIT OF P/N IS 2.
FOR NANO NI UNDERPLATE, 8TH DIGIT OF P/N IS 4.
2. MAT'L:
HOUSING/WAFERS - LCP.
VACUUM CAP - SST.
CONTACTS - HIGH PERFORMANCE COPPER ALLOY, PER MTS-506.
3. 0.71 DIA SOLDER SPHERES WILL NOT BE PERFECTLY
SPHERICAL AFTER REFLOW ATTACHMENT.
B
4. HOLES RECOMMENDED FOR VISUAL INSPECTION OF CONNECTOR
ALIGNMENT AFTER PLACEMENT AND BEFORE REFLOW. HOLES ARE
NOT REQUIRED
5. SOLDER BALL PROTRUSION BELOW HOUSING.
6. SEE TECHNICAL BULLETIN TB-2241 FOR DETAILED SMT PROCESSING
AND PCB FOOT PRINT RECOMMENDATIONS.
7. MAXIMUM CO-PLANARITY OF THE BALL FIELD.
8. MAXIMUM RADIAL TRUE POSITION OF ANY SOLDER BALL
IN RELATION TO AN IDEAL BEST FIT GRID.
9. TOLERANCES DO NOT APPLY TO REFERENCE DIMENSIONS
SHOWN IN "()" OR BASIC DIMENSIONS SHOWN IN " ".
10. REFER TO FILE 379-3X36-XX0.STP FOR SIMPLIFIED 3D MODEL OF ASSEMBLY.
B
DRW NO.
C-379-3396-500
TOLERANCES
DESIGN 08/26/11
D.MALOON
A
0.0
0.00
0.000
ANGLES
0.25
0.13
-
-
Amphenol TCS
A Division of Amphenol Corporation
200 Innovative Way, Nashua, NH 03062 603.879.3000
TITLE
SH
DRAWN 8/20/14
1
M.CHARETH
M.CHARETH
CHK 8/20/14
REV
PLUG ASSEMBLY, 15 WAFERS
InfinX 4 PAIR, 17.5 MM HIGH
A
APVD 8/20/14
D.McNAMARA
PART NO.
UNLESS OTHERWISE SPECIFIED DIMENSIONS
ARE IN MM, DECIMAL MARKER IS A PERIOD
SEE TABLE 1
C-379-3396-500
PART
Q1155-PLUG-ASSY-4X17_5X15-VC
DRAWING
C-379-3396-500
N/A
REV
REV
DRAWING NO.
INTERPRET PER ASME Y14.5M
CODE IDENT 31413
8
7
6
5
4
3
CUSTOMER USE
DRAWING
2
A
1.5
0.2
SIZE D
SCALE 5/1
SHEET 1 OF 4
1
8
7
6
5
4
3
DRW NO.
C-379-3396-500
BY
M.CHARETH
SH
2
REV
A
APPROVED
D.McNAMARA
ZONE REV
ALL
VACUUM CAP
REMOVE AFTER ASSEMBLY TO PCB
1.20
SCR NUMBER
DESCRIPTION
NEW RELEASE
DATE
8/20/14
13.70
D
D
4.69
17.73
6.94
Y
2.43
38.20
2X 3.93
C
41.15
X
16.95
3.59
1.15

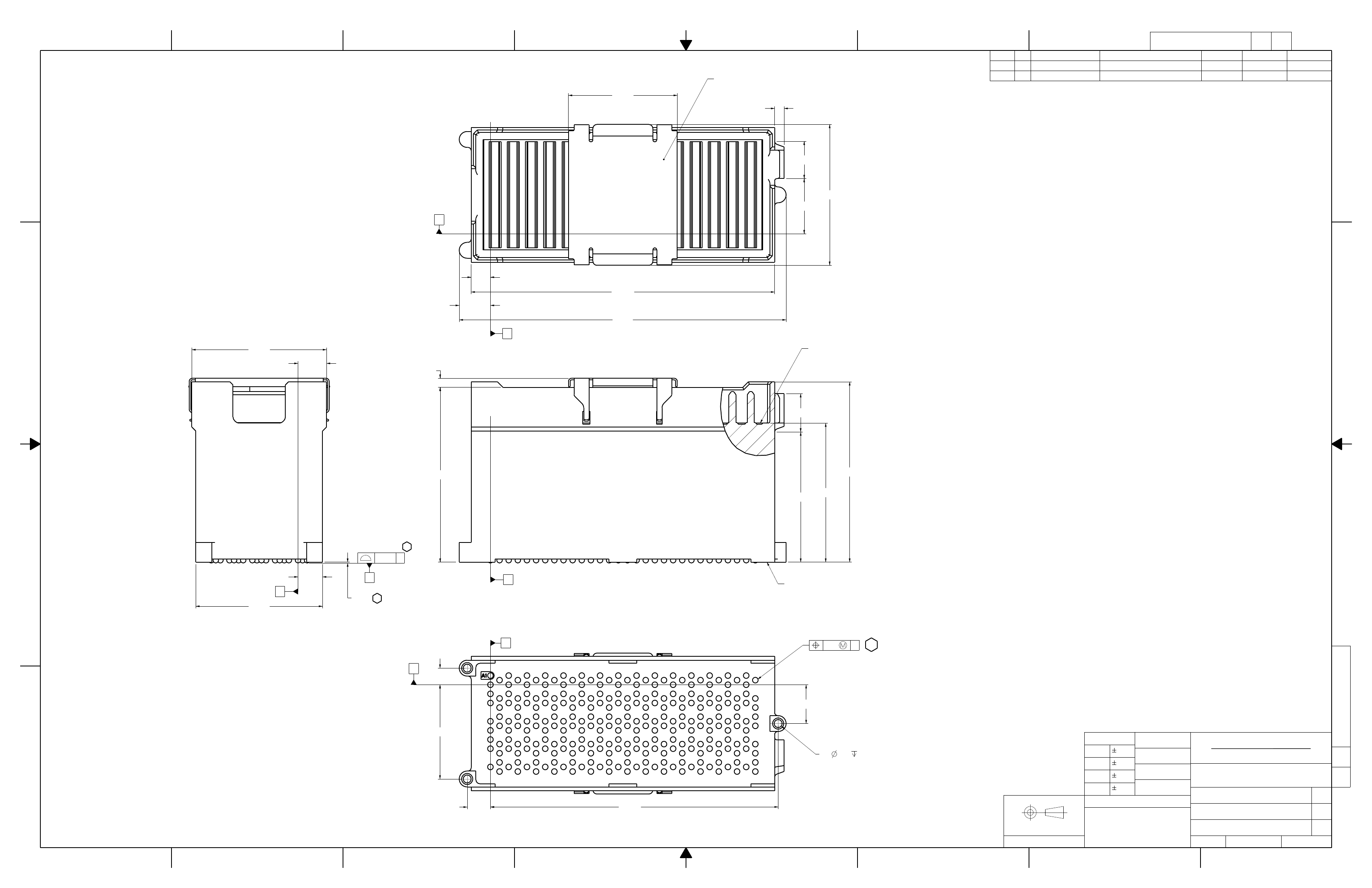

RECEPTACLE ASSEMBLY
SEATING SURFACE
C
4.82
22.00
16.38
17.50
22.70
B
7
0.125 C
3.09
Y
15.95
0.24
0.05
C
5
B
X
PC BOARD
MOUNTING SURFACE
X
0.35
C
8
DRW NO.
Y
C-379-3396-500
2.09
4.89
11.86
A
TOLERANCES
DESIGN 08/26/11
D.MALOON
3X
1.00
2.25
0.0
0.00
0.000
ANGLES
0.25
0.13
-
-
Amphenol TCS
A Division of Amphenol Corporation
200 Innovative Way, Nashua, NH 03062 603.879.3000
TITLE
SH
DRAWN 8/20/14
2
M.CHARETH
M.CHARETH
CHK 8/20/14
REV
PLUG ASSEMBLY, 15 WAFERS
InfinX 4 PAIR, 17.5 MM HIGH
A
APVD 8/20/14
D.McNAMARA
PART NO.
2X 2.93
36.23
INTERPRET PER ASME Y14.5M
UNLESS OTHERWISE SPECIFIED DIMENSIONS
ARE IN MM, DECIMAL MARKER IS A PERIOD
SEE TABLE 1
C-379-3396-500
PART
Q1155-PLUG-ASSY-4X17_5X15-VC
DRAWING
C-379-3396-500
N/A
REV
REV
DRAWING NO.
CODE IDENT 31413
8
7
6
5
4
3
CUSTOMER USE
DRAWING
2
A
1.5
***
SIZE D
SCALE 5/1
SHEET 2 OF 4
1
8
7
6
5
4
3
DRW NO.
C-379-3396-500
BY
M.CHARETH
SH
3
REV
A
APPROVED
D.McNAMARA
ZONE REV
ALL
SCR NUMBER
DESCRIPTION
NEW RELEASE
DATE
8/20/14
D
D
CONNECTOR SIDE OF BOARD
2X 1.50
CONNECTOR OUTLINE
C
X (GND): 10.925
W (GND): 10.350
V (SIG): 9.775
T (SIG):
S (GND):
R (GND):
Q (SIG):
8.625
8.050
7.475
6.900
ROW 29
ROW 1
ROW 2
ROW 30
ROW 3
C
3X R1.00
16.00
N (SIG): 5.750
M (GND): 5.175
L (GND): 4.600
K (SIG): 4.025
H (SIG): 2.875
G (GND): 2.300
F (GND): 1.725
E (SIG): 1.1500
C (SIG): 0
B (GND): 0.575
A (GND): 1.150
Y
B
(10.93)
15.95
4
3X 1.00
DRILLED HOLE
0.575
TYP
1.150
TYP
4.89
(1.15) TYP
SIGNAL TO SIGNAL
2.09
3.09
6.00
B
1.15
DRW NO.
2X 0.76
FIDUCIAL
2.43
2.30
14X 2.30 = (32.20)
33.35
38.20
1.45
36.23
36.50
TOLERANCES
DESIGN 08/26/11
C-379-3396-500
2X 2.93
3.50
A
D.MALOON
0.0
0.00
0.000
0.25
0.13
-
-
Amphenol TCS
A Division of Amphenol Corporation
200 Innovative Way, Nashua, NH 03062 603.879.3000
TITLE
SH
DRAWN 8/20/14
3
M.CHARETH
M.CHARETH
CHK 8/20/14
REV
PLUG ASSEMBLY, 15 WAFERS
InfinX 4 PAIR, 17.5 MM HIGH
A
X
ANGLES
APVD 8/20/14
D.McNAMARA
PART NO.
6

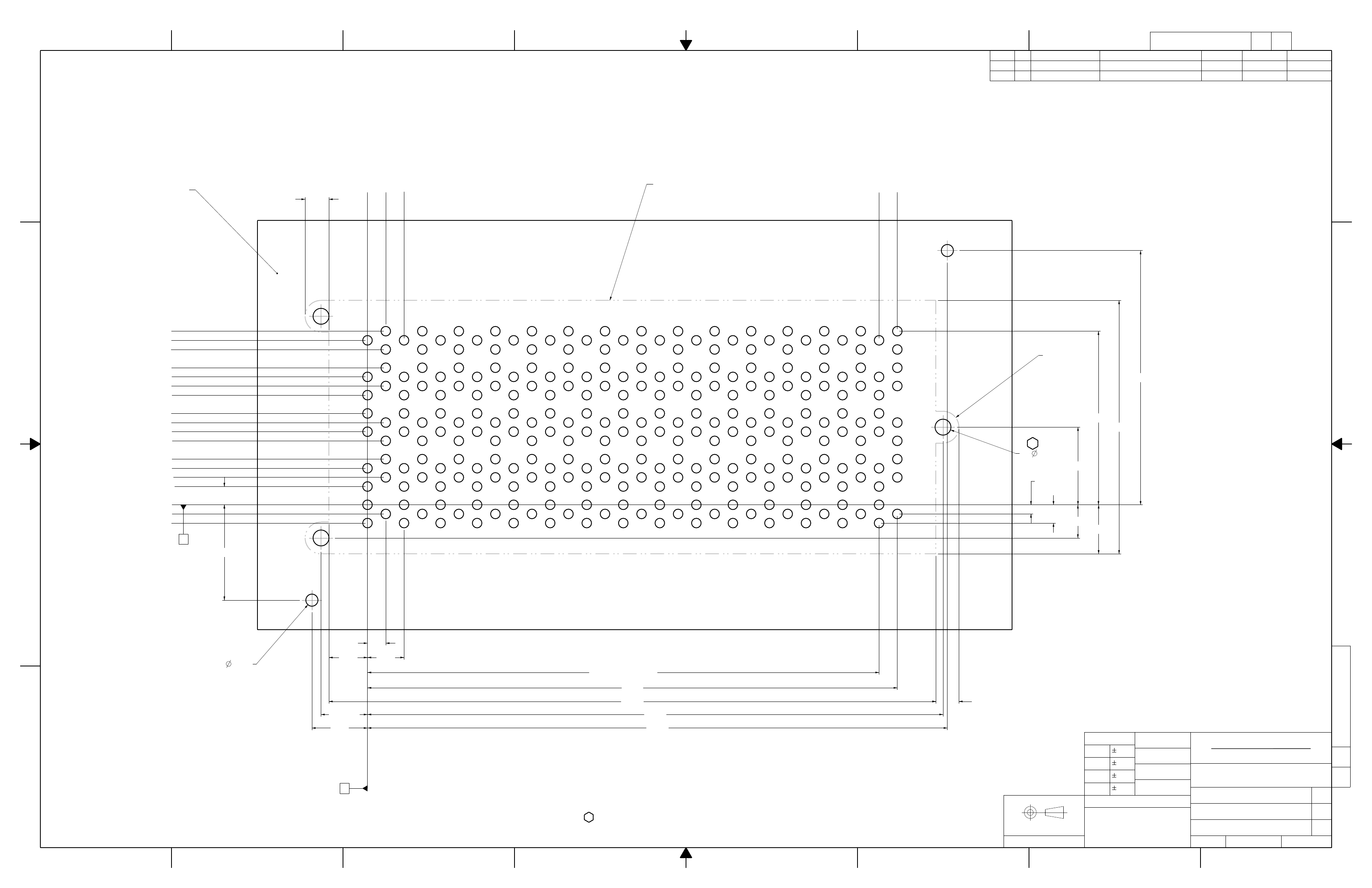

PAD LAYOUT
SCALE 10/1
INTERPRET PER ASME Y14.5M
UNLESS OTHERWISE SPECIFIED DIMENSIONS
ARE IN MM, DECIMAL MARKER IS A PERIOD
SEE TABLE 1
C-379-3396-500
PART
Q1155-PLUG-ASSY-4X17_5X15-VC
DRAWING
C-379-3396-500
N/A
REV
REV
DRAWING NO.
CODE IDENT 31413
8
7
6
5
4
3
CUSTOMER USE
DRAWING
2
A
1.5
***
SIZE D
SCALE 3/1
SHEET 3 OF 4
1
8
7
6
5
4
3
DRW NO.
C-379-3396-500
BY
M.CHARETH
SH
4
REV
A
APPROVED
D.McNAMARA
ZONE REV
ALL
SCR NUMBER
DESCRIPTION
NEW RELEASE
DATE
8/20/14
CONNECTOR SIDE OF BOARD
CONNECTOR OUTLINE
D
D
10.866
10.409
9.675
8.725
7.991
7.534
6.800
5.850
C
5.116
4.659
3.925
2.975
2.241
1.784
1.050
0.100
0
0.634
1.091
Y
C
B
2.30
0.668
X
SEE DETAIL
A
14X 2.30 = (32.20)
B

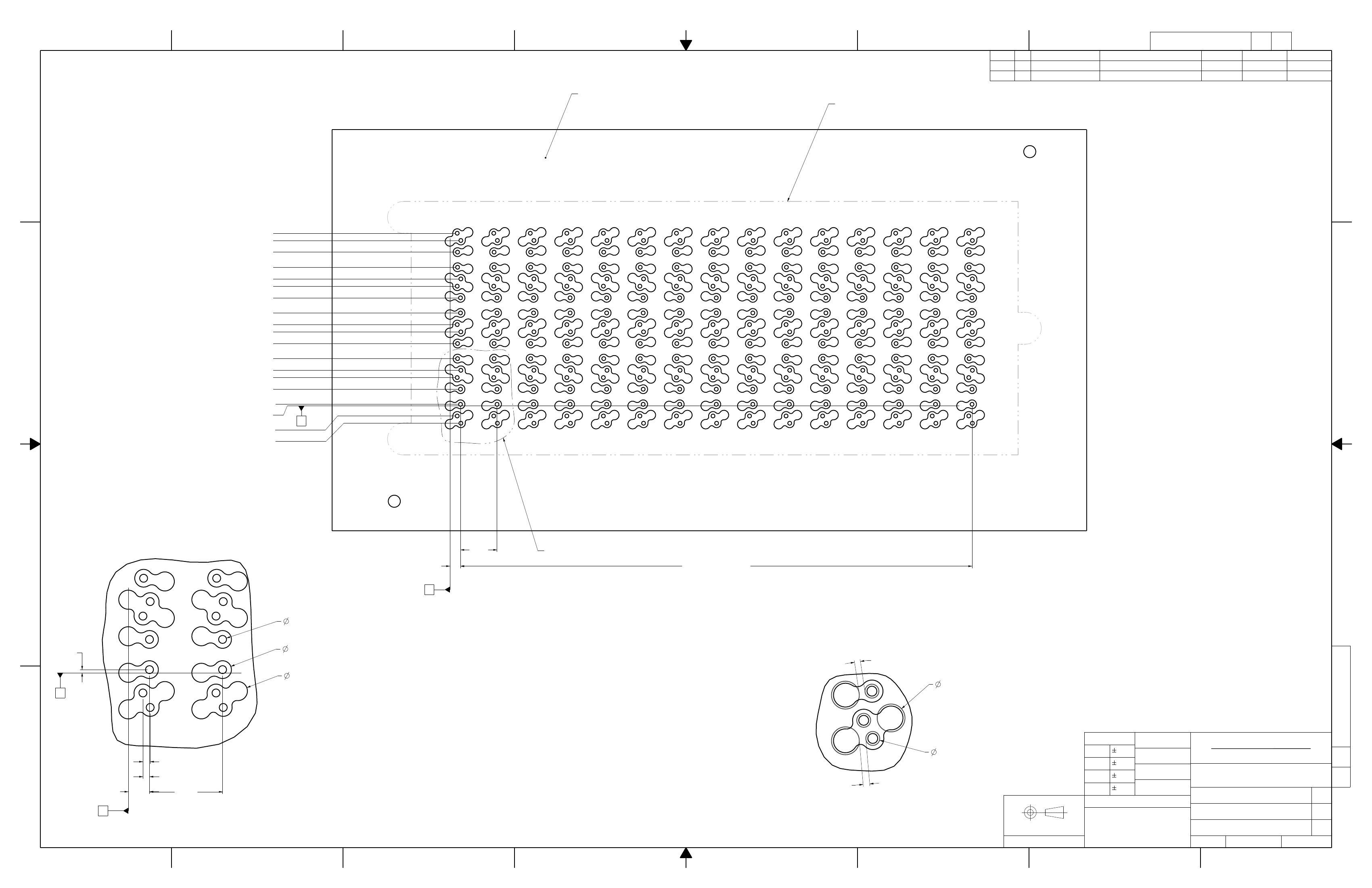

VIA LAYOUT
0.25 HOLE
ALL VIAS
(0.10)
0.56 PAD
ALL VIAS
0.60 PAD
ALL GROUNDS
AND SIGNALS
SCALE 10/1
DRW NO.
0.15
0.70 SOLDER
MASK APERTURE
ALL PADS
C-379-3396-500
Y
TOLERANCES
DESIGN 08/26/11
D.MALOON
A
0.228
0.207
(0.668)
X
(2.30)
0.17
0.35 SOLDER
MASK APERTURE
ALL VIAS
0.0
0.00
0.000
ANGLES
0.25
0.13
-
-
Amphenol TCS
A Division of Amphenol Corporation
200 Innovative Way, Nashua, NH 03062 603.879.3000
TITLE
SH
DRAWN 8/20/14
4
M.CHARETH
M.CHARETH
CHK 8/20/14
REV
PLUG ASSEMBLY, 15 WAFERS
InfinX 4 PAIR, 17.5 MM HIGH
A
APVD 8/20/14
D.McNAMARA
PART NO.
DETAIL A
SCALE 20/1
SOLDER MASK DETAIL
SCALE 25/1
INTERPRET PER ASME Y14.5M
UNLESS OTHERWISE SPECIFIED DIMENSIONS
ARE IN MM, DECIMAL MARKER IS A PERIOD
SEE TABLE 1
C-379-3396-500
PART
Q1155-PLUG-ASSY-4X17_5X15-VC
DRAWING
C-379-3396-500
N/A
REV
REV
DRAWING NO.
CODE IDENT 31413
8
7
6
5
4
3
CUSTOMER USE
DRAWING
2
A
1.5
***
SIZE D
SCALE 3/1
SHEET 4 OF 4
1
