D22042LP: DescriptionToggle Switch, 4PDT, On-on, 12 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size1MB，10 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

D22042LP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D22042LP	-	-	View	Buy Now

D22042LP Overview

Toggle Switch, 4PDT, On-on, 12 PCB Hole Cnt, Solder Terminal, Toggle Actuator, Through Hole-straight,

D22042LP Parametric

Parameter Name	Attribute value
Brand Name	NKK Switches
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.764 inch
Actuator material	BRASS
Actuator type	TOGGLE
body width	14.4018 mm
body height	13.8938 mm
Body length or diameter	22.606 mm
Nozzle length	0.24 inch
Casing type	M6P0.75
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD
Contact (AC) maximum rated power R load	0.4VA@48VAC
Contact function	ON-ON
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PCB hole count	12
surface mount	NO
switch function	4PDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au)
Terminal length	0.142 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

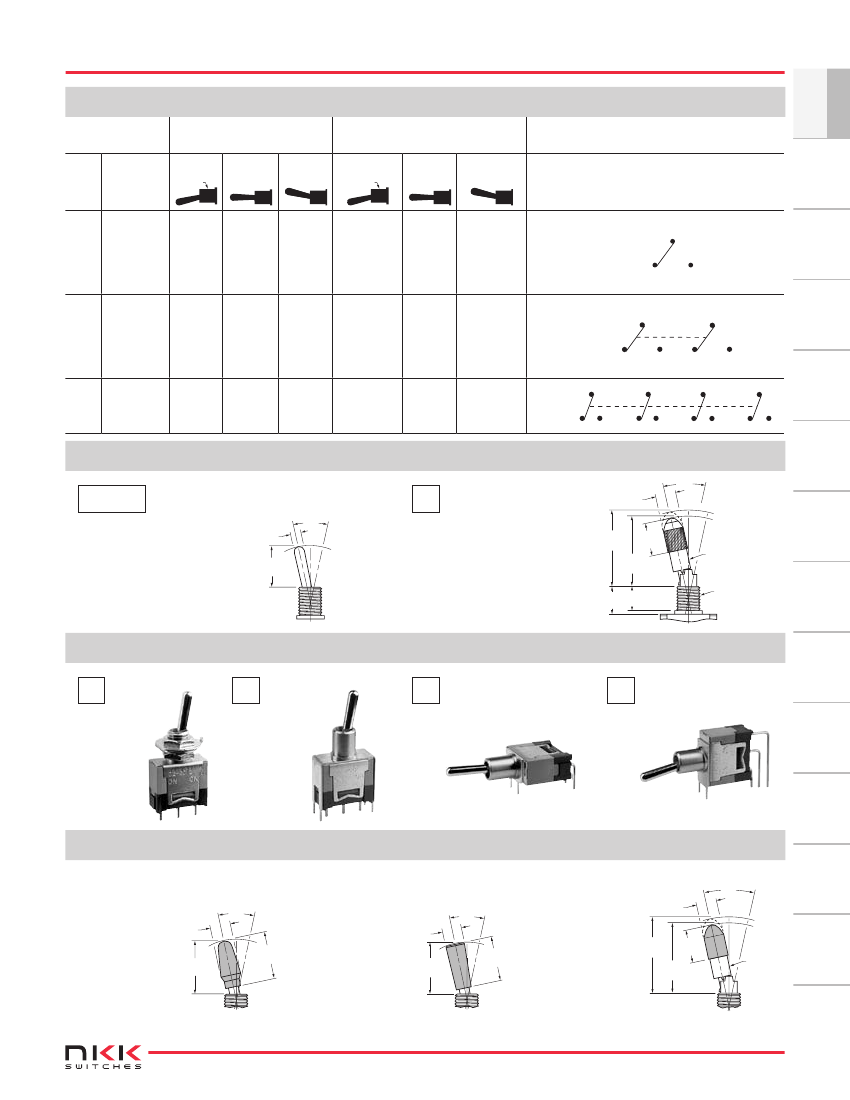

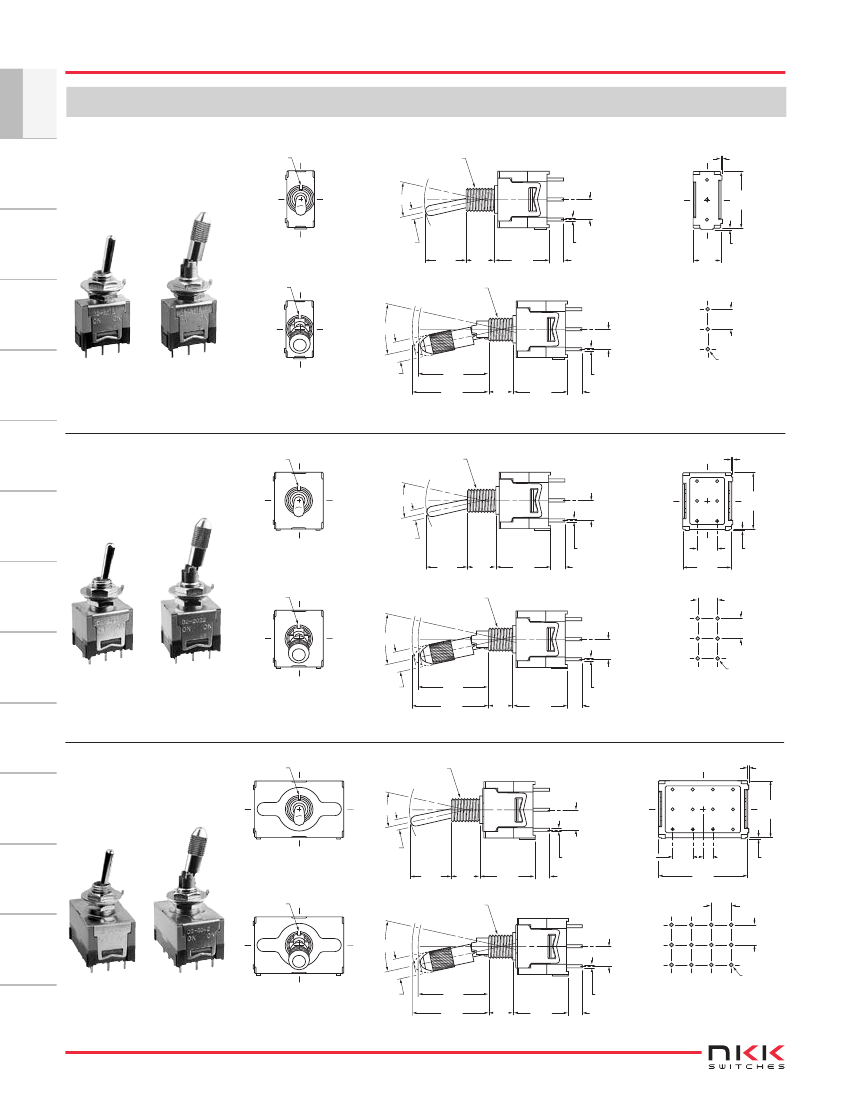

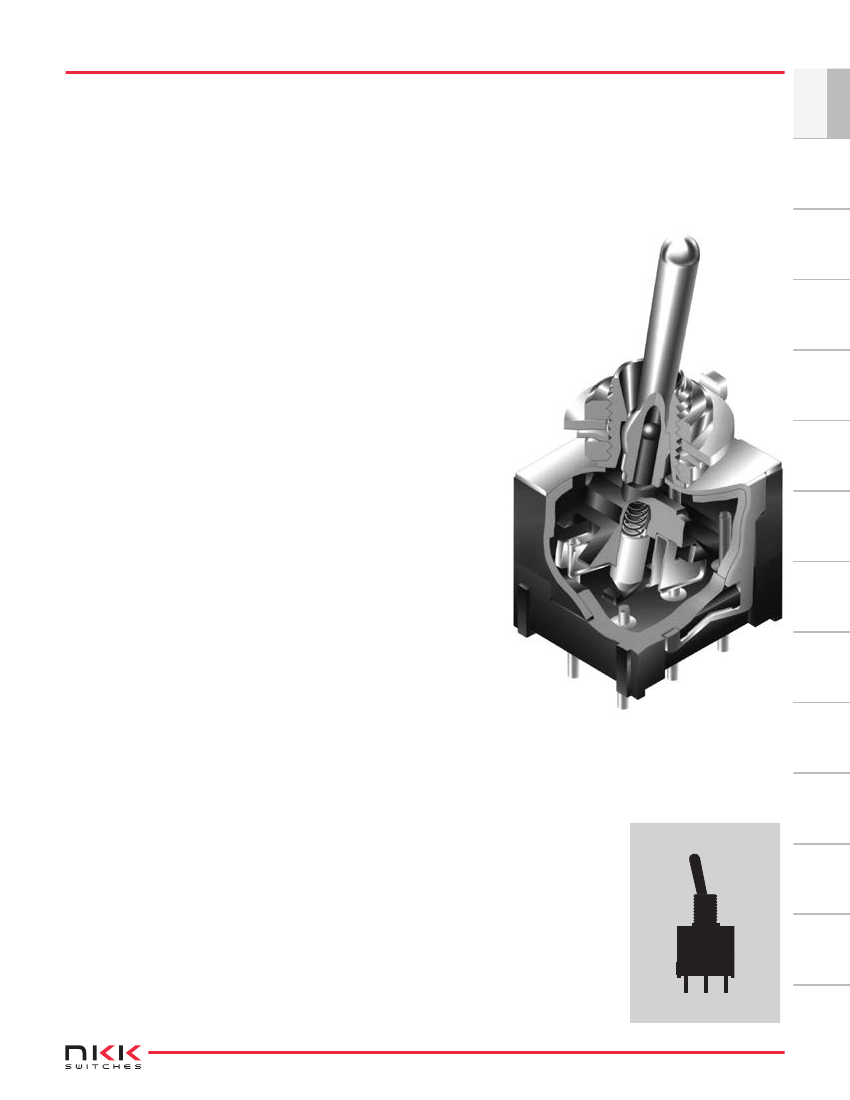

Series D2

Toggles

PCB Mount Miniature Toggles

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Logic Level:

0.4VA maximum @ 48V AC/DC maximum

(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 48V)

Note: Find additional explanation of operating range in Supplement section.

Pushbuttons

Programmable Illuminated PB

Other Ratings

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Contact Timing:

Angle of Throw:

50 milliohms maximum

1,000 megohms minimum @ 500V DC

1,000V AC minimum between contacts for 1 minute minimum;

1,500V AC minimum between contacts & case for 1 minute minimum

100,000 operations minimum for bat lever models

50,000 operations minimum for locking lever models

50,000 operations minimum

Nonshorting (break-before-make)

24°

Keylocks

Materials & Finishes

Slides

Toggle/Lever:

Bushing:

Support Bracket:

Housing:

Base:

Movable Contacts:

Stationary Contacts:

Terminals:

Brass with chrome plating

Brass with nickel plating

Straight PC: phosphor bronze with tin plating; right angle & vertical: brass with tin plating

Polybutylene terephthalate (PBT) (UL94V-0)

1- and 2-pole GFR polyamide (UL94V-0); 4-pole liquid crystal polymer (LCP) (UL94V-0)

Phosphor bronze with gold plating

Brass with gold plating

Rotaries

Environmental Data

Tactiles

Operating Temp Range:

Humidity:

Vibration:

Shock:

–10°C through +70°C (+14°F through +158°F)

90 ~ 95% humidity for 240 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Tilt

PCB Processing

Soldering:

Cleaning:

Wave Soldering recommended. See Profile A in Supplement section.

Manual Soldering: 1- & 2-pole: 3 seconds maximum @ 350°C maximum;

4-pole: 4 seconds maximum @ 410°C maximum

Hand clean locally using alcohol based solution.

See Cleaning specifications in Supplement section.

Indicators

Touch

Standards & Certifications

Flammability Standards:

Supplement

Accessories

UL94V-0 rated housing & base

The D2 Series toggles have not been tested for UL recognition or CSA certification.

These switches are designed for use in a low-current, logic level circuit.

When used as intended in a logic level circuit, the results do not produce hazardous energy.

A24

www.nkkswitches.com

3/8/17
