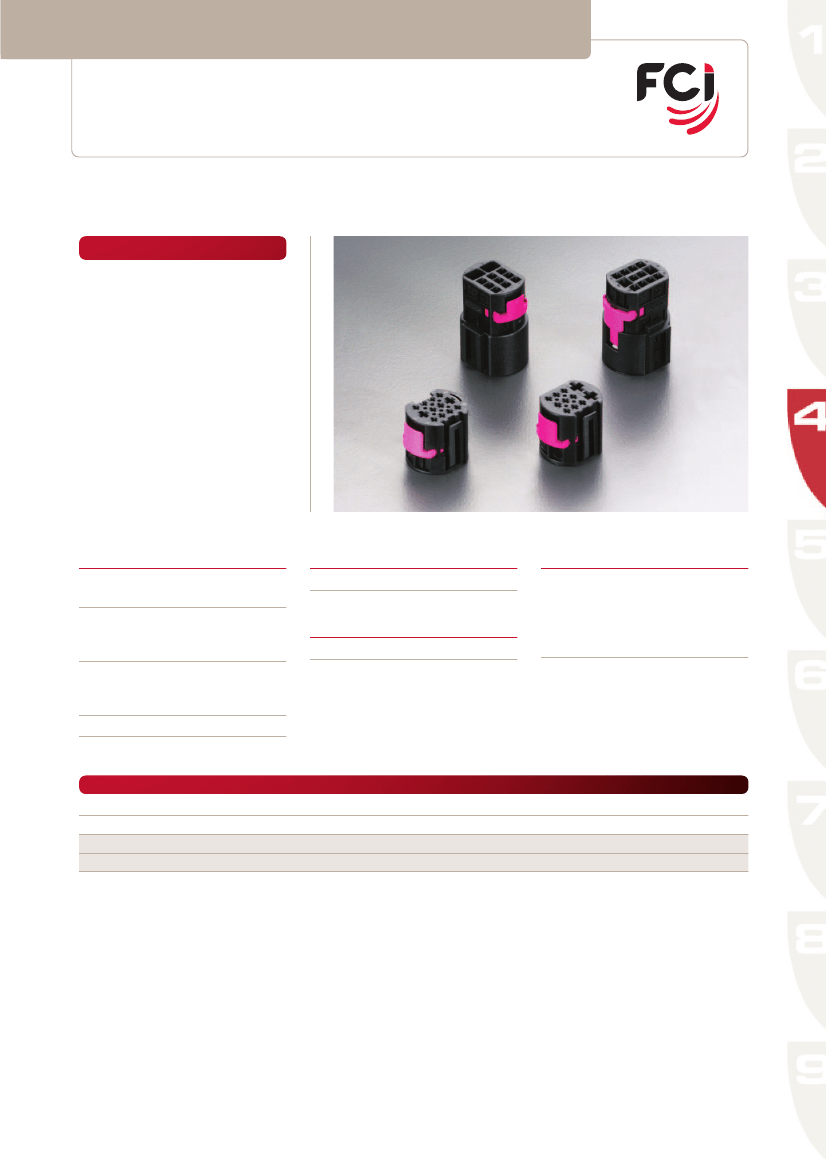

Instrument panel and cockpit connectors
Coupling connectors
DCS-2 / HPCS / 4.8 mm
11 & 12 way coupling housings for 1.5 + 2.8 + 4.8 mm terminals
Features
•
High density male and female
•
•
•
•
•
connector
Tripple row connector 4 x 5.2mm
pitch
Lateral secondary lock for terminal
position assurance (T.P.A)
Go-No-Go housing locking principle
Mechanical polarization
12 way male housing can be
equipped with a shorting clip
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
-
-
-
-
Connector compatibility
•
Usable terminals:
DCS-2 1.5 mm terminals
DCS-2 2.8 mm male terminals
4.8 mm terminals
HPCS 2.8 mm female terminals
•
Contact retention force:
> 55 N for DCS-2 1.5 mm terminals
> 80 N for DCS-2 2.8 mm terminals
Tooling
•
Mini applicator:
Consult us
•
Contact insertion force:
< 10 N for DCS-2 1.5 mm terminals
< 15 N for DCS-2 2.8 mm terminals
•
Connector mating force: Consult us
Part Numbers
3 023 40 01
3 033 11 01
6 023 13 01
6 033 00 01
No. of position
11
11
12
12
Terminal size
9 x [1.5 mm] + 2 x [4.8 mm]
9 x [1.5 mm] + 2 x [4.8 mm]
10 x [1.5 mm] + 2 x [2.8 mm]
10 x [1.5 mm] + 2 x [2.8 mm]
Type
Female housing
Male housing
Female housing
Male housing
Colour
Black
Black
Black
Black
4.63
Rev 06/04
Instrument panel and cockpit connectors
Coupling connectors
DCS-2 / HPCS / 4.8 mm
11 & 12 way coupling housings for 1.5 + 2.8 + 4.8 mm terminals

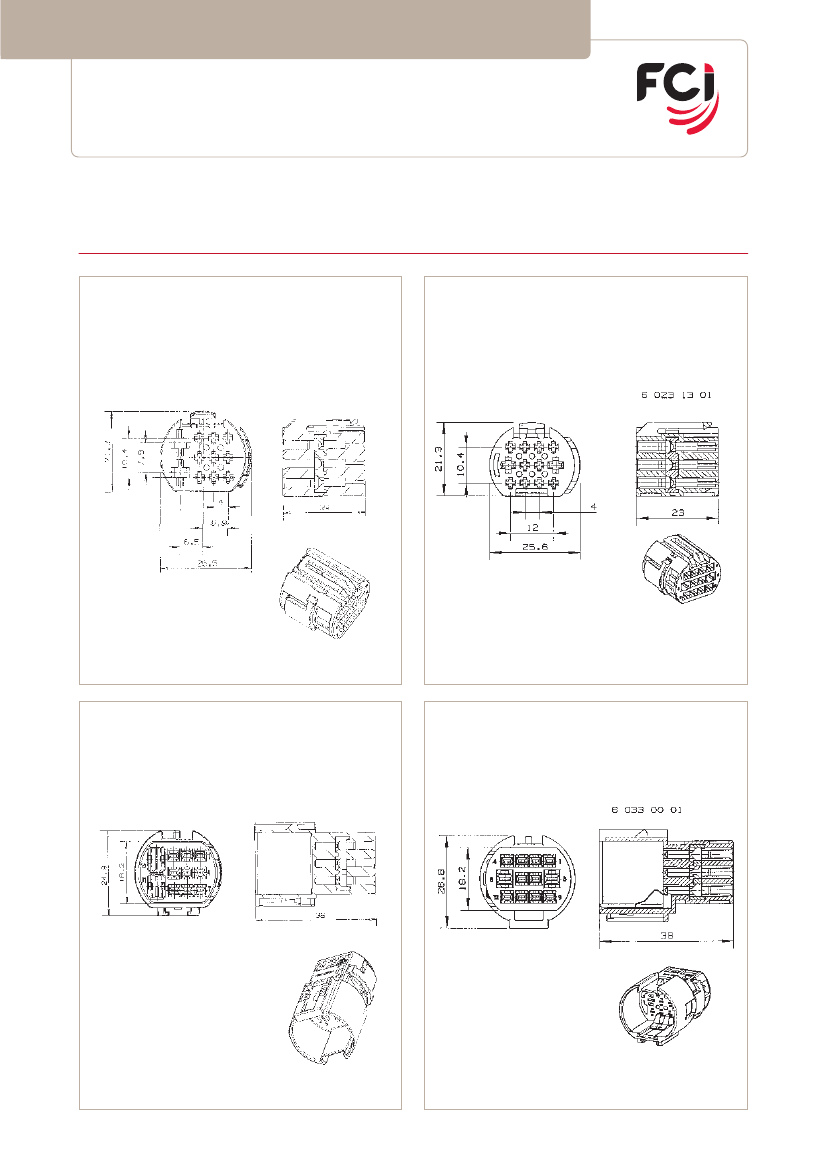

Dimensional characteristics
11 way female housing
12 way female housing
11 way male housing
12 way male housing
4.64
Rev 06/04
Product Detail Page
Page 1 of 2
Direct Links
Cross Reference
RoHS/LF P/N search
...
Start > Search=60231301*
>
60231301
60231301
Assistant
Add to Favorites
Document & Drawing search
Application tooling
Services
Contact us
Distributor list
Pricing request
Order samples
Literature
Brochures & catalogs
Product documentation
Technical library
60231301
12 way coupling Female Housing
Email Datasheet
Print Datasheet
...
FCI Brings You More
Customer
Drawing
Contact our sales/technical support
Sample request
Price request
...
Mating Half
60330001
Specifications
Terminal 1
Type
Terminal 2
Type
Other
Features
General Physical
Environmental
General
Application
Ways
Coding version
Product Type
Wire to Wire
12
Black
Housing
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6023130... 11/23/2007
Product Detail Page
Page 2 of 2
Coding
Family
Yes
Wire to Wire
Mechanical Polarization
Lateral Secondary Lock for Terminal Position Assurance
(T.P.A.)
Go - No - Go Housing Locking Principle
High Density Connector
Yes
DCS-2
1.5 mm
No
10x1.5+2x2.8
Black
PBT
-40°C to +120°C
DCS-2 Female 1.5 mm Terminal
10
< 10N
4x5.2 mm
> 55N
DCS-2 Female 2.8 mm Terminal
2
< 15N
> 80N
Yes
Female
Displayed data is for information purposes only.
For more information, please contact your local sales office.
The supply of some products might be limited to some
customers.
Features
Hybrid
Main Terminal family
Main Terminal size
Sealed
Terminal Size
Physical
Color
Material
Temperature (Range)
Terminal 1 Type
Terminal type 1
Ways for Terminal Type 1
Contact insertion force for Terminal Type 1
Contact Pitch for Terminal Type 1
Retention force (Contact) for Terminal Type 1
Terminal 2 Type
Terminal type 2
Ways for Terminal Type 2
Contact insertion force for Terminal Type 2
Retention force (Contact) for Terminal Type 2
Environmental
IMDS
Other Features
Type
Disclaimer
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6023130... 11/23/2007
