70447-3002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70447-3002

70447-3002: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size197KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

70447-3002 Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,

70447-3002 Parametric

Parameter Name	Attribute value
Objectid	2144793635
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.7
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48

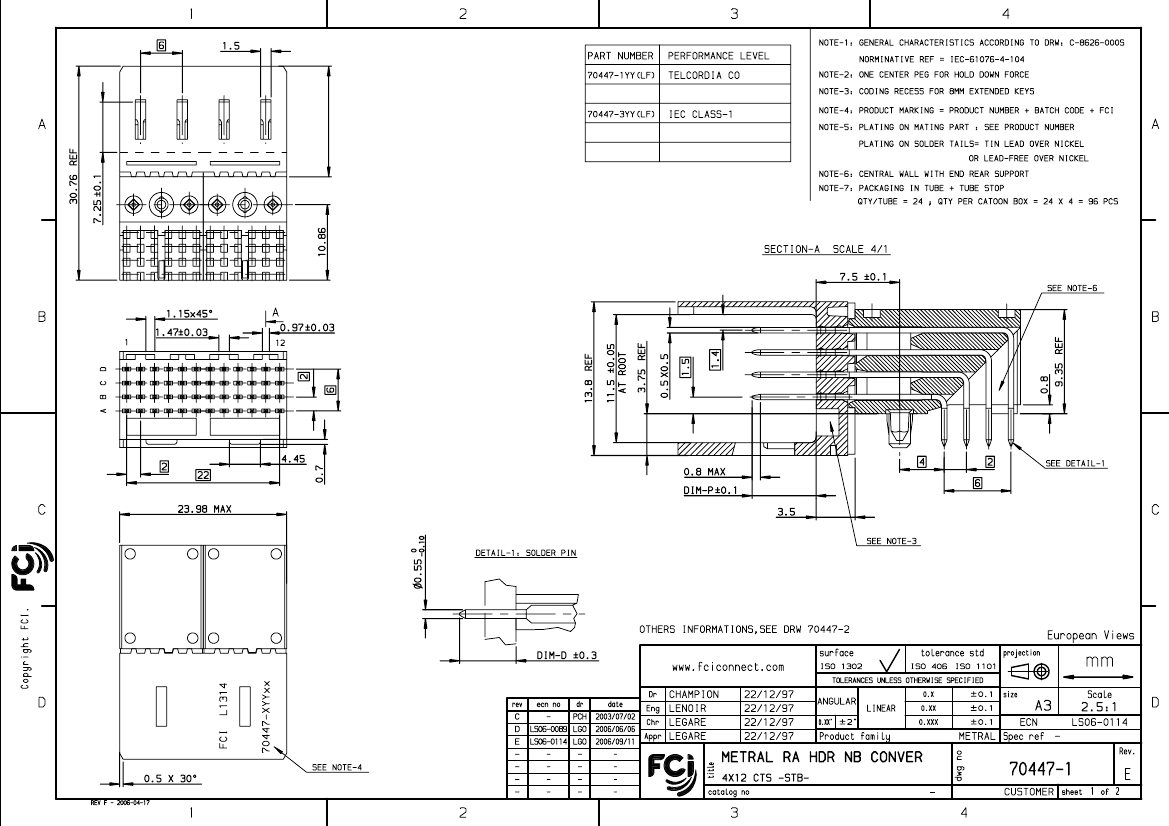

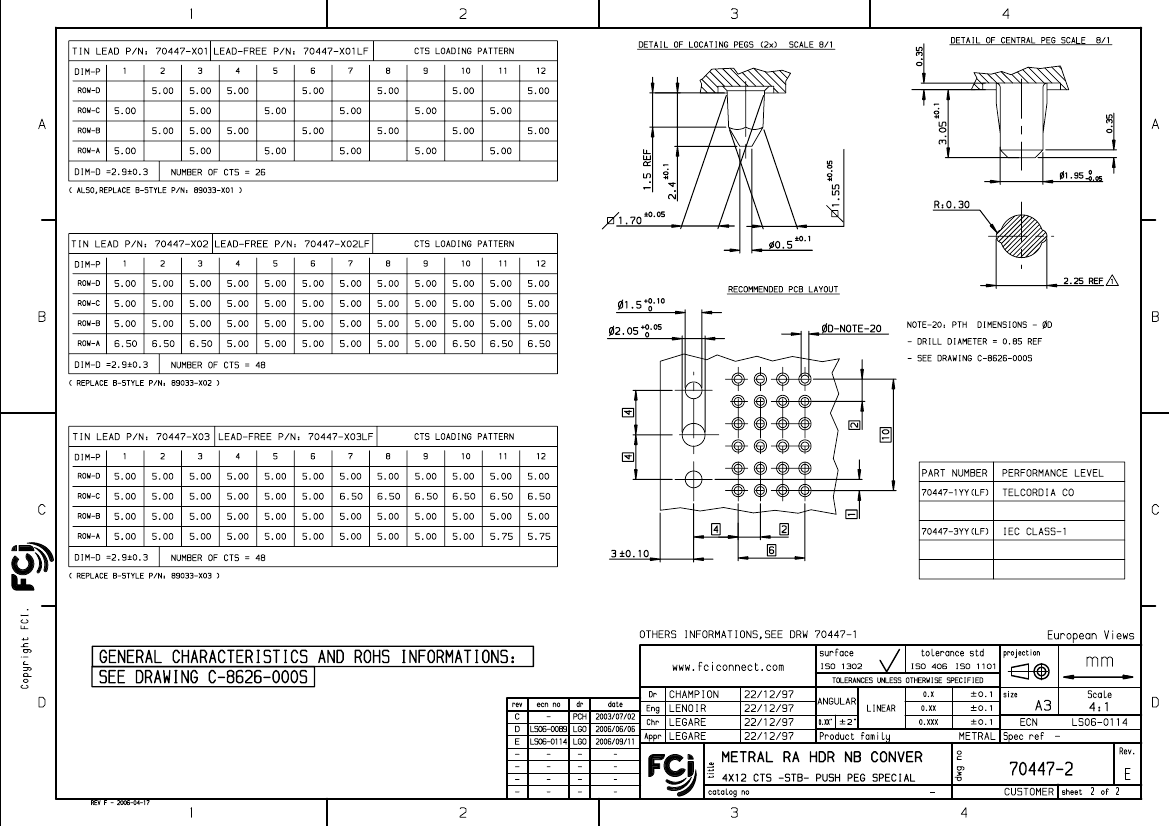

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Sep 13, 2006

70447-3002 Related Products

	70447-3002	70447-3002LF	70447-3001	70447-3001LF	70447-3003LF	70447-3003	70447-1003	70447-1003LF	70447-1002LF	70447-1002
Description	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 26 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal,
Objectid	2144793635	2144793634	2144793633	2144793632	2144793636	2144793637	2144793631	2144793630	2144793628	2144793629
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
YTEOL	8.7	8.7	8.7	8.7	8.7	8.7	8.7	8.7	8.7	8.7
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	48	26	26	48	48	48	48	48	48
