54LS266/BDAJC

Description
XNOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14
Categorylogic    logic
File Size60KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

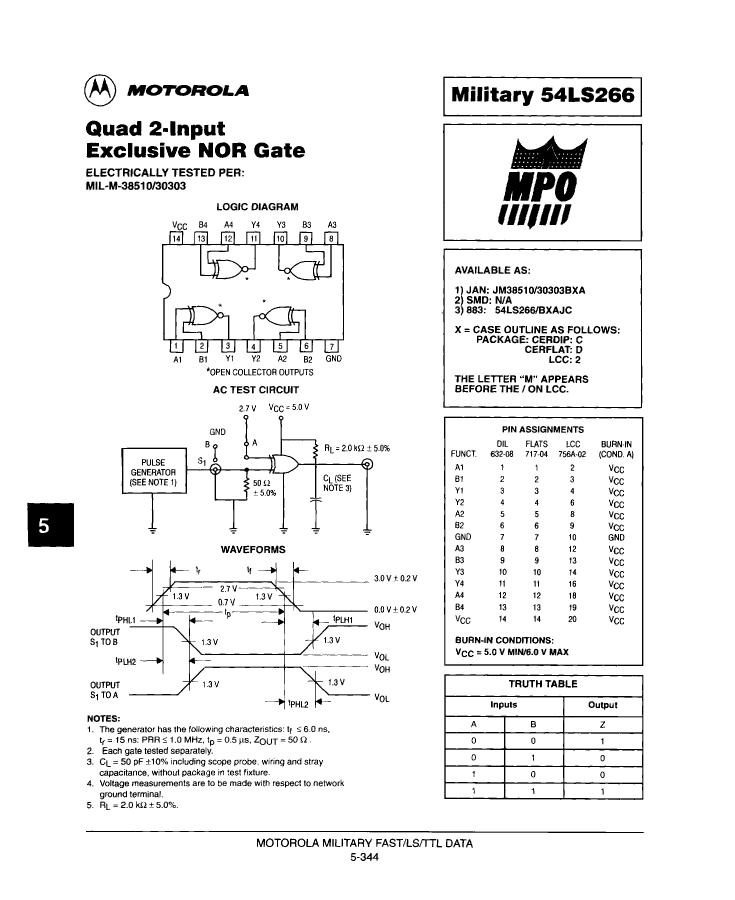

54LS266/BDAJC Overview

XNOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14

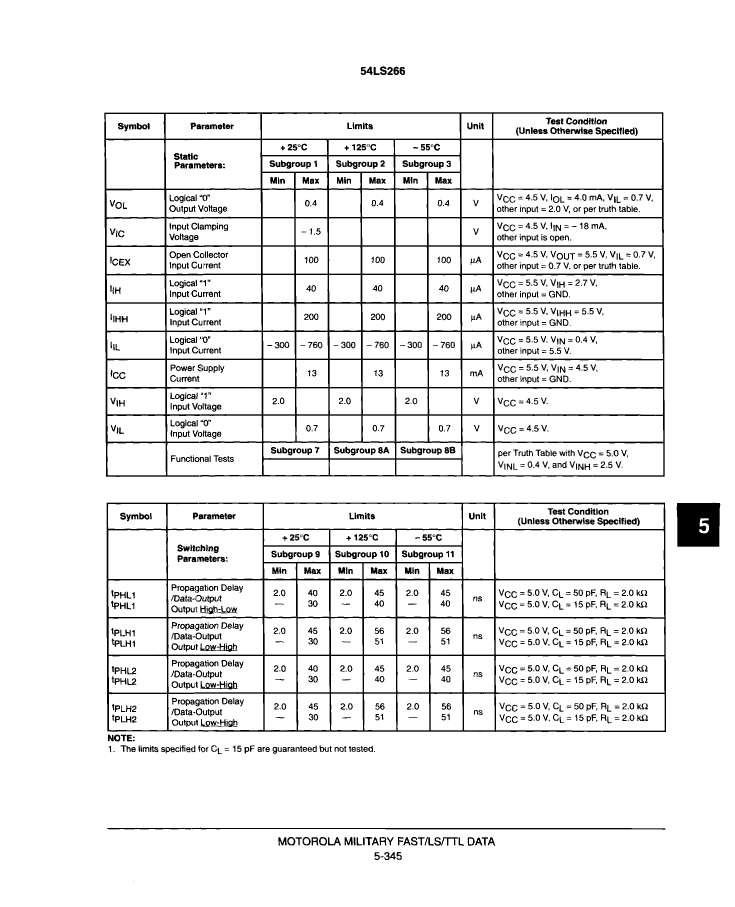

54LS266/BDAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionCERAMIC, FP-14
Reach Compliance Codeunknown
seriesLS
JESD-30 codeR-GDFP-F14
JESD-609 codee0
length9.65 mm
Load capacitance (CL)15 pF
Logic integrated circuit typeXNOR GATE
MaximumI(ol)0.004 A
Number of functions4
Number of entries2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-COLLECTOR
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Maximum supply current (ICC)13 mA
Prop。Delay @ Nom-Sup56 ns
propagation delay (tpd)40 ns
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
Maximum seat height2.15 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width6.415 mm
Base Number Matches1

54LS266/BDAJC Related Products

54LS266/BDAJC 54LS266/BCAJC 54LS266M/B2AJC
Description XNOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14 LS SERIES, QUAD 2-INPUT XNOR GATE, CDIP14, CERDIP-14 LS SERIES, QUAD 2-INPUT XNOR GATE, CQCC20, CERAMIC, LCC-20
Is it Rohs certified? incompatible incompatible incompatible
package instruction CERAMIC, FP-14 DIP, DIP14,.3 CERAMIC, LCC-20
Reach Compliance Code unknown unknown unknown
series LS LS LS
JESD-30 code R-GDFP-F14 R-GDIP-T14 S-CQCC-N20
JESD-609 code e0 e0 e0
length 9.65 mm 19.495 mm 8.885 mm
Load capacitance (CL) 15 pF 15 pF 15 pF
Logic integrated circuit type XNOR GATE XNOR GATE XNOR GATE
Number of functions 4 4 4
Number of entries 2 2 2
Number of terminals 14 14 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output characteristics OPEN-COLLECTOR OPEN-COLLECTOR OPEN-COLLECTOR
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code DFP DIP QCCN
Encapsulate equivalent code FL14,.3 DIP14,.3 LCC20,.35SQ
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form FLATPACK IN-LINE CHIP CARRIER
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 13 mA 13 mA 13 mA
propagation delay (tpd) 40 ns 40 ns 40 ns
Certification status Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 2.15 mm 5.08 mm 1.9 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES NO YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT THROUGH-HOLE NO LEAD
Terminal pitch 1.27 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL QUAD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 6.415 mm 7.62 mm 8.885 mm
Base Number Matches 1 1 1
MaximumI(ol) 0.004 A 0.004 A -
Prop。Delay @ Nom-Sup 56 ns 30 ns -
