54F51/BDA datasheet, PDF - EEWORLD Datasheet

54F51/BDA: DescriptionAND-OR-Invert Gate, TTL, CDFP14,; Categorylogic logic; File Size90KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

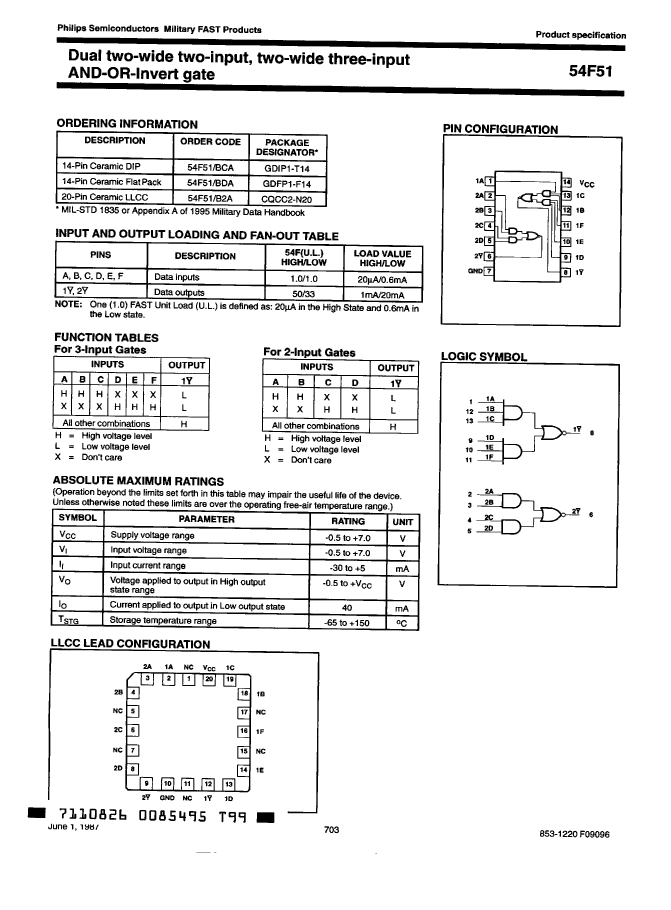

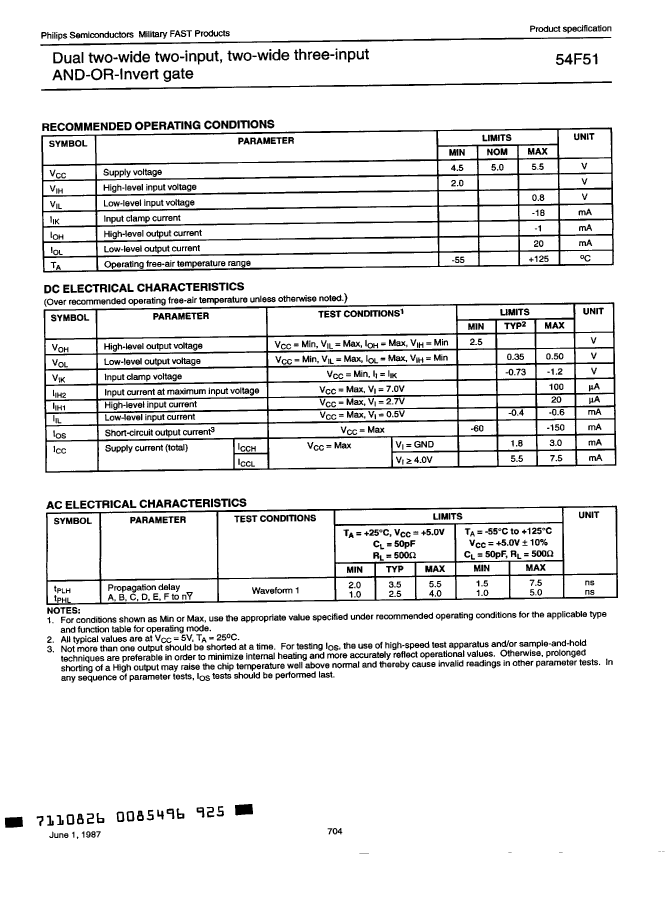

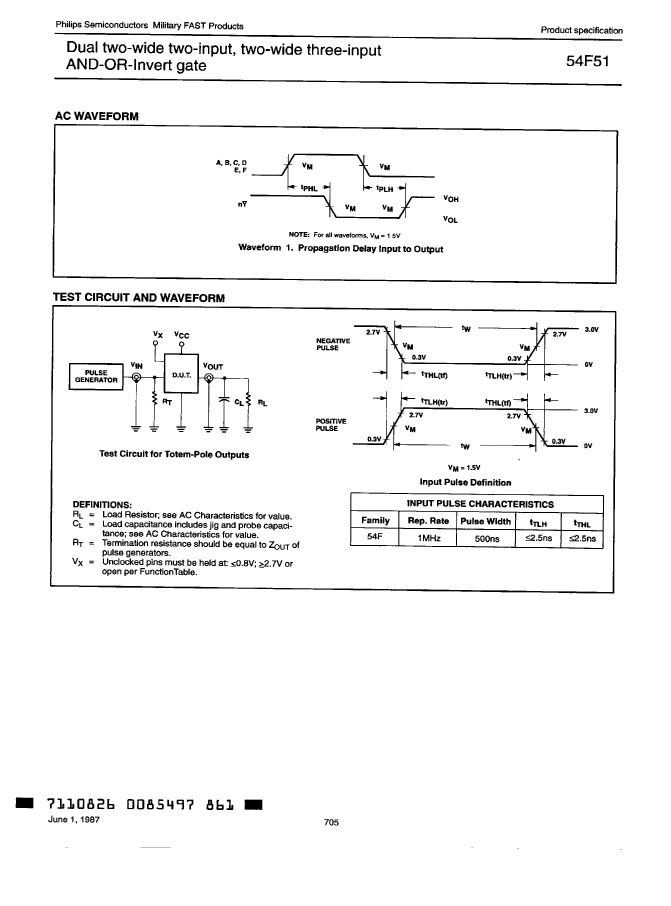

54F51/BDA Overview

AND-OR-Invert Gate, TTL, CDFP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	7.5 mA
Prop。Delay @ Nom-Sup	7.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	54F51/BDA	54F51/BCA	54F51/B2A
Description	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, TTL, CQCC20,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	DIP, DIP14,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDFP-F14	R-XDIP-T14	S-XQCC-N20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A	0.02 A	0.02 A
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DIP	QCCN
Encapsulate equivalent code	FL14,.3	DIP14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	7.5 mA	7.5 mA	7.5 mA
Prop。Delay @ Nom-Sup	7.5 ns	7.5 ns	7.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	-
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
