54LS30/B2AJC datasheet, PDF - EEWORLD Datasheet

54LS30/B2AJC: DescriptionNAND Gate, LS Series, 1-Func, 8-Input, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size101KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

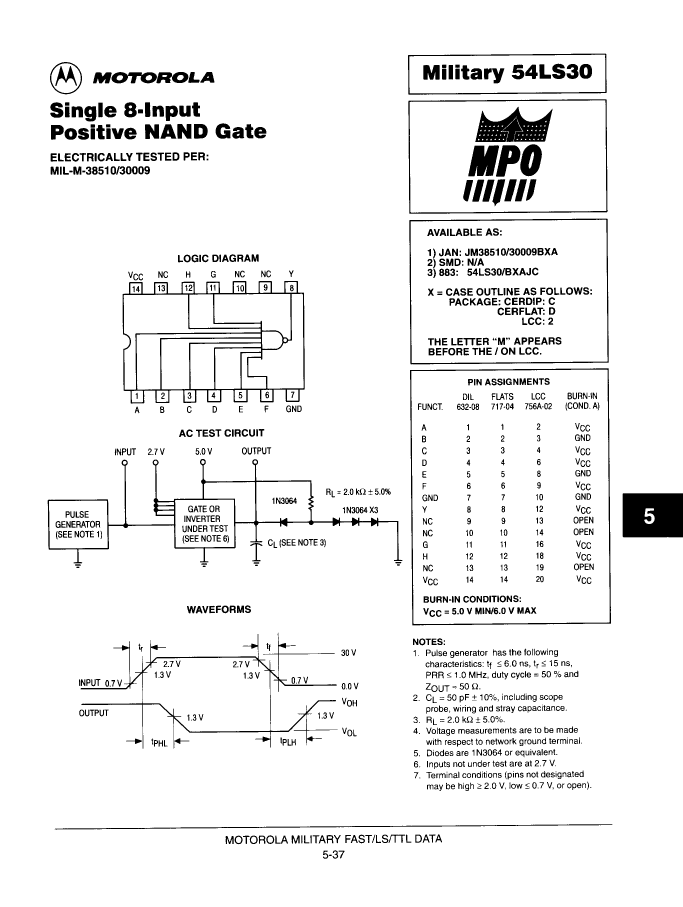

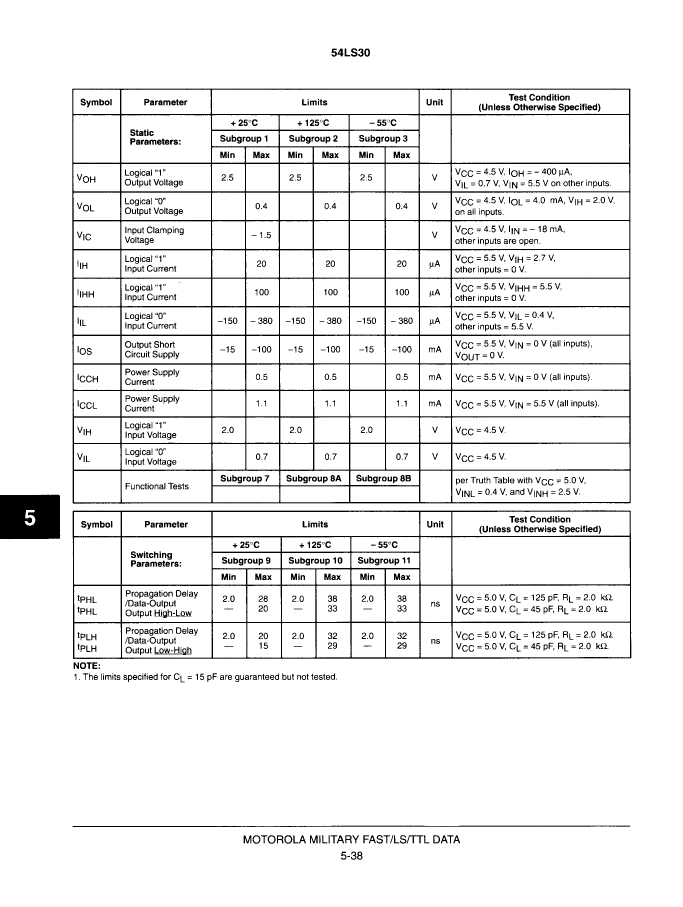

54LS30/B2AJC Overview

NAND Gate, LS Series, 1-Func, 8-Input, TTL, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
series	LS
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.885 mm
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	1
Number of entries	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	1.1 mA
Prop。Delay @ Nom-Sup	20 ns
propagation delay (tpd)	38 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.885 mm
Base Number Matches	1
